What This Product Does

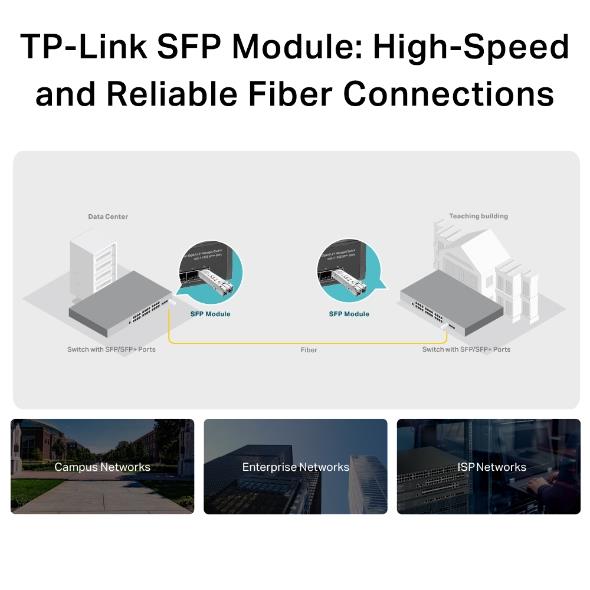

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
- Multi-mode MiniGBIC module
- Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC/SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS, Certification: FCC, CE. Width: 55.4 mm, Depth: 13.7 mm, Height: 12.9 mm
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/accessory/tl-sm311lm/ |
|---|---|
| Category Code | NTM |
| Unit Box Height | 0.04 |
| Unit Box Length | 0.122 |
| Unit Box Width | 0.08 |
| Fiber cable diameters supported (core/cladding) | 50/125/62.5/125 µm |

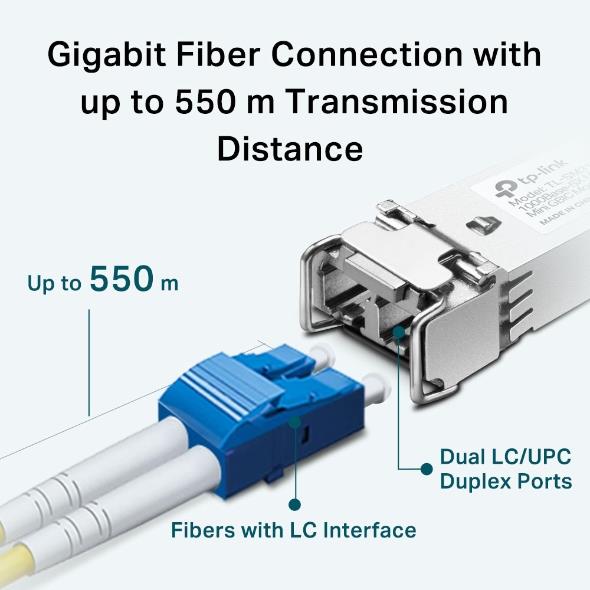

| Fiber optic connector | LC (UPC) |
| Interface type | mini-GBIC/SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Maximum transfer distance | 550 m |
| Multi-mode fiber (MMF) supported | Yes |
| Networking standards | IEEE 802.3z |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | No |
| Wavelength | 850 nm |
| Product colour | Metallic |
| Input voltage | 3.3 V |
| Certification | FCC, CE |
| Compliance certificates | RoHS |

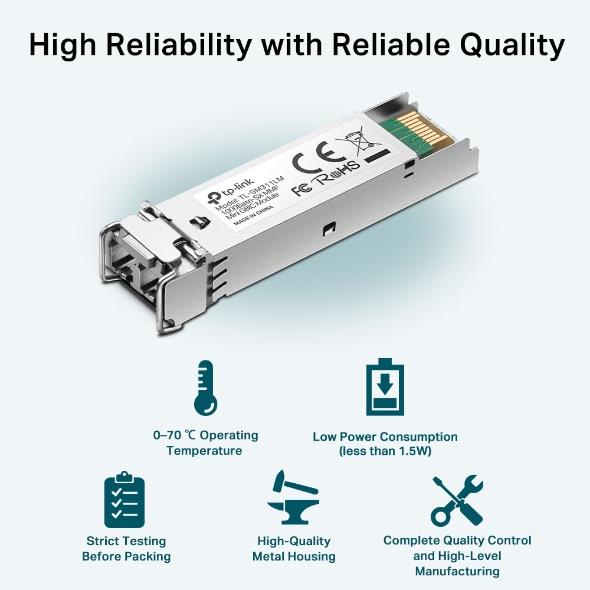

| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 80 °C |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Width | 55.4 mm |
| Quantity per pack | 1 pc(s) |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Package width | 38 mm |
| User guide | Yes |
| Harmonized System (HS) code | 85369010 |
| Model | TL-SM311LM |
| Units per Pallet | 0 |
| Units per Shipping Box | 30 |
| Unit Calculated Volume | 0.0005445 cubm |
| Unit Calculated Weight | 0.09 kg |
