Playback modes
Backup selection,Digital zoom,Forward,Next camera,Pause,Play,Previous camera,Repeat,Shuffle,Stop
Supported network protocols
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled)
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Connected to the third-party network cameras
- Security baseline 2.3

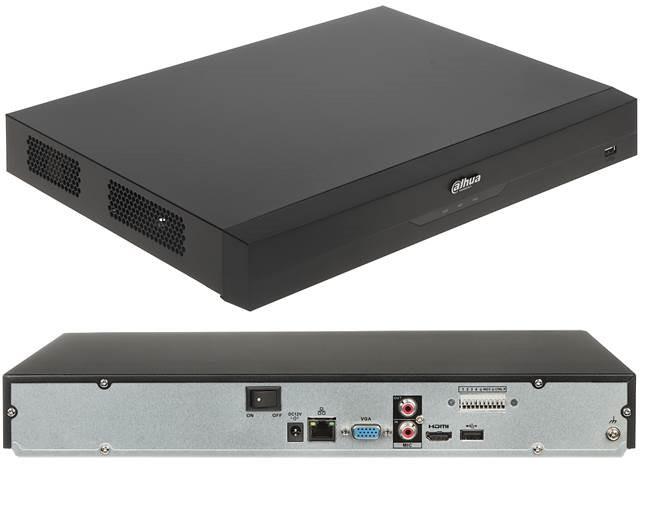

Dahua Technology WizSense NVR4216-EI. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Supported resolutions: 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768. Maximum storage capacity: 6 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm…. Rack capacity: 1U, Product colour: Black, Certification: CE, FCC, UL. Power consumption (typical): 10 W, Output current: 4 A, Output voltage: 12 V
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-EI |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.36 |
| Unit Box Length | 0.435 |
| Unit Box Width | 0.14 |
| Alarm input channels | 4 |
| Backup function | Yes |
| Bit rate | 20000 Kbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| Multi-screen | Yes |
| Number of motion detection zones | 396 |
| Number of users | 128 user(s) |
| On Screen Display (OSD) | Yes |
| Operating system installed | Embedded LINUX |
| Playback controls | Yes |
| PTZ control | Yes |
| Recording modes | Manual,Schedule |
| Recording time | 60 min |
| Supported resolutions | 1920 x 1080 1280 x 1024 1280 x 720 1024 x 768 |
| Two-way talk | Yes |
| Video formats supported | H.264/H.264+/M-JPEG |
| Video input channels | 16 channels |
| Video loss detection | Yes |
| Video motion detection | Yes |
| HDD capacity | 0 GB |
| Maximum storage capacity | 6 TB |
| Number of HDDs supported | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Power over Ethernet (PoE) | No |
| RS-232 interface | Yes |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Certification | CE, FCC, UL |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Processor cores | 2 |
| Output current | 4 A |
| Output voltage | 12 V |
| Power consumption (typical) | 10 W |
| Mobile operating systems supported | Android |
| Operating relative humidity (H-H) | 10 – 93 % |
| Operating temperature (T-T) | -10 – 55 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Depth | 284 mm |
| Height | 53 mm |
| Package depth | 141 mm |
| Package height | 366 mm |
| Package weight | 2760 g |
| Package width | 433 mm |
| Weight | 1510 g |
| Width | 375 mm |
| Model | NVR4216-EI |
| Model name | NVR4216-EI |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.02527 cubm |
| Unit Calculated Weight | 3.02 kg |
