Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search
Certification
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
- Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
- Max. decoding capability: 8 × 1080p@30 fps
- Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth
- Supports IP cameras with a resolution up to 12 MP
- AI by Recorder supports 4-channel SMD Plus
- AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map
- Supports EPTZ, and one-click arming and disarming

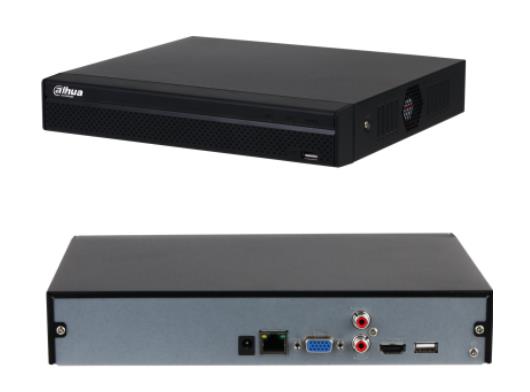

Dahua Technology DHI-NVR4108HS-4KS3. Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 8 channels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Audio output: 1-channel RCA, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;…. Rack capacity: 1U, Product colour: Black, Certification: CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;…. Output current: 2 A, Output voltage: 12DC
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/fr/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4108HS-4KS3 |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.315 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.085 |
| Audio codecs | G.711a; G.711u; PCM; G726 |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Face detection | Yes |
| Input bandwidth | 80 Mbit/s |
| Maximum frame rate | 30 fps |
| Maximum resolution | 3840 x 2160 pixels |
| Multi-screen | Yes |
| Number of simultaneously playbacked channels | 8 channels |
| Operating system installed | Embedded LINUX |
| Output bandwidth | 60 Mbit/s |
| People counting | Yes |
| Snapshot | Yes |
| Supported resolutions | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video codecs | Smart H.265+; H.265; Smart H.264+; H.264 |
| Video formats supported | H.264/H.265/H.265+/MJPG |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Video recording modes | 1080p/2160p/720p |
| HDD interface | SATA |
| Maximum storage capacity | 20 TB |
| Number of HDDs supported | 1 |
| Audio output | 1-channel RCA |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Built-in display | No |
| Output current | 2 A |
| Output voltage | 12DC V |
| Browser supported | Chrome; IE; Safari; Edge; Firefox |
| Mobile operating systems supported | Android/iOS |
| Operating relative humidity (H-H) | 10 – 93 % |
| Operating temperature (T-T) | -10 – 55 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Depth | 232.5 mm |
| Height | 47.6 mm |
| Package depth | 89 mm |
| Package height | 314 mm |
| Package weight | 1380 g |
| Package width | 334 mm |
| Weight | 810 g |
| Width | 260 mm |
| Model | DHI-NVR4108HS-4KS3 |
| Model name | DHI-NVR4108HS-4KS3 |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.01139 cubm |
| Unit Calculated Weight | 1.5 kg |
