Supported resolutions
1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Certification
FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Dahua Lite series NVR is easy to install, cost effective and compatible with a wide variety of third-party devices, providing a great solution for small and medium surveillance systems. It is ideal for home safety, supermarkets, warehouses, educational institutions, and financial institutions.
Functions
- Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database.
- Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
- SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
- AI Search
With AI search, operators can search for videos by the attributes of targets and event types, which helps them to quickly and efficiently investigate where and when targets appeared and events took place.
- Heat Map by Camera
Dahua heat map technology is used to display the crowd density and people appearance probability. Export and display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions.
- ANPR by Camera
With deep learning algorithm, Dahua ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support blocklist/allowlist mode, searching target vehicles from recorded video.
- Quick Pick
Dahua Quick Pick technology can enable users to quickly pick up the human/vehicle targets that they are interested in, which facilitates retrieval from SMD events.
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 80 Mbps
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Connected to the third-party network cameras
- Security baseline 2.3
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4108HS-EI |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.33 |
| Unit Box Width | 0.09 |
| Video input channels | 8 channels |
| Video recording modes | 1080p/720p/960p |
| Maximum resolution | 3840 x 2160 pixels |
| People counting | Yes |
| Multi-screen | Yes |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Video formats supported | H.264/H.264+/H.265/H.265+ |
| Image formats supported | MJPEG |
| Operating system installed | Embedded LINUX |
| Backup function | Yes |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 80 Mbit/s |
| Face detection | Yes |
| Wi-Fi | No |
| Number of HDDs installed | 1 |
| Maximum storage capacity | 16 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | White |
| Power consumption (typical) | 10 W |
| Output current | 2 A |
| Output voltage | 12 V |
| Mobile operating systems supported | Android/iOS |
| Browser supported | Chrome; IE9 and later; Firefox |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 93 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Width | 260 mm |
| Depth | 232.7 mm |
| Height | 47.6 mm |
| Weight | 840 g |
| Package width | 333 mm |
| Package depth | 89 mm |
| Package height | 315 mm |
| Package weight | 1430 g |
| Unit Calculated Weight | 1.5 kg |
| Product Net Weight | 0.84 kg |
| Unit Calculated Volume | 0.01095 cubm |
| Units per Shipping Box | 10 |
| Shipping Box Weight | 15 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 34 cm |
| Shipping Box Depth | 92 cm |
| Shipping Box Width | 35 cm |

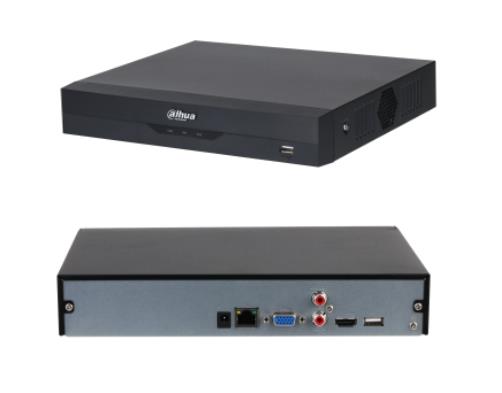

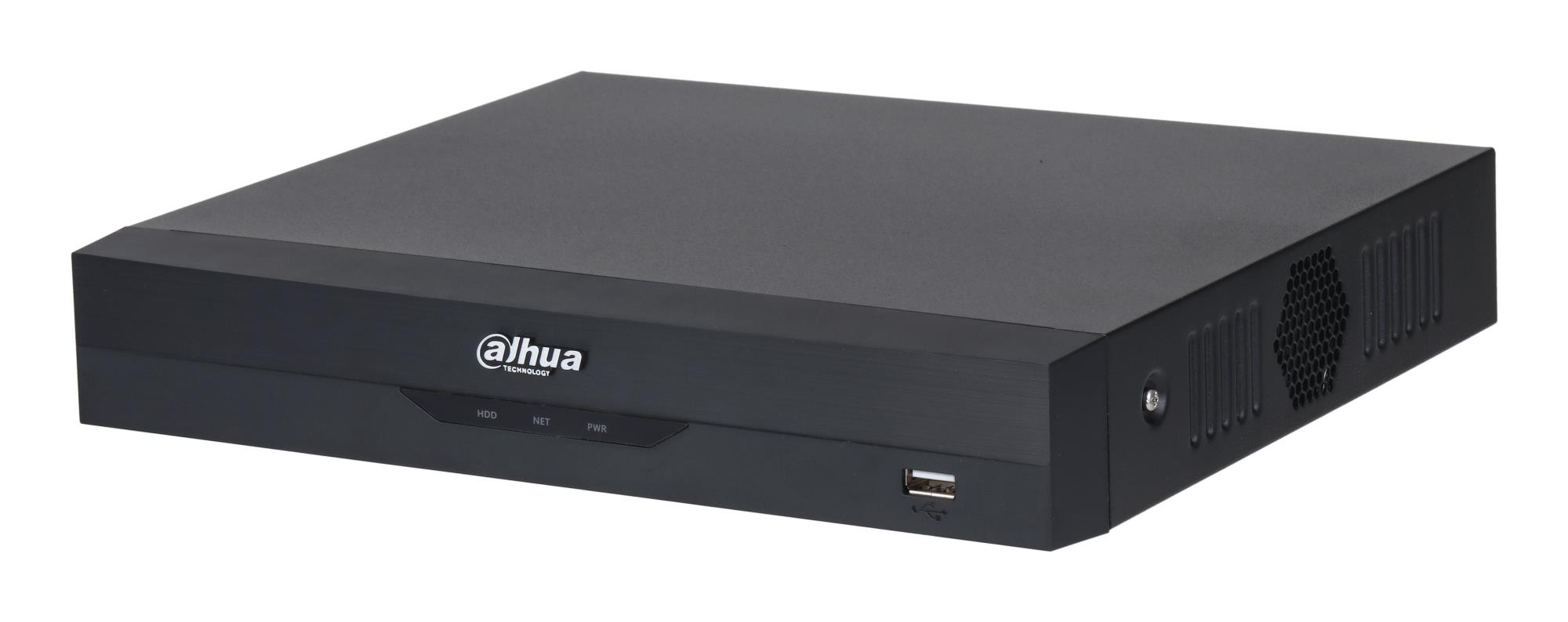

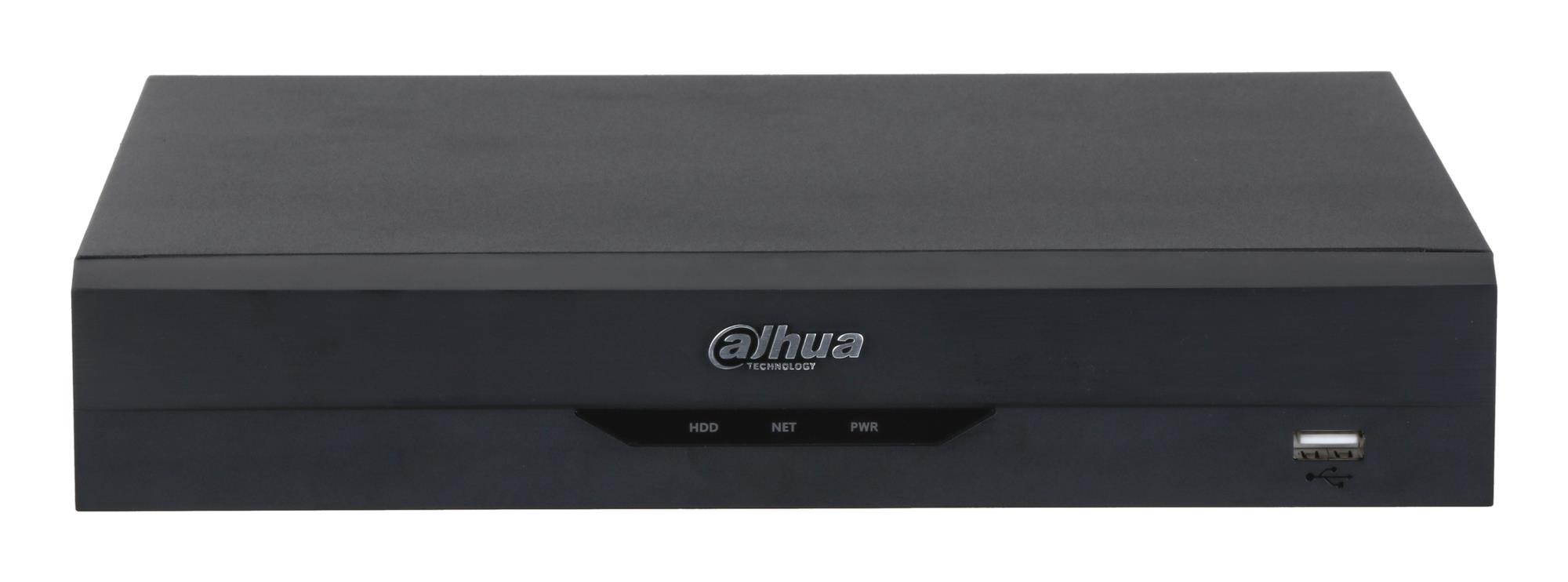

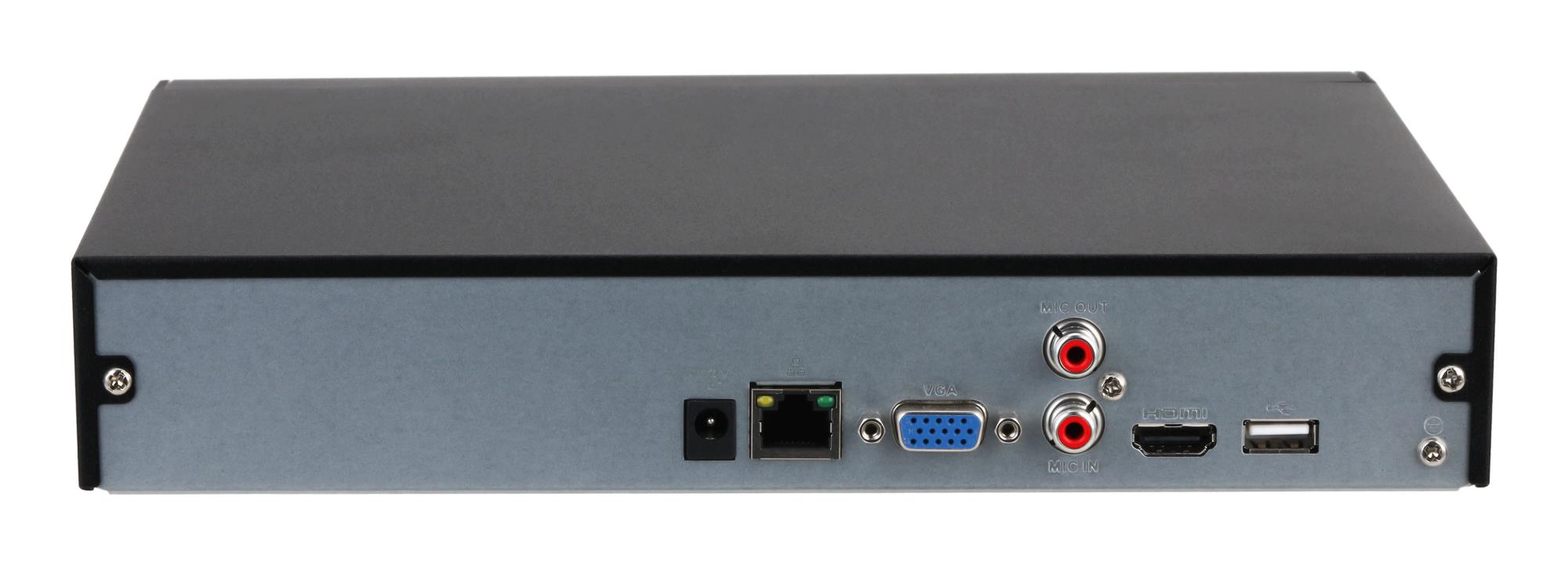

| Name | NET VIDEO RECORDER 8CH/NVR4108HS-EI DAHUA |
| Model | NVR4108HS-EI |
| Model name | NVR4108HS-EI |
