Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Native PCIe 12V-2x6 Cable
Dual Color Design
With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.
80 PLUS CERTIFIED
The PRO series is created for value-focused users, offering 80 PLUS Bronze models in 850W, 750W, and 650W options.
Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 3 –Year warranty, guaranteeing long term reliable and peace of mind operation.
- 80 PLUS® BRONZE Certified
- ATX3.1 & PCIe5.1 Ready
- Native 12V-2x6 Connector Dual Color Design (450W)

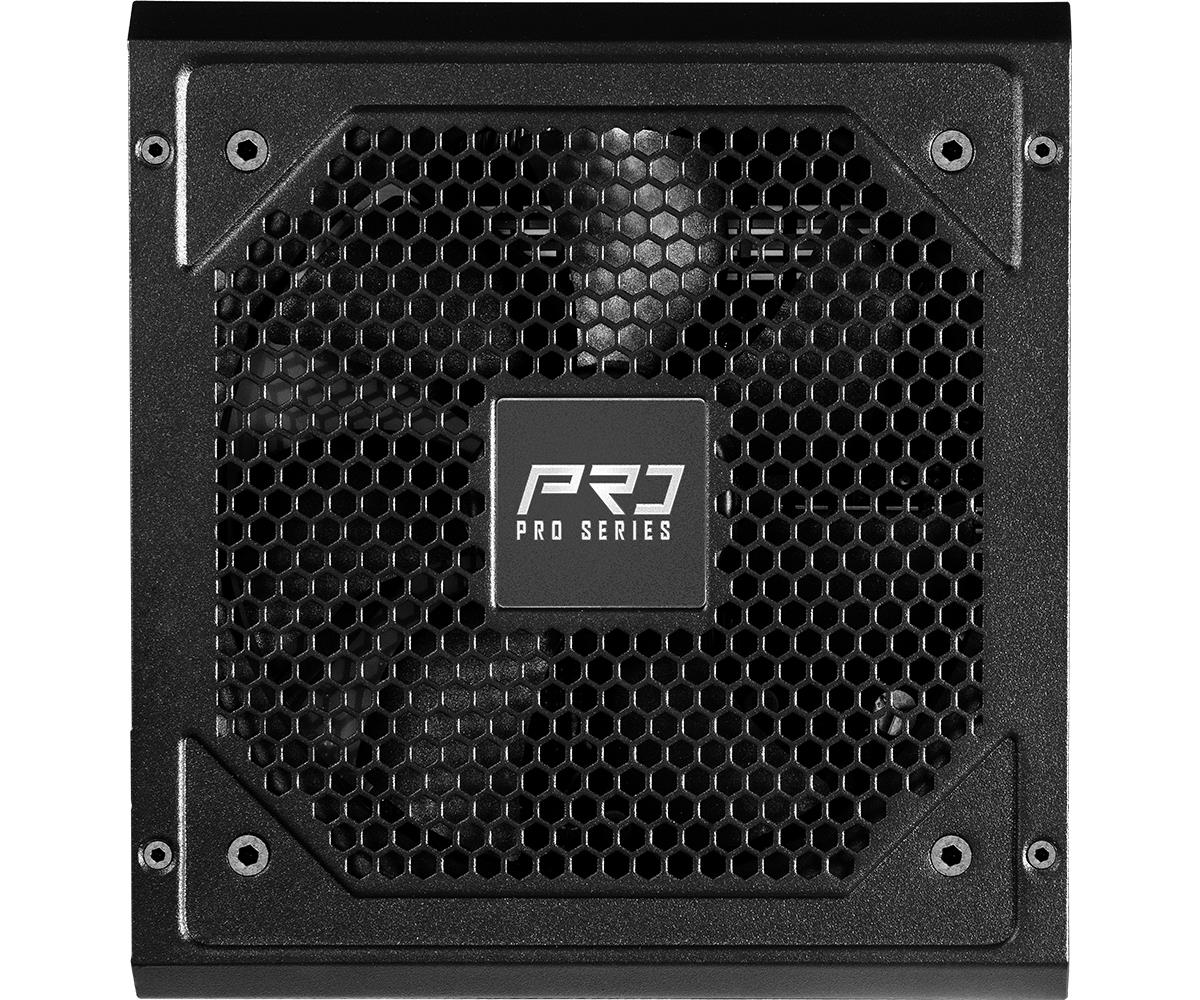

- Low noise 120mm FAN

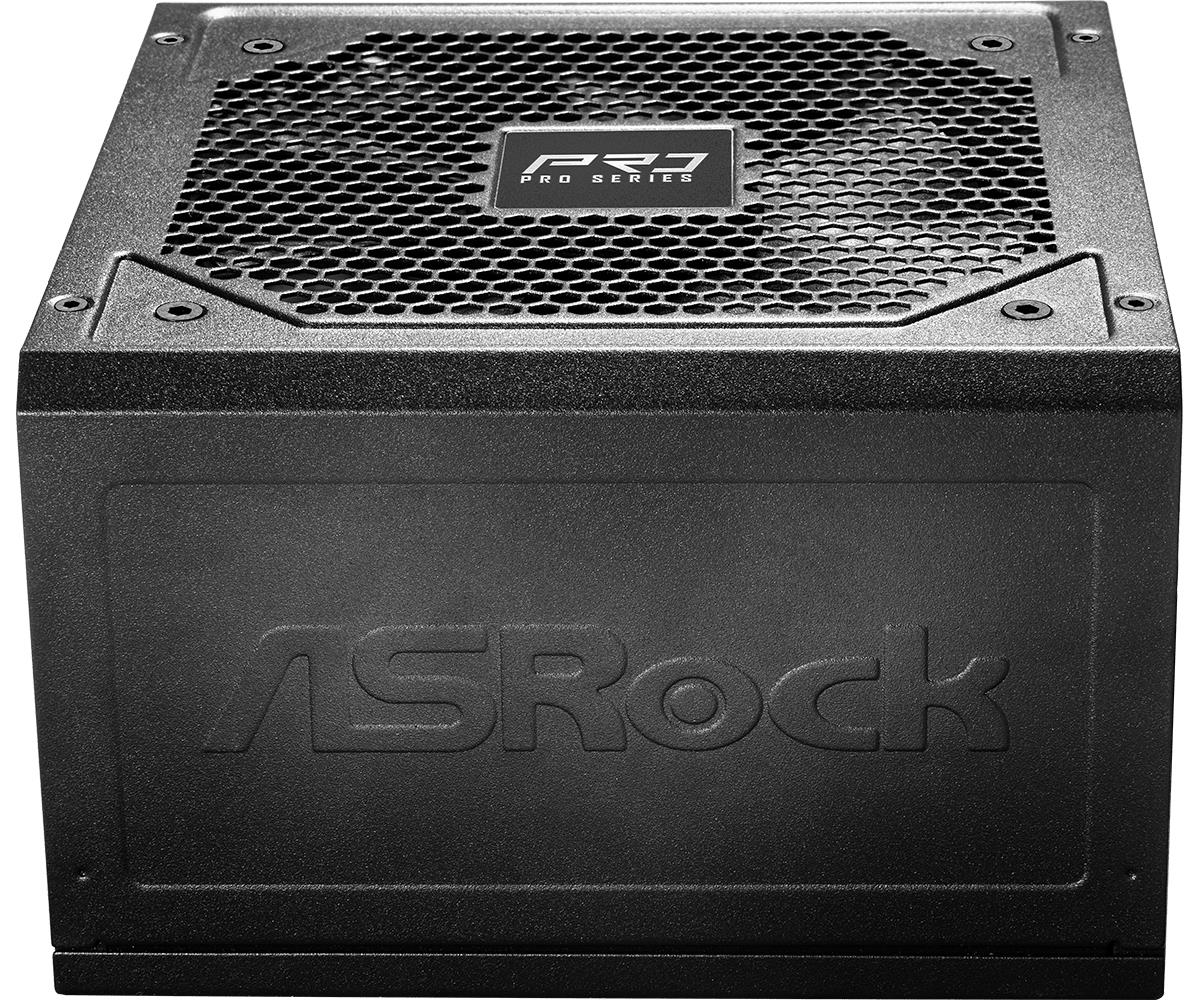

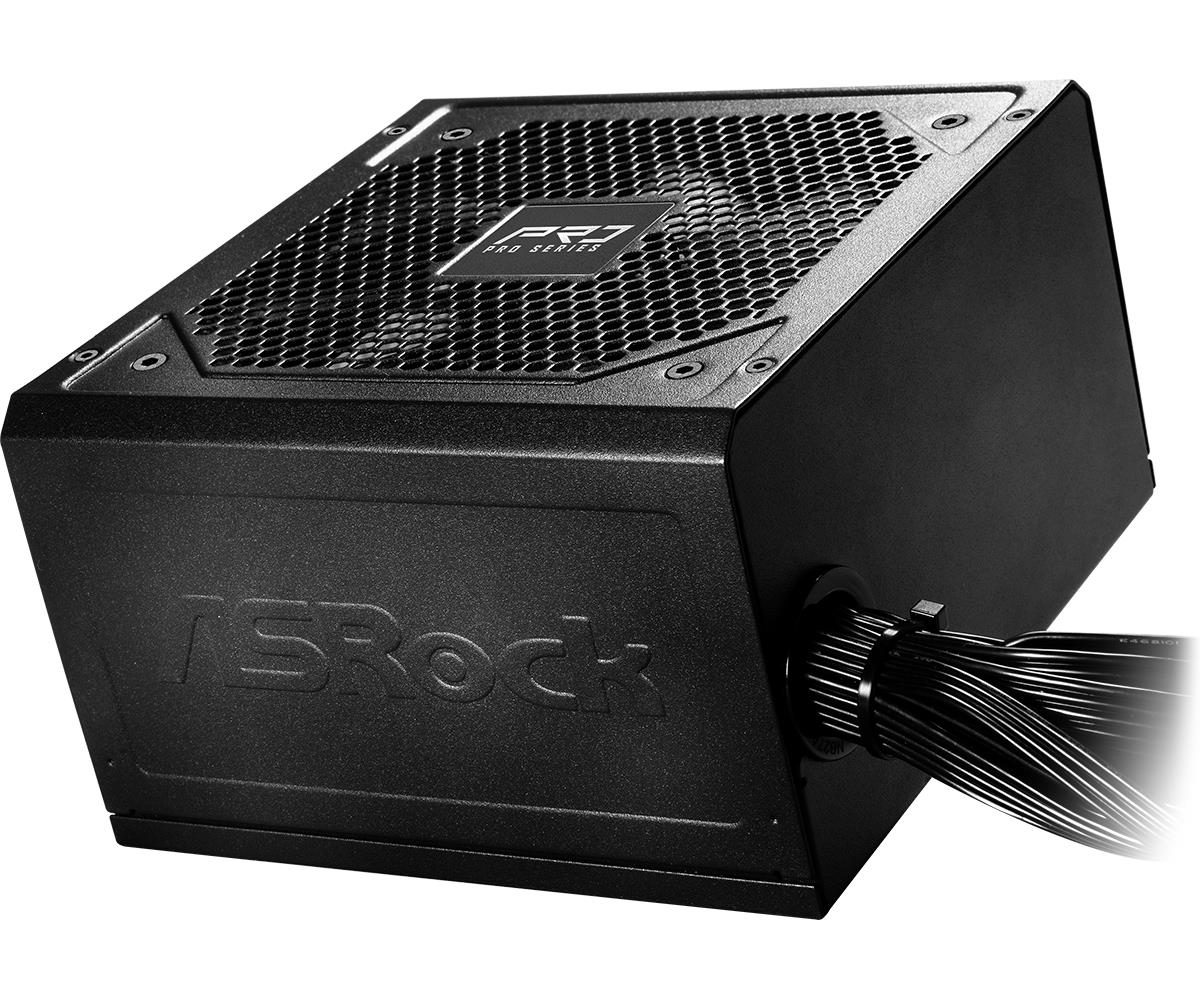

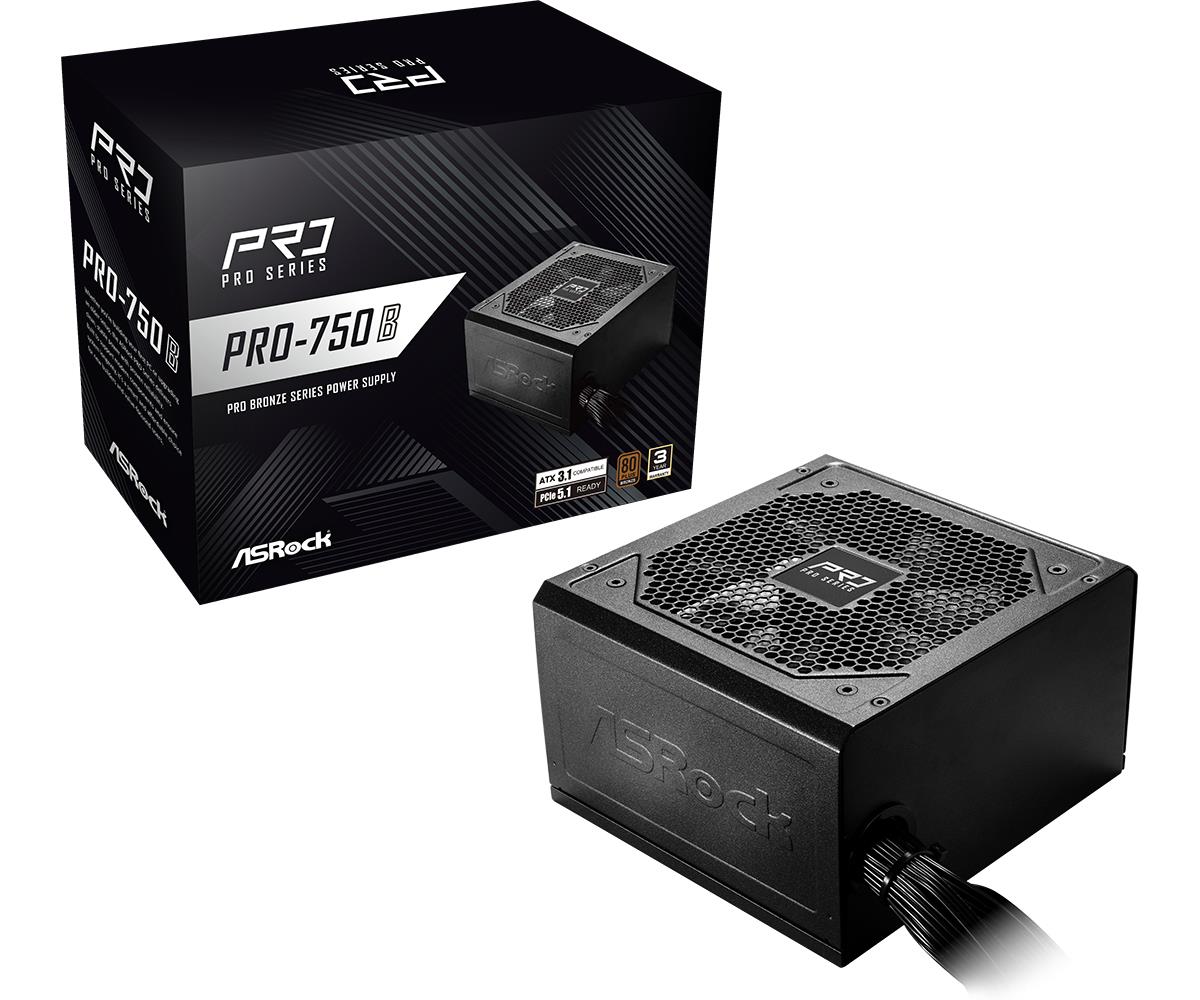

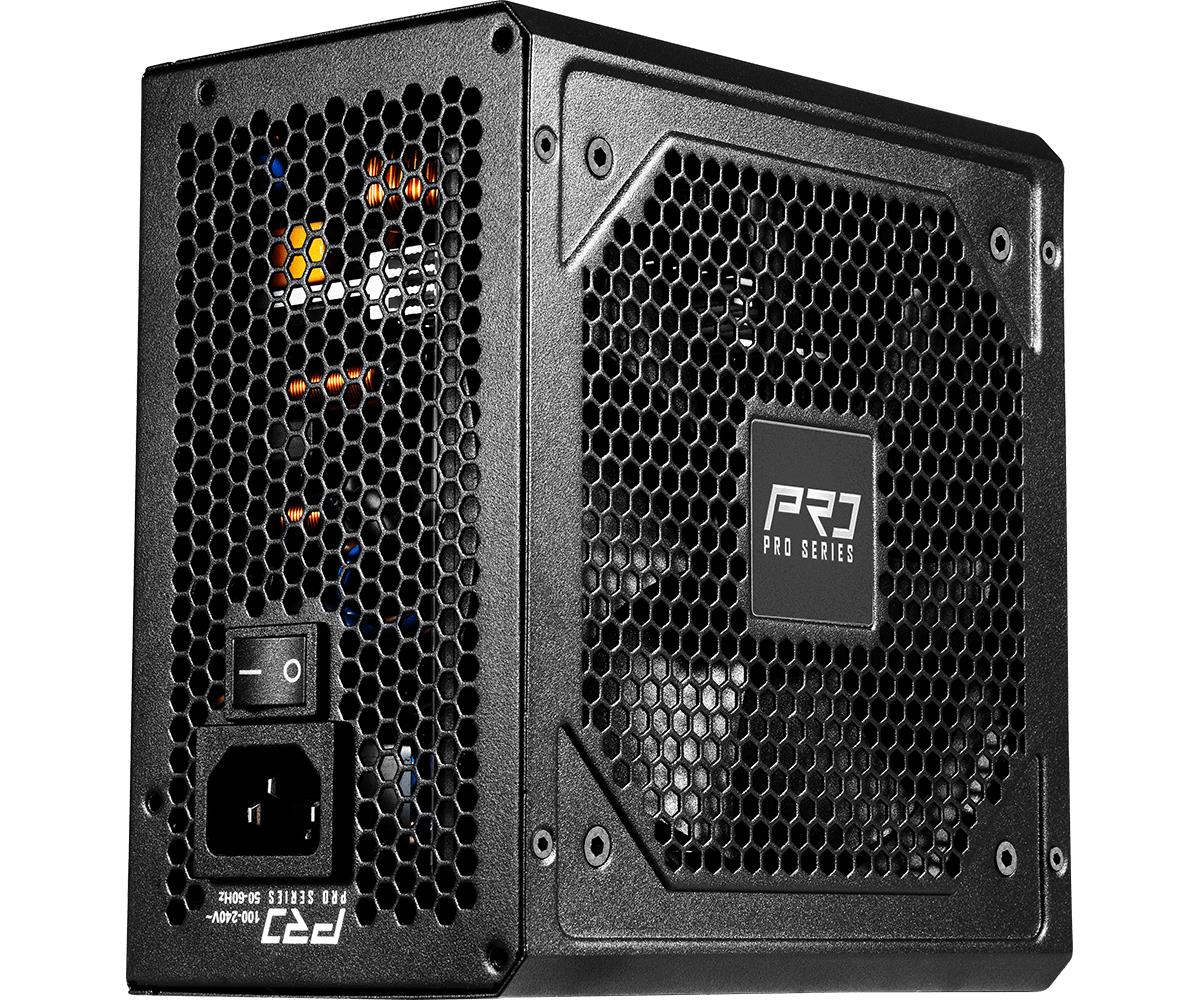

Asrock PRO-750B. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 450,570,690 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Specifikacijos
| Vendor Homepage | https://www.asrock.com/Power-Supply/PRO/PRO-750B |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.195 |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Max output current (+12V) | 62.5 A |

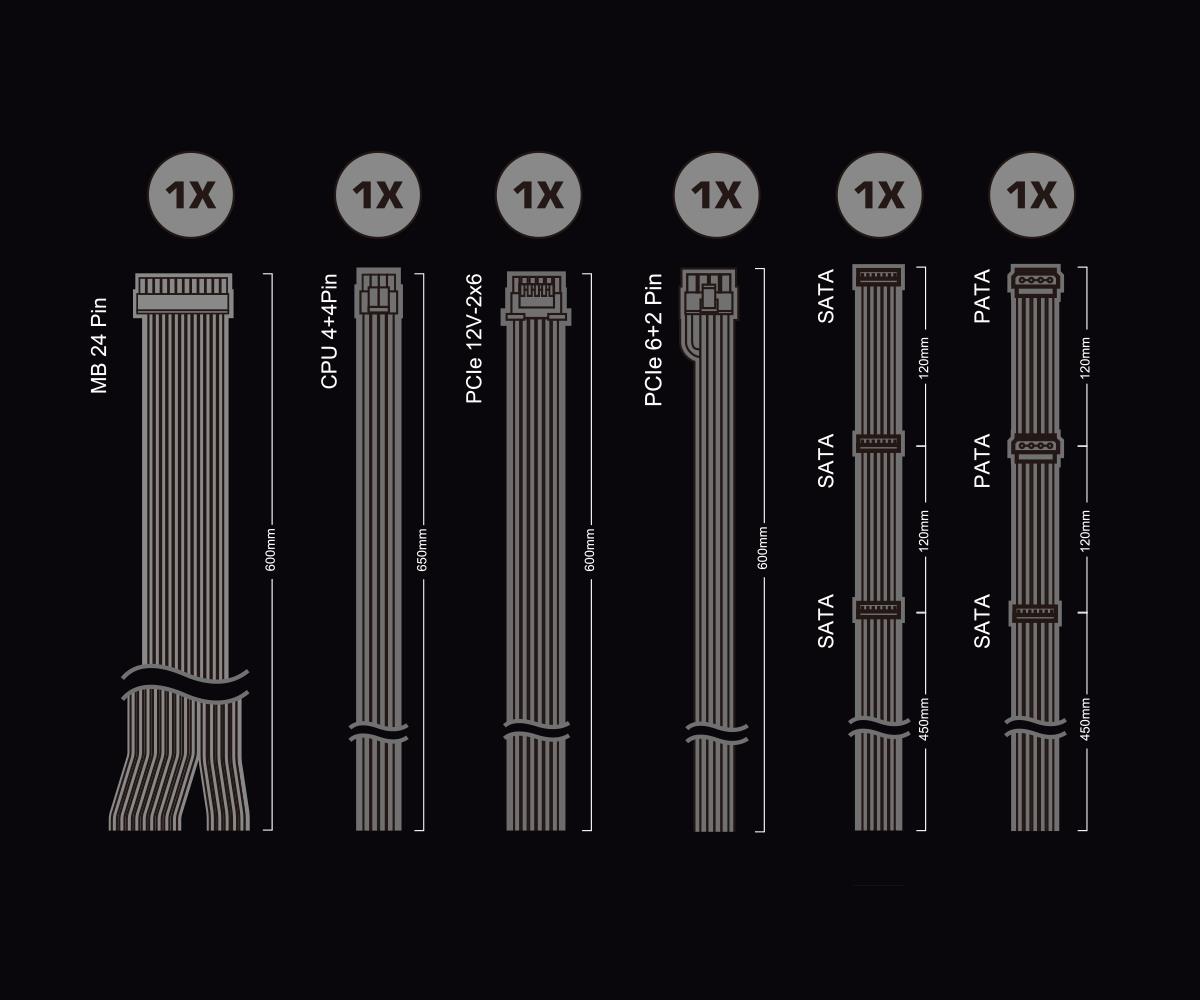

| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 600 mm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 450/570/690 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12+4 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Warranty period | 3 year(s) |
| Unit Calculated Weight | 2.08 kg |
| Product Net Weight | 1.8 kg |
| Unit Calculated Volume | 0.006526 cubm |
| Units per Shipping Box | 6 |
| Shipping Box Weight | 12.4799995422363 kg |
| Unit Width | 19.5 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 22 cm |
| Unit Depth | 27 cm |
| Shipping Box Depth | 56.5 cm |
| Unit Height | 10 cm |
| Shipping Box Width | 31.5 cm |
| Name | CASE PSU ATX 750W/BRONZE PRO-750B ASROCK |
| Model name | PRO-750B |
