Power protection features
Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
Compliance certificates
CB/cTUVus/Federal Communications Commission (FCC)/RoHS/TÜV mark/UKCA/WEEE
Manual languages
English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian
No compromise silence and performance

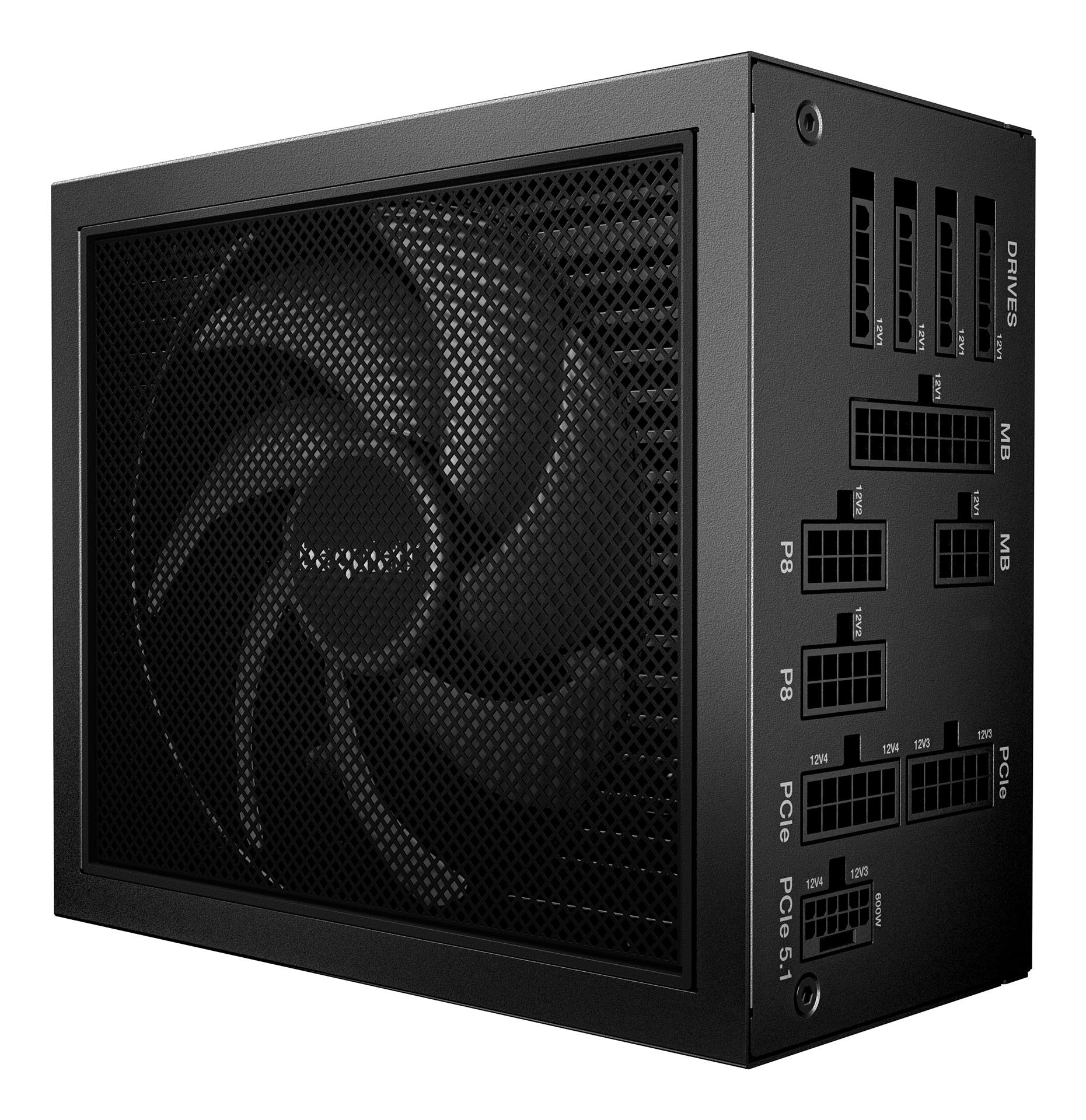

Dark Power 14 1000W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.
- 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.5%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector

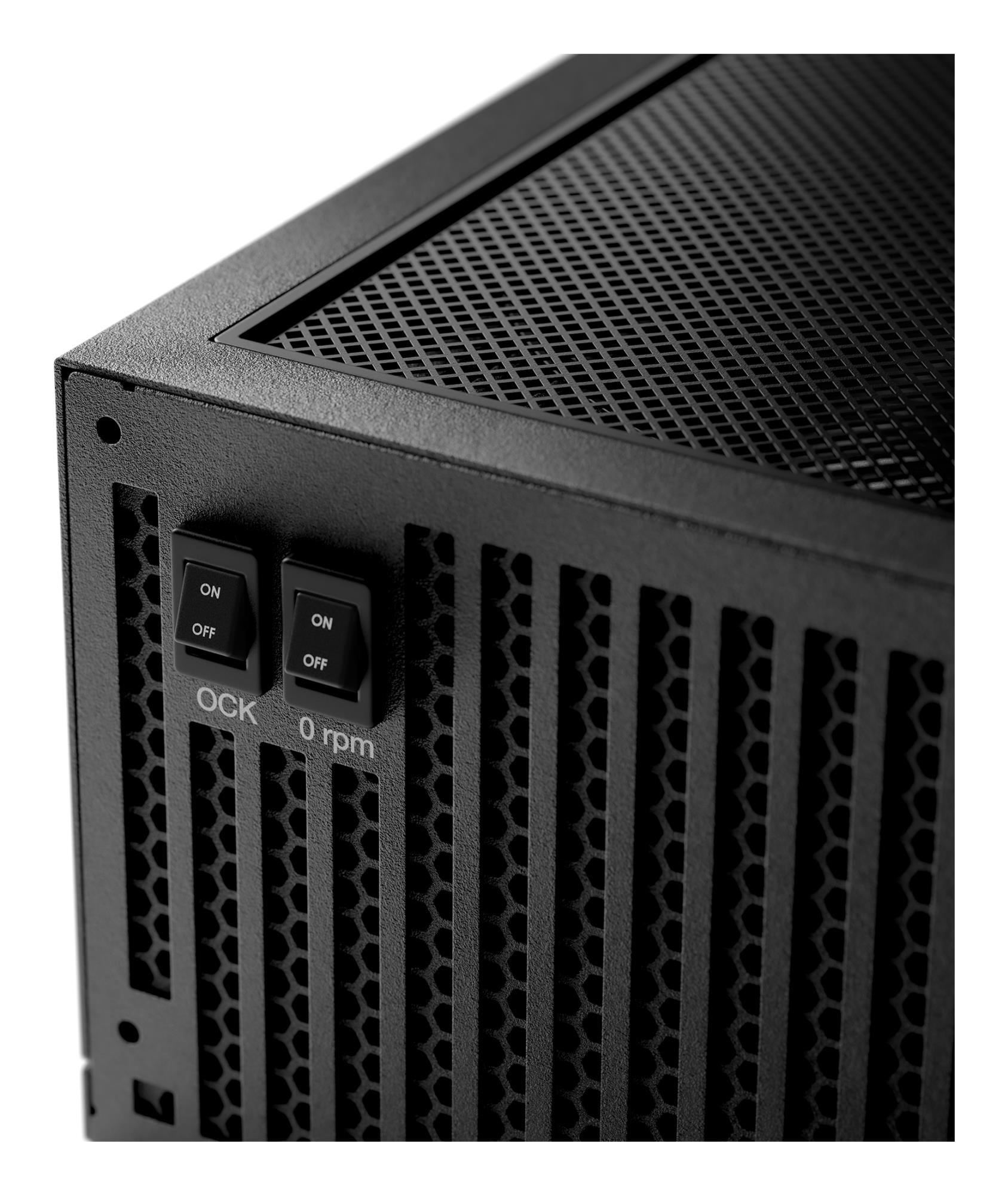

- Active and semi-passive cooling can be selected with the push of a button

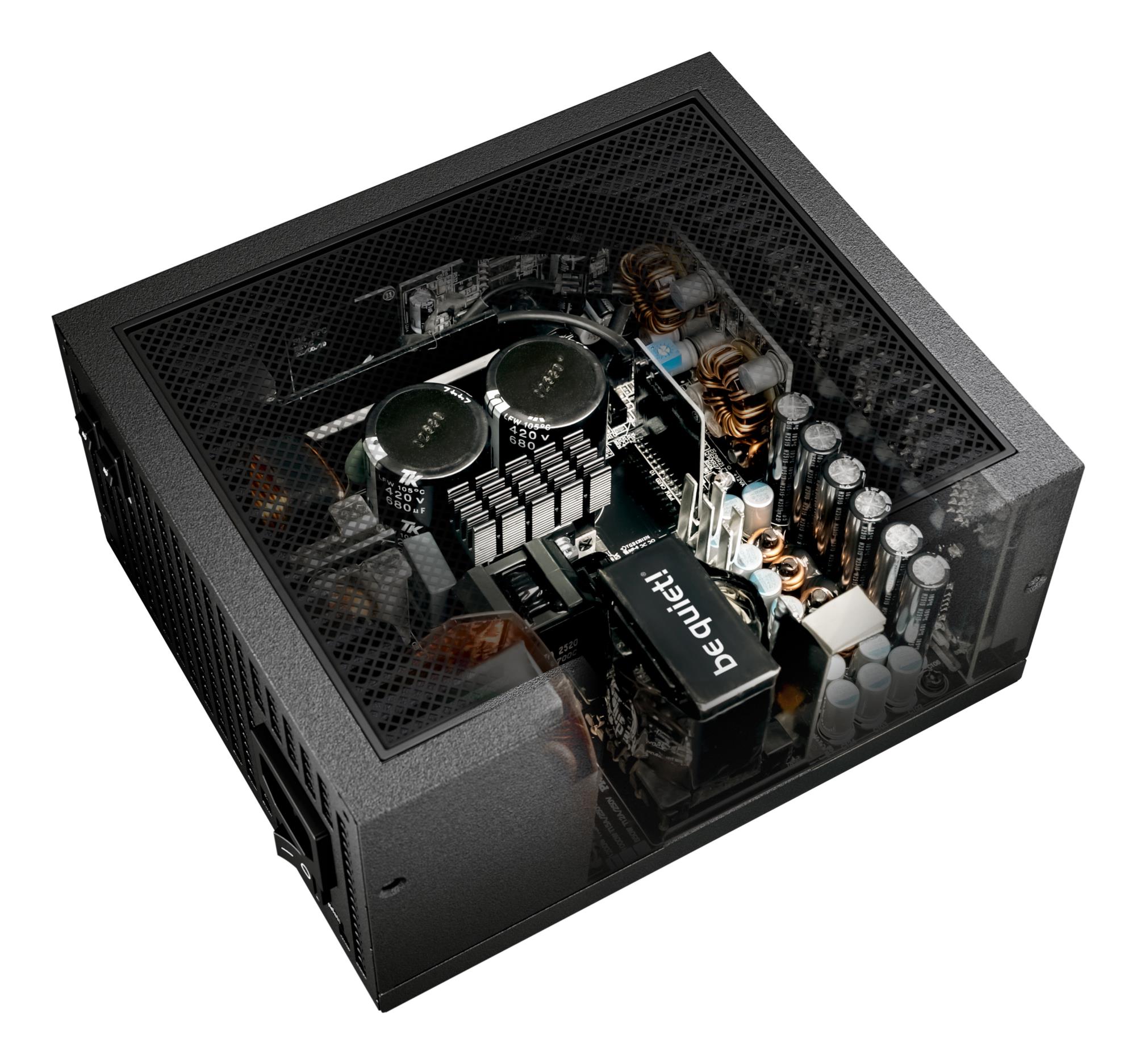

- Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components
- Silent Wings fan for virtually inaudible operation
- Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency
- Button to switch between single and multi-rail operation
- Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities

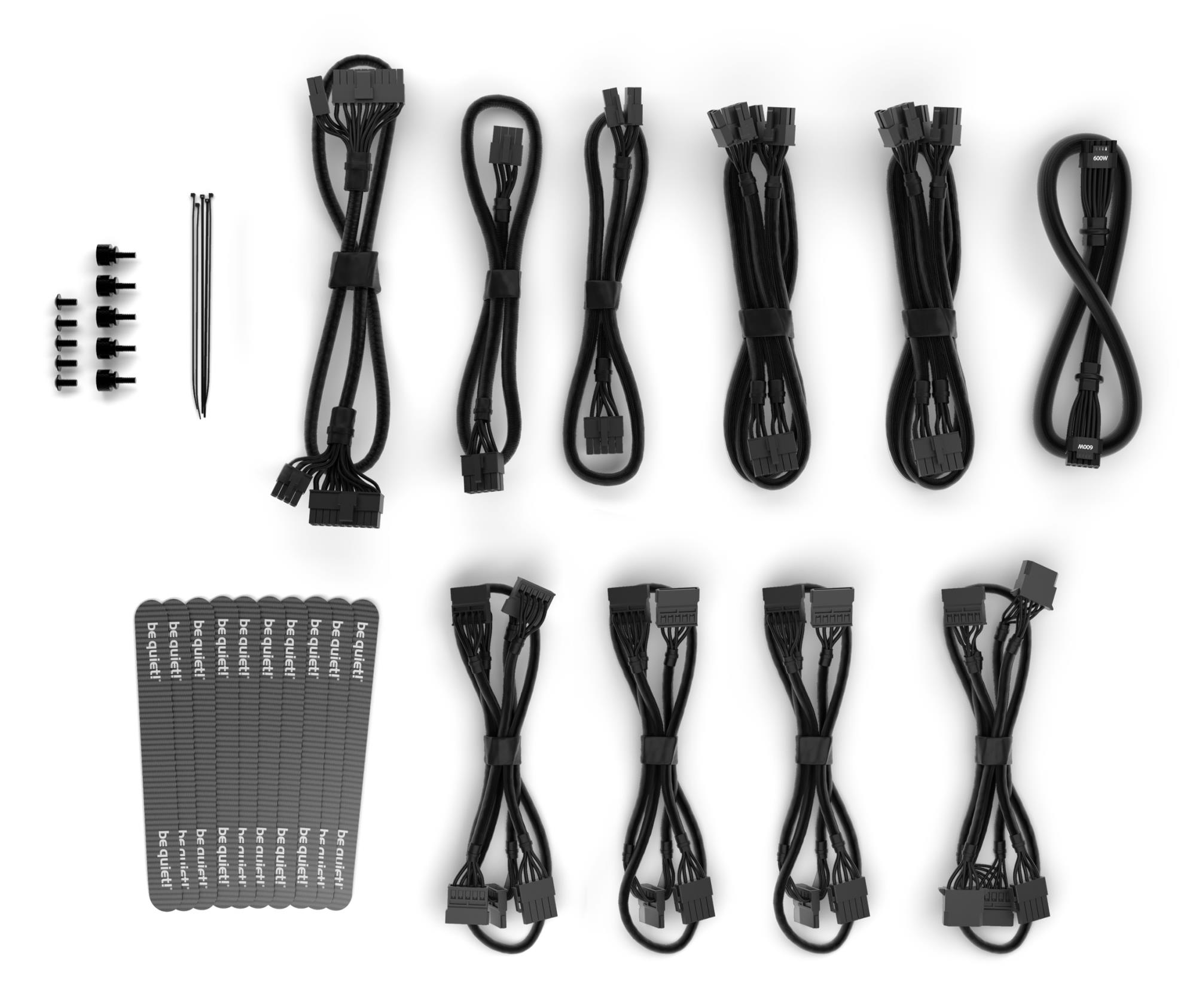

- Modular cable management for maximum convenience
- Product conception, design and quality control in Germany
be quiet! Dark Power 14 1000 W - 80 Plus Titanium. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1100 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Specifikacijos
| Vendor Homepage | https://www.bequiet.com/en/download/products |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.231 |
| Unit Box Length | 0.354 |
| Unit Box Width | 0.127 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 996 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Efficiency | 93.8 % |
| Hold time | 20.1 ms |
| Max output current (+12V1) | 33 A |
| Max output current (+12V2) | 33 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V4) | 40 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 24 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Number of +12V rail(s) | 4 |
| Peak power | 1100 W |
| Power factor | 0.98 |
| Total power | 1000 W |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power cable length | 700 mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power cables | 4 |
| Number of SATA power connectors | 13 |
| PCI Express connector | Yes |
| PCI Express power cable length | 600 mm |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 1050/900 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 1050/600/750/900 mm |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
| Bearing technology | FDB |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 18.2 dB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Fan speed | 0 - 2100 RPM |
| Number of fans | 1 fan(s) |
| On/off fan switch | Yes |
| On/off switch | Yes |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
| Depth | 175 mm |
| Height | 86 mm |
| Weight | 2200 g |
| Width | 150 mm |
| Manual | Yes |
| Package depth | 126 mm |
| Package height | 355 mm |
| Package weight | 3500 g |
| Package width | 230 mm |
| Sustainability certificates | ENERGY STAR/ErP/Triman |
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case height | 260 mm |
| Shipping (inner) case length | 528 mm |
| Shipping (inner) case net weight | 19340 g |
| Shipping (inner) case width | 368 mm |
| Cable ties included | Yes |
| Screws included | Yes |
| Product Net Weight | 2.2 kg |
| Shipping Box Depth | 53.2999992370605 cm |
| Shipping Box Height | 26.7000007629395 cm |
| Shipping Box Weight | 19.2999992370605 kg |
| Shipping Box Width | 37.4000015258789 cm |
| Unit Calculated Volume | 0.01331 cubm |
| Unit Calculated Weight | 4.82 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 4 |
