Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Compliance certificates
BSMI/CB/cTUVus/EAC/Federal Communications Commission (FCC)/KC/KCC/RCM/RoHS/TÜV mark/UKCA
New Evolution of Bronze

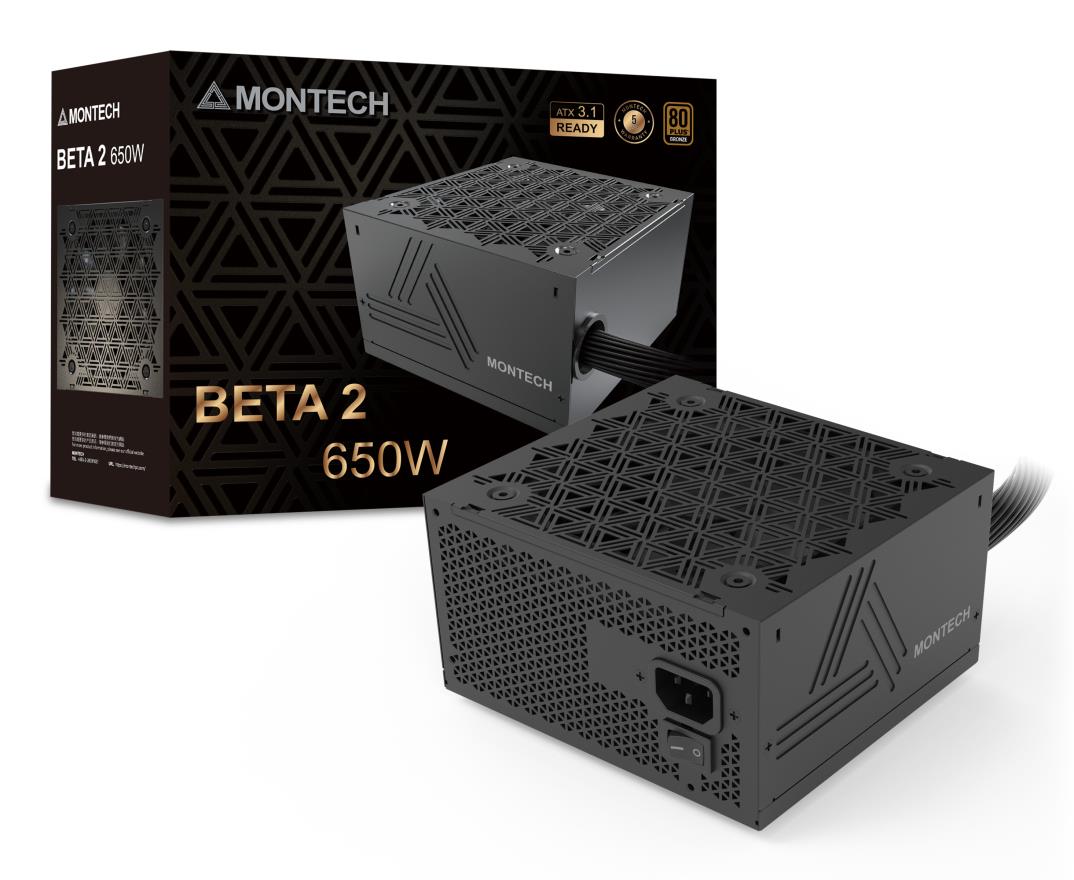

MONTECH BETA 2 leads the evolution of essential power supplies, bringing modern standards, refined design, and long-term reliability to the 80 PLUS Bronze segment. Built on the ATX 3.1 standard and with PCIe 5.1 support available on the 850W model, BETA 2 is designed to power today and tomorrow’s systems with greater stability, efficiency, and confidence.
Next-Gen Ready
BETA 2 is fully compliant with the latest ATX 3.1 standard, ensuring safer and more reliable power delivery for modern platforms.
80 PLUS Bronze Efficiency
Certified with 80 PLUS Bronze efficiency, BETA 2 delivers optimized power conversion with reduced energy loss. The improved internal design helps maintain consistent efficiency across typical usage scenarios, balancing performance and value.
Enhanced Power Architecture
BETA 2 adopts DC-to-DC technology to deliver tighter voltage regulation and reduced fluctuation under load. This design improves overall system stability and helps protect sensitive components during power transitions.
High Quality Components
At the heart of BETA 2 is an industrial-grade Japanese main capacitor rated for 105°C/221°F operation. Built to withstand high temperatures and long-term stress, it enhances durability and reduces the risk of instability over time.
Upgraded Cooling

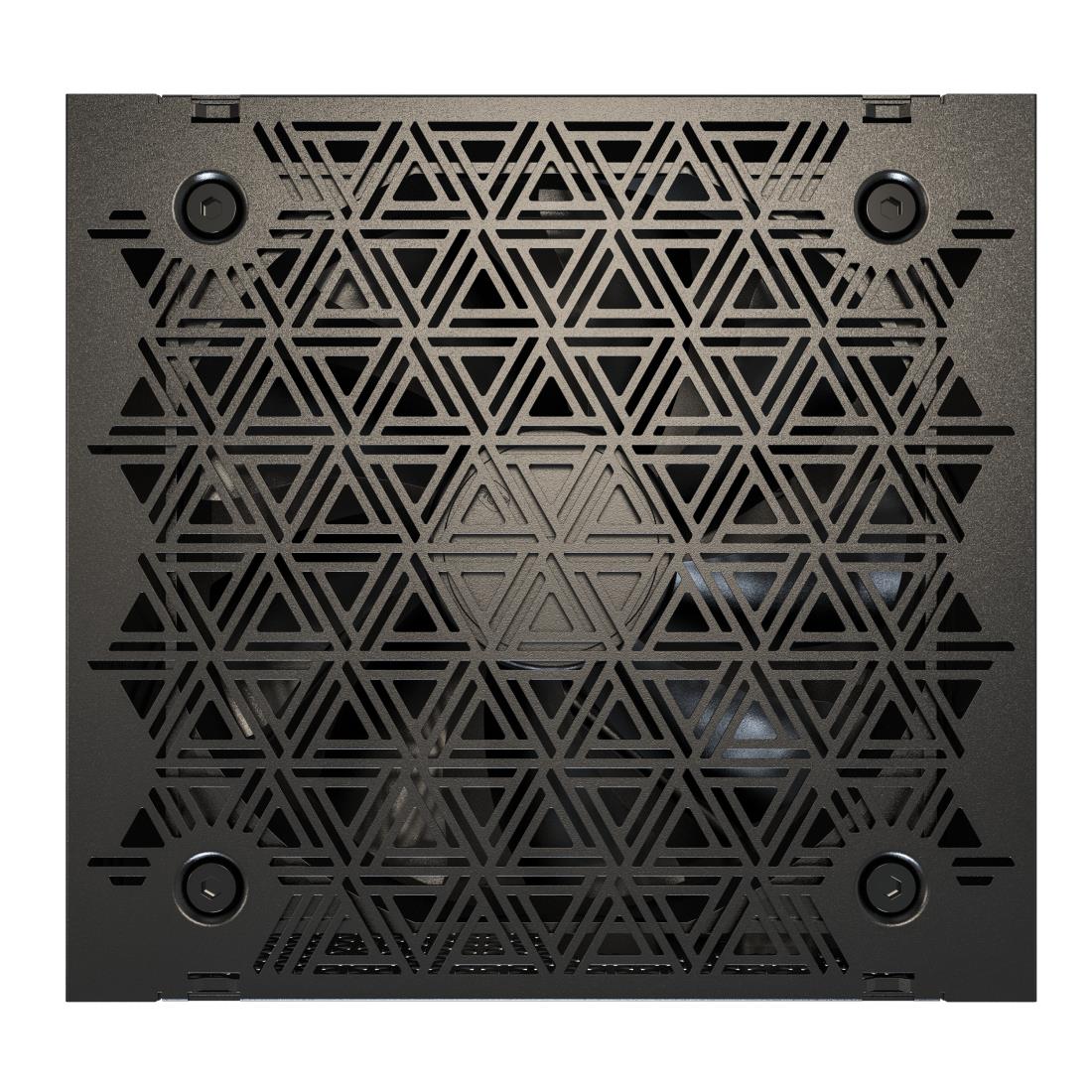

BETA 2 features an upgraded HDB cooling fan, delivering quieter operation and improved longevity compared to traditional sleeve-bearing designs. Optimized airflow supports stable performance even during extended workloads.
Refined Aesthetics & Premium Cabling

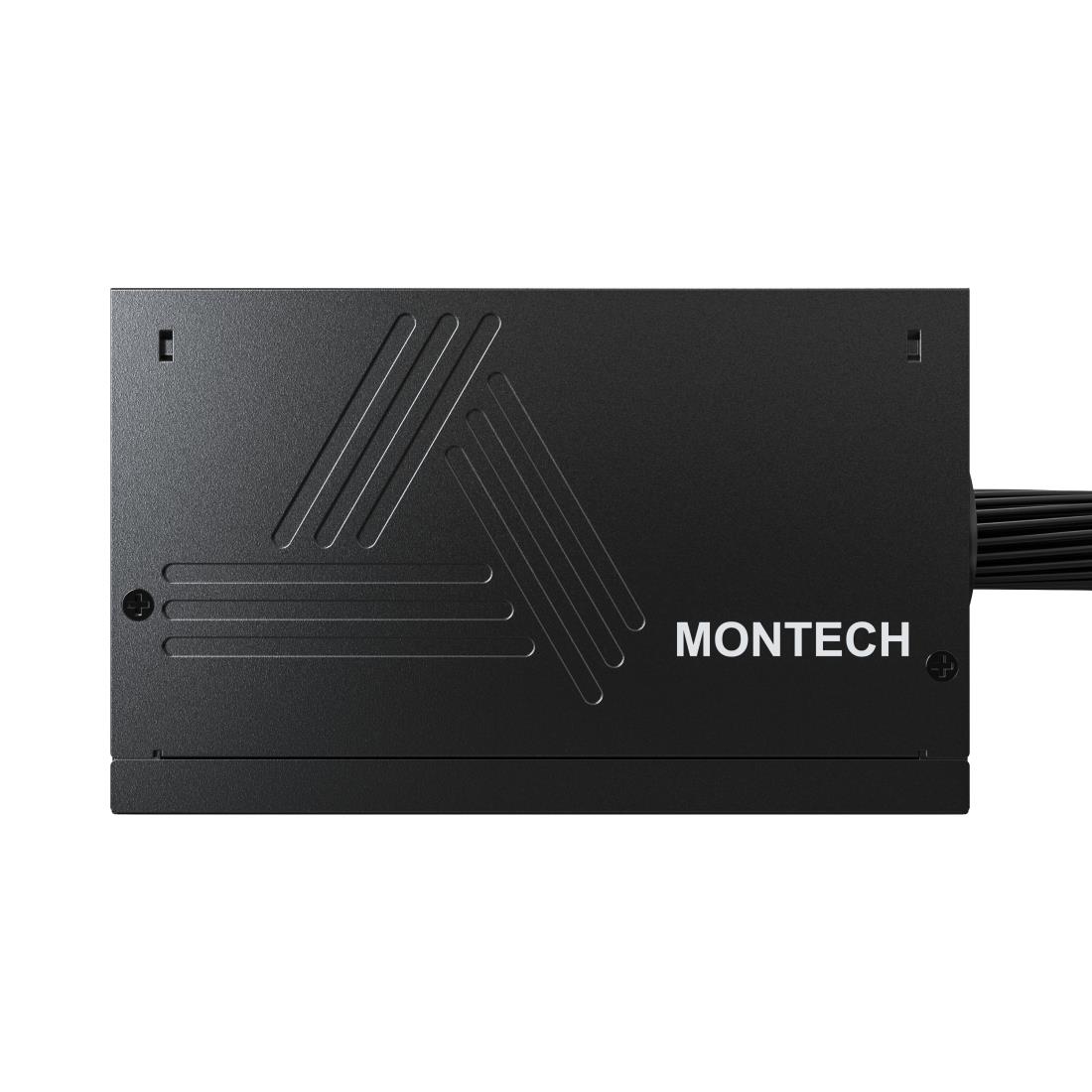

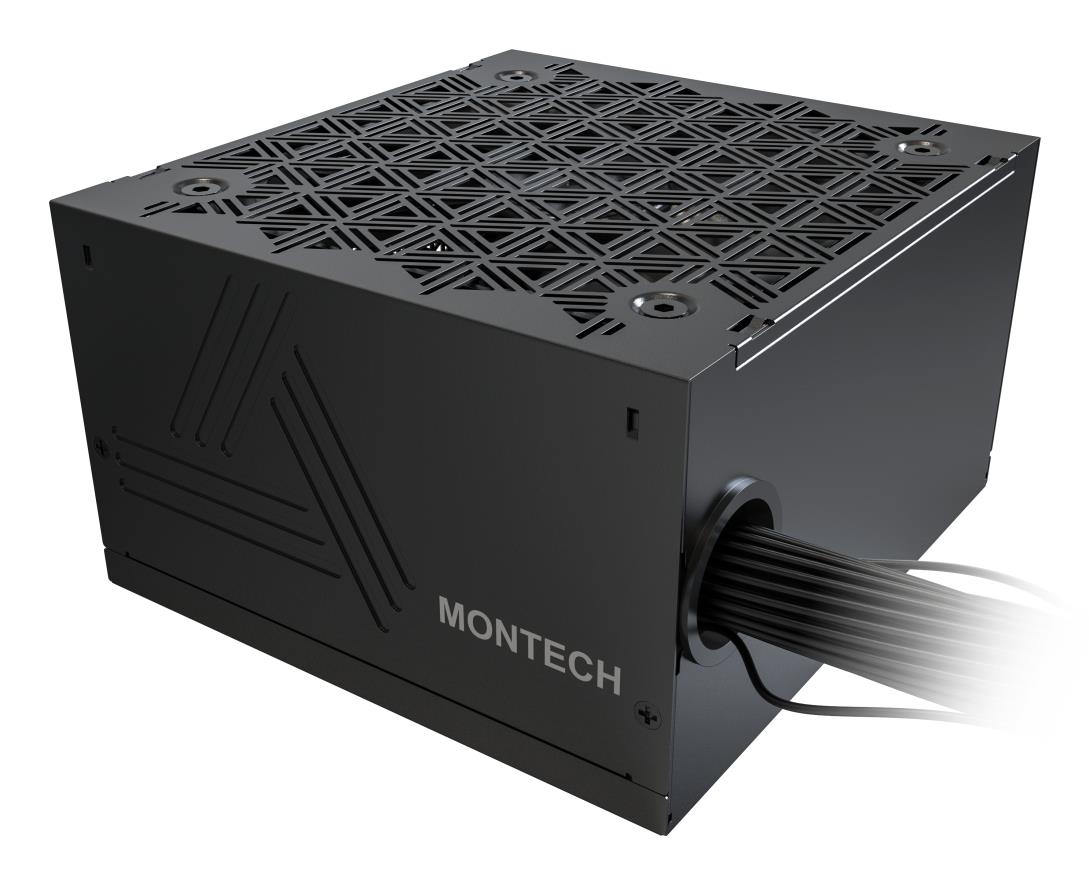

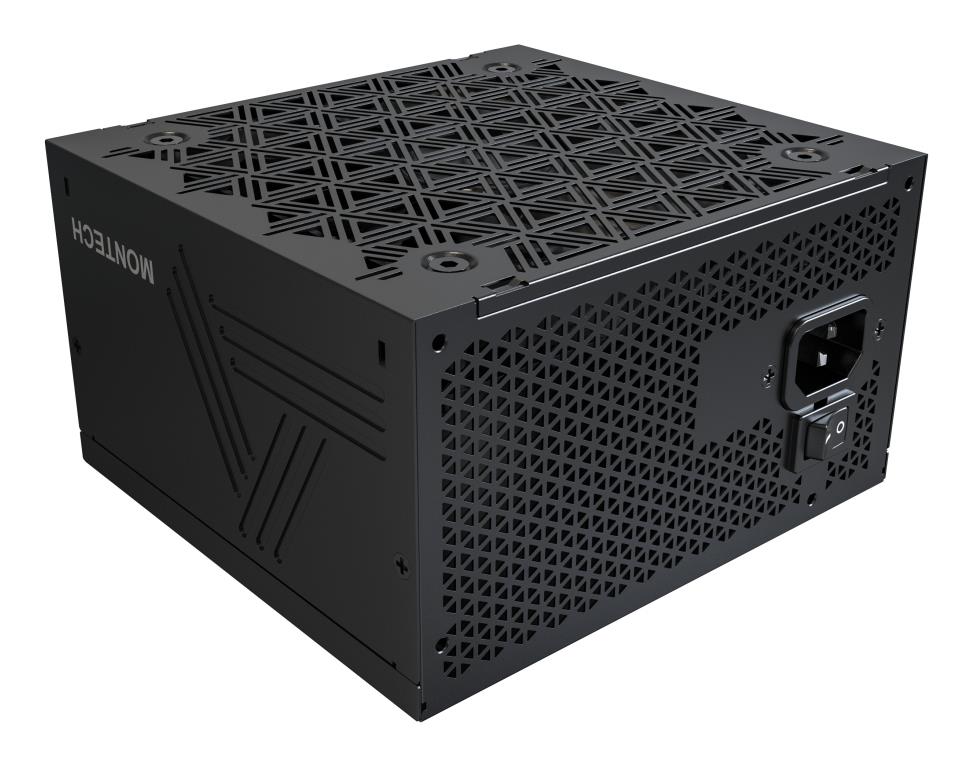

The MONTECH signature chassis design supports efficient airflow, while upgraded embossed cables deliver a cleaner, more premium look and a more refined overall build presentation.
Comprehensive Protection & Extended 5-Year Warranty
BETA 2 is built with comprehensive power protections including OPP, OVP, UVP, SCP, OCP, OTP to ensure stable operation for your system. Backed by an extended 5-year warranty, it reflects MONTECH’s confidence in long-term reliability and commitment to dependable performance you can trust.
- Next-Gen Ready
- 80 PLUS Bronze Efficiency
- Enhanced Power Architecture
- High Quality Components
- Upgraded Cooling
- Refined Aesthetics & Premium Cabling
Specifikacijos
| Vendor Homepage | https://www.montechpc.com/beta-2-650w |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.255 |
| Unit Box Width | 0.2 |
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |

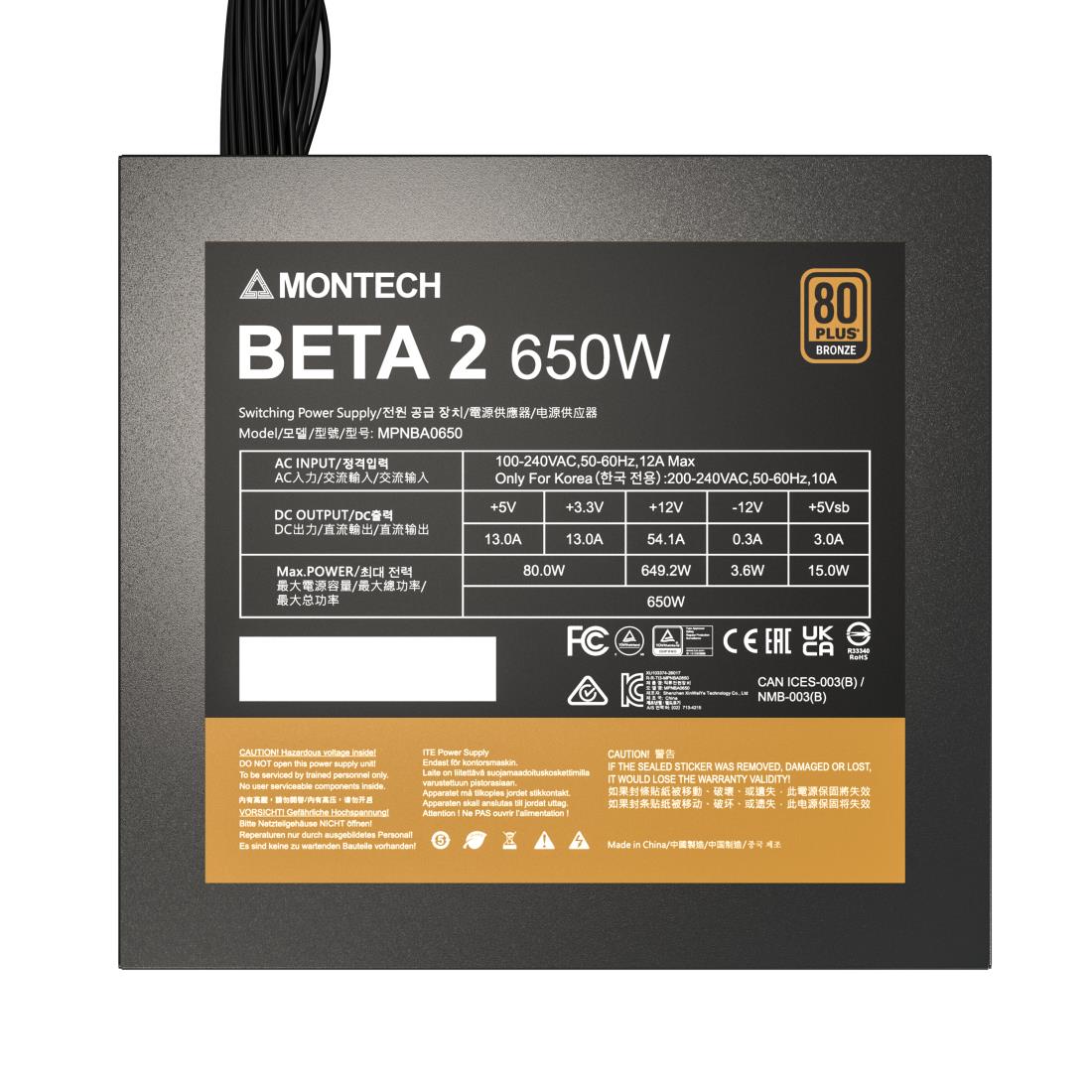

| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 80 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 13 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 13 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Number of SATA power cables | 1 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Illumination | No |

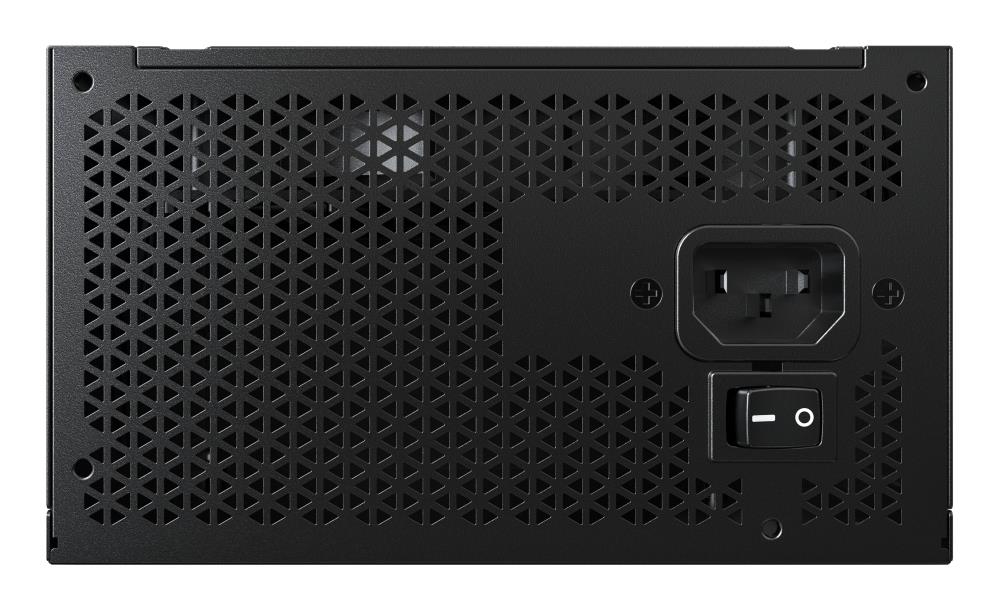

| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Doesn't contain | Cadmium/Lead/Mercury |
| Warranty period | 5 year(s) |
| Unit Calculated Weight | 2 kg |
| Product Net Weight | 1.5 kg |
| Unit Calculated Volume | 0.006884 cubm |
| Units per Shipping Box | 8 |
| Shipping Box Weight | 16 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 23.5 cm |
| Shipping Box Depth | 54.5 cm |
| Shipping Box Width | 43 cm |
| Name | CASE PSU ATX 650W/BETA 2 650W MONTECH |
| Model name | BETA 2 |
