Certification
CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
This PSU delivers 1000 watts of clean, stable power and is ideal for gaming and workstation PCs that have multiple GPUs and high-performance CPUs. The C1000 supports the latest GPUs, including up to an NVIDIA RTX 3090 and AMD GPUs up to the 6900 XT.
NZXT C1000 Gold. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm, Fan speed: 0 – 2300 RPM. Certification: CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
Specifikacijos
| Vendor Homepage | https://nzxt.com/product/c1000# |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.12 |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (+12V) | 1002 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Input current | 13 A |
| Max output current (+12V) | 83.5 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 1000 W |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Yes |

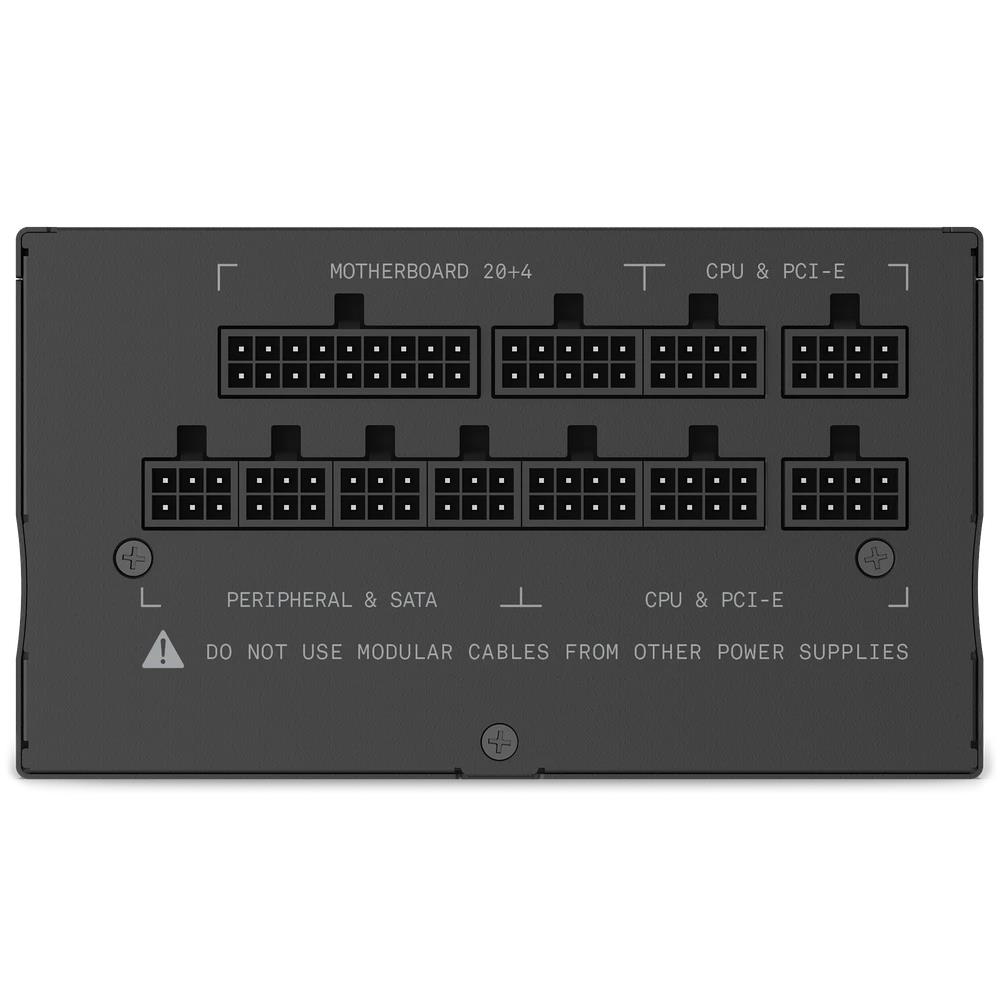

| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
| Bearing technology | FDB |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 44.5 dB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |

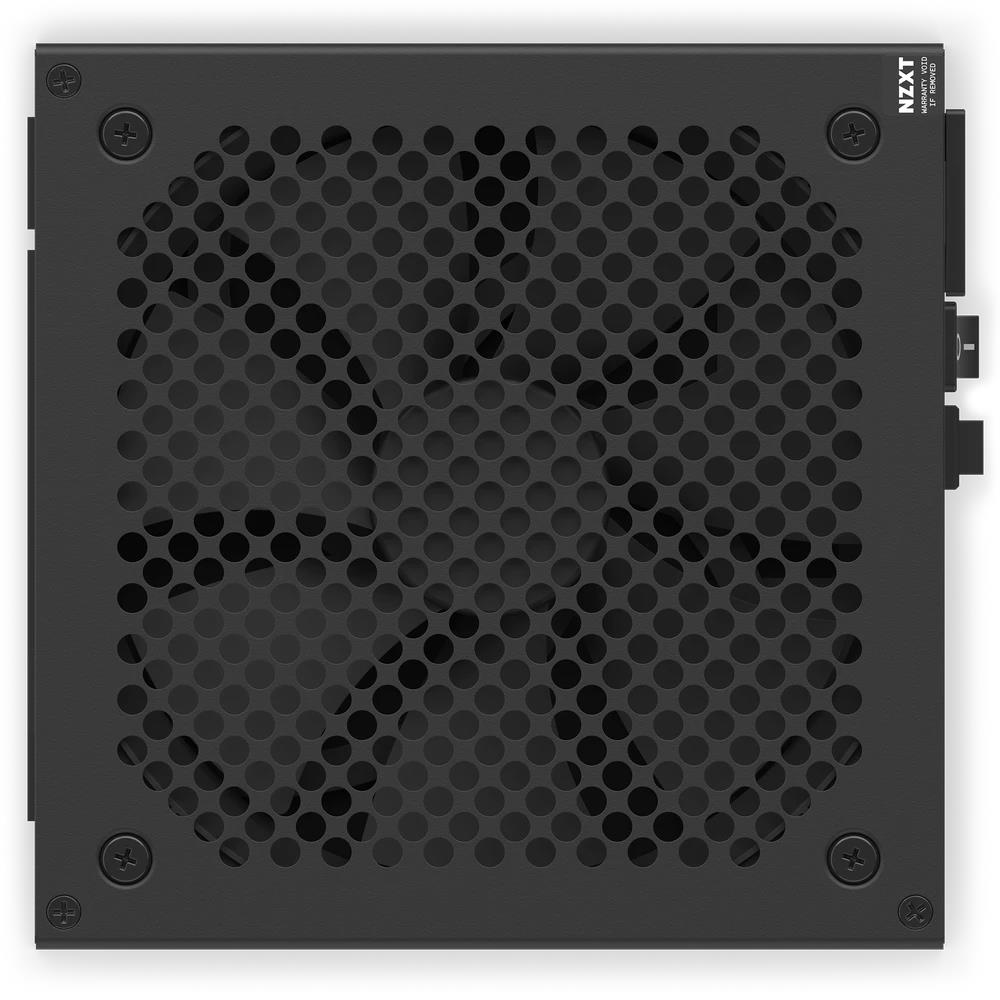

| Fan diameter | 135 mm |
| Fan speed | 0 – 2300 RPM |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 50 °C |
| Depth | 86 mm |
| Height | 150 mm |
| Width | 150 mm |
| Harmonized System (HS) code | 84733020 |
| Model name | PA-0G1BB-EU |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.01161 cubm |
| Unit Calculated Weight | 3.61 kg |
