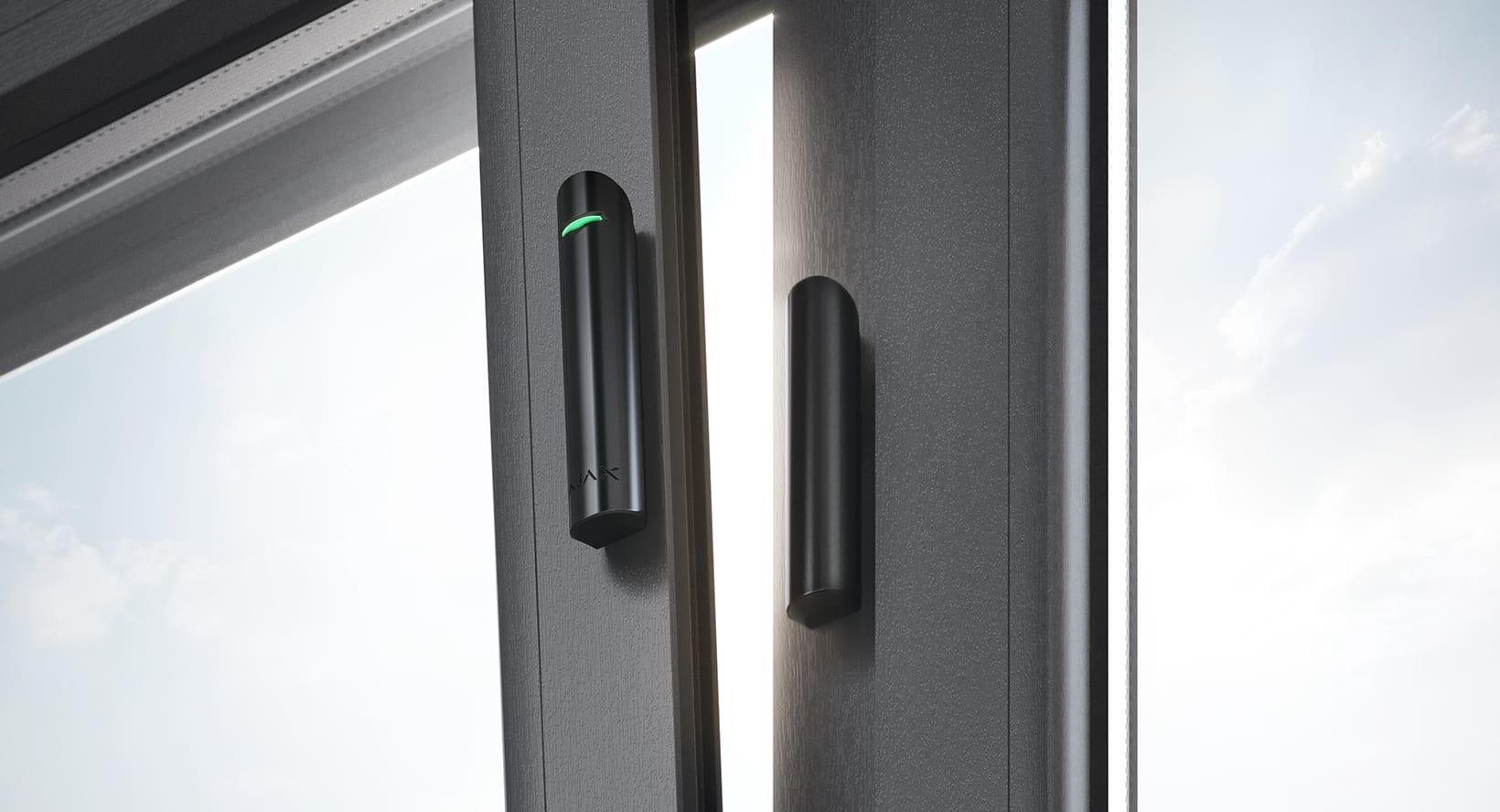

Wireless opening detector notifies of first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house.
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
- Operates up to 5 years without battery replacement
- Registers change in vertical slope angle, bangs and vibration
- External contact is available for connecting third-party detectors
Specifikacijos
| Vendor Homepage | https://ajax.systems/products/doorprotectplus/ |
|---|---|
| Category Code | DWS |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.06 |
| Connectivity technology | Wireless |
| Interface | RF Wireless |
| Transmission distance | 1200 m |
| Suitable for | Door/Window |
| Security algorithms | AES |
| LED indicators | Yes |
| Product colour | Black |
| Ambient temperature (min) | -10 °C |
| Suitable for indoor use | Yes |
| Ambient temperature (max) | 40 °C |
| Tamper protection | Yes |
| Compatible products | Ajax Hub, Hub Plus, Hub 2, ReX |
| Certification | DSTU EN 50131 |
| Battery type | CR123A |
| Battery life | 60 month(s) |
| Battery voltage | 3 V |
| Width | 20 mm |
| Depth | 20 mm |
| Height | 90 mm |
| Weight | 29 g |
| Battery included | Yes |
| Quick start guide | Yes |
| Unit Calculated Weight | 0.09 kg |
| Product Net Weight | 0.029 kg |
| Unit Calculated Volume | 0.00018 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 0.09 kg |
| Shipping Box Height | 3 cm |
| Shipping Box Depth | 10 cm |
| Shipping Box Width | 6 cm |
| Name | SENSOR WRL DOORPROTECT PLUS/BLACK 38100 AJAX |
| Model name | DoorProtect Plus |
