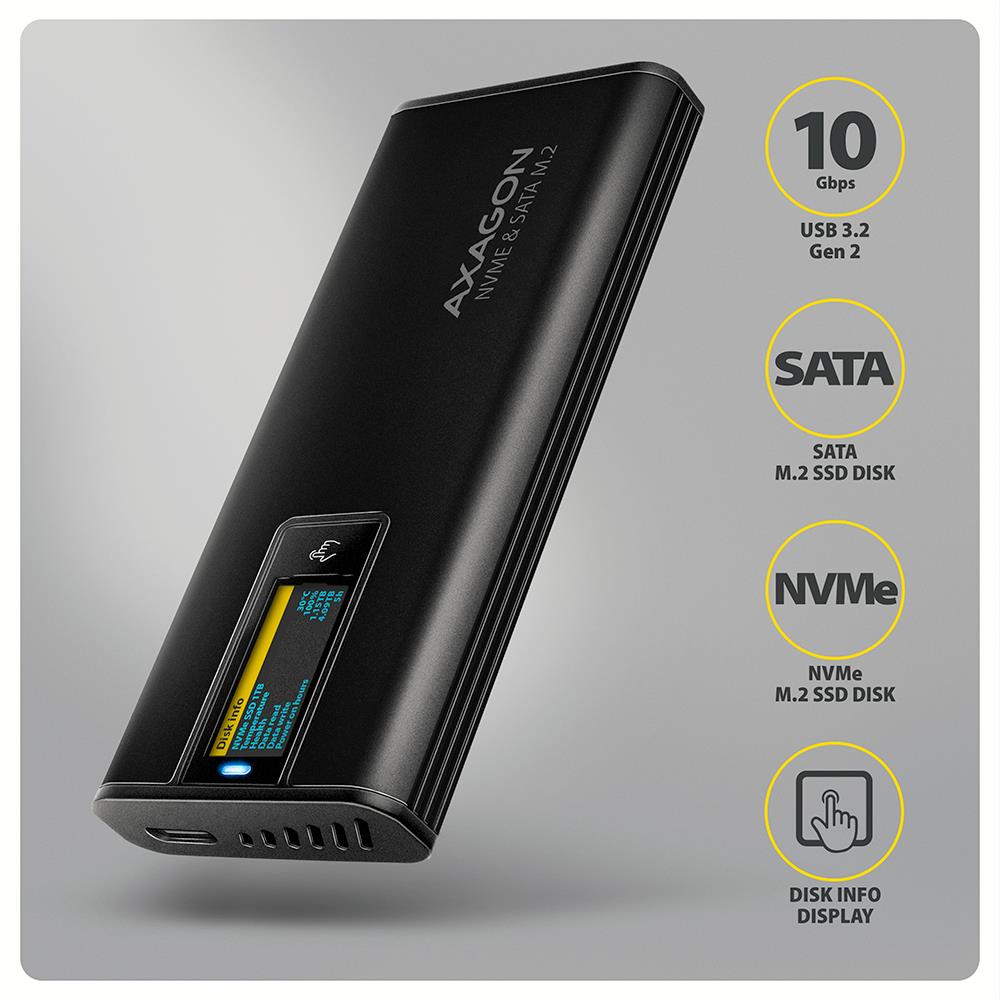

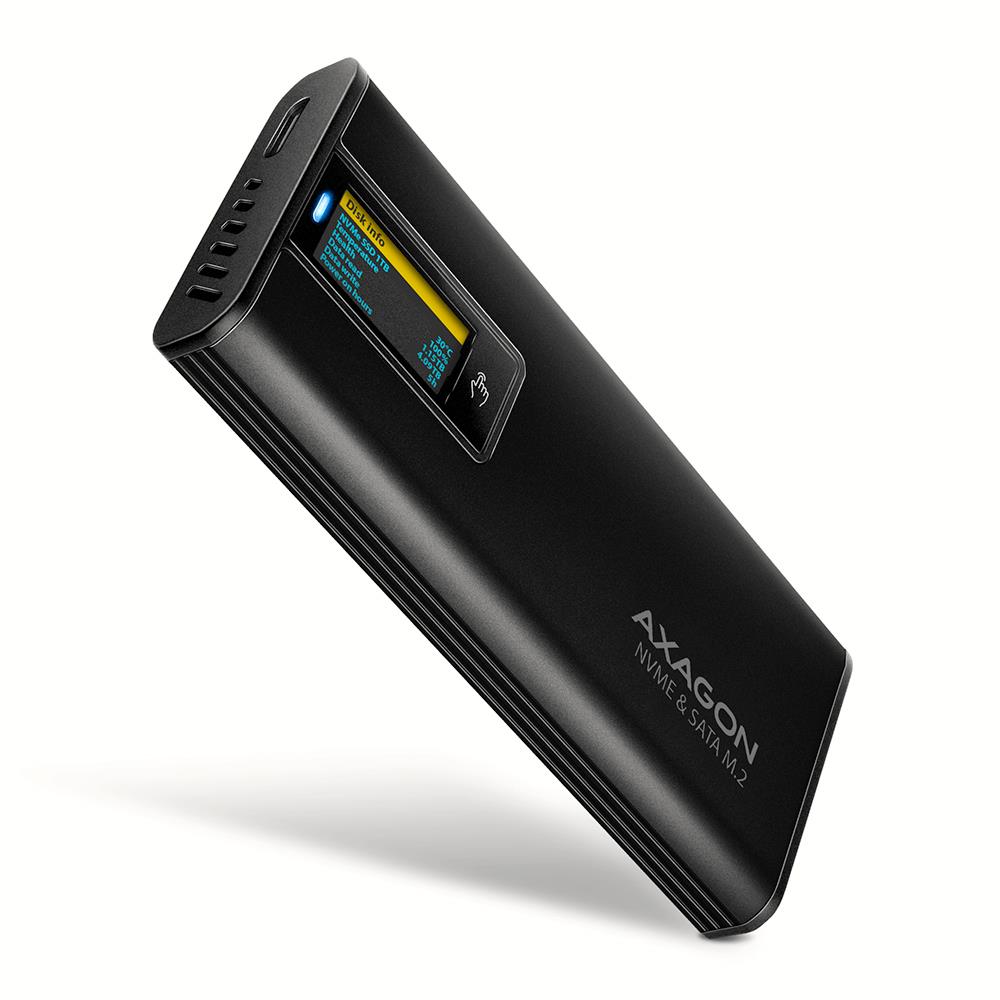

EEM2-SD2B USB-C 10Gbps – M.2 NVMe & SATA SSD DISPLAY box
External USB-C 10Gbps metal box with info display for M.2 NVMe & SATA SSDs. Screwless. Black.
Input:
• USB 10Gbps (USB 3.2 Gen 2), USB-C female connector.
• Compatible with USB 5Gbps, USB 20Gbps, USB4, and Thunderbolt 3/4/5.

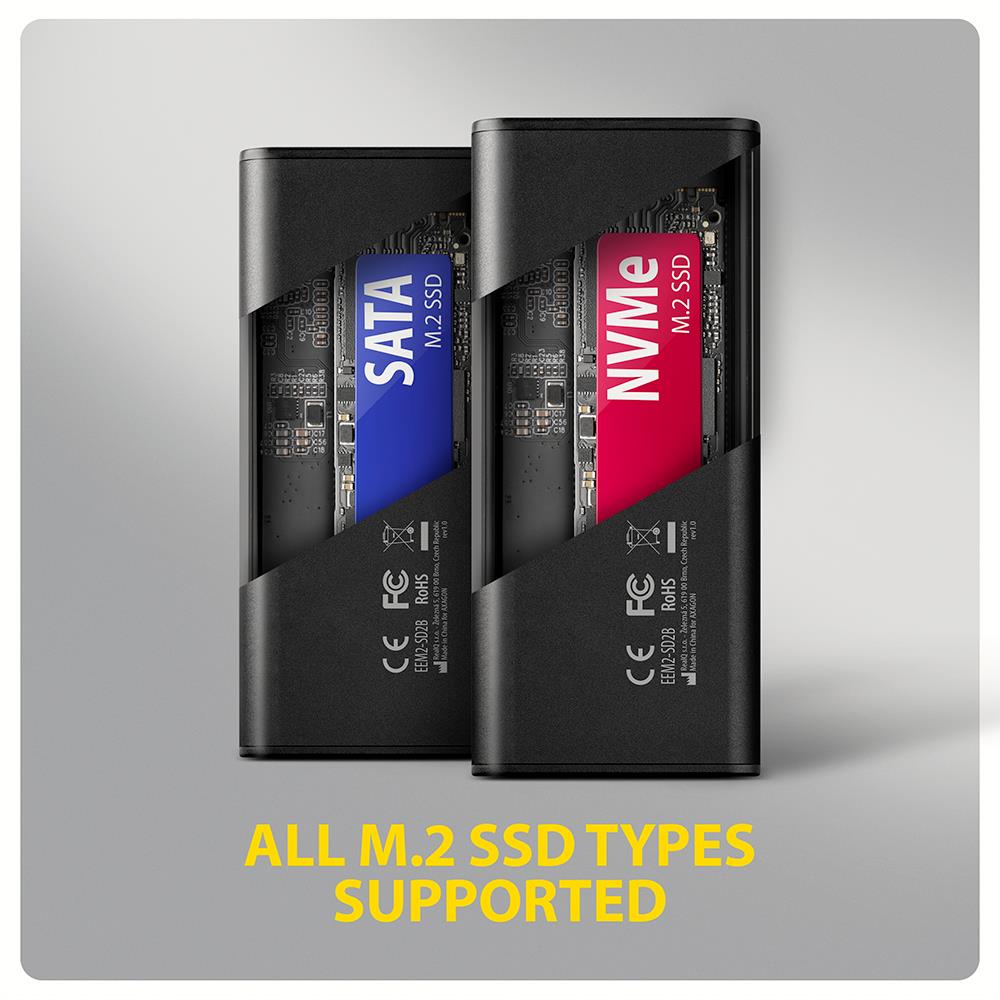

Supported Devices:
• NVMe M.2 SSDs,
• SATA M.2 SSDs,
• designed for M key or B+M key card formats,
• NGFF 75-pin M key slot for M.2 drives.

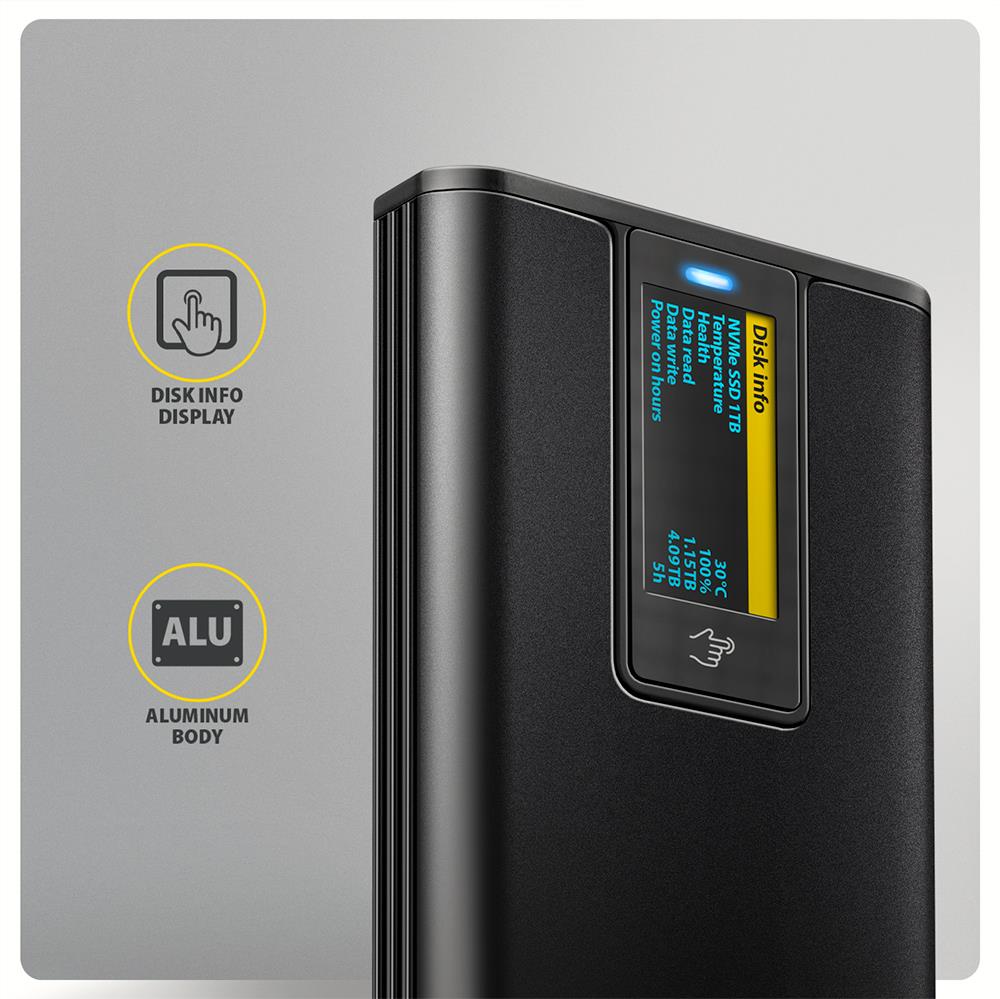

LED display shows:
• Recognizing – disk recognition (displayed when the box is connected to a device)
• Partition – displays the file system, size, and system name of the disk
• Idle – inactivity (information about the disk – used interface and disk size, speed of the connected bus, partitioning standard of the disk)
• Disk info – displays information about the disk (manufacturer label of the disk, actual disk temperature, health, amount of written / read data, total running time of the disk, number of disk removals without using safe removal)
• Monitor – real-time disk temperature using a graph
• Rd/Wr – data transfer (during data transfer, it is possible to switch between sections)
• Sleep – disk sleep mode
Specifikacijos
| Vendor Homepage |
www.axagon.eu/en/products/eem2-sd2b |
|---|---|
| Category Code |
HDA |
| Unit Box Height |
0.025 |
| Unit Box Length |
0.175 |
| Unit Box Width |
0.085 |
| Model |
EEM2-SD2B |
| Colour |
Black |
| Dimensions |
96 x 42 x 12 mm |
| Units per Pallet |
0 |
| Units per Shipping Box |
1 |
| Unit Calculated Volume |
0.0003719 cubm |
| Product Net Weight |
0.046 kg |
| Unit Calculated Weight |
0.1 kg |
