Compliance certificates
BSMI/CE/Federal Communications Commission (FCC)/RoHS
New Spec Gen4x4
Up to 7400 MB/s, suitable for gamers, content creators, and high-performance PC users
PCIe Gen 4 x 4
New generation transmission speed
Where to use

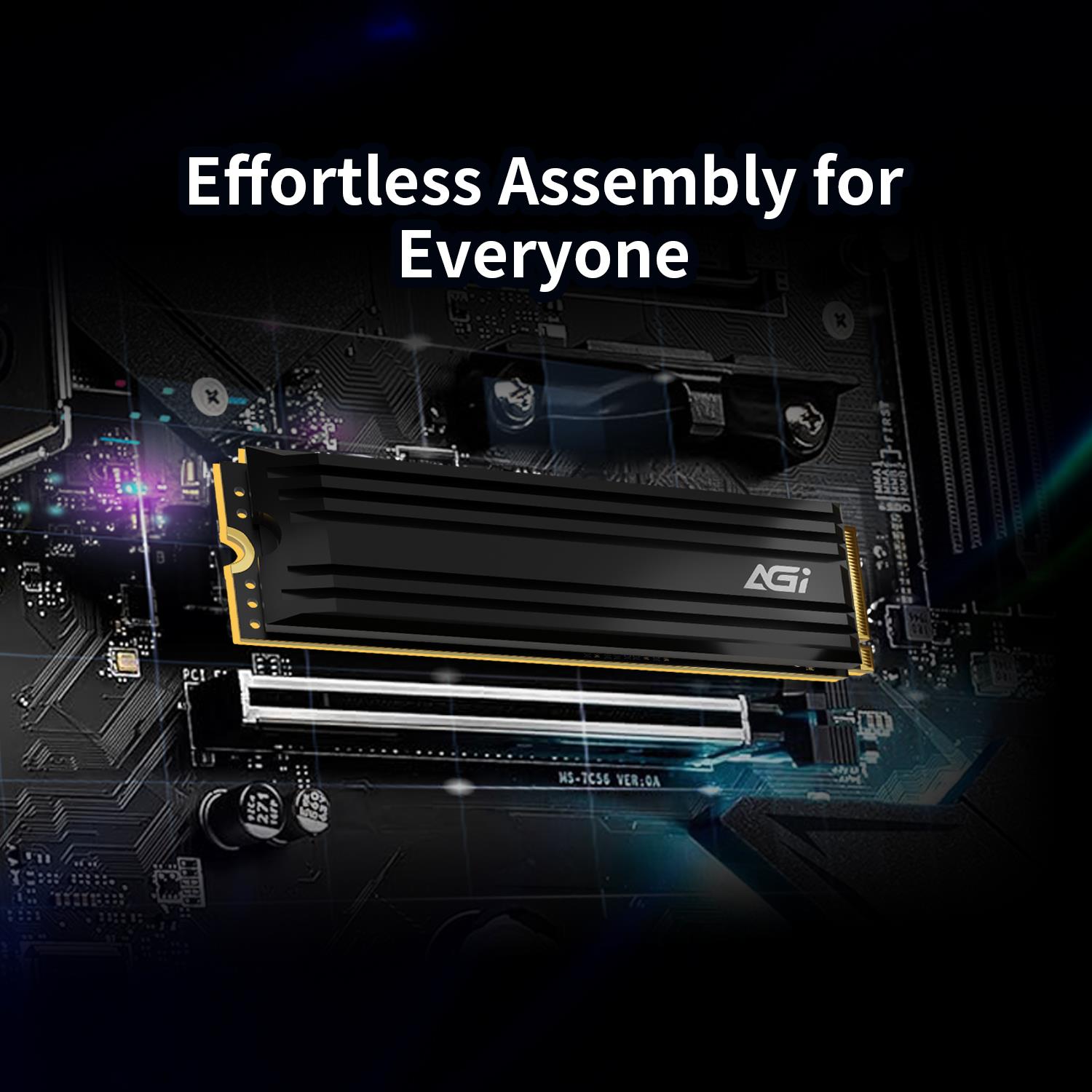

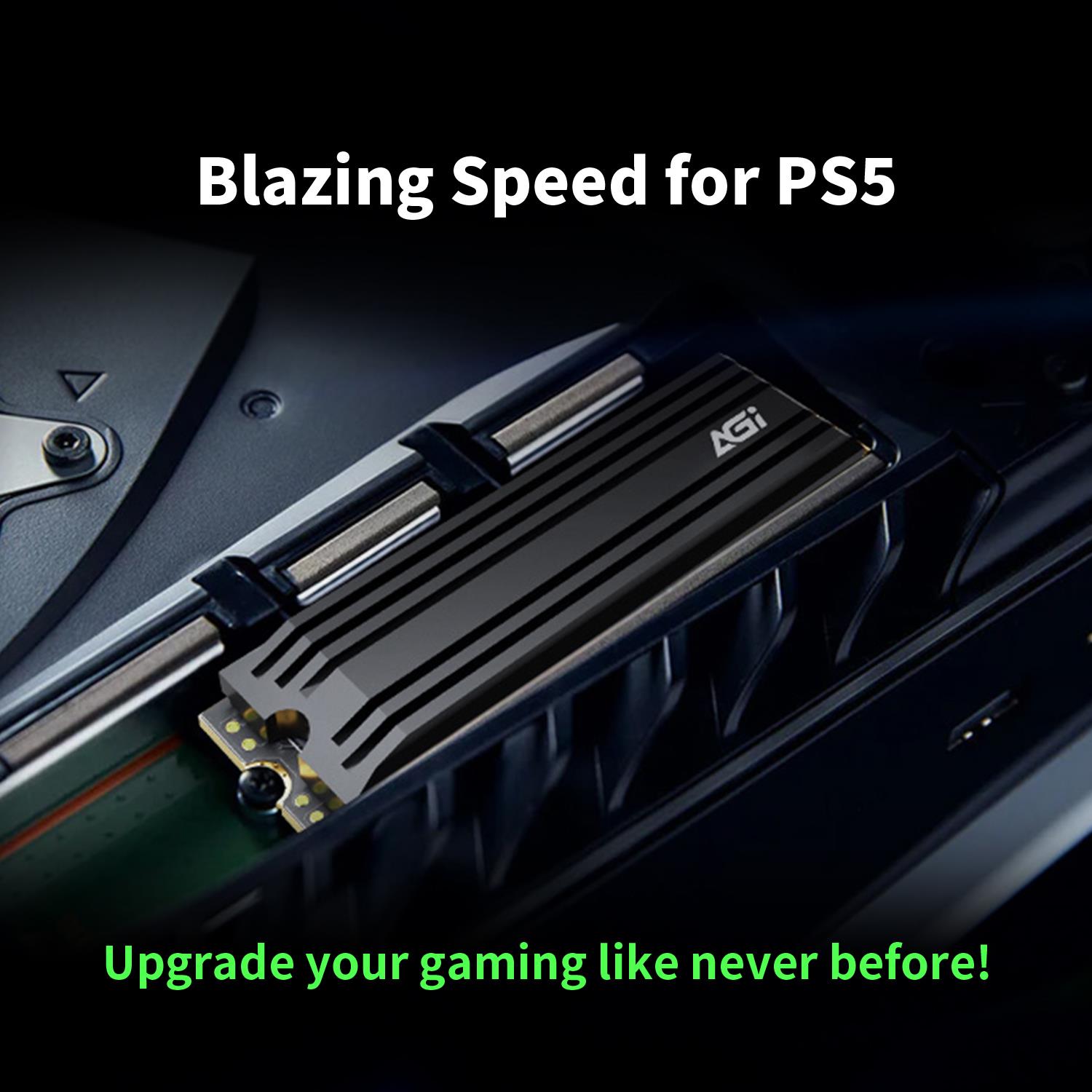

The PCIe Gen4 SSD can be assembled in the Gen4 interface of a new generation computer, and Playstation 5
Speed Performance
"This is internal test data, and actual read and write speeds may vary depending on system hardware, testing software, operating system, and capacity."

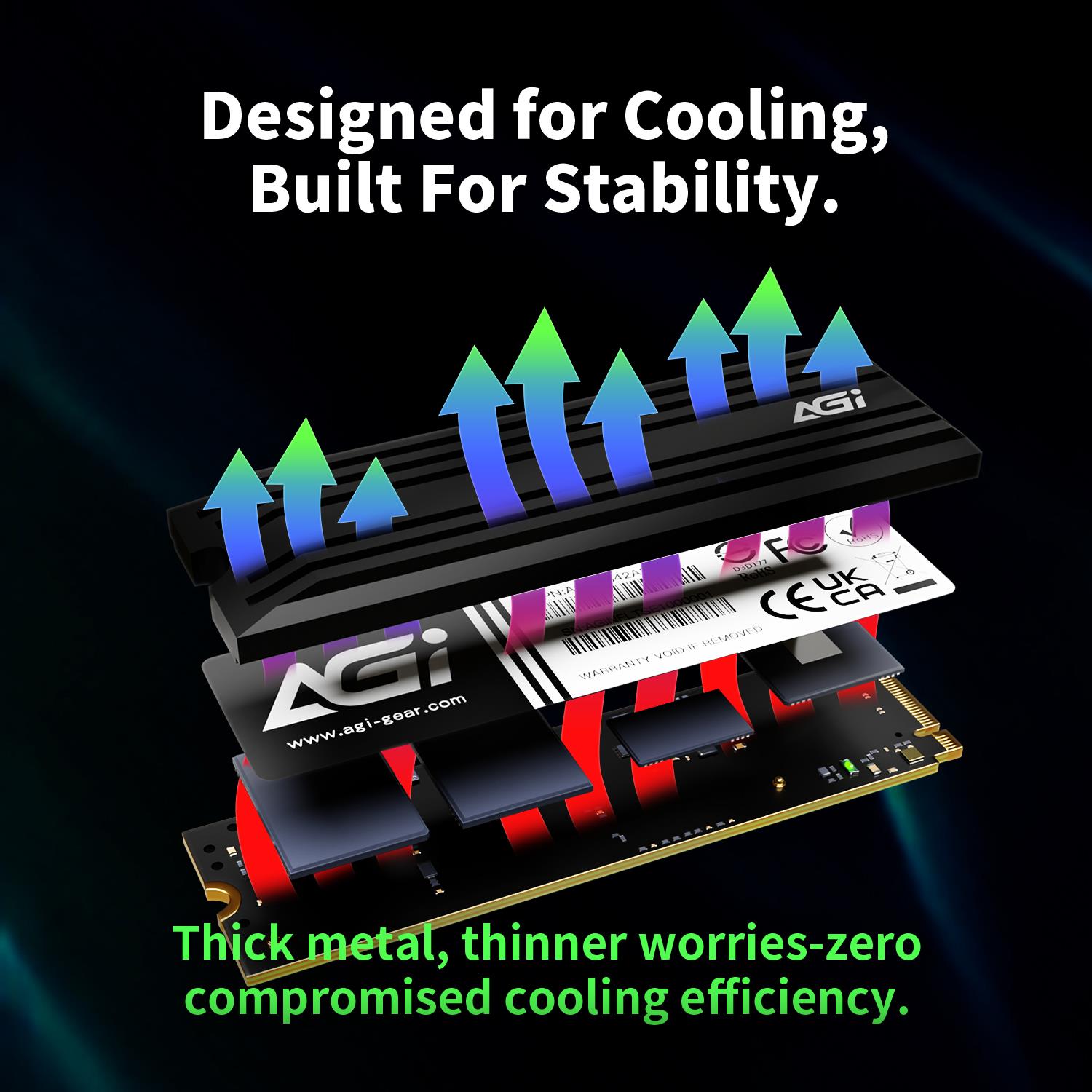

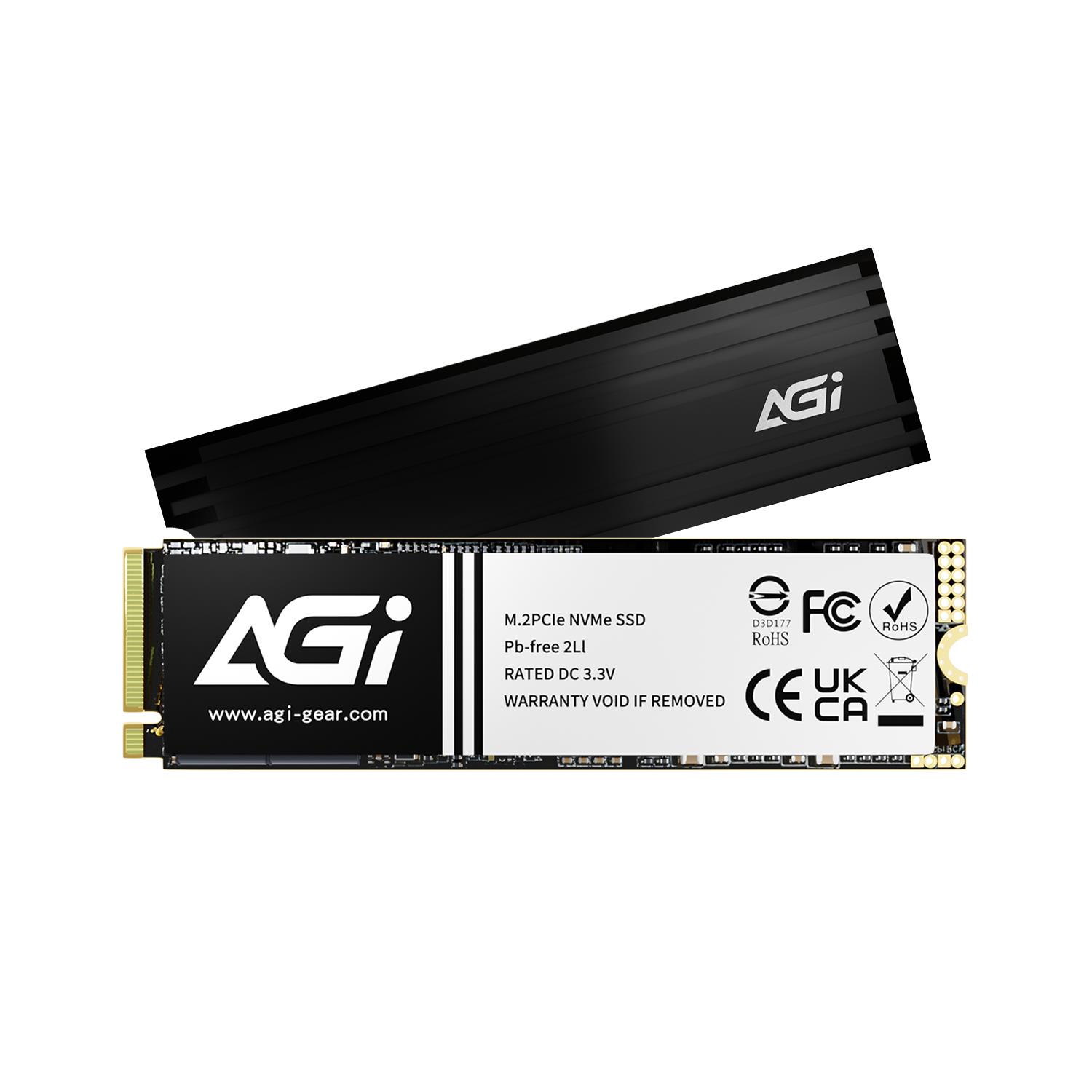

- High quality heatsink
- Speed up to 7400MB/s
- 4TB ultra-large capacity
- Support NVMe1.4

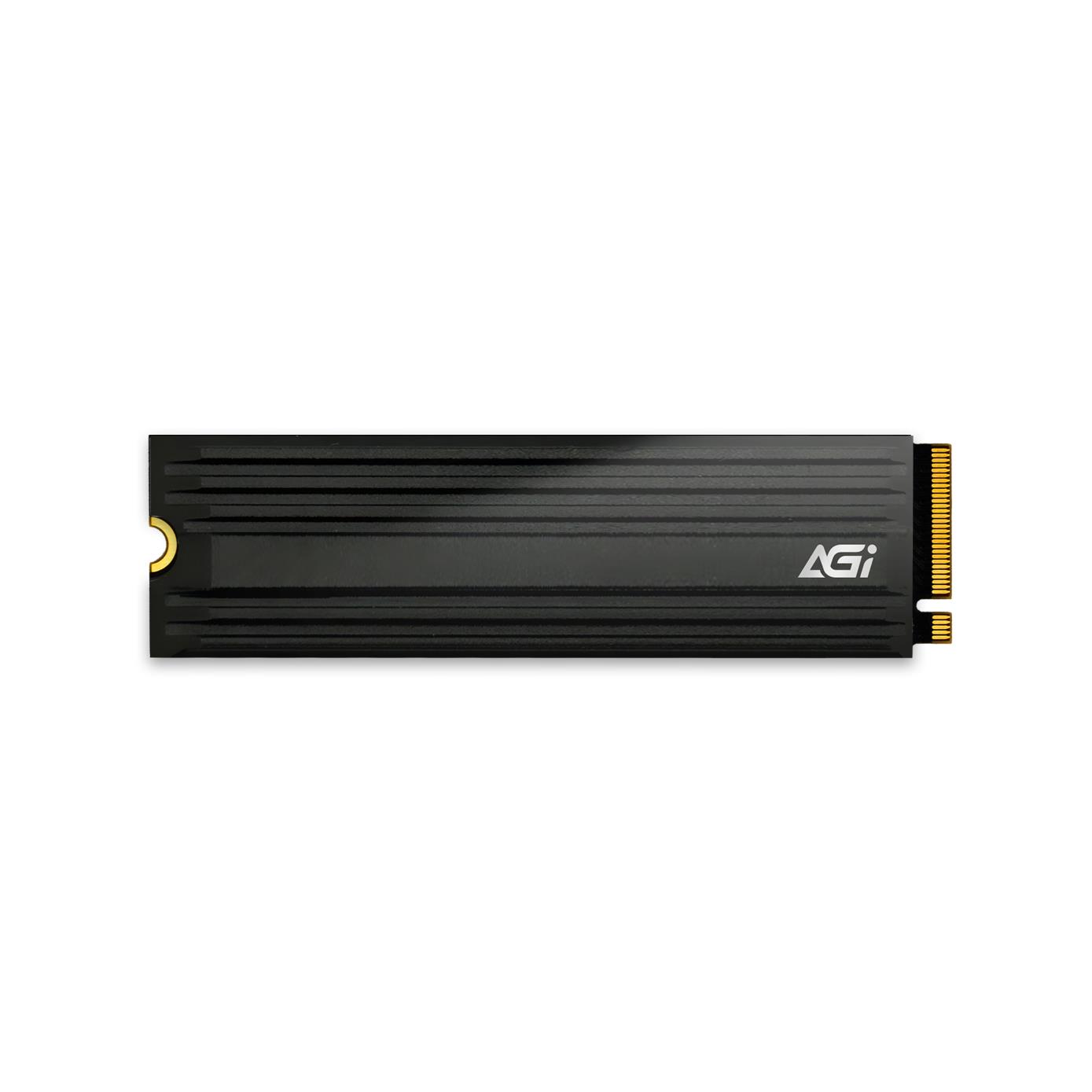

AGI Technology AI828. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 7400 MB/s, Write speed: 5200 MB/s, Component for: PC/Game console
Specifikacijos
| Vendor Homepage | https://agi-gear.com/product/ai828-m-2-pcie-gen4-ssd/ |
|---|---|
| Category Code | SSU |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.105 |
| Unit Box Width | 0.015 |
| Component for | PC/Game console |
| ECC | Yes |
| Interface | PCI Express 4.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Mean time between failures (MTBF) | 2000000 h |
| Memory type | 3D NAND |
| NVMe | Yes |
| NVMe version | 1.4 |
| PCI Express interface data lanes | x4 |
| Read speed | 7400 MB/s |
| S.M.A.R.T. support | Yes |
| SSD capacity | 1000 GB |
| SSD form factor | M.2 |
| TBW rating | 750 |
| TRIM support | Yes |
| Write speed | 5200 MB/s |
| Operating voltage | 3.3 V |
| Brand specific technologies | SLC Caching |
| Depth | 80 mm |
| Height | 3.5 mm |
| Weight | 7.5 g |
| Width | 22 mm |
| Package type | Box |
| Operating relative humidity (H-H) | 5 - 98 % |
| Operating shock | 1500 G |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 15 G |
| Storage temperature (T-T) | -40 - 85 °C |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.000333 cubm |
| Unit Calculated Weight | 0.056 kg |
