Networking standards
IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof

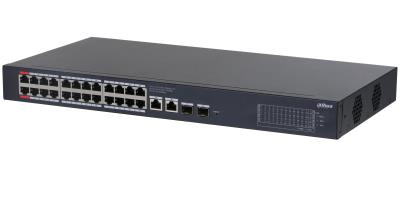

Dahua Technology CS4228-24GT-240. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26, Installed SFP modules quantity: 2. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE…. Power over Ethernet (PoE). Rack mounting
Specifikacijos
| Vendor Homepage | https://transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4228-24GT-240 |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.34 |
| Cloud-managed | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| 10G support | No |
| Flow control support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 15360 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| DHCP features | DHCP client |
| Housing material | Steel |
| Product colour | Black |
| Rack mounting | Yes |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 – 240 V |
| Input current | 4 A |
| Power consumption (max) | 265 W |
| Power source | AC/DC/PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating relative humidity (H-H) | 5 – 95 % |
| Operating temperature (T-T) | -10 – 55 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 70 °C |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 2500 g |
| Width | 440 mm |
| Package depth | 342 mm |
| Package height | 90 mm |
| Package weight | 3150 g |
| Package width | 540 mm |
| Model name | CS4228-24GT-240 |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.01918 cubm |
| Unit Calculated Weight | 3.67 kg |
