Networking standards
IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- 16× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design

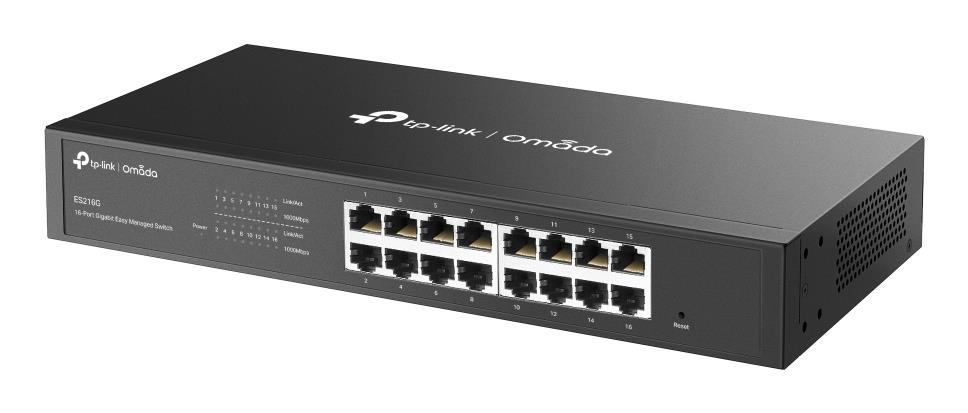

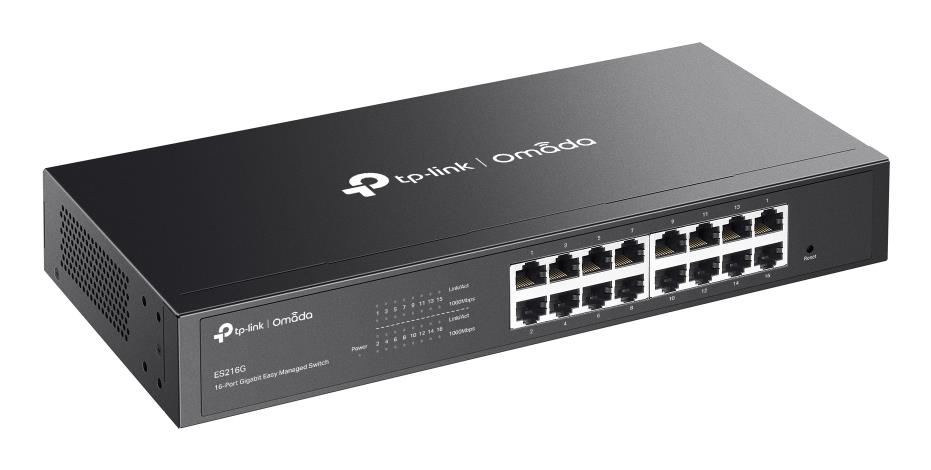

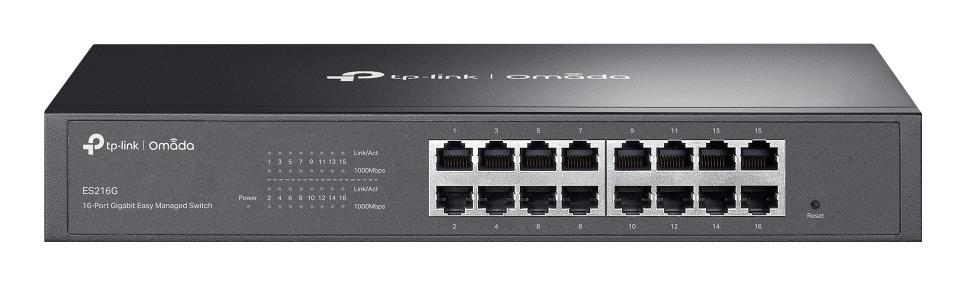

TP-Link Omada ES216G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
Specifikacijos
| Vendor Homepage | https://www.omadanetworks.com/my/business-networking/omada-switch-easy-managed/es216g/ |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.24 |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Unified static configuration | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| 10G support | No |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN/Port-based VLAN/Tagged VLAN |
| Number of VLANs | 32 |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 2131140 h |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 8.4 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Heat dissipation | 28.52 BTU/h |
| Width | 294 mm |
| Depth | 140 mm |
| Height | 44 mm |
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
| Package type | Box |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Unit Calculated Weight | 2 kg |
| Product Net Weight | 0.93 kg |
| Unit Calculated Volume | 0.008379 cubm |
| Units per Shipping Box | 8 |
| Shipping Box Weight | 16 kg |
| Unit Width | 24 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 36 cm |
| Unit Depth | 34 cm |
| Shipping Box Depth | 49 cm |
| Unit Height | 9 cm |
| Shipping Box Width | 38 cm |
| Name | NET SWITCH 16PORT 10/100/1000M/OMADA ES216G TP-LINK |
| Model | TP-LINK OMADA ES216G |
| Model name | ES216G |
