Networking standards
IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
What This Product Does

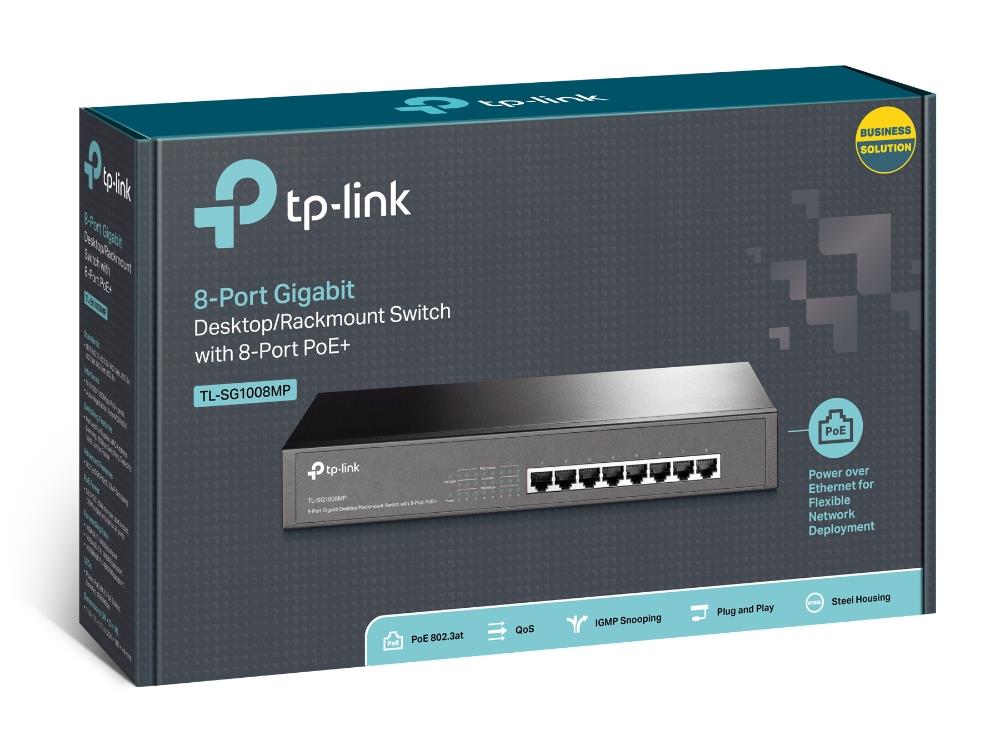

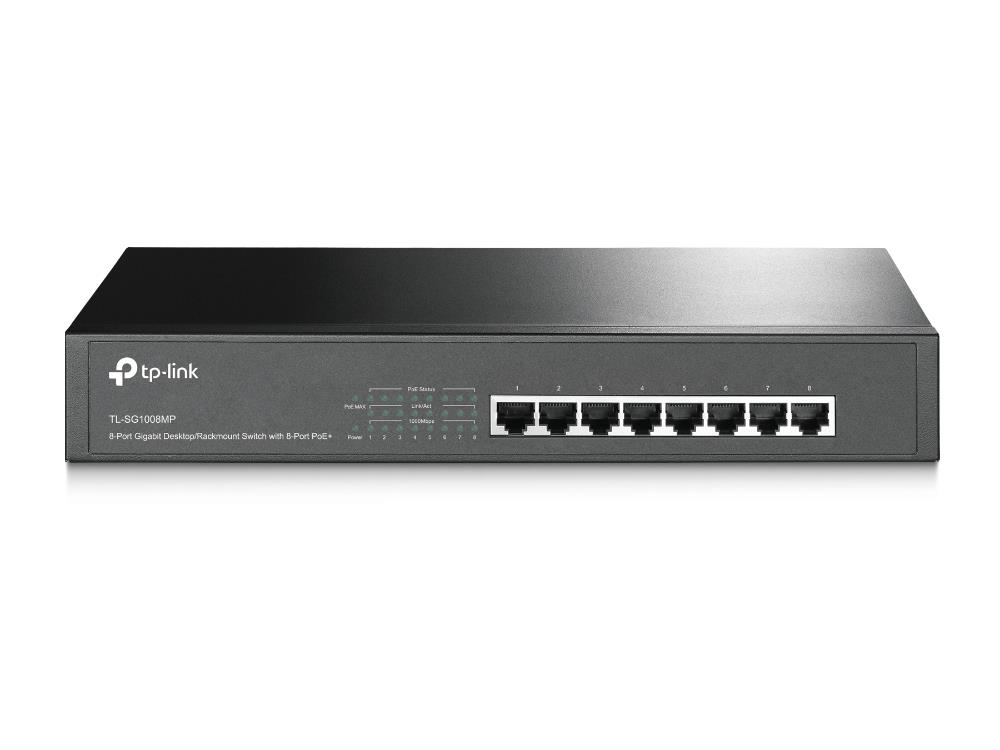

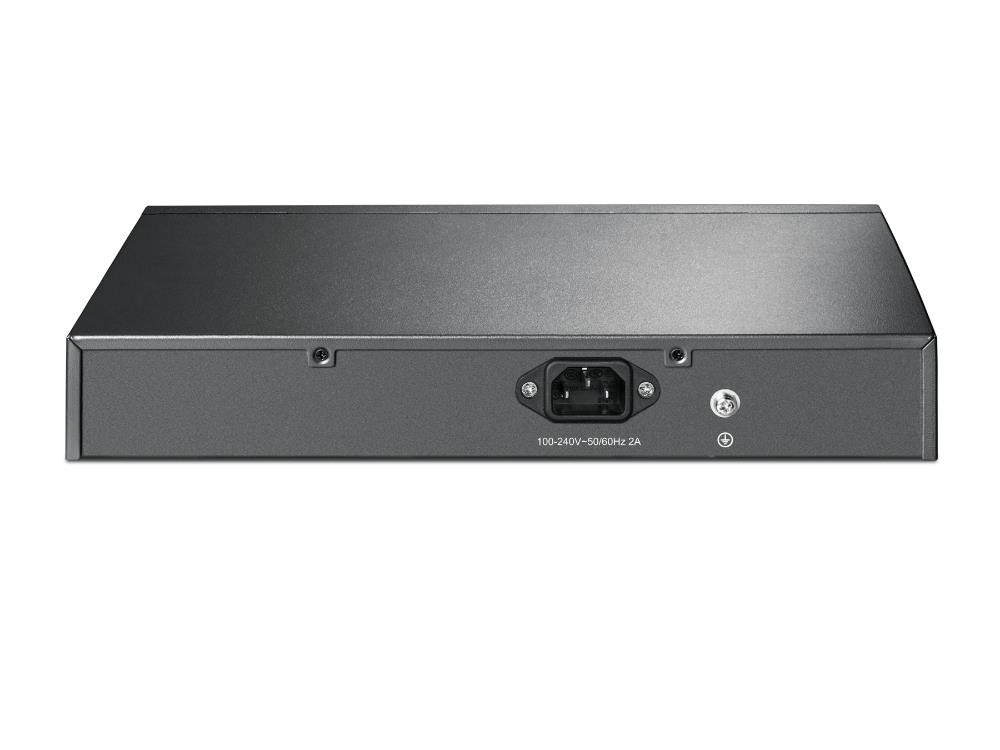

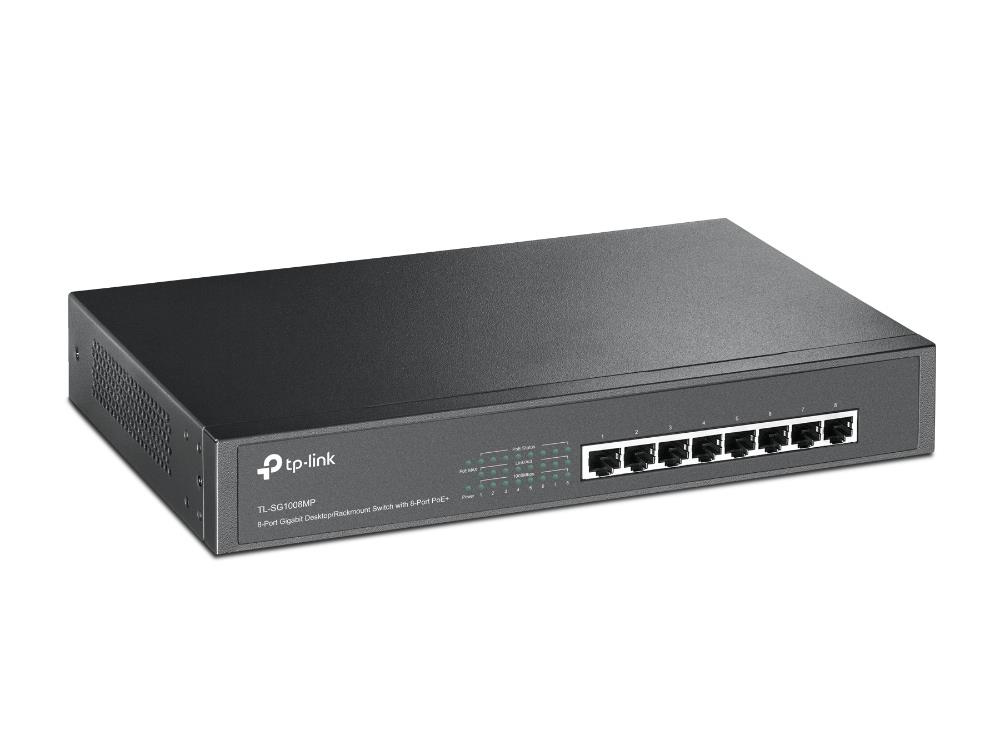

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
- Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
- Innovative energy-efficient technology reduces power consumption
- Rack mountable with included rack mount bracket
- Total PoE power budget up to 126W
- Plug and play design, no configuration required
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/us/products/details/cat-42_TL-SG1008MP.html?utm_medium=select-local#overview |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.25 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Forwarding rate | 11.904 Mpps |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| MAC address table | 4000 entries |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | No |
| Maximum cable length | 100 m |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 173.65 W |
| Power source | AC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 153 W |
| Heat dissipation | 592.15 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package type | Box |
| Package weight | 2475 g |
| Package width | 250 mm |
| Sustainability compliance | Yes |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Harmonized System (HS) code | 85176990 |
| Product Net Weight | 0.6 kg |
| Shipping Box Depth | 40.5 cm |
| Shipping Box Height | 8 cm |
| Shipping Box Weight | 2.228 kg |
| Shipping Box Width | 25 cm |
| Unit Calculated Volume | 0.0081 cubm |
| Unit Calculated Weight | 2.23 kg |
| Units per Shipping Box | 1 |
| Model | TL-SG1008MP |
| Model name | TL-SG1008MP |
