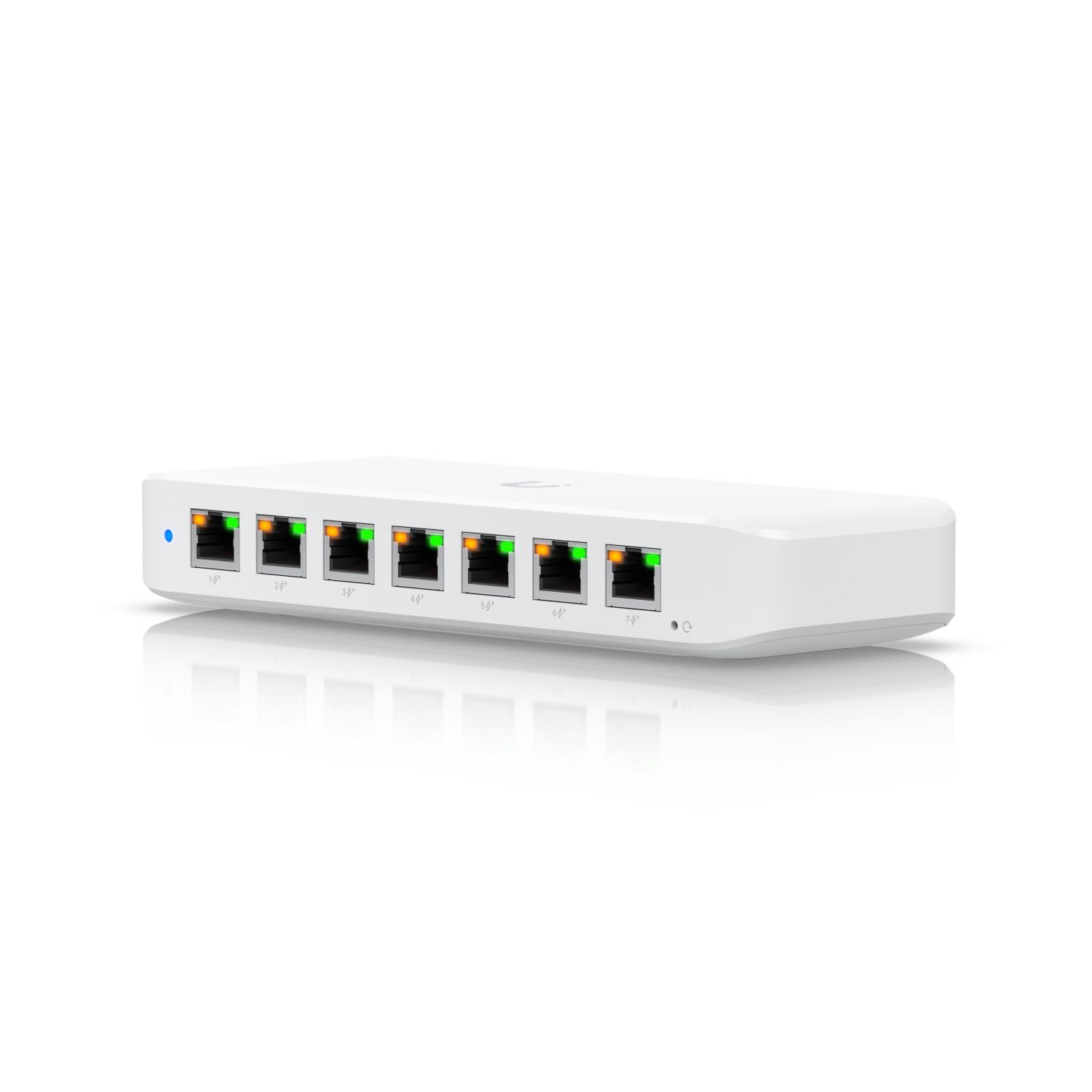

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input*
- 52W PoE availability with the included AC power adapter
Ubiquiti Ultra 60W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. DC input voltage: 44 – 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Specifikacijos
| Vendor Homepage | https://store.ui.com/us/en/collections/unifi-switching-utility-poe/products/usw-ultra-60w |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.11 |
| Unit Box Width | 0.14 |
| Switch layer | L2 |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| 10G support | No |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Jumbo frames support | Yes |
| Switching capacity | 16 Gbit/s |
| Throughput | 8 Gbit/s |
| Multicast support | Yes |
| Housing material | Polycarbonate (PC) |
| LED indicators | Activity/Link/PoE/Status |
| Product colour | White |
| Rack mounting | No |
| Reset button | Yes |
| Wall mountable | Yes |
| DC input voltage | 44 – 57 V |
| Input current | 1.1 A |
| Number of power supply units | 1 |
| Power consumption (max) | 9 W |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 7 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 7 |
| Total Power over Ethernet (PoE) budget | 42 W |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -20 – 45 °C |
| Depth | 76 mm |
| Height | 33 mm |
| Weight | 320 g |
| Width | 203 mm |

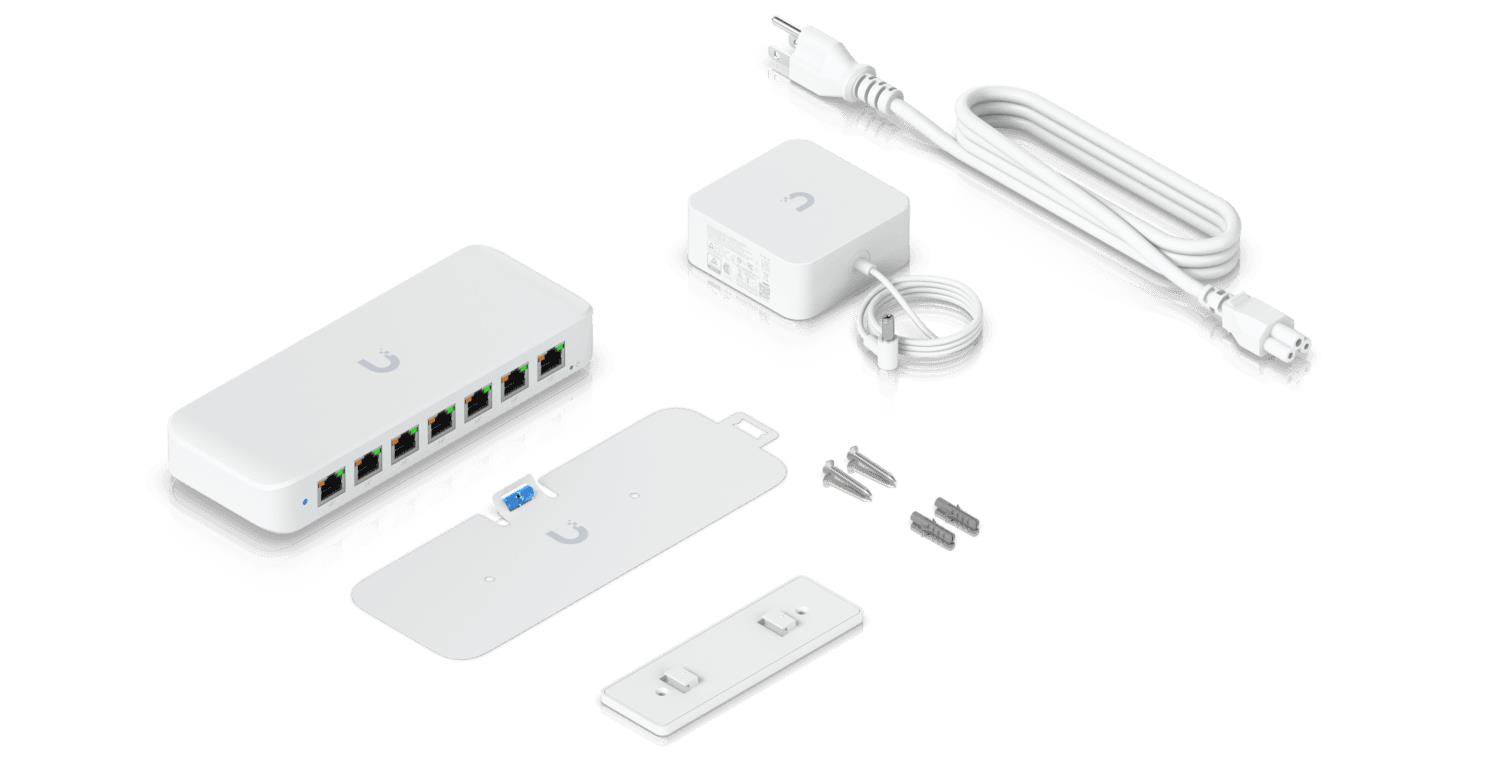

| Cables included | Power |
| Manual | Yes |
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
| Model | UBIQUITI Ultra 60W |
| Series | Ultra |
| Model name | Ultra 60W |
| Units per Shipping Box | 6 |
| Unit Calculated Volume | 0.004703 cubm |
| Unit Calculated Weight | 1.1 kg |
