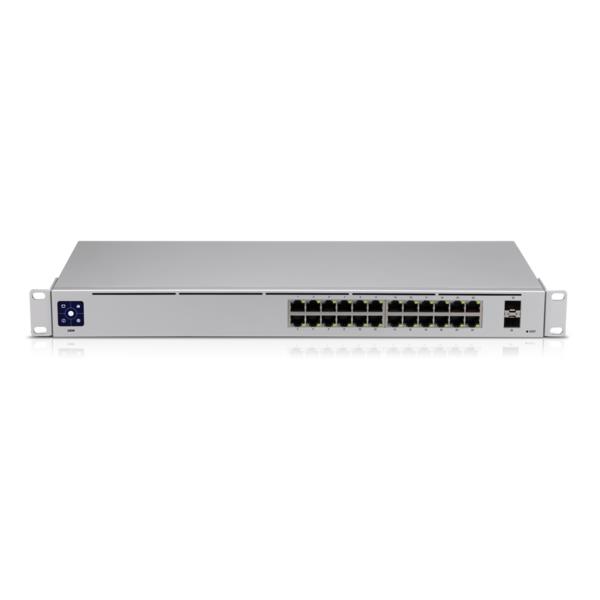

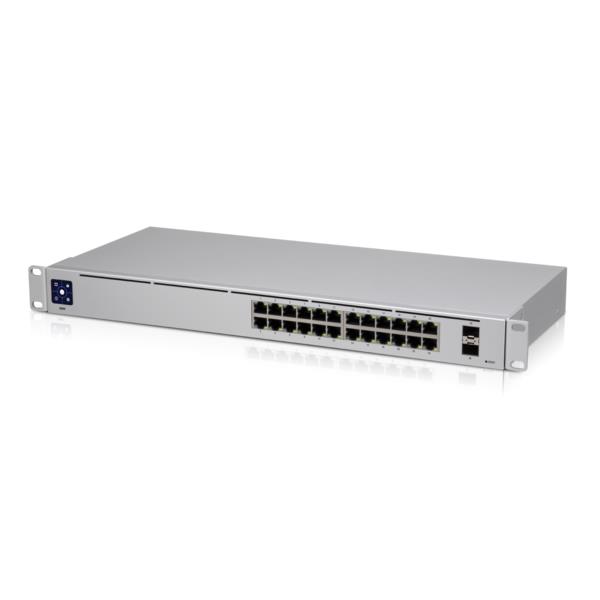

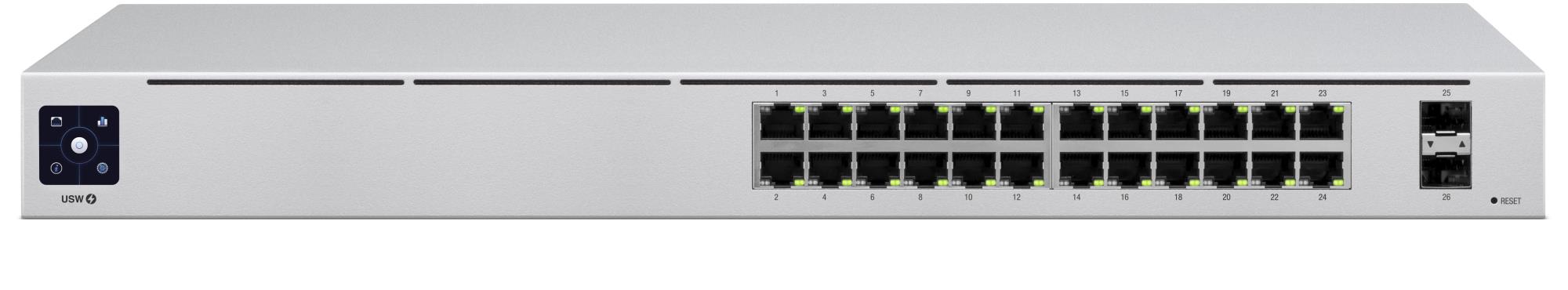

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity
The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3″ touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3″ color touchscreen for status information
- Managed with UniFi Network application
- 1U rackmountable (kit included)
| Summary | Ubiquiti UniFi USW-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Rack mounting |
|---|---|
| Vendor Homepage | https://dl.ubnt.com/ |
| Category Code | SWI |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.52 |
| Unit Box Width | 0.12 |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

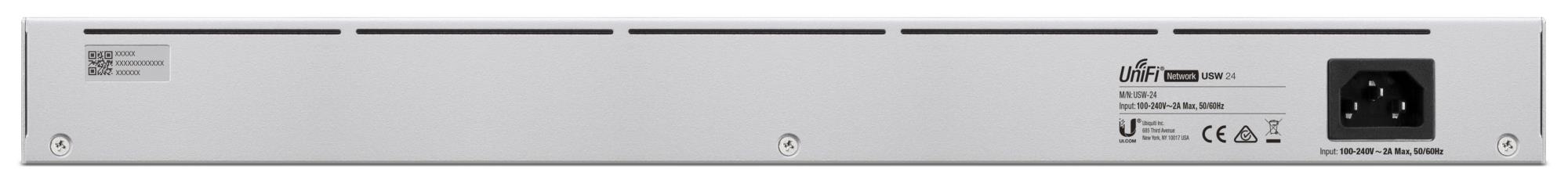

| Power connector | AC-in jack |
| SFP module slots quantity | 2 |
| 10G support | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Product colour | Silver |
| Rack mounting | Yes |
| Stackable | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (typical) | 120 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -5 – 40 °C |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 2700 g |
| Width | 442.4 mm |
| Certification | CE, FCC, IC |
| Harmonized System (HS) code | 85176990 |
| Model name | USW-24 |
| Units per Pallet | 18 |
| Units per Shipping Box | 2 |
| Unit Calculated Volume | 0.02387 cubm |
| Unit Calculated Weight | 4.25 kg |
