10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Specifikacijos
| Summary |
Ubiquiti UniFi WAN Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1. Switching capacity: 20 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U |
|---|---|
| Vendor Homepage |
https://eu.store.ui.com/eu/en/category/switching-wan/products/usw-wan |
| Category Code |
SWI |
| Unit Box Height |
0.245 |
| Unit Box Length |
0.535 |
| Unit Box Width |
0.107 |
| Basic switching RJ-45 Ethernet ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power cables quantity |
2 |
| Power connector |
AC/DC |
| SFP+ module slots quantity |
3 |
| 10G support |
No |
| Forwarding rate |
15 Mpps Mpps |
| Switching capacity |
20 Gbit/s Gbit/s |
| Throughput |
10 Gbit/s Gbit/s |
| Form factor |
1U |
| Housing material |
SGCC |
| LED indicators |
Network, System |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Reset button |
Yes |
| AC input frequency |
50/60 Hz Hz |
| AC input voltage |
100 – 240 V V |
| Power consumption (max) |
13 W W |
| Power source |
AC/DC |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
No |
| Operating relative humidity (H-H) |
10 – 90% % |
| Operating temperature (T-T) |
-5 – 40 °C °C |
| Depth |
120 mm mm |
| Height |
43.7 mm mm |
| Weight |
2.2 kg g |
| Width |
442.4 mm mm |

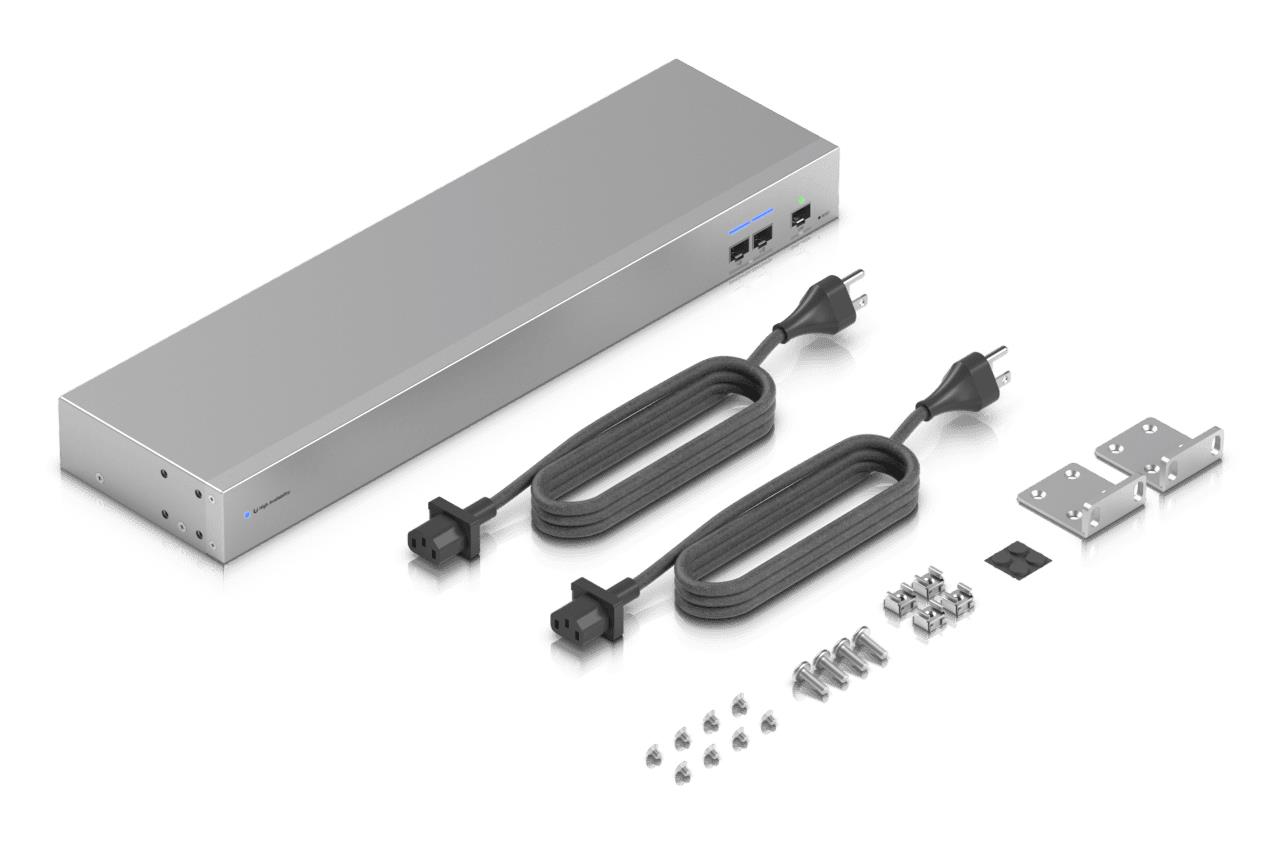

| Cables included |
Power |
| Rack mount kit |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Model |
USW-WAN |
| Model name |
WAN Switch |
| Units per Shipping Box |
4 |
| Unit Calculated Volume |
0.01704 cubm |
| Unit Calculated Weight |
3.63 kg |
