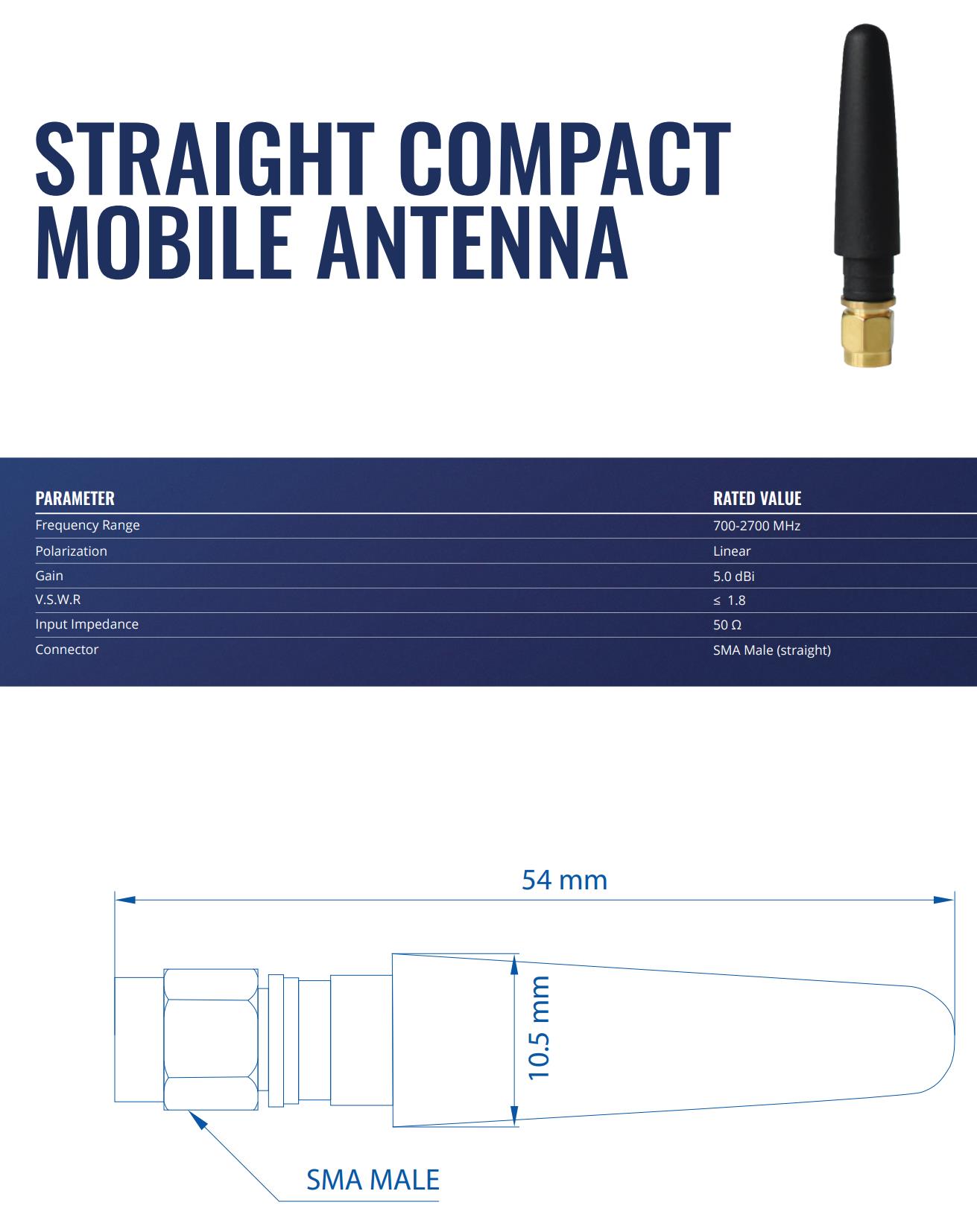

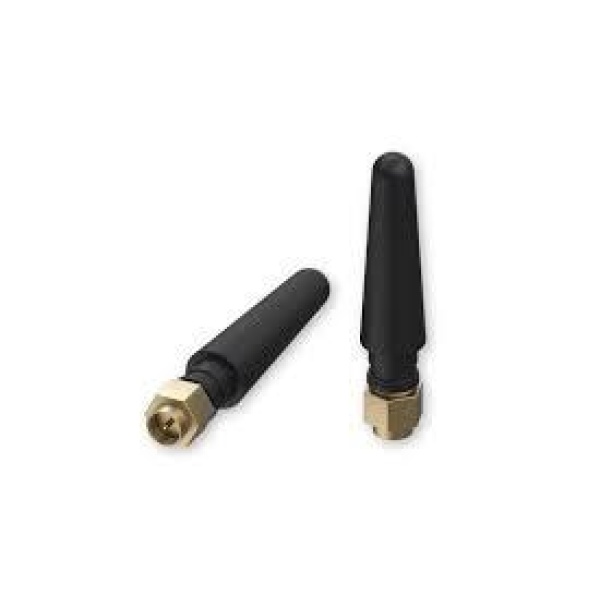

Teltonika 003R-00281 is a compact antenna with 5 dBi gain, equipped with an SMA male connector, which operates in the 700-2700 MHz frequency range.
- Linear polarization
- Resistance 50 Ω
- V.S.W.R. (Voltage Standing Wave Ratio) <= 1.8
Teltonika 003R-00281. Antenna gain level (max): 5 dBi, Frequency band: 0.7 - 2.7 GHz, Gain: 5 dBi. Antenna type: SMA antenna, Antenna connector type: SMA, Connector gender: Male. Height: 54 mm, Diameter: 1.05 cm
Specifikacijos
| Vendor Homepage | https://www.batna24.com/en/p/teltonika-003r00281-lte-antenna-rmnlk |
|---|---|
| Category Code | WAE |
| Unit Box Height | 0.025 |
| Unit Box Length | 0.06 |
| Unit Box Width | 0.025 |
| Frequency band | 0.7 - 2.7 GHz |
| Gain | 5 dBi |
| Impedance | 50 Ω |
| Antenna gain level (max) | 5 dBi |
| Antenna type | SMA antenna |
| Antenna connector type | SMA |
| Connector gender | Male |
| Polarization | Linear polarization |
| Voltage Standing Wave Ratio (VSWR) | = 1.8 |
| Product colour | Black |

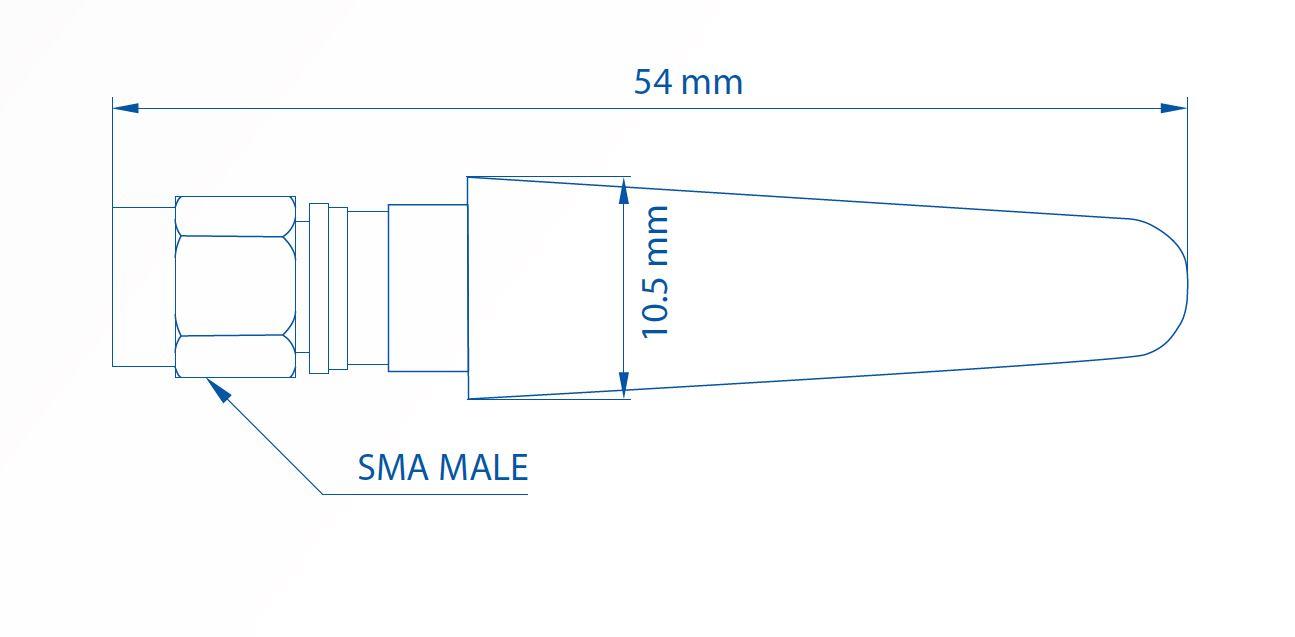

| Height | 54 mm |
| Diameter | 10.5 mm |
| Unit Calculated Weight | 0.01 kg |
| Product Net Weight | 0.01 kg |
| Units per Shipping Box | 1 |
| Unit Width | 2.5 cm |
| Unit Depth | 6 cm |
| Unit Height | 2.5 cm |
| Unit Calculated Volume | 3.75E-05 cubm |
| Shipping Box Weight | 0.01 kg |
| Shipping Box Height | 2.5 cm |
| Shipping Box Depth | 6 cm |
| Shipping Box Width | 2.5 cm |
| Name | ANTENNA MOBILE STRAIGHT/COMPACT PR1CS450 TELTONIKA |
| Model name | 003R-00281 |
