Networking standards
IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
Security algorithms
AES-CCMP/TKIP/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-PSK
Certification
IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 EN IEC 62311:2020 EN 300 328 V2.2.2 CE, UKCA, CB, FCC, IC, WEEE

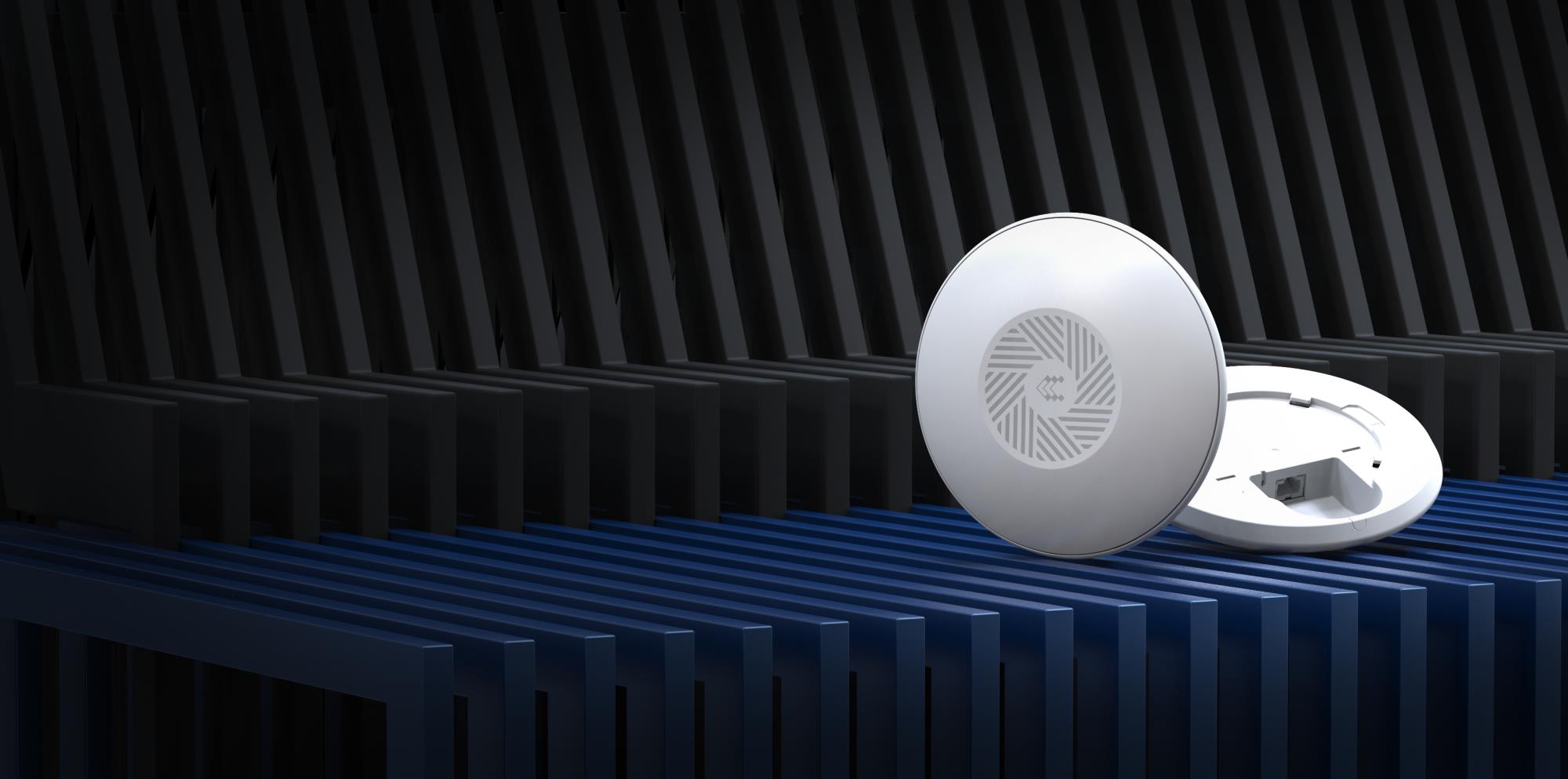

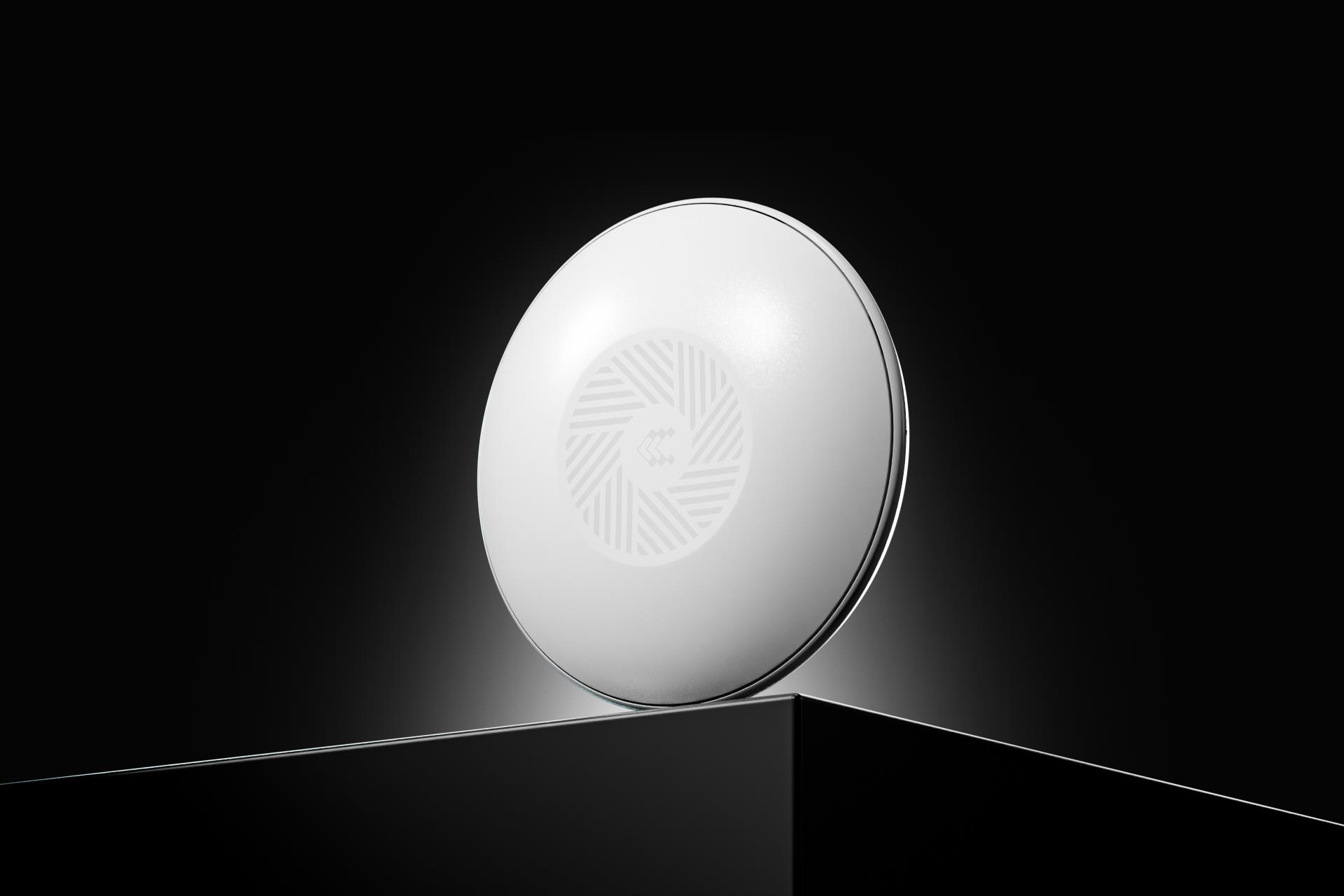

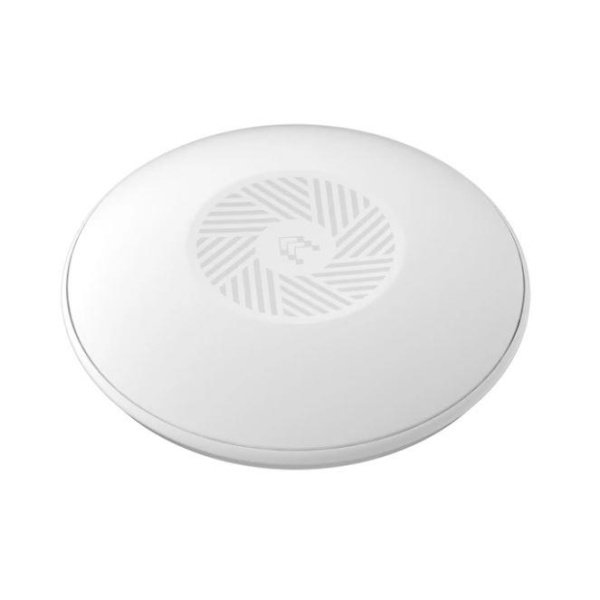

TAP100 is the first-ever Teltonika Networks Access Point, perfect for strengthening Wi-Fi coverage in small enterprise and commercial spaces. This PoE-in access point can be powered by active PoE devices via its RJ45 port and was designed with simplicity and ease of installation in mind

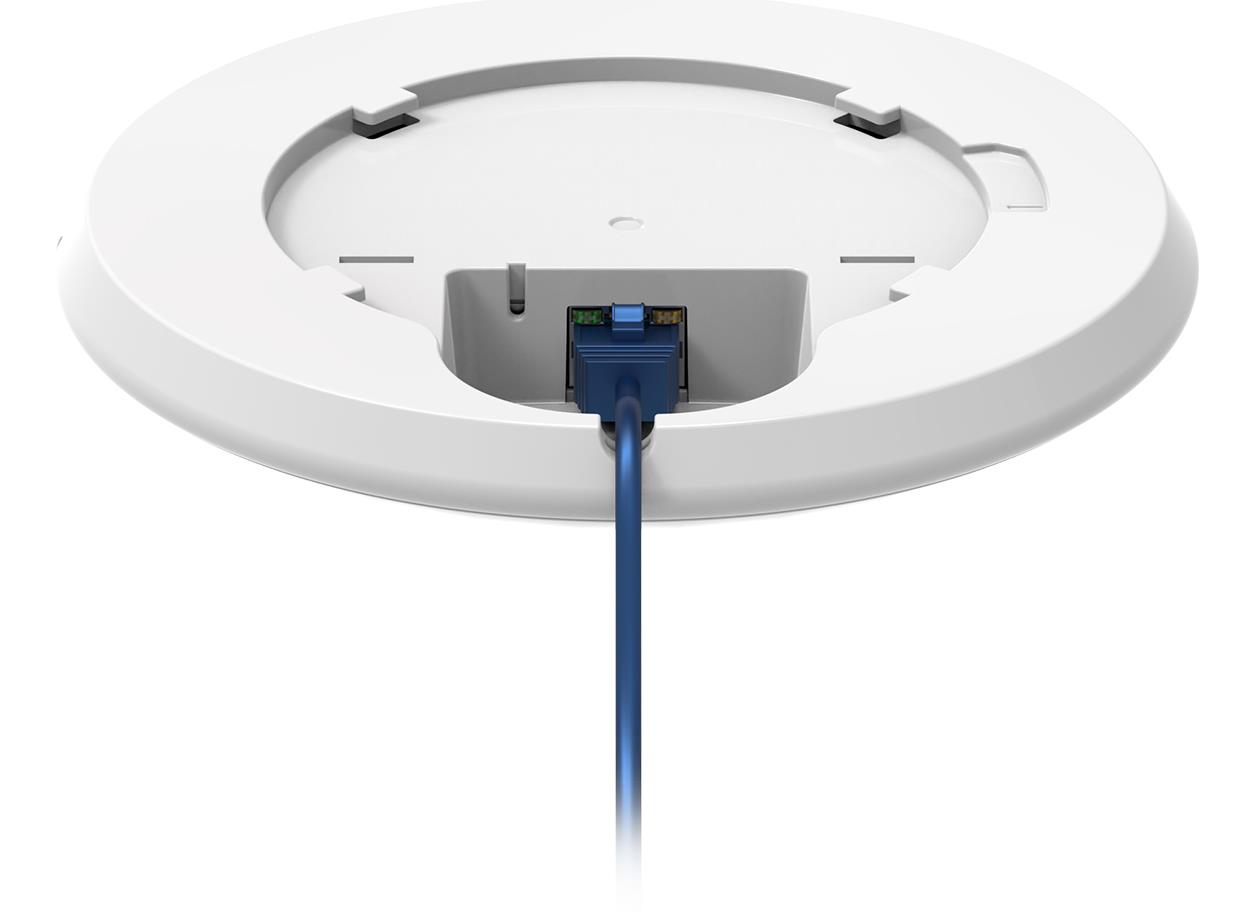

- POE-IN - Can be powered by PoE devices via RJ45 port

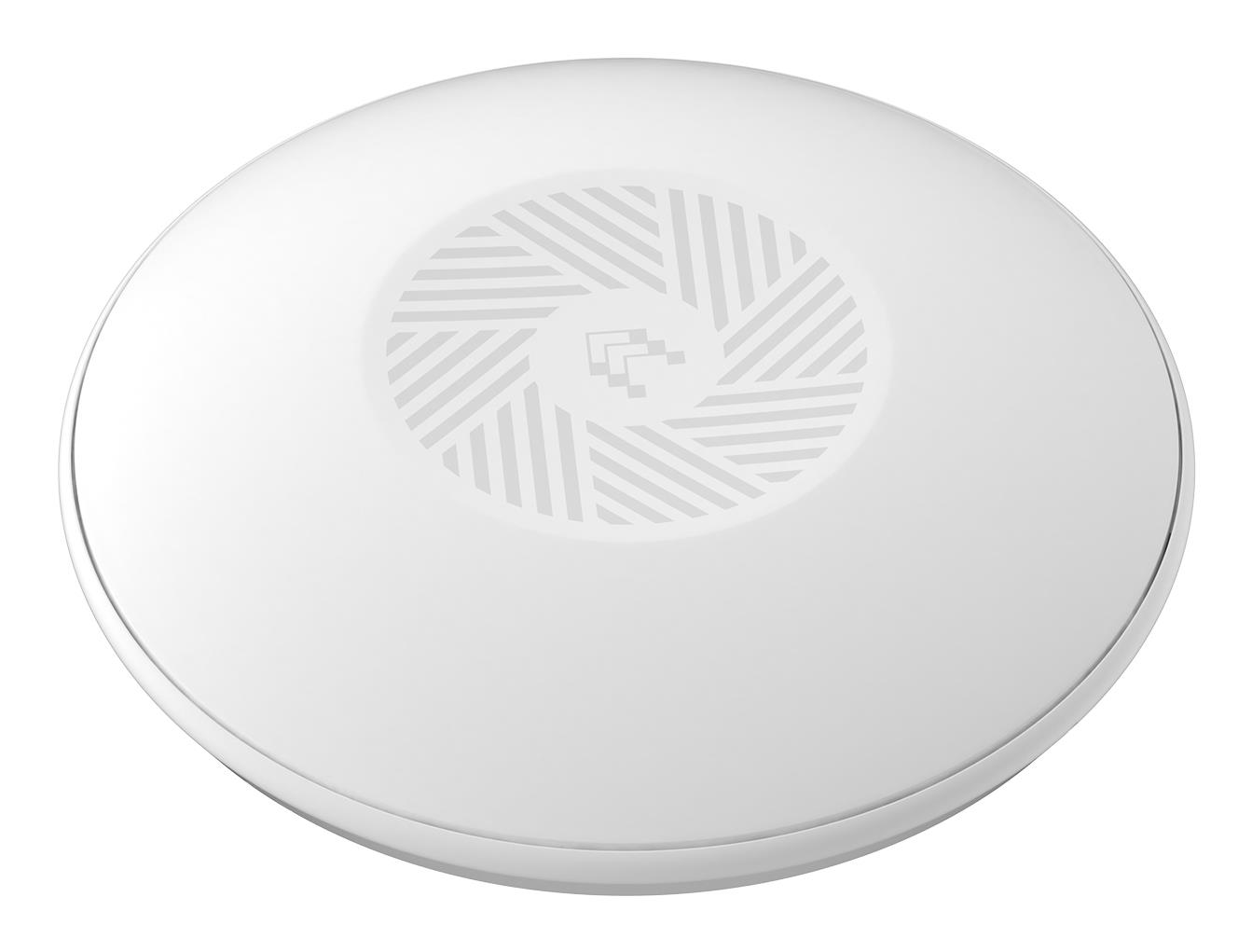

- SLEEK DESIGN - UV-stabilized plastic housing that blends in with its environment

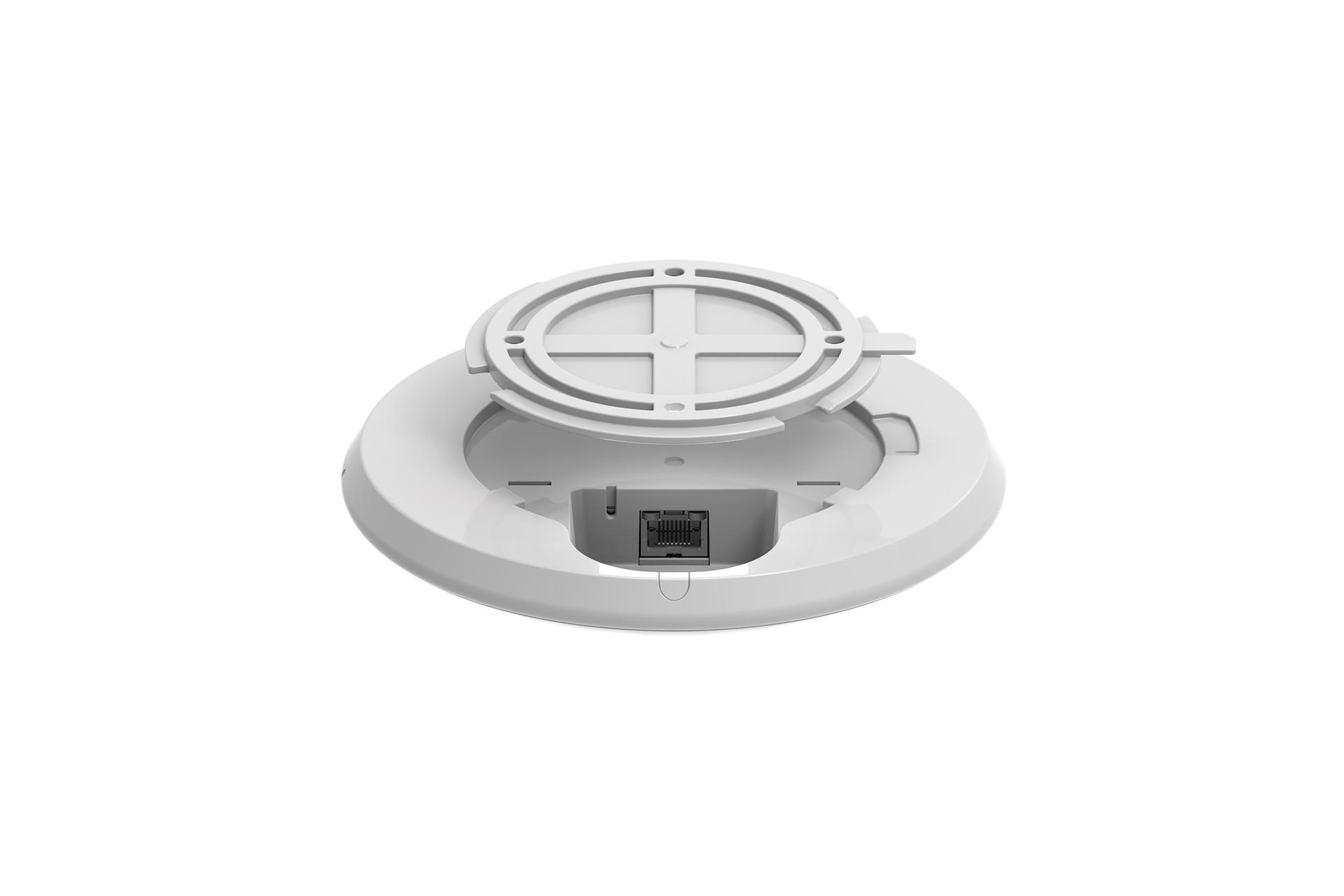

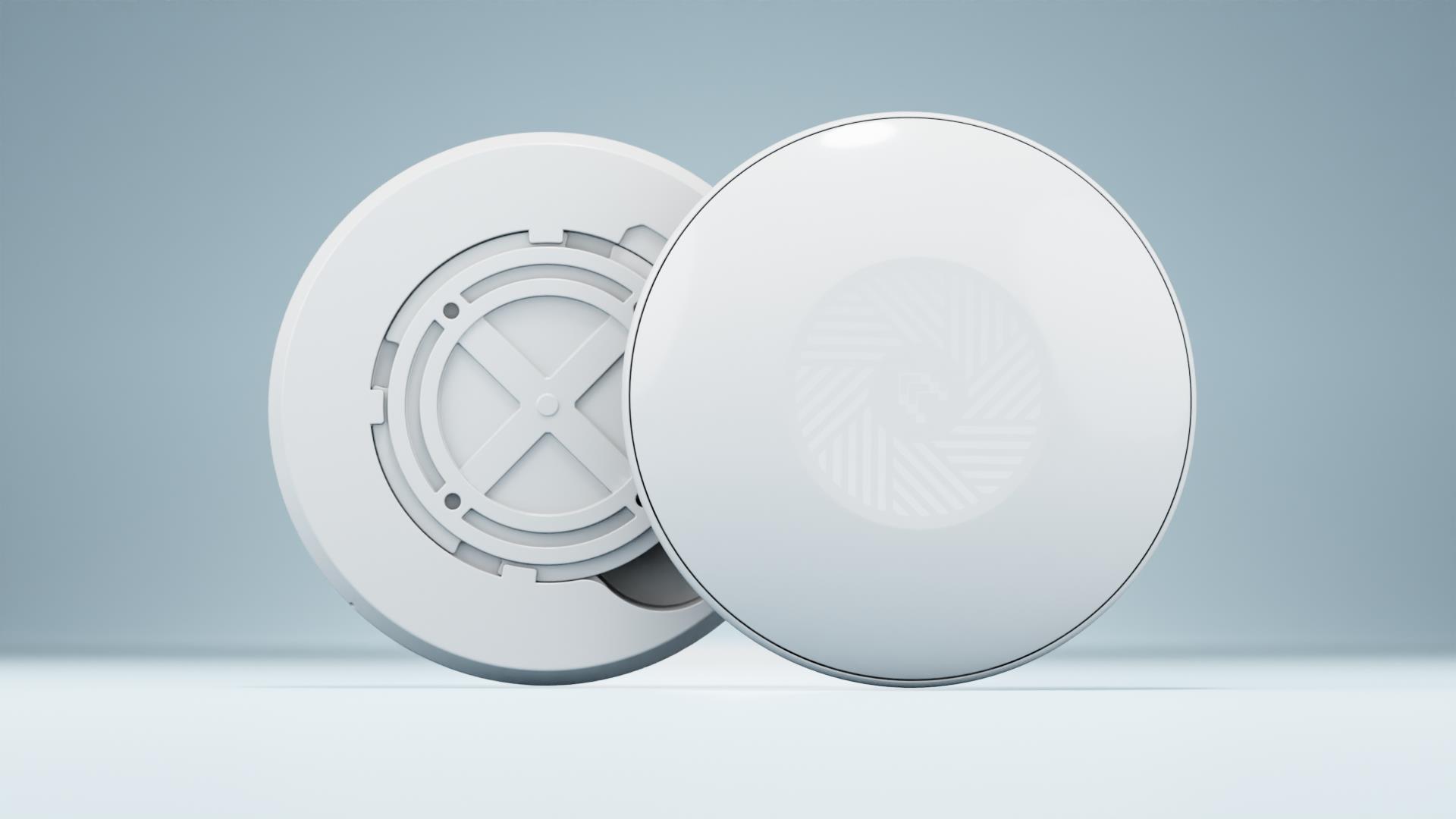

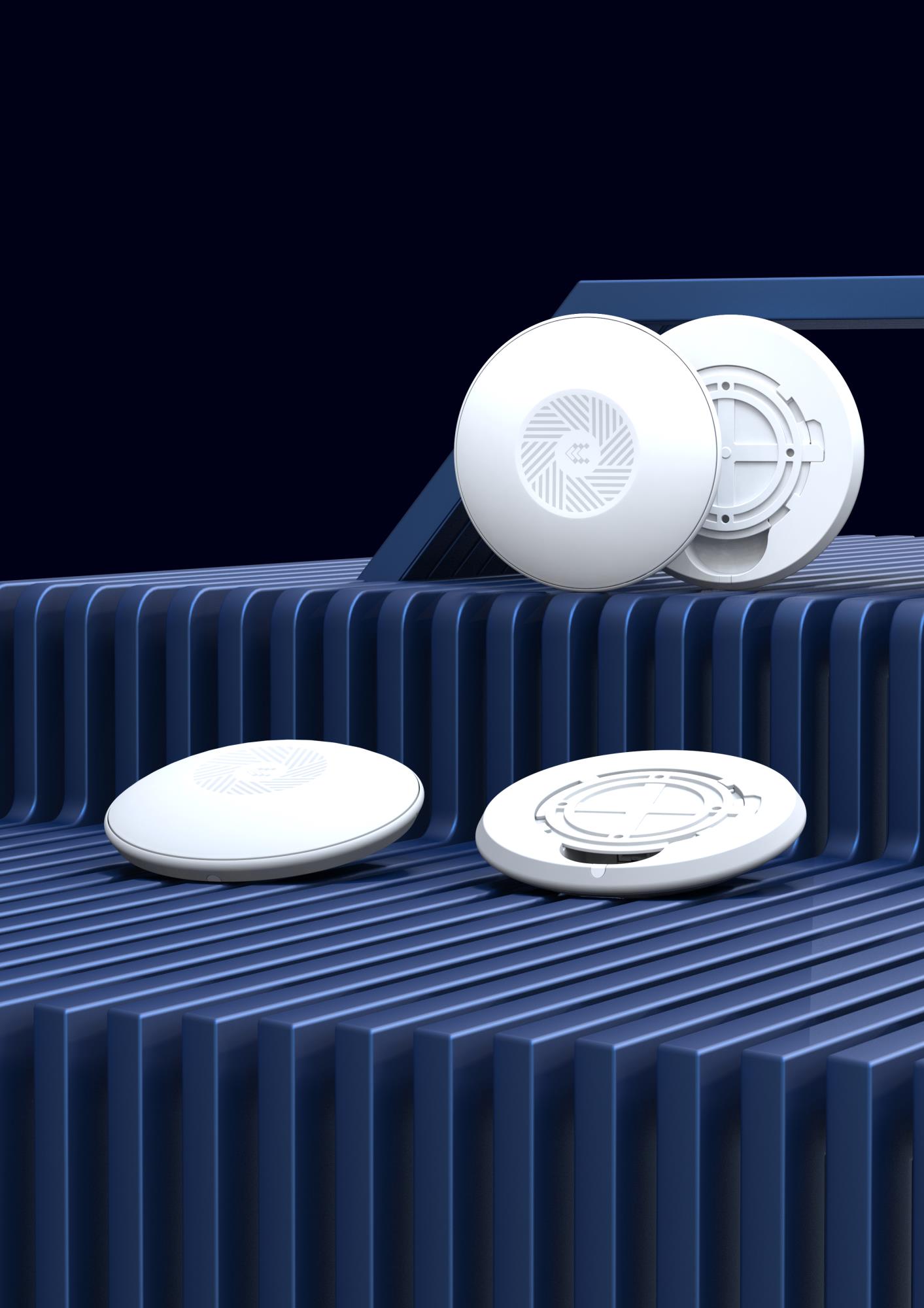

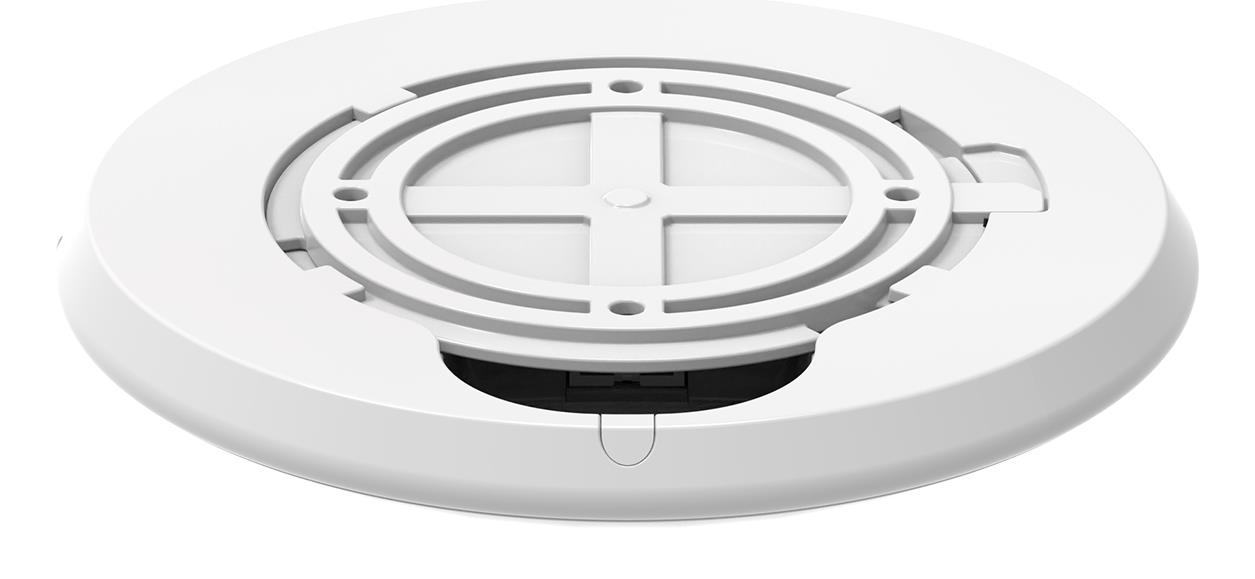

- EASY INSTALLATION - Integrated mounting bracket for easy ceiling setup

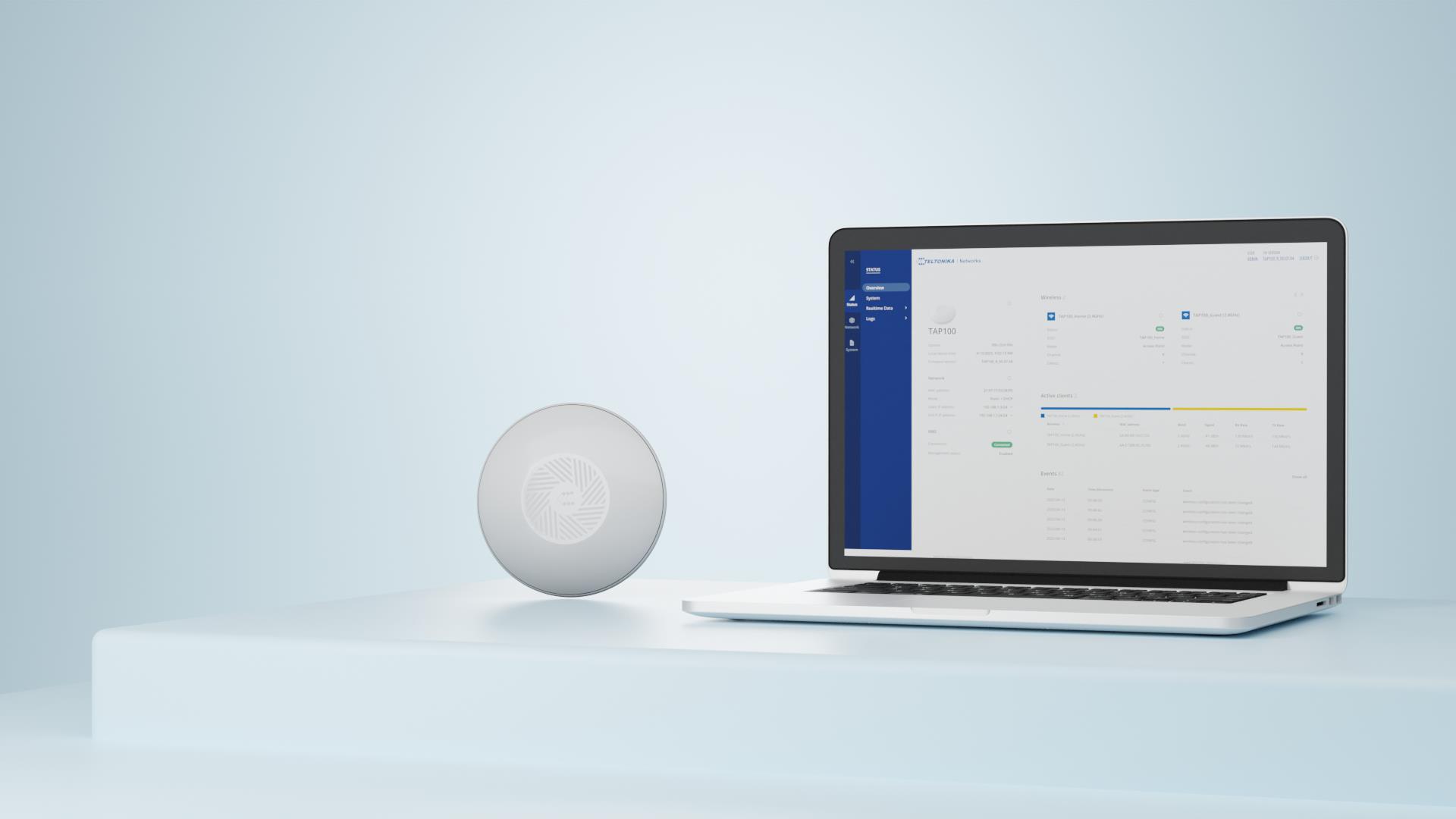

- RMS MANAGEMENT - Free access to RMS Management for 24 months
Teltonika · Accesspoint· TAP100· 2x1· Wi-Fi 4· 300Mbit· 1x 10/100· 15W PoE - Access Point - 0,1 Gbps. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES-CCMP, TKIP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 2 W
Specifikacijos
| Vendor Homepage | https://teltonika-networks.com/products/access-points/tap100 |
|---|---|
| Category Code | WAP |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.165 |
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi roaming | Yes |
| VLAN support | Yes |
| MAC address filtering | Yes |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| DC voltage range | 44 - 57 V |
| Power consumption (max) | 2 W |
| Placement | Ceiling,Wall |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP30 |
| Reset button | Yes |
| LED indicators | Power |
| Antenna type | Internal |
| Built-in processor | Yes |
| Processor frequency | 580 MHz |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Width | 158 mm |
| Depth | 30 mm |
| Height | 158 mm |
| Weight | 190 g |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Unit Calculated Weight | 0.243 kg |
| Product Net Weight | 0.19 kg |
| Unit Calculated Volume | 0.001357 cubm |
| Units per Shipping Box | 18 |
| Shipping Box Weight | 4.3800001144 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 20 cm |
| Shipping Box Depth | 37 cm |
| Shipping Box Width | 33 cm |
| Name | WRL ACCESS POINT/TAP100 TELTONIKA |
| Model | TAP100 |
| Model name | TAP100001000 |
