Windows operating systems supported
Windows 10/Windows 11/Windows 7/Windows 8/Windows 8.1
Compliance certificates
BSMI/CE/EAC/Federal Communications Commission (FCC)/RoHS/UKCA

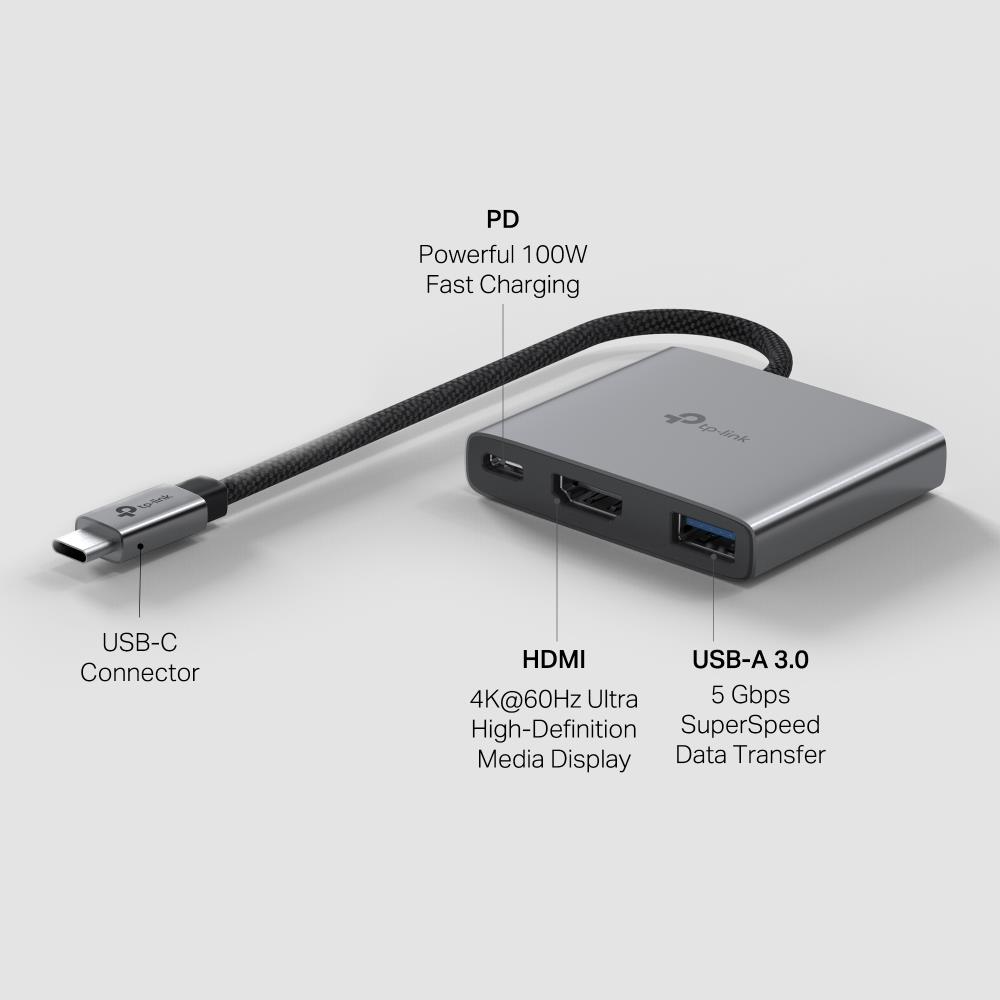

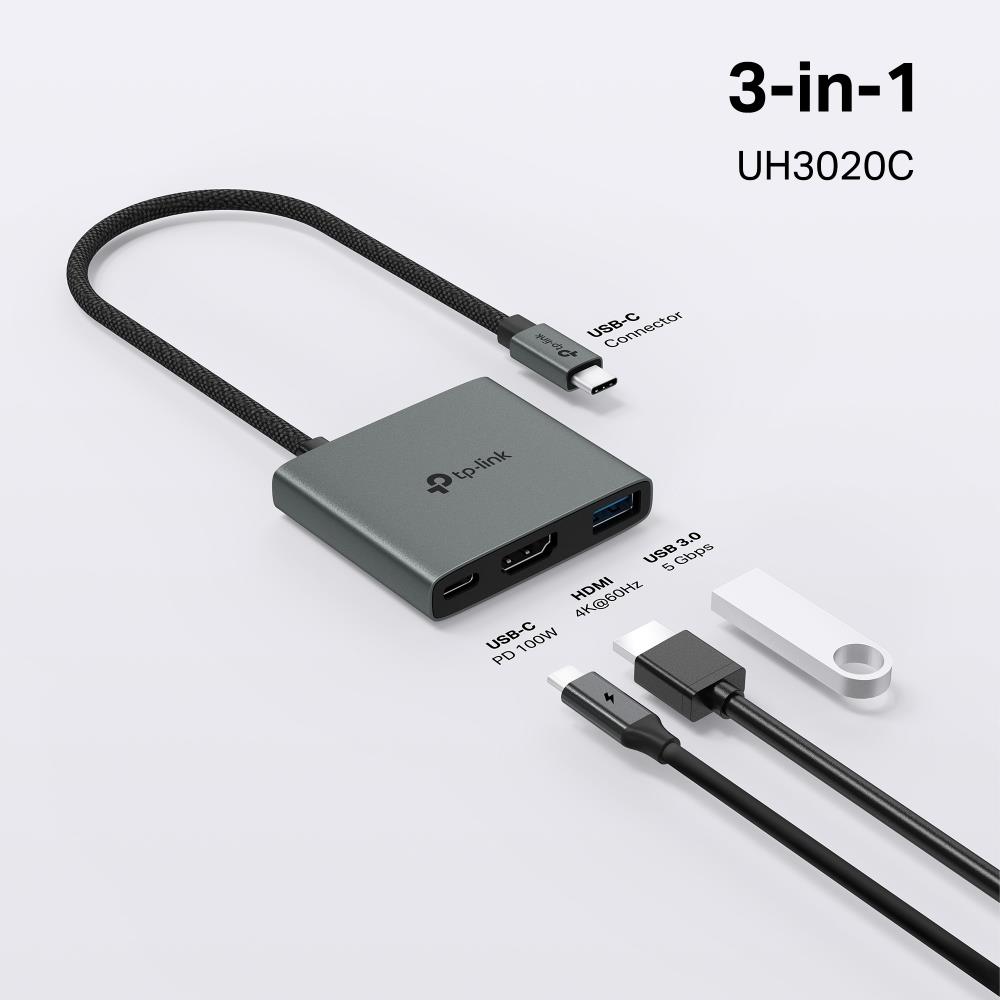

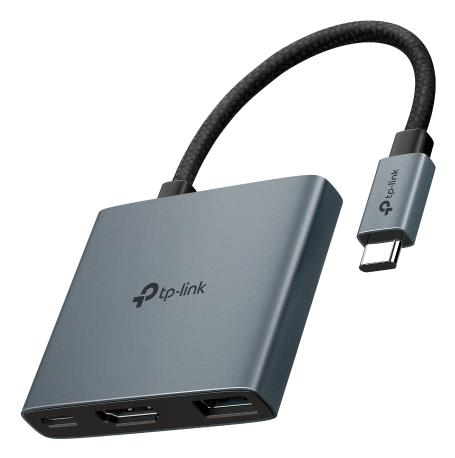

3 in 1 USB-C Hub
UH3020C turns a single USB-C port into 3 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-A Data Ports.
Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.
Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
5 Gbps SuperSpeed Data Transfer
UH3020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.

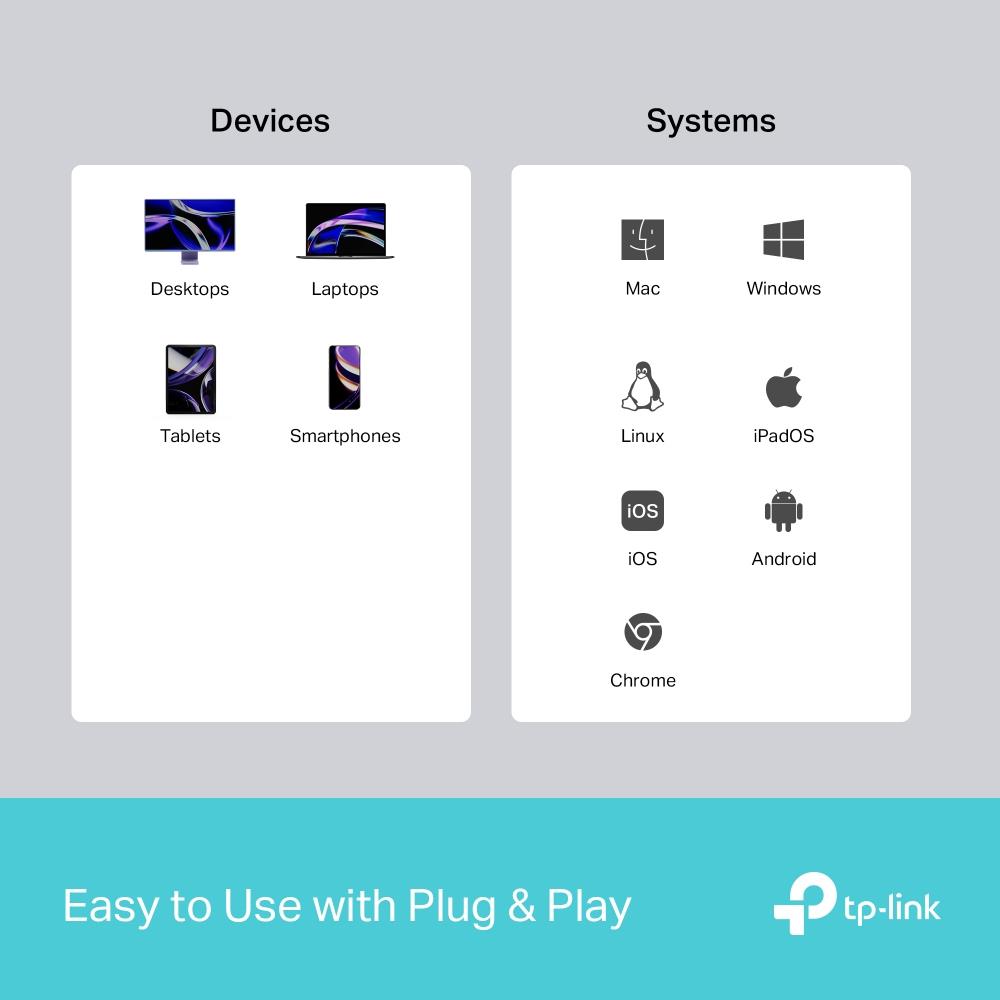

Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.
Compact and Elegant Design

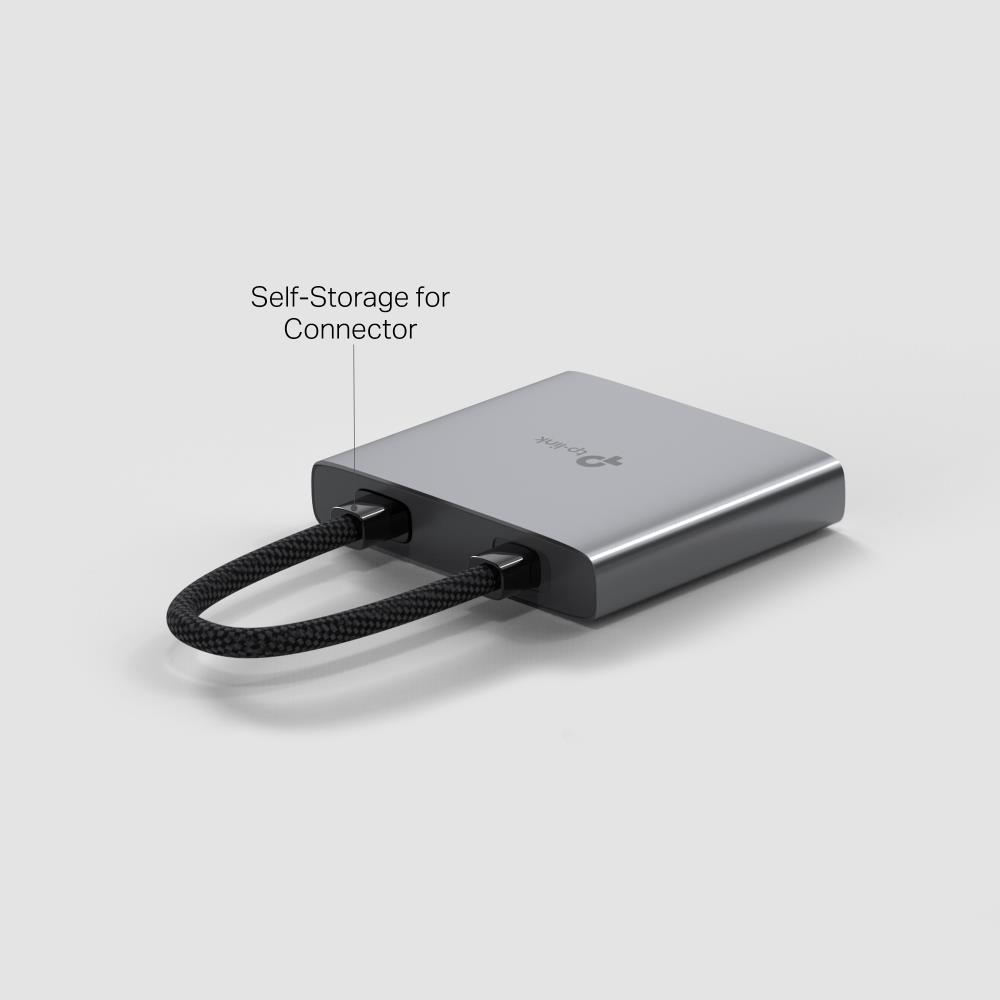

The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH3020C more durable. Bring you a better user experience.
- 3 in 1 USB-C Hub
- Ultra High-Definition Media Display
- Easy to Use with Plug & Play
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/au/home-networking/computer-accessory/uh3020c/#overview |
|---|---|
| Category Code | UHU |
| Unit Box Height | 0.02 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.1 |
| Host interface | USB Type-C |
| Hub interfaces | HDMI,USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ports quantity | 3 |
| Card reader integrated | No |
| DC-in jack | No |
| Data transfer rate | 5000 Mbit/s |
| Maximum refresh rate | 60 Hz |
| Supported video modes | 2160p |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Housing material | Aluminium |
| Product colour | Grey |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Fast charging | Yes |
| Cable type | Round cable |
| Cable length | 0.18 m |
| Plug and Play | Yes |
| Certification | HDMI |
| Power supply type | USB |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android/iOS/iPadOS |
| Width | 52.7 mm |
| Depth | 60.5 mm |
| Height | 12.2 mm |
| Quantity per pack | 1 pc(s) |
| Package type | Hanging box |
| Quick start guide | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Cable colour | Black |
| Unit Calculated Weight | 0.096 kg |
| Product Net Weight | 0.08 kg |
| Unit Calculated Volume | 0.00034 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 0.096 kg |
| Unit Width | 10 cm |
| Shipping Box Height | 2 cm |
| Unit Depth | 17 cm |
| Shipping Box Depth | 17 cm |
| Unit Height | 2 cm |
| Shipping Box Width | 10 cm |
| Name | I/O HUB USB-C 3PORT/UH3020C TP-LINK |
| Model | UH3020C |
| Model name | UH3020C |
