See Every Detail Up Close

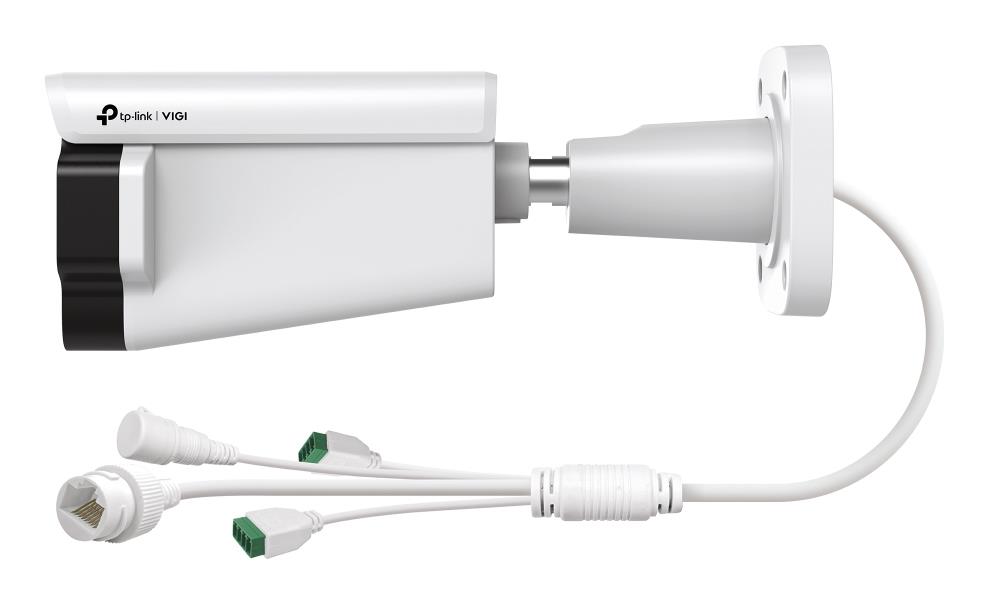

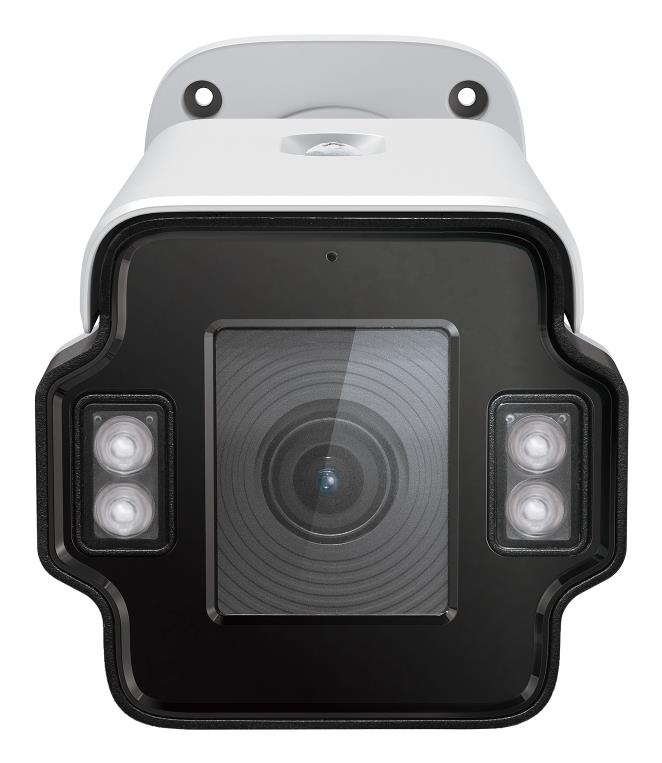

4MP Outdoor IR Motorized Varifocal Bullet Network Camera
Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Greater Clarity While Zooming
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.**
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/in/business-networking/vigi-network-camera/insight-s345zi/#highlights |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.305 |
| Unit Box Width | 0.16 |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Wall |
| Product colour | White |
| Protection features | Waterproof |
| Weatherproof | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Outdoor |
| Remote viewing | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 to 1/10000 s |
| Lens viewing angle, diagonal | 34.1-122.8 ° |
| Lens viewing angle, horizontal | 29.6-102 ° |
| Lens viewing angle, vertical | 16.8-53.8 ° |
| Minimum illumination | 0 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| Optical sensor size | 1/2.9 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Detect distance (tele) | 207 m |
| Detect distance (wide) | 66 m |
| Focal length range | 2.7 - 13.5 mm |
| Focus | Motorized |
| Identify distance (tele) | 21 m |
| Identify distance (wide) | 7 m |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance (tele) | 86 m |
| Observe distance (wide) | 28 m |
| Optical zoom | 5 x |
| Recognize distance (tele) | 41 m |
| Recognize distance (wide) | 13 m |
| Zoom capability | Yes |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 10 m |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video recording | Yes |
| Video streaming | Yes |
| Audio detection | Yes |
| Audio formats supported | G.711 A-law |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio system | 2-way |
| Bit rate range | 0 - 64 Kbit/s |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Live view | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of simultaneous live view channels | 6 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Wi-Fi | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Alert notification type | Push notification |
| Built-in siren | Yes |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Motion sensor | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Web browser | Yes |
| Web-based management | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 10.8 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
| Height | 101 mm |
| Length | 256 mm |
| Weight | 1040 g |
| Width | 100 mm |
| Package type | Box |
| Number of cameras | 1 |
| Model | InSight S345ZI |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006588 cubm |
| Unit Calculated Weight | 1.45 kg |
