Networking standards
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af
Security algorithms
128-bit WEP/152-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK
Compatible operating systems
Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
- Supports management VLAN for an enhanced network management
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/en/products/details/EAP245_V3.html#overview |
|---|---|
| Category Code | WAP |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.23 |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 1750 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Transmitting power | 27 dBmW |
| Transmitting power (CE) | 20 - 23 dBm |
| Transmitting power (FCC) | 24 dBm |
| Virtual LAN features | SSID-based VLAN assignment |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless isolation | Yes |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Port-based Network Access Control (PNAC) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Management protocols | HTTP/HTTPS |
| Syslog | Yes |
| Web-based management | Yes |

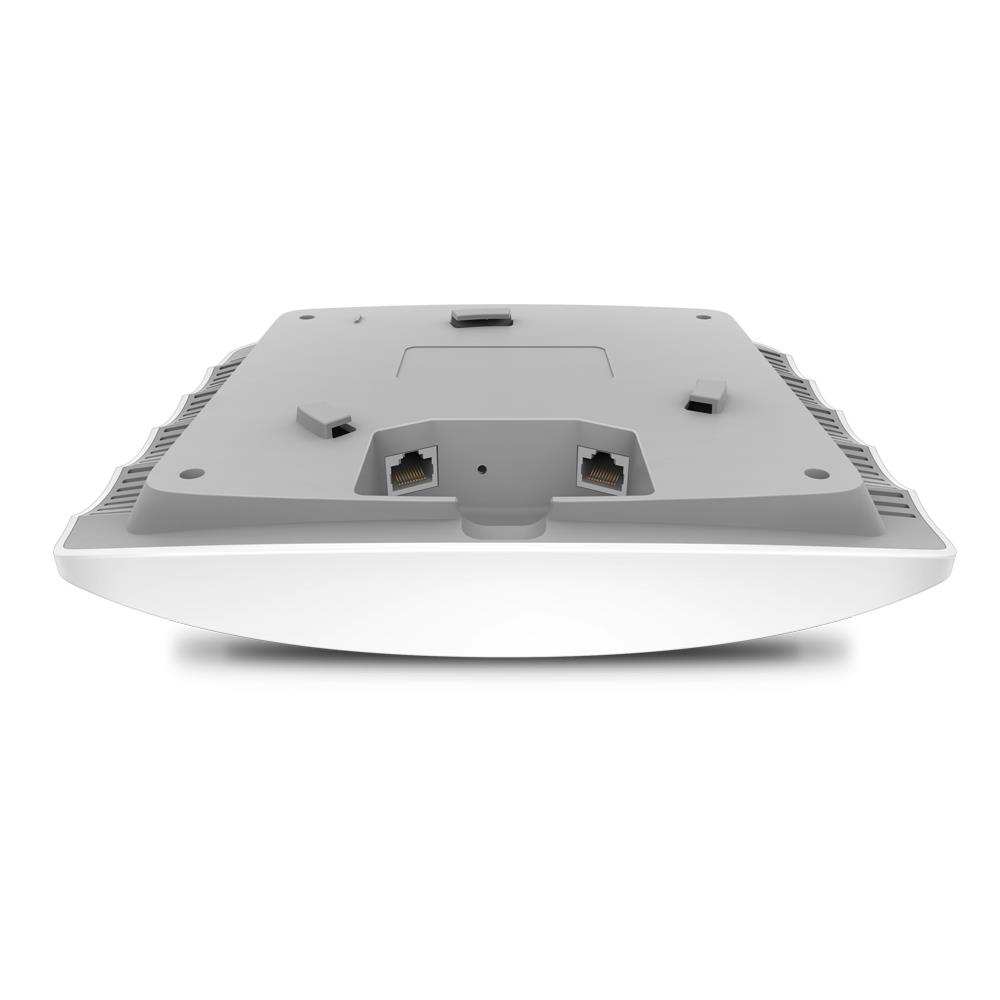

| Ethernet LAN (RJ-45) ports | 2 |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power consumption (typical) | 12.7 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE/Passive PoE |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Power |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Yes |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 4 dBi |
| Antenna type | Internal |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Depth | 180 mm |
| Height | 47.5 mm |
| Width | 180 mm |
| Package depth | 340 mm |
| Package height | 65 mm |
| Package weight | 1047 g |
| Package width | 228 mm |
| Cables included | AC |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85176990 |
| Series | Omada |

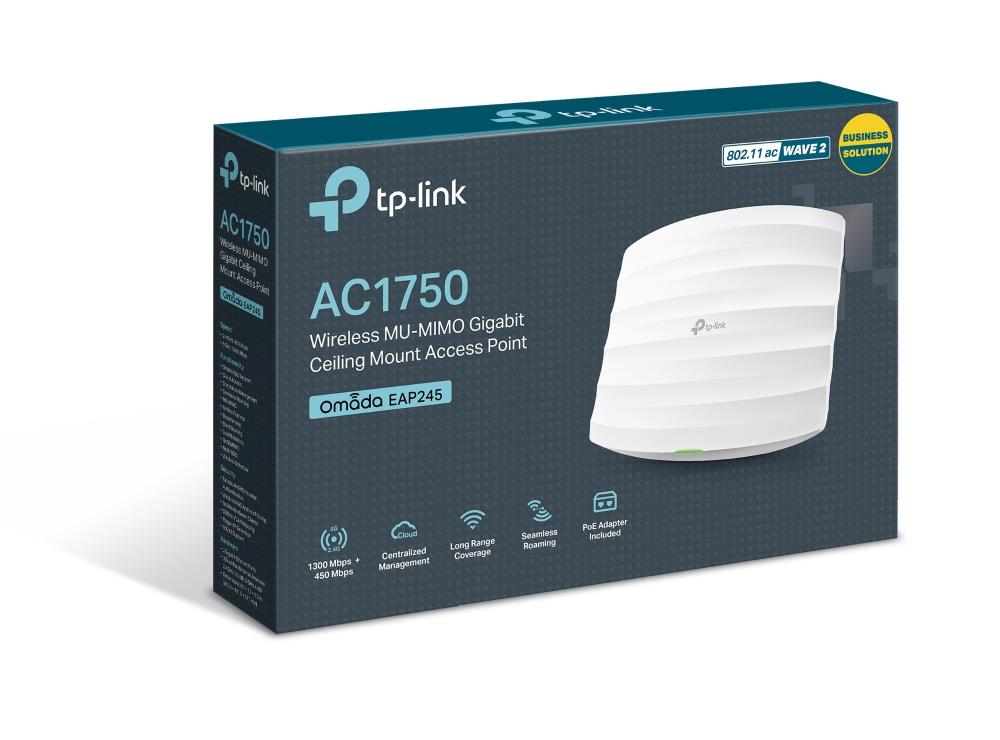

| Model name | AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005083 cubm |
| Unit Calculated Weight | 1.05 kg |
