MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Virtual LAN features
MAC address-based VLAN/Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
DHCP features
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping

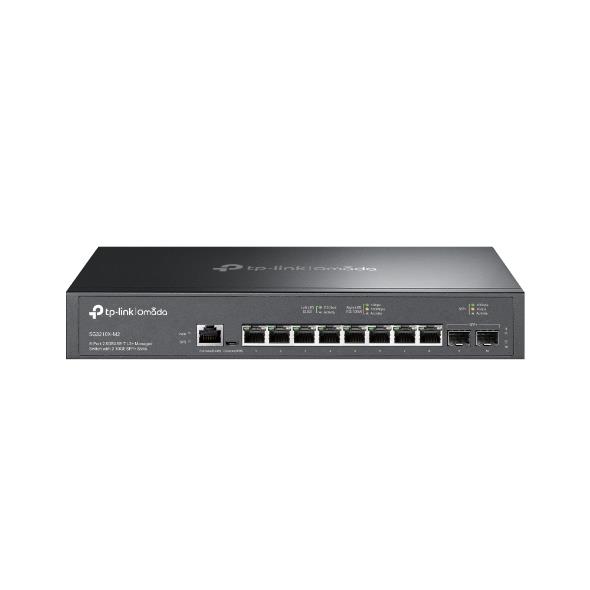

Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic Network
SG3210X-M2
10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs
Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
- 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices
- 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/managed-switch/sg3210x-m2/ |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.082 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.25 |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| System event log | Yes |
| Traffic classification | Yes |
| Web-based management | Yes |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 2 |
| 10G support | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1s/IEEE 802.1w |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Forwarding rate | 59.52 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Number of IP interfaces | 16 |
| Number of static routes | 48 |
| Packet buffer memory | 12 MB |
| Static route | Yes |
| Switching capacity | 80 Gbit/s |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication,Port-based authentication |
| Authentication type | AAA,TACACS+ |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | SP/Weighted Round Robin (WRR)/WRR+SP |
| Security algorithms | HTTPS/SSH/SSH-2/SSL/TLS |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Fanless | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 15 W |
| Power source | AC |
| Power supply included | Yes |
| Heat dissipation | 51.18 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
| Cables included | AC |
| Quick start guide | Yes |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package type | Box |
| Package weight | 2840 g |
| Package width | 528 mm |
| Certification | CE, FCC, RoHS |
| Harmonized System (HS) code | 85176990 |
| Series | Omada |
| Model name | Omada 8-Port 2.5G L2+ Managed Switch |
| Units per Pallet | 0 |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.009573 cubm |
| Unit Calculated Weight | 2.53 kg |
