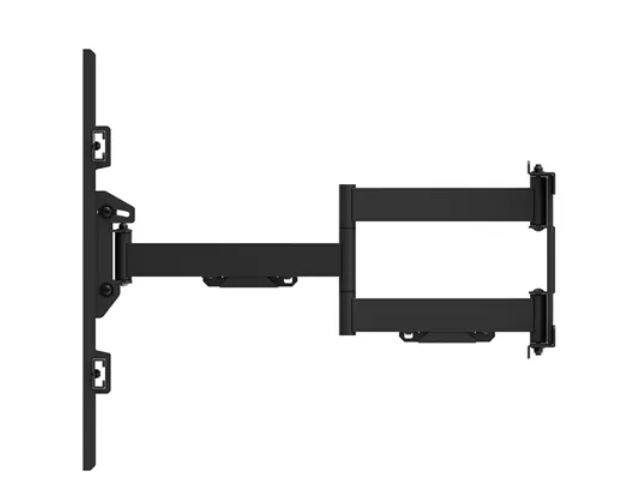

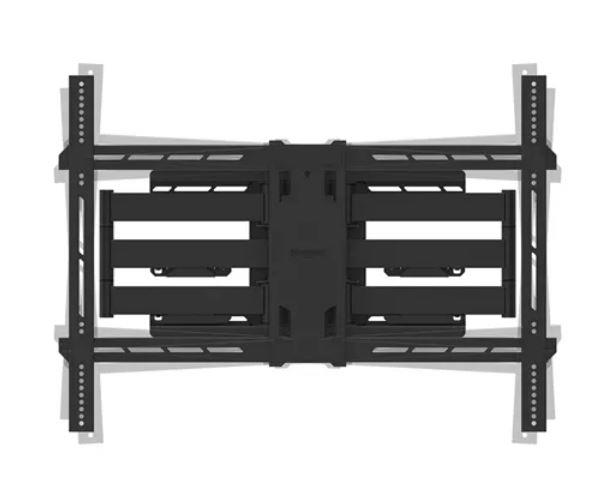

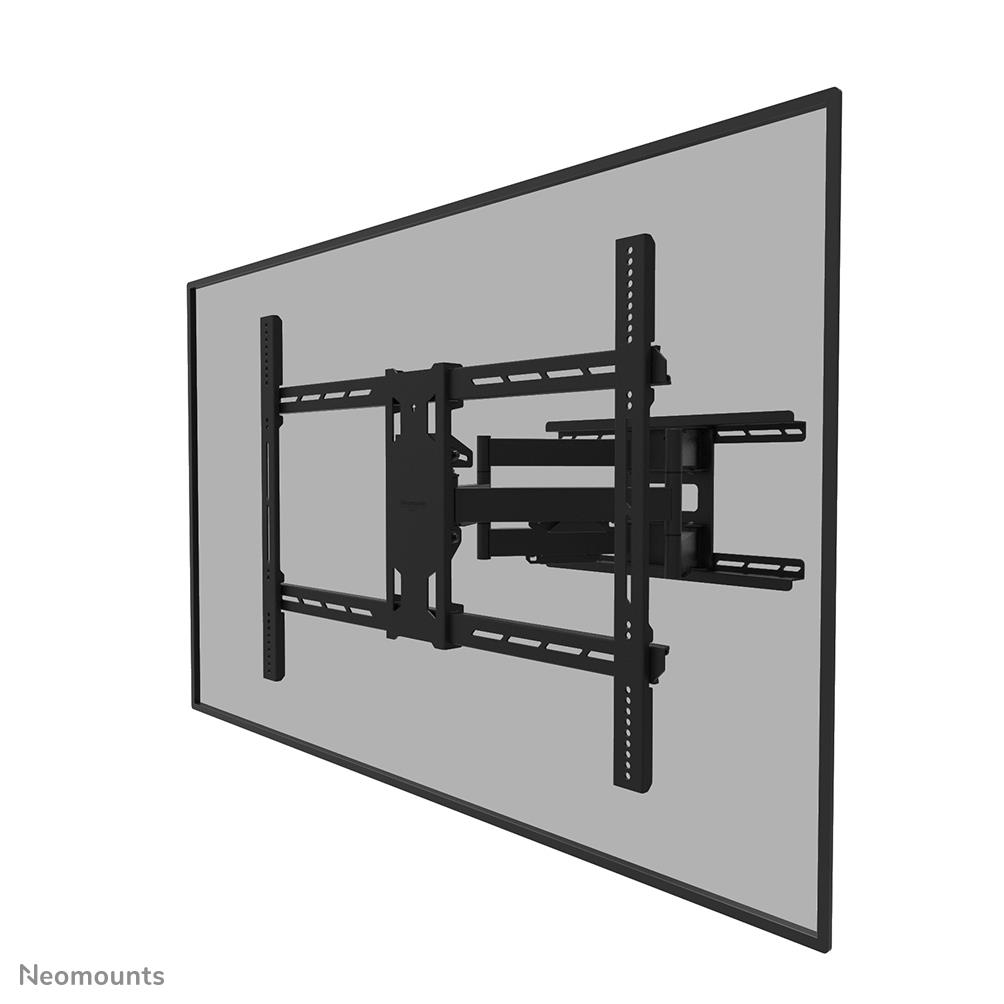

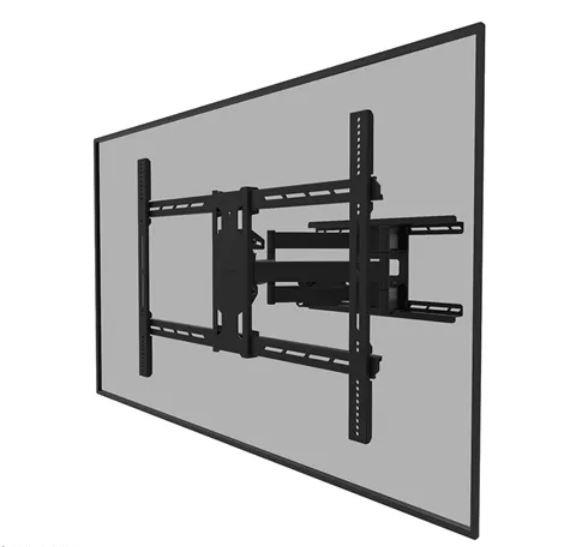

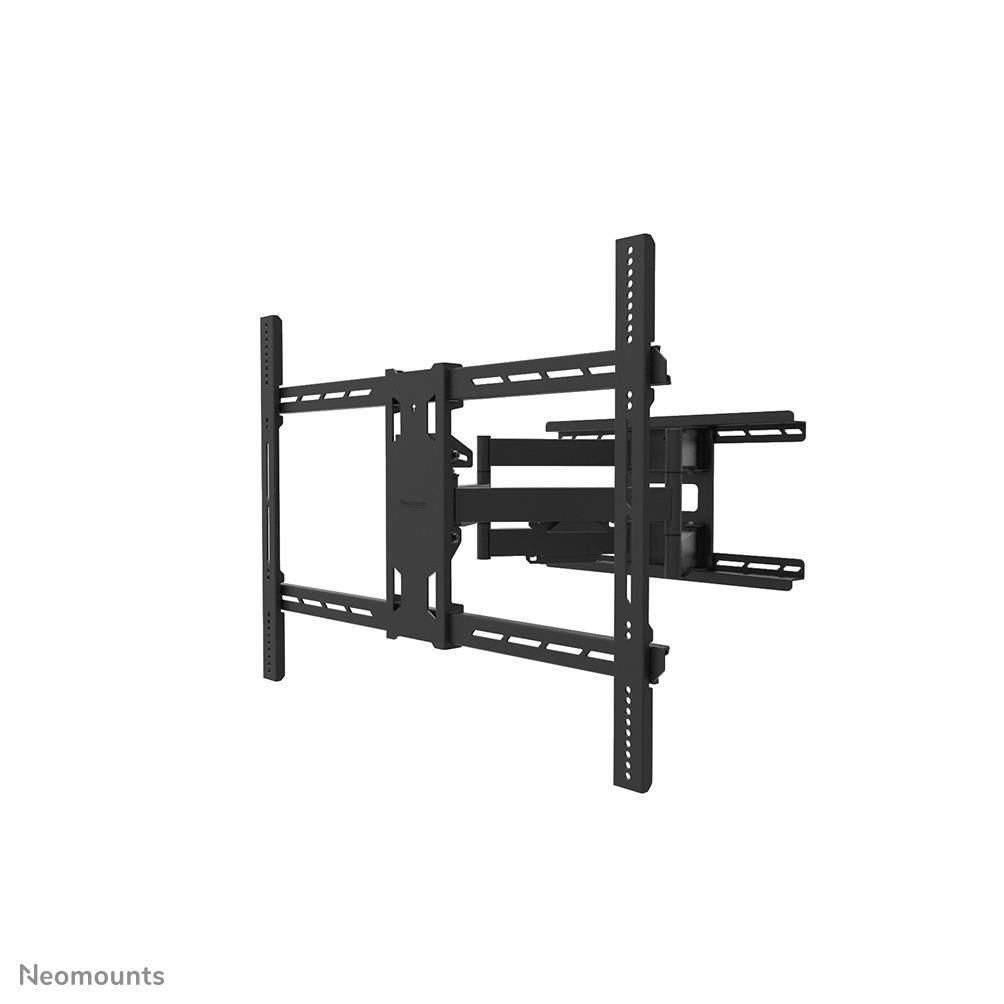

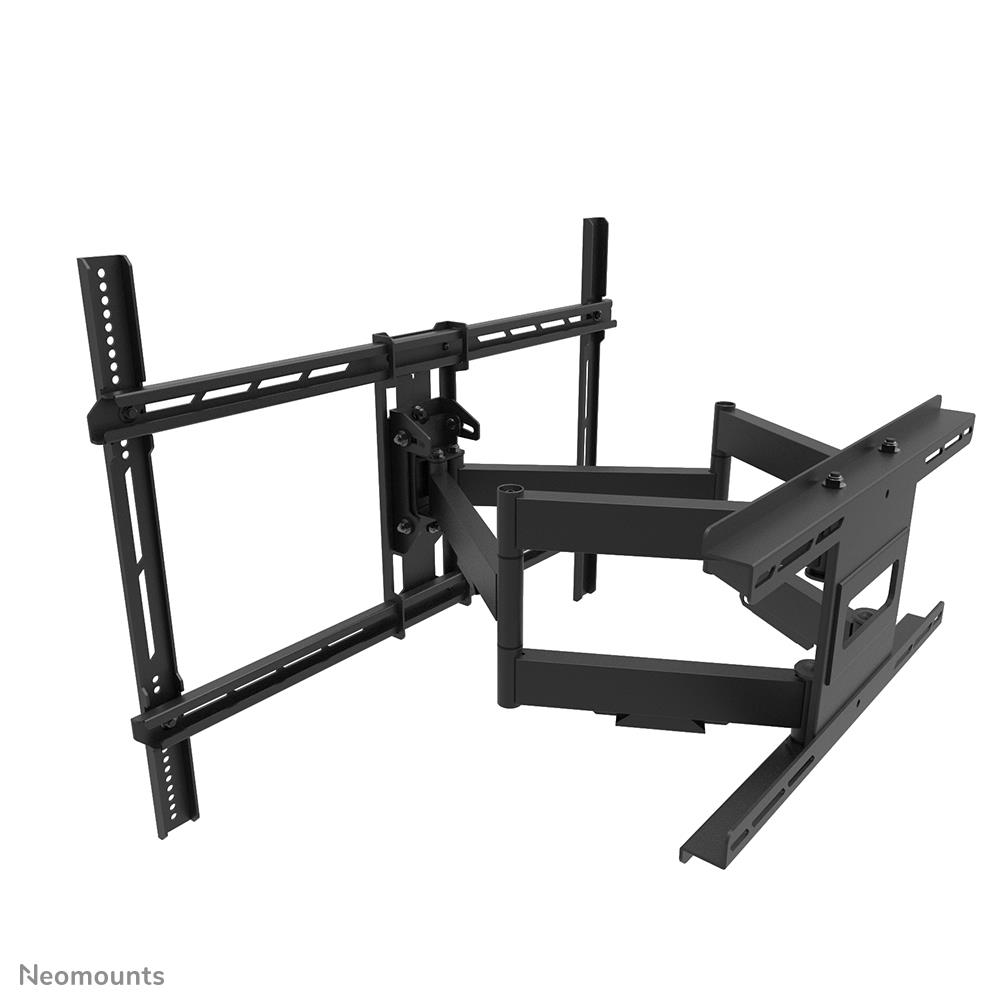

The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110″ with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300×200 to 800×600 mm. For extra-large VESA patterns (800×600 to 1200×900), the optional VESA adapter set AWLS-950BL1 is available.

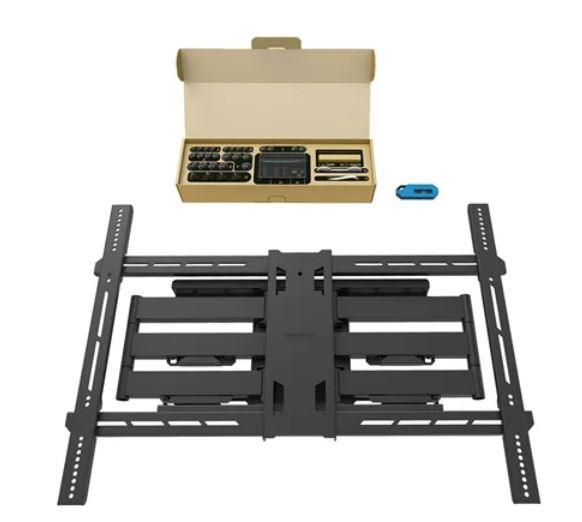

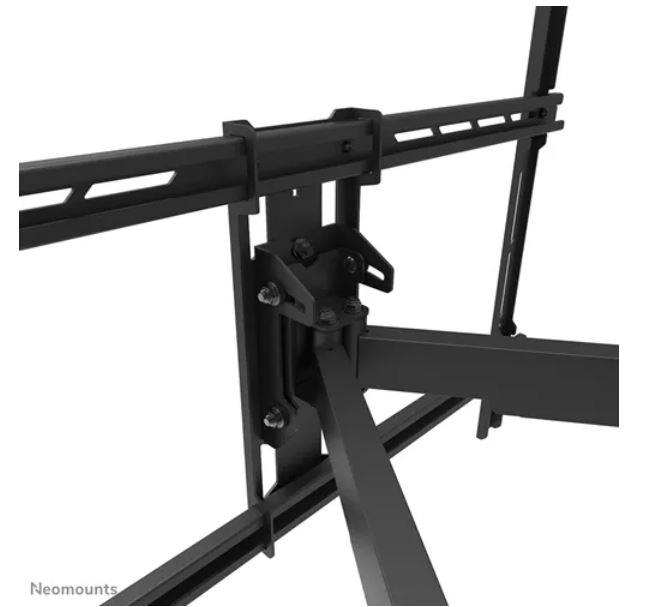

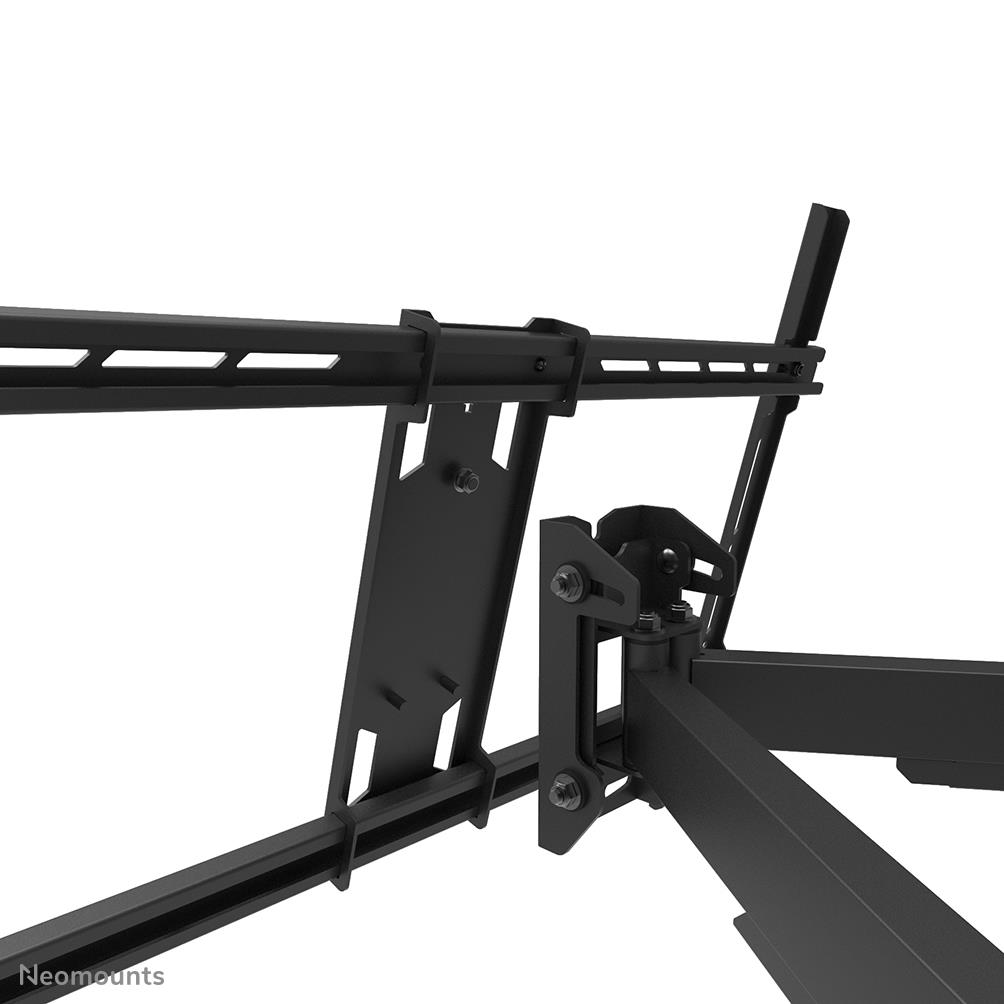

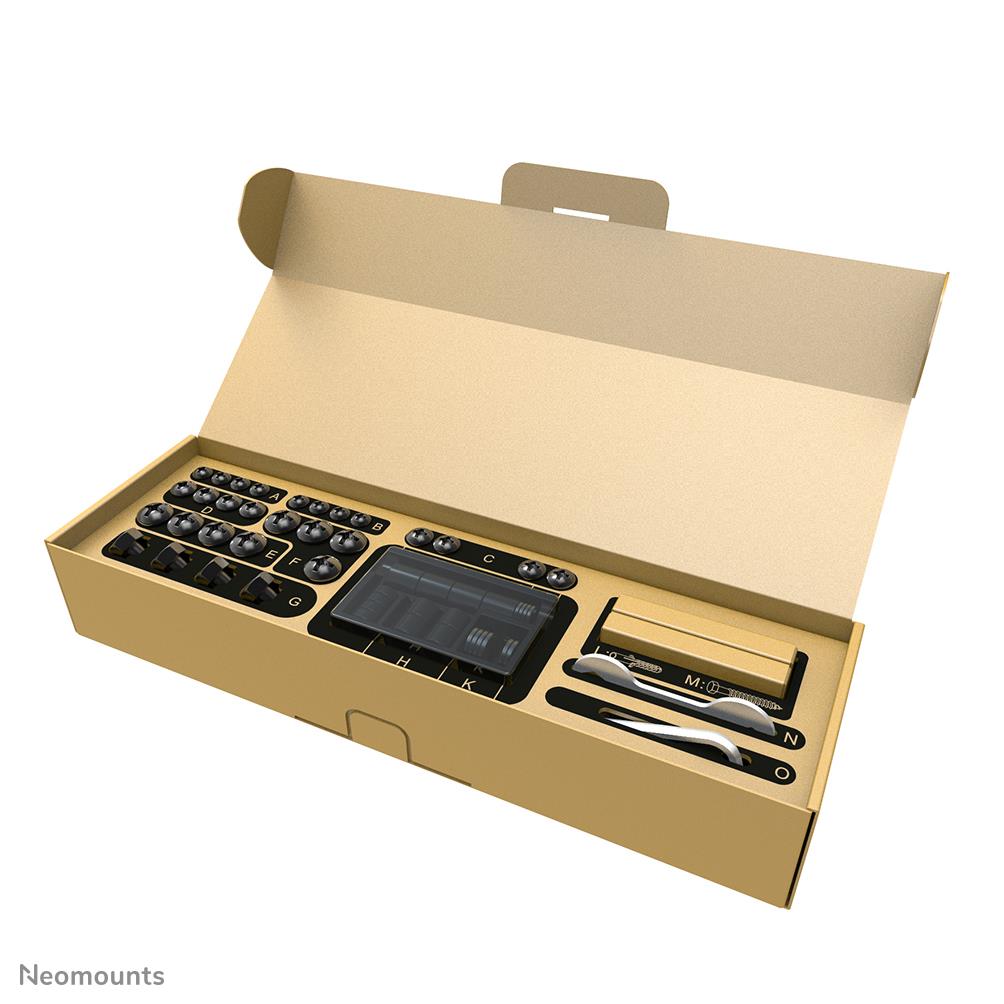

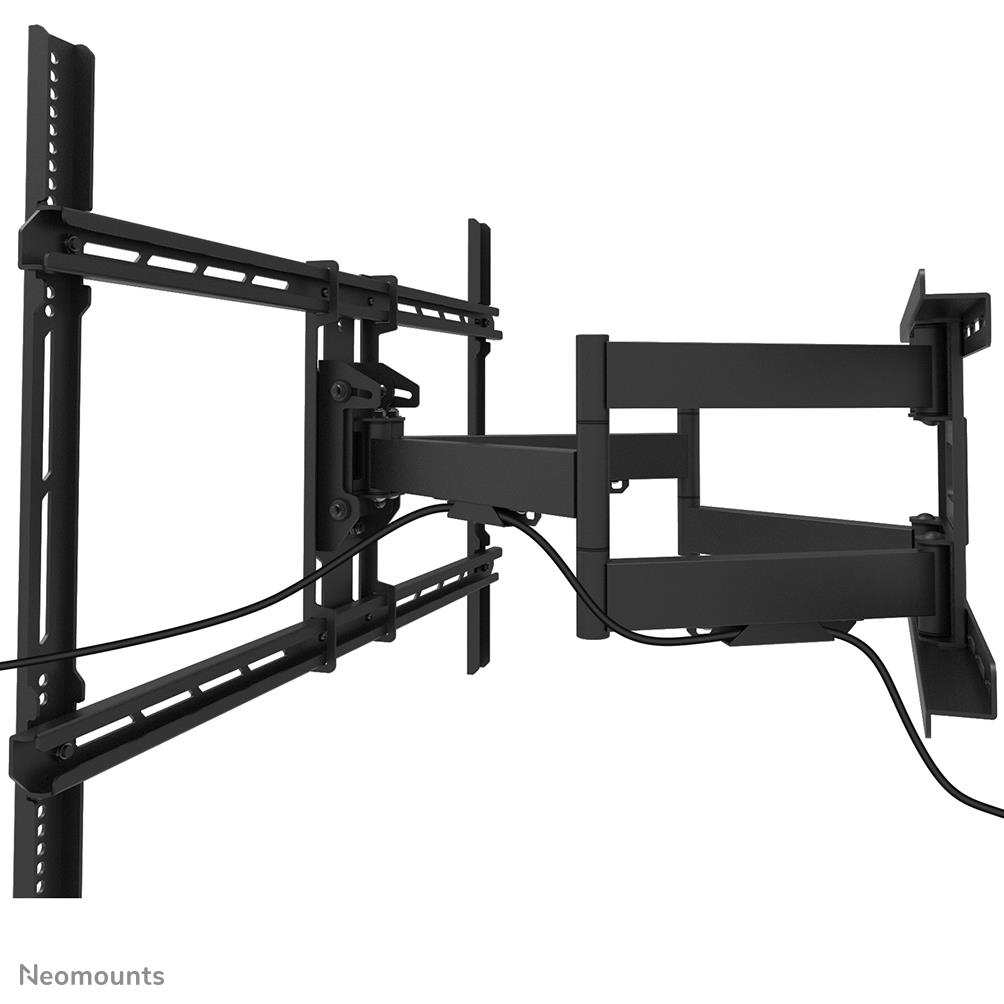

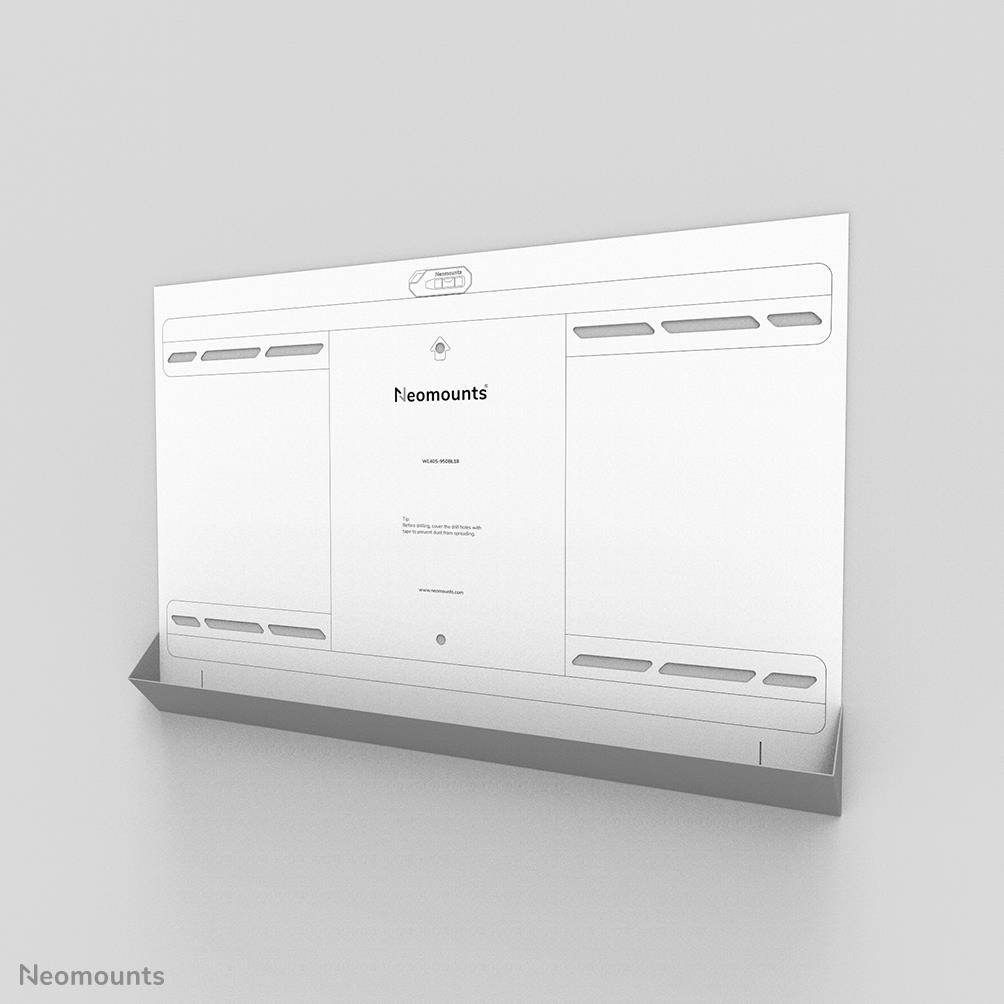

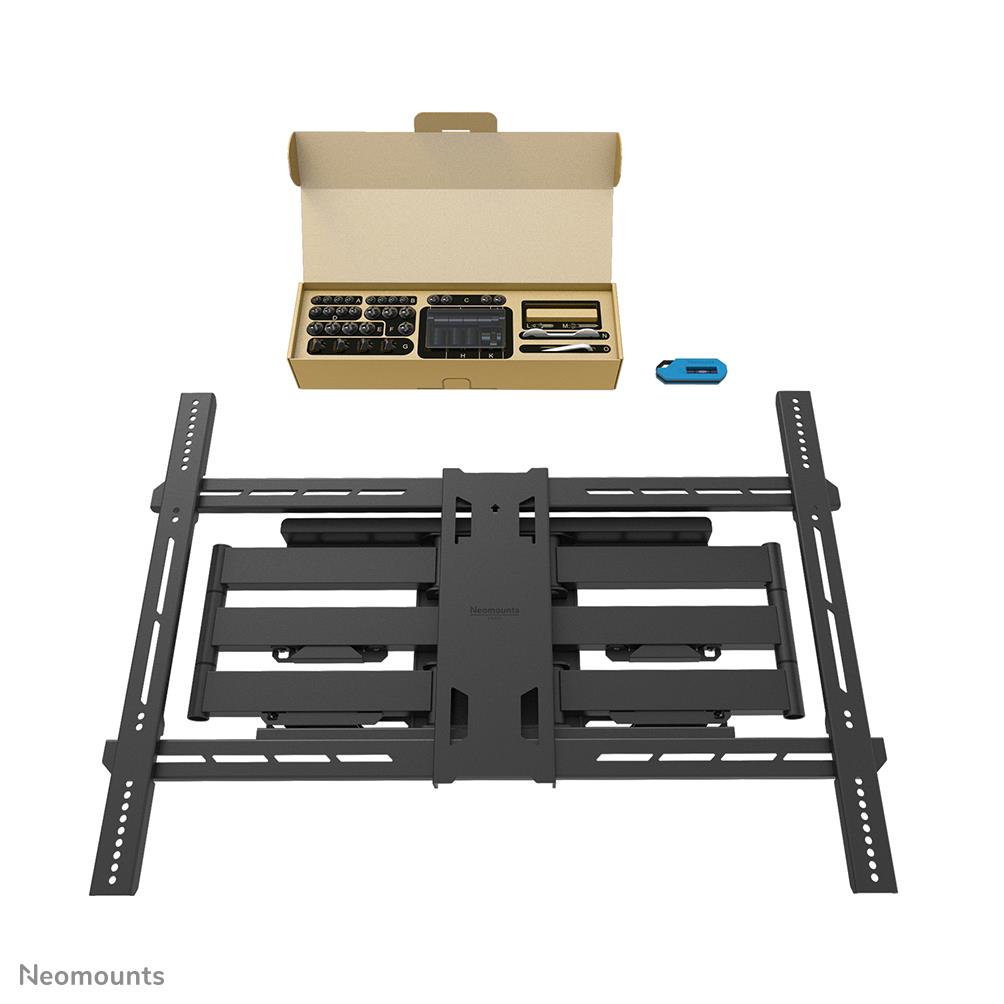

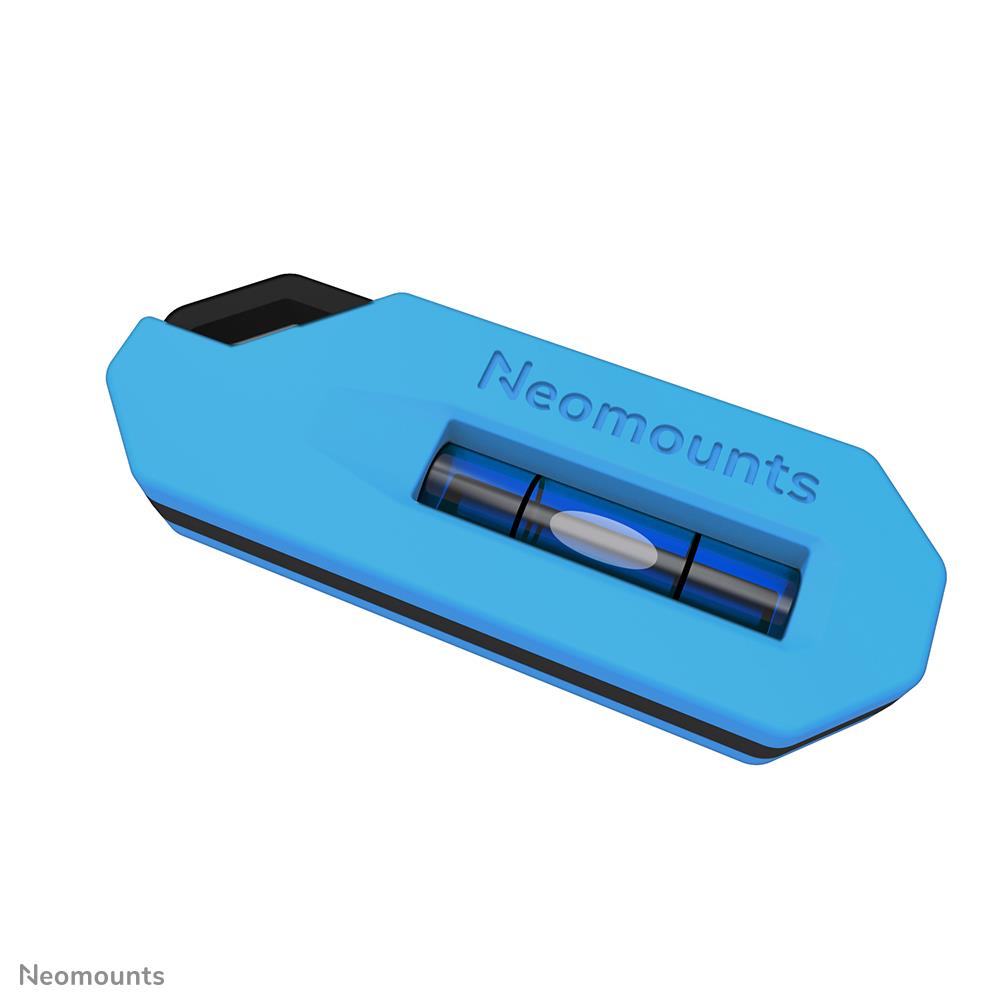

The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40S-950BL18 |
|---|---|
| Category Code | TMS |
| Unit Box Height | 0.455 |
| Unit Box Length | 0.95 |
| Unit Box Width | 0.105 |
| Maximum screen size | 110 " |
| Maximum VESA mount | 800 x 600 mm |
| Maximum weight capacity | 125 kg |
| Maximum weight capacity (per display) | 125 kg |
| Minimum screen size | 55 " |
| Minimum VESA mount | 300 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/600 x 200/600 x 300/600 x 400/600 x 500/600 x 600/680 x 300/800 x 200/800 x 400/800 x 500/800 x 600 mm |
| Angle of rotation | 6 ° |
| Cable management | Yes |

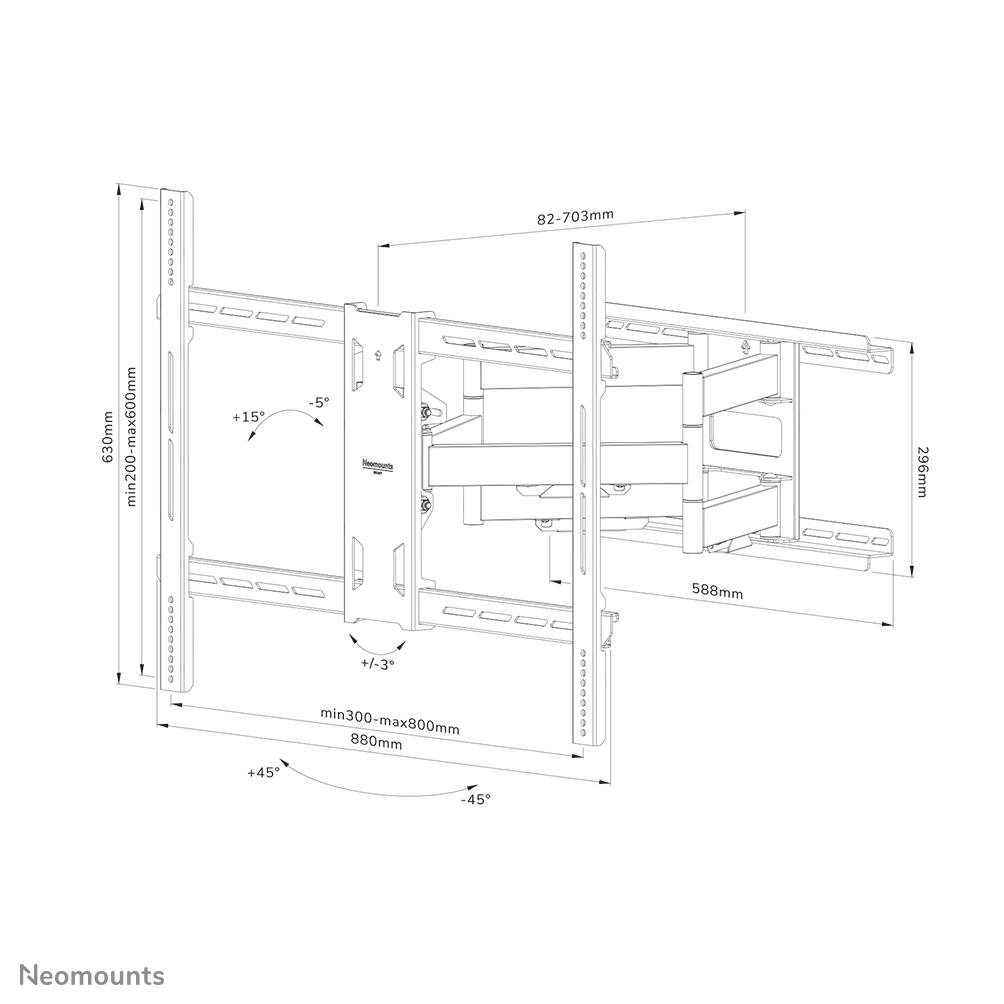

| Distance to the wall (max) | 703 mm |
| Distance to the wall (min) | 82 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 – 10 mm |

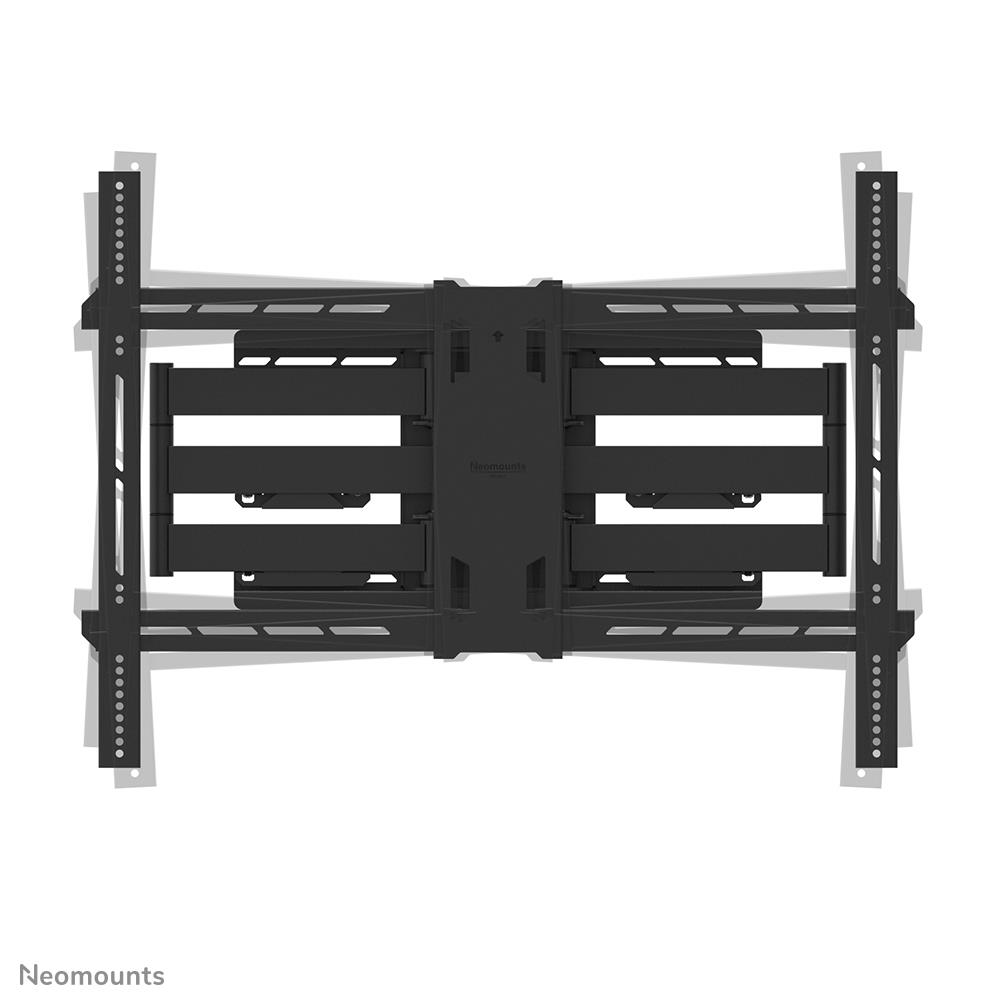

| Pivot angle | -3 – 3 ° |
| Rotating | Yes |
| Swivel angle range | -45 – 45 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 – 15 ° |
| Accepts padlock | No |
| Housing material | Steel |
| Product colour | Black |
| Country of origin | China |
| Lockable | Not lockable |
| Mounting kit | Yes |
| Package net weight | 22000 g |
| Warranty period | 5 year(s) |
| Depth | 82 mm |
| Depth (max) | 82 mm |
| Height | 630 mm |
| Weight | 20400 g |
| Width | 880 mm |
| Package depth | 100 mm |
| Package height | 950 mm |
| Package weight | 22000 g |
| Package width | 450 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 22000 g |
| Master (outer) case height | 950 mm |
| Master (outer) case length | 100 mm |
| Master (outer) case net weight | 20400 g |
| Master (outer) case width | 450 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 20 pc(s) |
| Model | WL40S-950BL18 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.04539 cubm |
| Unit Calculated Weight | 21.2 kg |
