Compliance certificates
CE/Federal Communications Commission (FCC)/REACH/RoHS

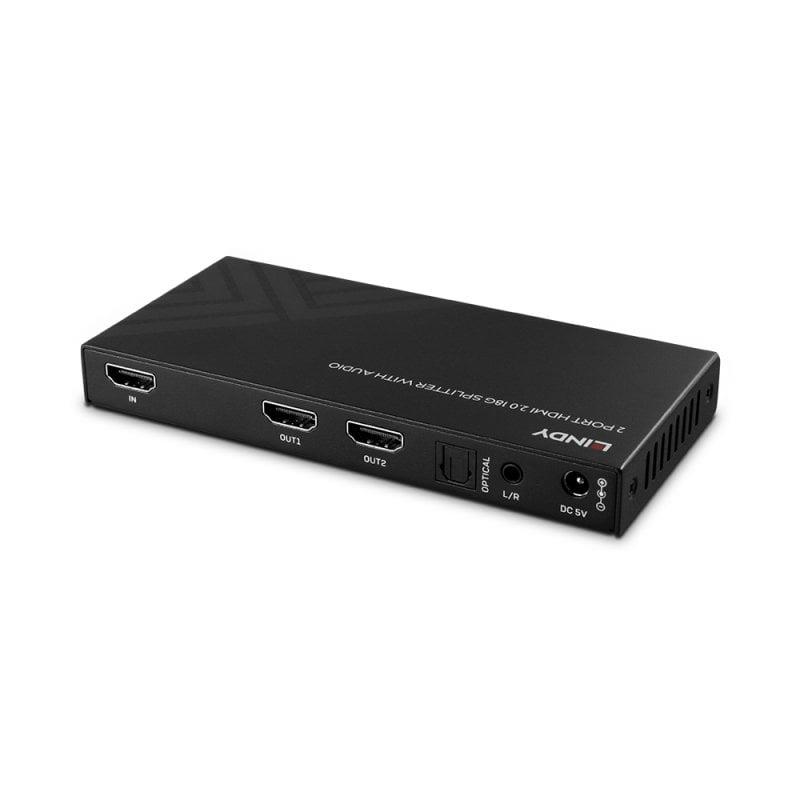

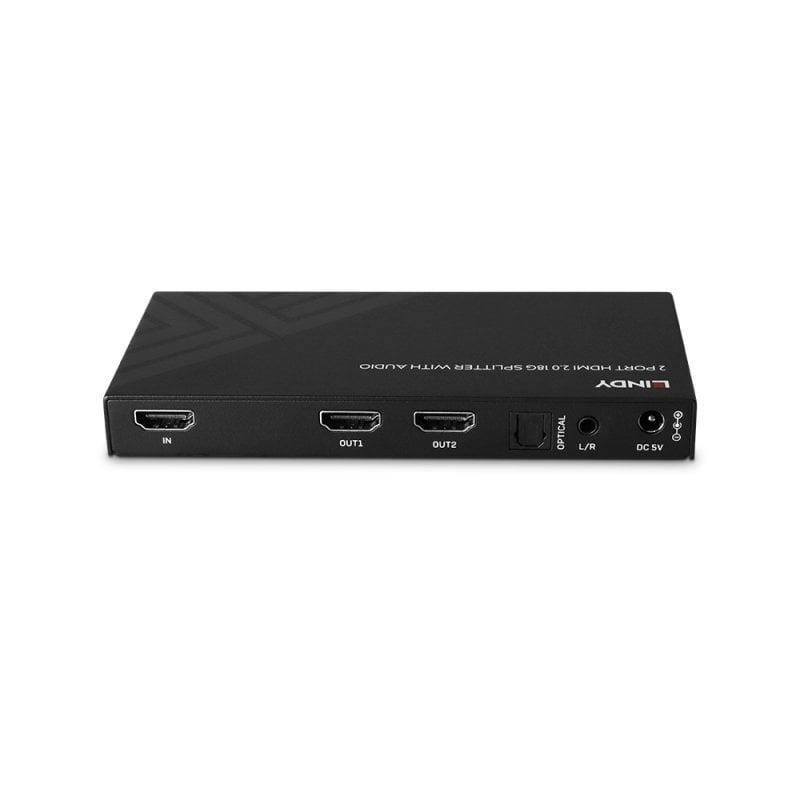

The Lindy 2 Port HDMI® 8K60 Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 2 displays simultaneously from one source device, while extracting digital or analogue audio separately.
With support for resolutions up to 8K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching dual display digital signage in retail scenarios, displaying live video across two screens at event venues or distributing engaging multiscreen educational presentations at tradeshows.
The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI® to connect non-HDMI® amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also features an integrated switch to downscale the input signal to 4K or Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
- Displays HDMI® signals across 2 displays simultaneously from one source device
- Supports resolutions up to 8K 60Hz 4:4:4, with additional support for HDR
- Extract digital and analogue audio from HDMI® for non-HDMI® amplifiers
- Features a neat switch for downscaling from 8K to 4K or 1080p
Specifikacijos
| Vendor Homepage | https://www.lindy.co.uk/audio-video-c2/splitters-c159/2-port-hdmi-8k60-splitter-with-audio-p14960 |
|---|---|
| Category Code | VSP |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.115 |
| DC-in jack | Yes |
| Digital audio optical out | 1 |
| HDMI version | 2.1 |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
| Video out | 2x HDMI |
| Video port type | HDMI |
| Video ports quantity | 2 |
| Certification | CE, FCC, RoHS, REACH & California Proposition 65 |
| Colour depth | 8 bit |
| Data transfer rate | 48 Gbit/s |
| Easy to install | Yes |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.3 |
| Housing material | Metal |
| LED indicators | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Product colour | Black |
| AC input voltage | 5 V |
| Input current | 2 A |
| Depth | 17 mm |
| Height | 68 mm |
| Weight | 325 g |
| Width | 145 mm |
| Package depth | 70 mm |
| Package height | 115 mm |
| Package type | Box |
| Package weight | 458 g |
| Package width | 200 mm |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Cables included | Power |
| Included power plug types | AU,EU,UK |
| Manual | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage relative humidity (H-H) | 20 – 90 % |
| Storage temperature (T-T) | -20 – 60 °C |
| Connector 1 | 2 x HDMI Type A |
| Connector 2 | HDMI Type A |
| Warranty period | 2 year(s) |
| Model | 38534 |
| Model name | 2 Port HDMI 8K60 Splitter with Audio |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00161 cubm |
| Unit Calculated Weight | 0.52 kg |
