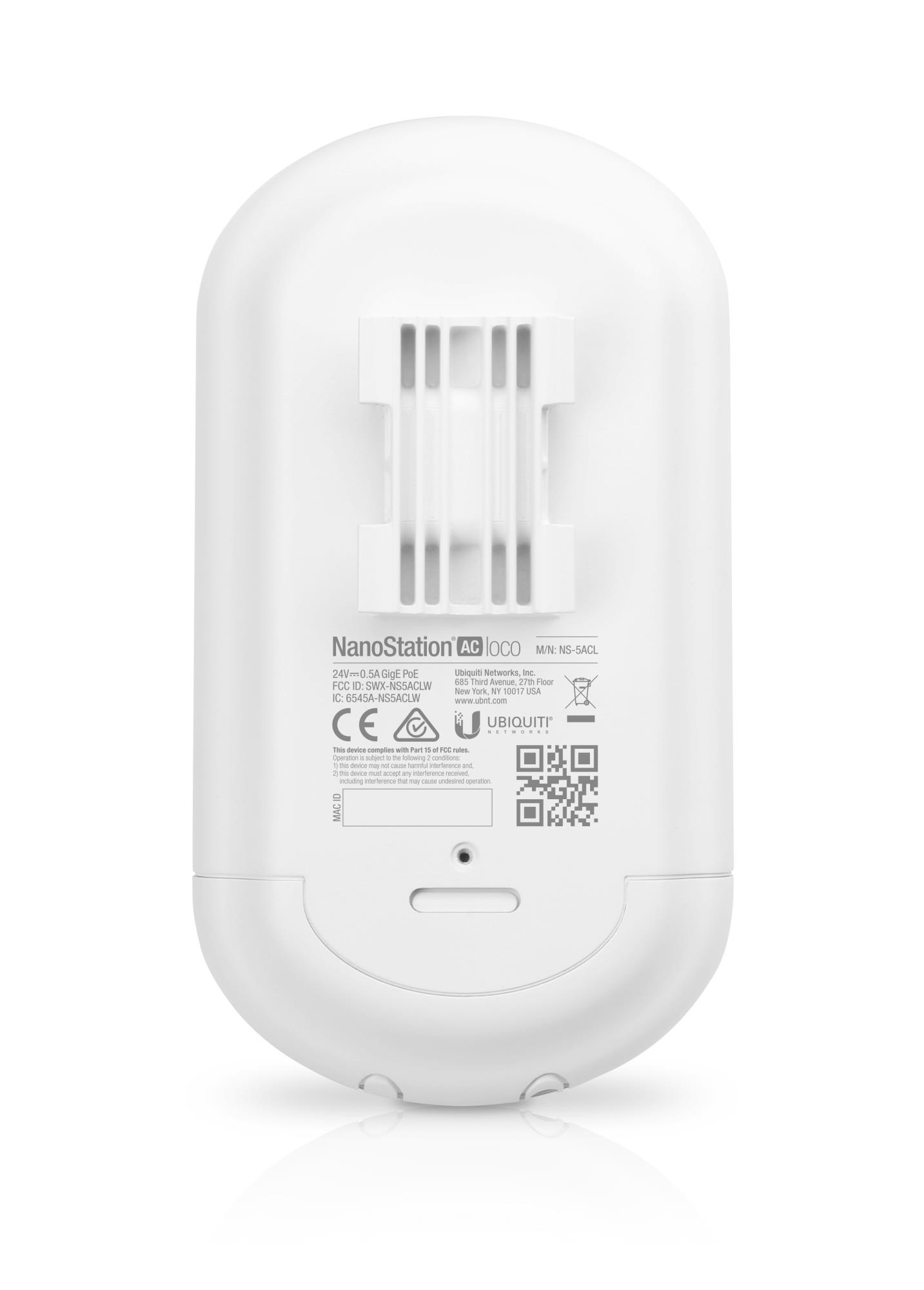

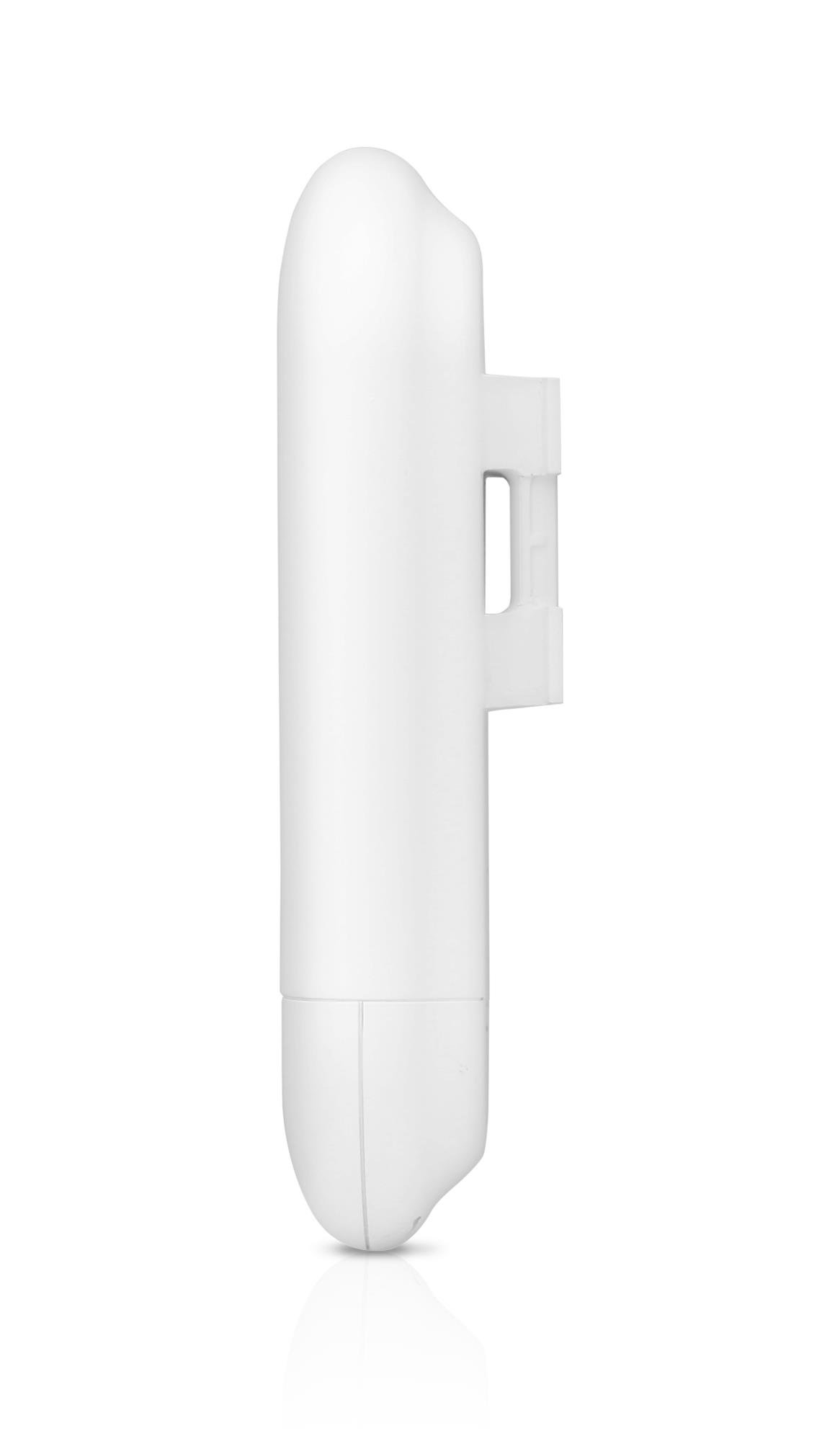

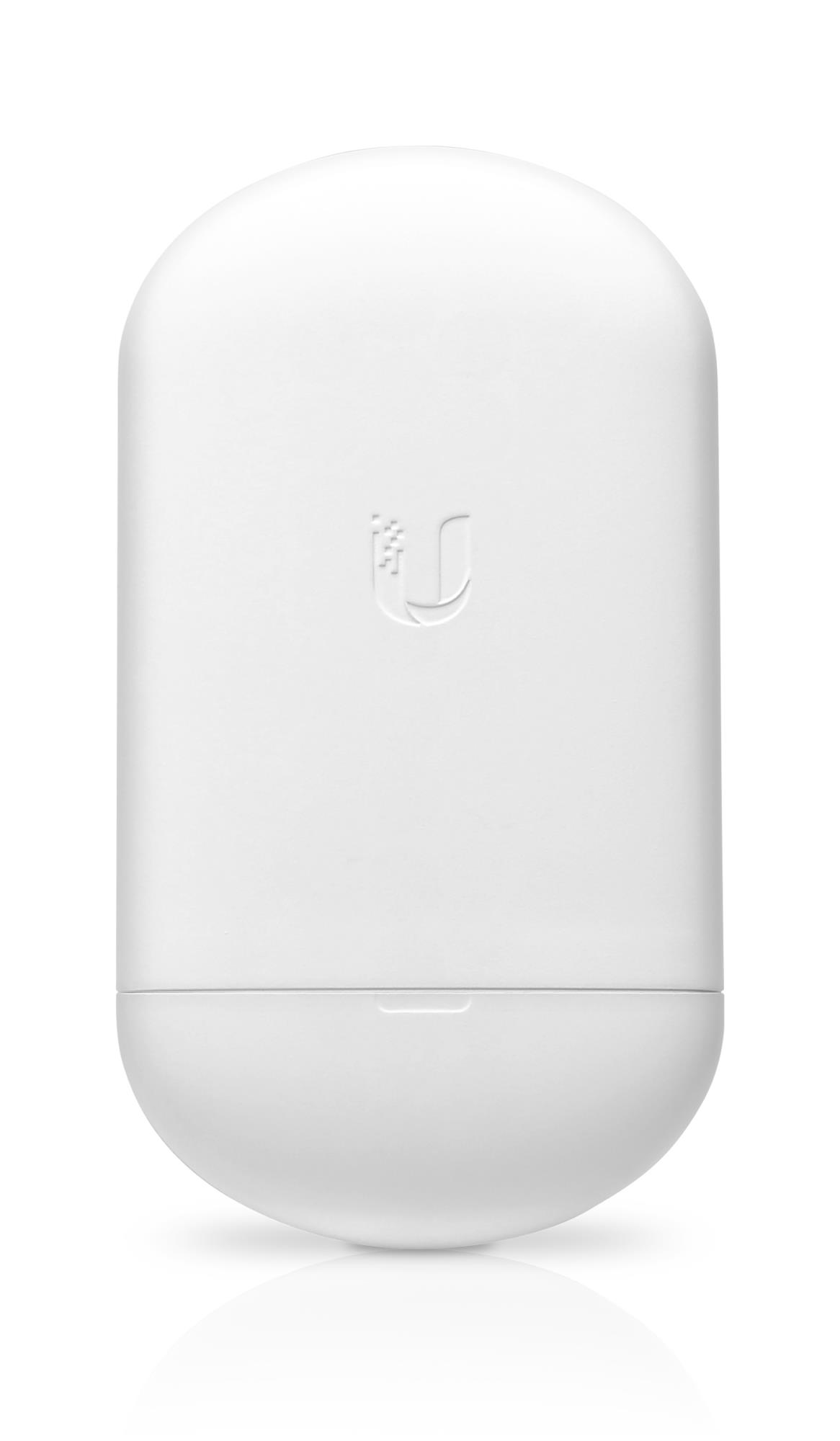

The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

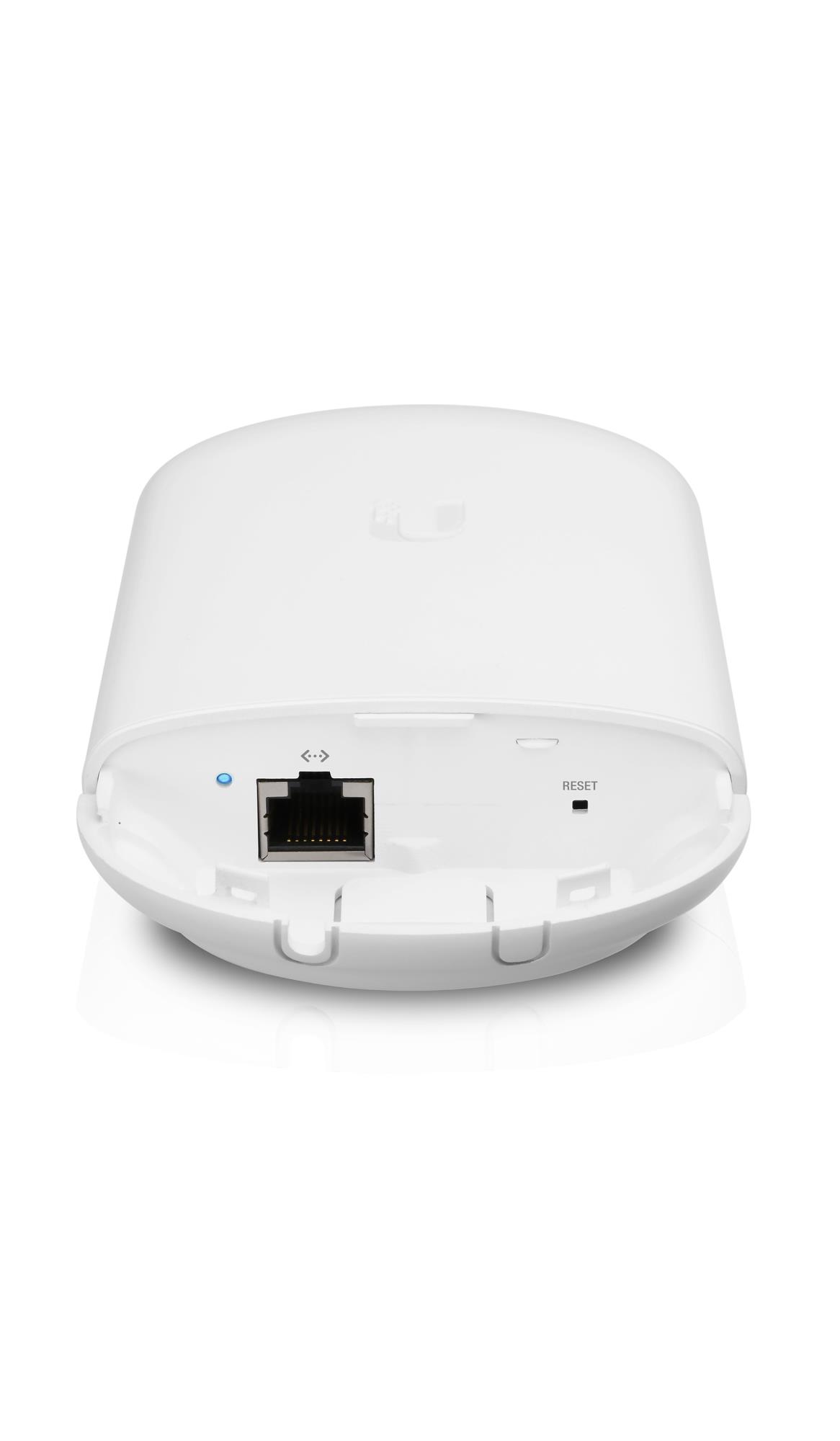

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifikacijos
| Vendor Homepage | https://www.ubnt.com/airmax/nanostation-ac/ |
|---|---|
| Category Code | WAP |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.06 |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Throughput data rate | 450 Mbit/s |
| Frequency band | 5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz |
| Modulation | 16-QAM/256-QAM/64-QAM/BPSK/QPSK |
| Maximum outdoor range | 10000 m |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 24 V |
| Input current | 0.5 A |
| Placement | Ceiling |
| Product colour | White |
| LED indicators | Network/Power/Signal strength |
| Antenna type | Internal |
| Built-in processor | Yes |
| Internal memory | 64 MB |
| Operating system installed | AirOS |
| Certification | CE, FCC, IC |
| Width | 179 mm |
| Depth | 77.5 mm |
| Height | 59.1 mm |
| Weight | 180 g |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 70 °C |
| Harmonized System (HS) code | 85176990 |
| Unit Calculated Weight | 0.4 kg |
| Product Net Weight | 0.18 kg |
| Unit Calculated Volume | 0.001666 cubm |
| Units per Shipping Box | 20 |
| Shipping Box Weight | 8 kg |
| Unit Width | 6 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 23 cm |
| Unit Depth | 20 cm |
| Shipping Box Depth | 47.5 cm |
| Unit Height | 11.5 cm |
| Shipping Box Width | 30.5 cm |
| Name | WRL CPE OUTDOOR 5GHZ/NANOSTATION LOCO5AC UBIQUITI |
| Model | UBIQUITI airMAX NanoStation 5AC Loco |
| Model name | NanoStation 5AC Loco |
