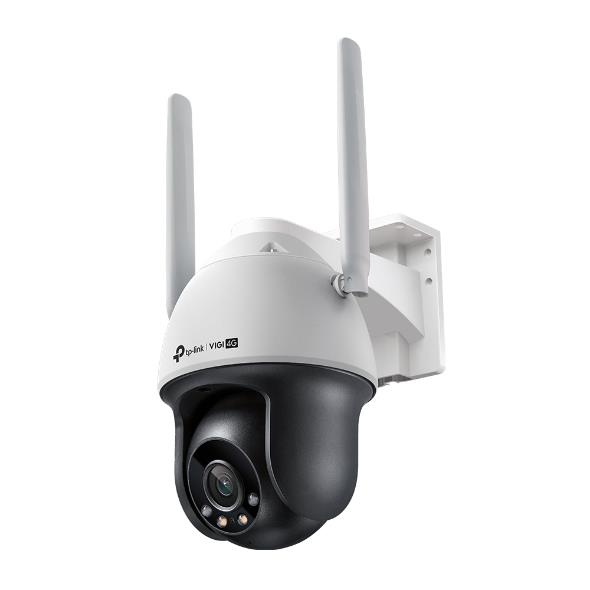

WRL CAMERA 4MP PAN/TILT/VIGI C540-4G(4MM) TP-LINK

155.75

Pirkti
Kiekis: Liko 3
SKU:1420740

Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

Network Anywhere You Need It

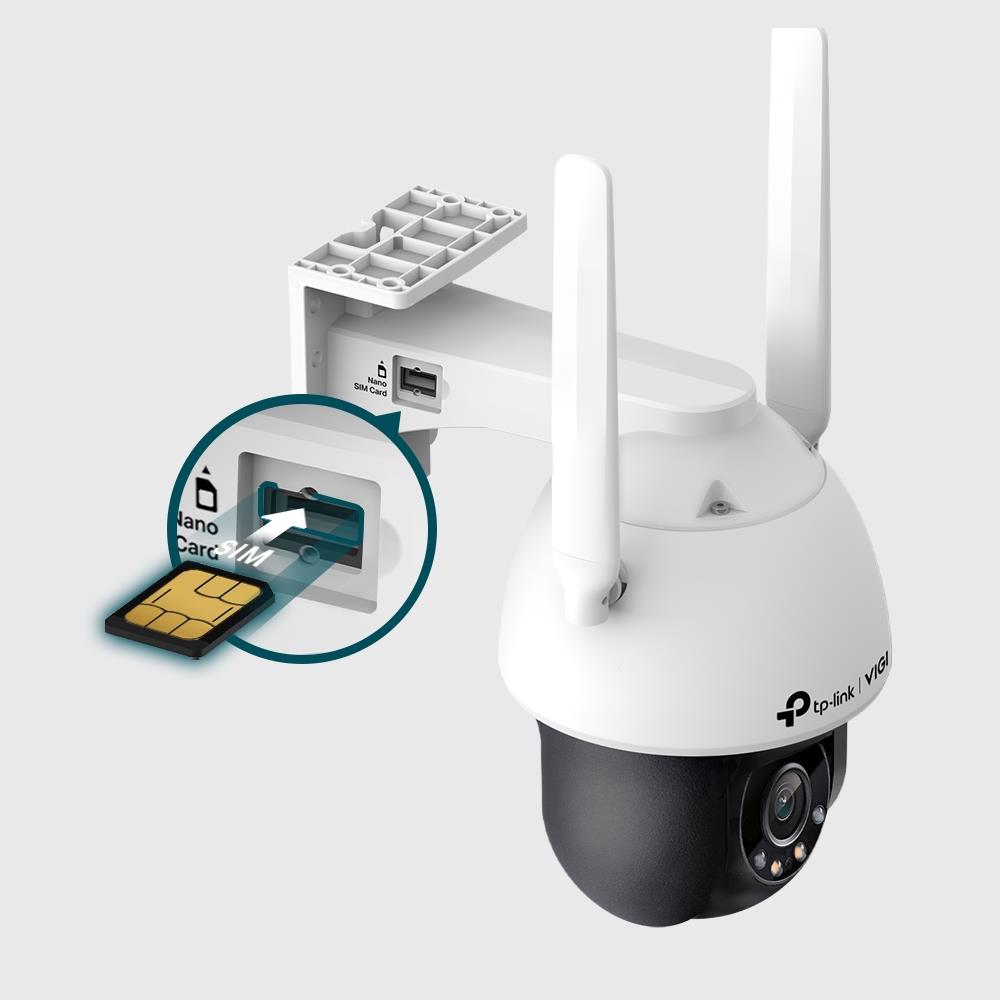

No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness
  • 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available
  • 360° Monitoring: Cover every corner and eliminate blind spots
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly
  • Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance
  • Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client
  • Onboard Storage: Support on-board storage up to 256 GB (SD card slot)

TP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

Specifikacijos

Vendor Homepagehttps://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c540-4g/#overview
Category CodeNCI
Unit Box Height0.245
Unit Box Length0.24
Unit Box Width0.16
Auto patrol modeYes
CertificationRCM, BSMI, VCCI, NTRA, KC
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
Luminous flux0.005 lm
Placement supportedIndoor & outdoor
TypeIP security camera
Wide Dynamic Range (WDR)Yes
Form factorTurret
Housing materialPlastic
International Protection (IP) codeIP66
Mounting typeCeiling/wall
Product colourBlack/White
Camera pan controlYes
Camera shutter speed1/3 - 1/10000 s
Camera tilt controlYes
Lens viewing angle, diagonal94 °
Lens viewing angle, horizontal80 °
Lens viewing angle, vertical43 °
Number of Privacy masking areas4
Pan range0 - 348 °
Pan speed44 °/sec
Tilt angle range0 - 120 °
Tilt speed44 °/sec
Optical sensor size1/3.06 "
Sensor typeCMOS
Detect distance80 m
Identify distance8 m
Lens diameter4 mm
Maximum aperture number1.6
Minimum aperture number1.6
Number of lenses1
Observe distance33 m
Recognize distance16 m
Zoom capabilityYes
LED typeIR/White
Night visionYes
Night vision distance30 m
Number of illumination LEDs4
3D positioningYes
Bit rate256 Kbps - 4 Mbps
Bit rate controlConstant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Frame rate30 fps
Image quality adjustmentBrightness/Contrast/Mirror/Saturation/Sharpness
Maximum resolution2560 x 1440 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Privacy maskingYes
Supported graphics resolutions1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
Total megapixels4 MP
Video compression formatsH.264/H.264+/H.265/H.265+
Video streamingYes
Bit rate range64 - 64 Kbit/s
Built-in microphoneYes
Built-in speaker(s)Yes
Sample rate8 kHz
Signal-to-Noise Ratio (SNR)52 dB
3G standardsWCDMA
4G standardLTE-TDD & LTE-FDD
Ethernet interface typeFast Ethernet
Ethernet LANYes
Live viewYes
Number of simultaneous live view channels3 channels
SIM card slotYes
SIM card typeNanoSIM
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Ethernet LAN (RJ-45) ports1
Digest authenticationYes
HTTPS encryptionYes
Intelligent Video Surveillance (IVS) system featuresHuman detection
IP address filteringYes
MirrorYes
Password protectionYes
Behavior analysisIntrusion detection,Line crossing detection
Reset buttonYes
DC output voltage12
Power source typeDC
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-30 - 60 °C
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-40 - 60 °C
Depth182 mm
Height201 mm
Weight690 g
Width120 mm
Basic eventMotion Detection, Camera Tampering Detection, Exception
Compliance certificatesCE/RoHS
Package depth213 mm
Package height243 mm
Package weight1160 g
Package width163 mm
Mounting kitYes
Number of cameras1
Model nameC540-4G
Units per Shipping Box1
Unit Calculated Volume0.009408 cubm
Unit Calculated Weight1.21 kg
