All-in-one Device
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play

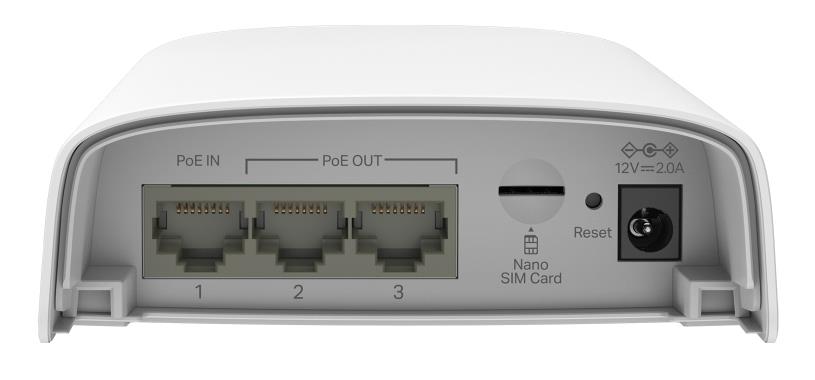

Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.
Easy Installation

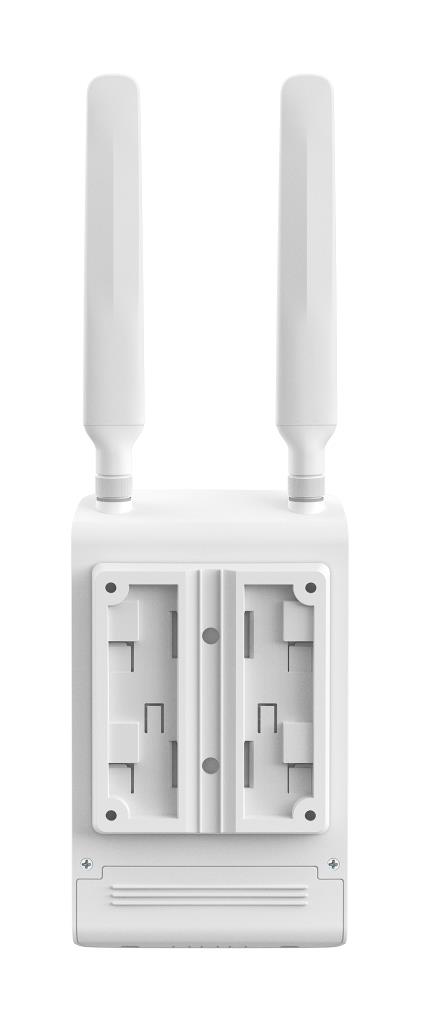

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
- 4G and Ethernet WAN Auto Backup with Load Balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
- Centralized Management
- IP55 Weatherproofing
Specifikacijos
| Vendor Homepage | https://www.omadanetworks.com/uk/business-networking/omada-router-4g-wifi-router/er703wp-4g-outdoor/#specifications |
|---|---|
| Category Code | GWC |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.205 |
| LED indicators | Status |
| Mounting type | Wall mounting |
| Product colour | White |
| Antenna gain level (max) | 4 dBi |
| Antenna type | External |
| Antennas quantity | 2 |
| Short Message Service (SMS) | Yes |
| Control display unit | No |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Internal memory type | DDR4 |
| DHCP server | Yes |
| All services ready time | 3.8 s |
| Data network | LTE |
| Downlink/uplink speed | 300/50 Mbit/s |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Forwarding rate | 1453489 Mpps |
| Frequency band | 2.4/5 GHz |
| GSM bands supported | 1800/2100/850/900 MHz |
| Mobile network generation | 4G |
| Networking standards | IEEE 802.3at/IEEE 802.3bt |
| PPTP/L2TP VPN tunnels (max) | 50 |
| SSL VPN throughput | 0.0866 Gbit/s |
| SSL VPN tunnels (max) | 50 |
| Wi-Fi | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSID/WPA2/WPA3 |
| DC-in jack | Yes |
| SIM card slot | Yes |
| SIM card type | NanoSIM |
| Web-based management | Yes |
| Power consumption (max) | 16.6 W |
| Power over Ethernet (PoE) | Yes |
| Depth | 100.4 mm |
| Height | 38.7 mm |
| Width | 174 mm |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Certification | CE, FCC, RoHS |
| Product Net Weight | 0.43 kg |
| Shipping Box Depth | 27.5 cm |
| Shipping Box Height | 7.5 cm |
| Shipping Box Weight | 1.02999997138977 kg |
| Shipping Box Width | 20.5 cm |
| Unit Calculated Volume | 0.004228 cubm |
| Unit Calculated Weight | 1.03 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
