Performance C Series
The new Xilence Performance C series is focusing on the essentials. Designed for office and home computers, the new Performance C series delivers stable voltages with high efficiency (ErP2014). This guarantees a considerably low fan noise. Four built-in safety circuits ensure safe operation at all times.

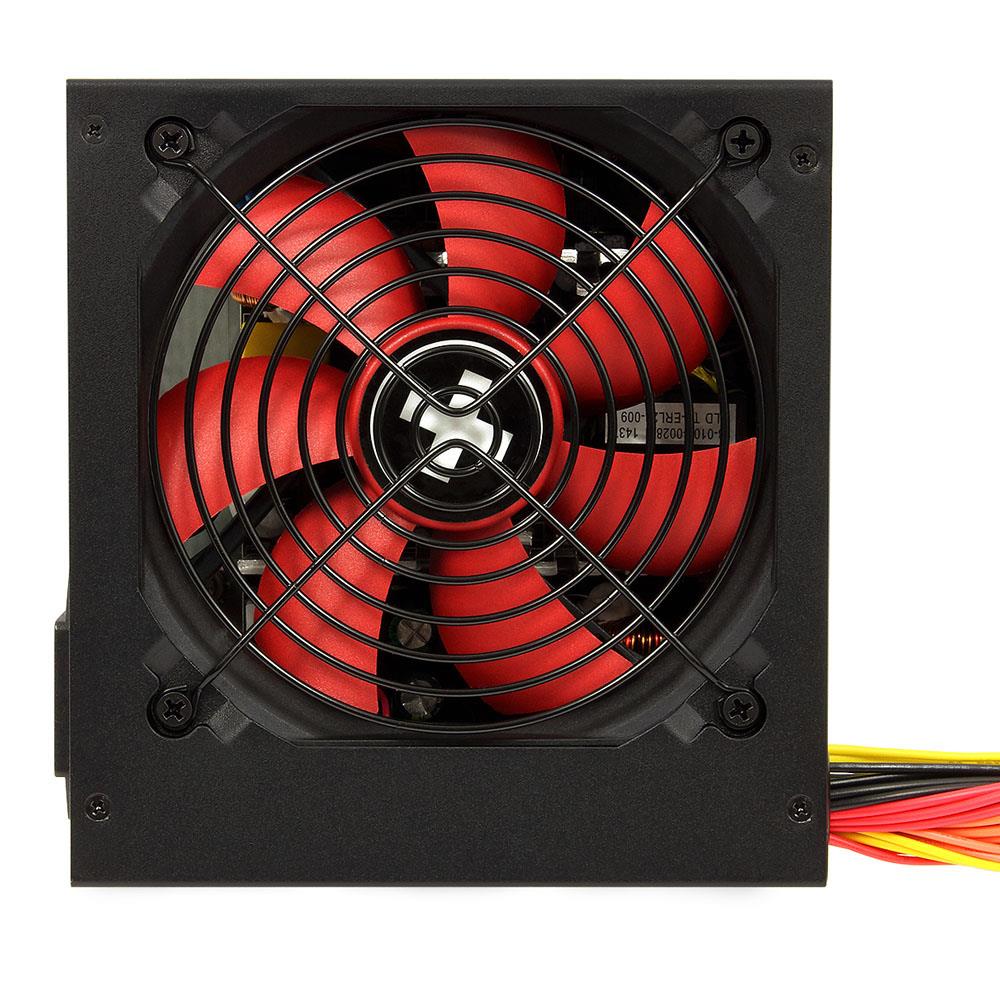

- extremely silent cooling: large 120mm fan
- excellent air flow design for a better heat dissipation
- following safety design:
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Load Protection (OLP)
- low stand-by consumption
- complies with ErP2014 norm

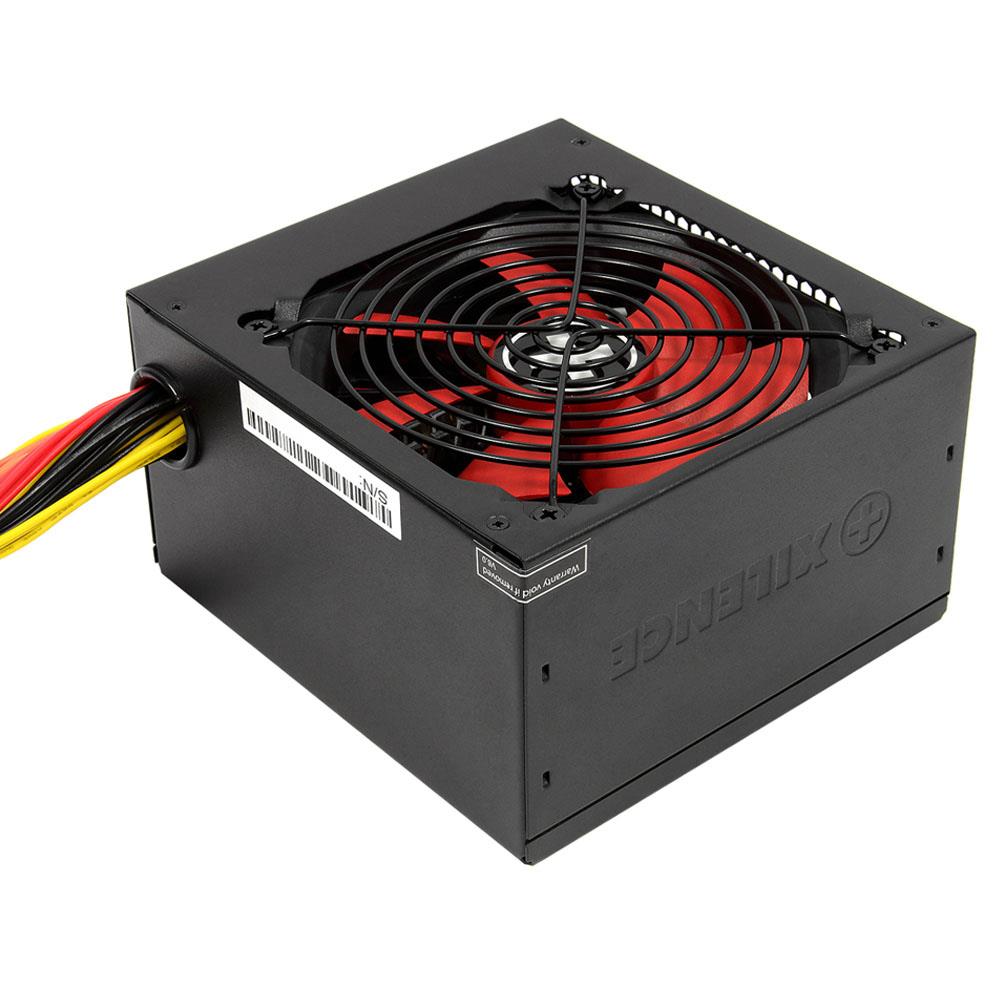

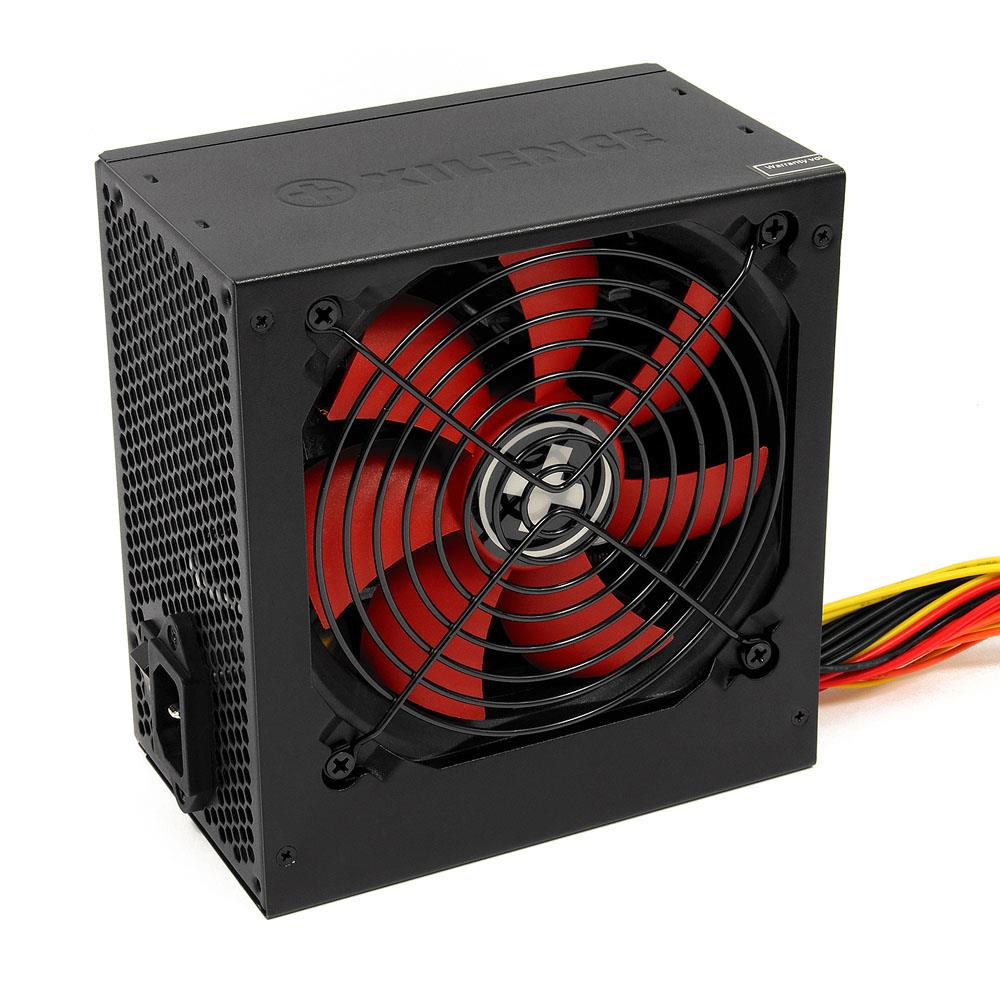

Xilence Performance C XP400R6. Total power: 300 W, AC input voltage: 110 - 240 V, Peak power: 400 W. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Package width: 230 mm, Package depth: 165 mm, Package height: 100 mm
Specifikacijos
| Vendor Homepage | https://www.xilence.de/en/products/power-supplies/performance-c-series/performance-c-series.html |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.52 |
| Unit Box Width | 0.035 |
| Total power | 300 W |
| Peak power | 400 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 10 A |
| Max output current (+12V) | 15 A |
| Max output current (+5V) | 10 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Cabling type | Non-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Product colour | Black |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Package width | 230 mm |
| Package depth | 165 mm |
| Package height | 100 mm |
| Package weight | 1420 g |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| Unit Calculated Weight | 1.52 kg |
| Product Net Weight | 1.4 kg |
| Unit Calculated Volume | 0.004732 cubm |
| Units per Shipping Box | 10 |
| Shipping Box Weight | 15.1999998092651 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 26 cm |
| Shipping Box Depth | 52 cm |
| Shipping Box Width | 35 cm |
| Name | CASE PSU ATX2.3 400W/XP400R6 XN041 XILENCE |
