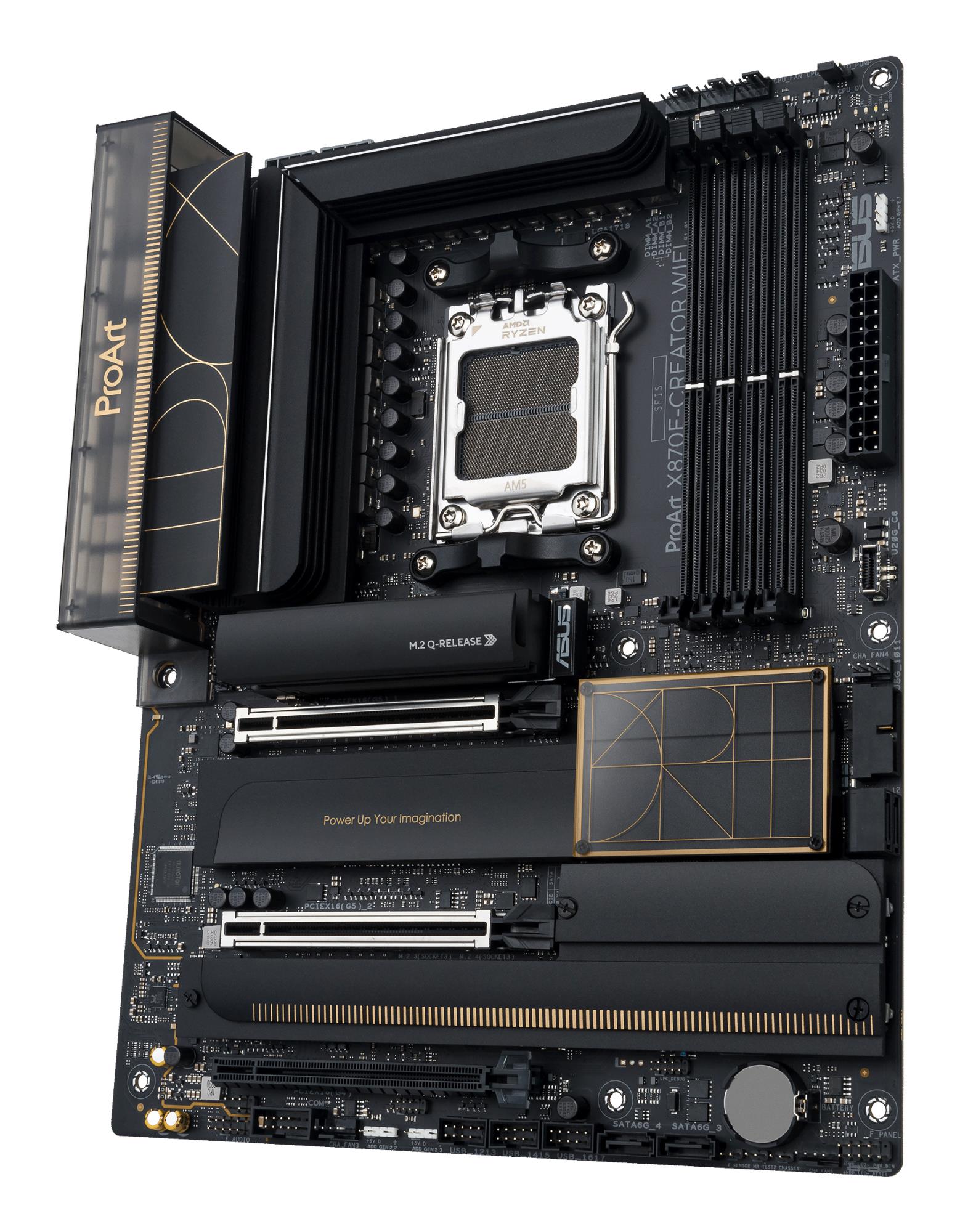

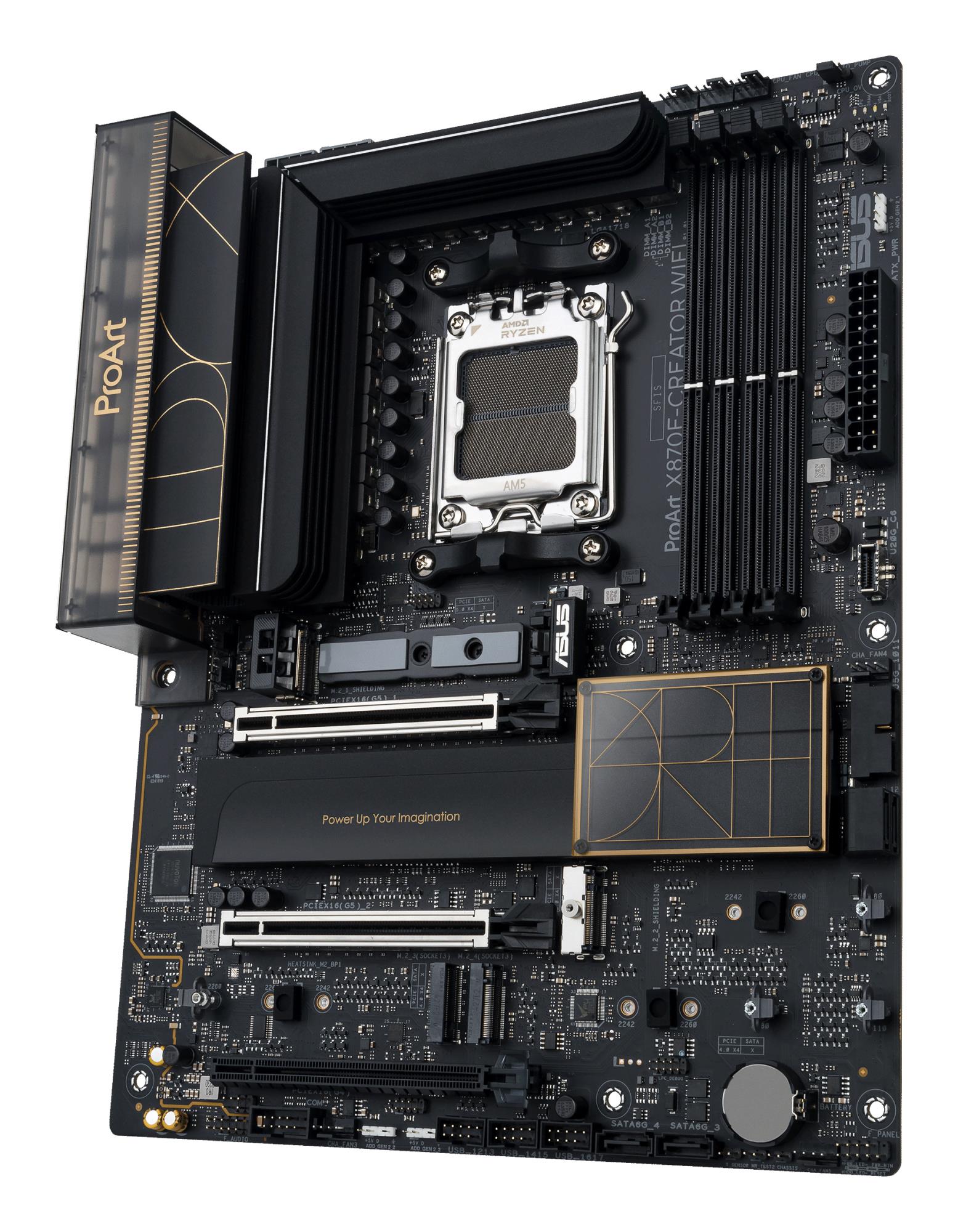

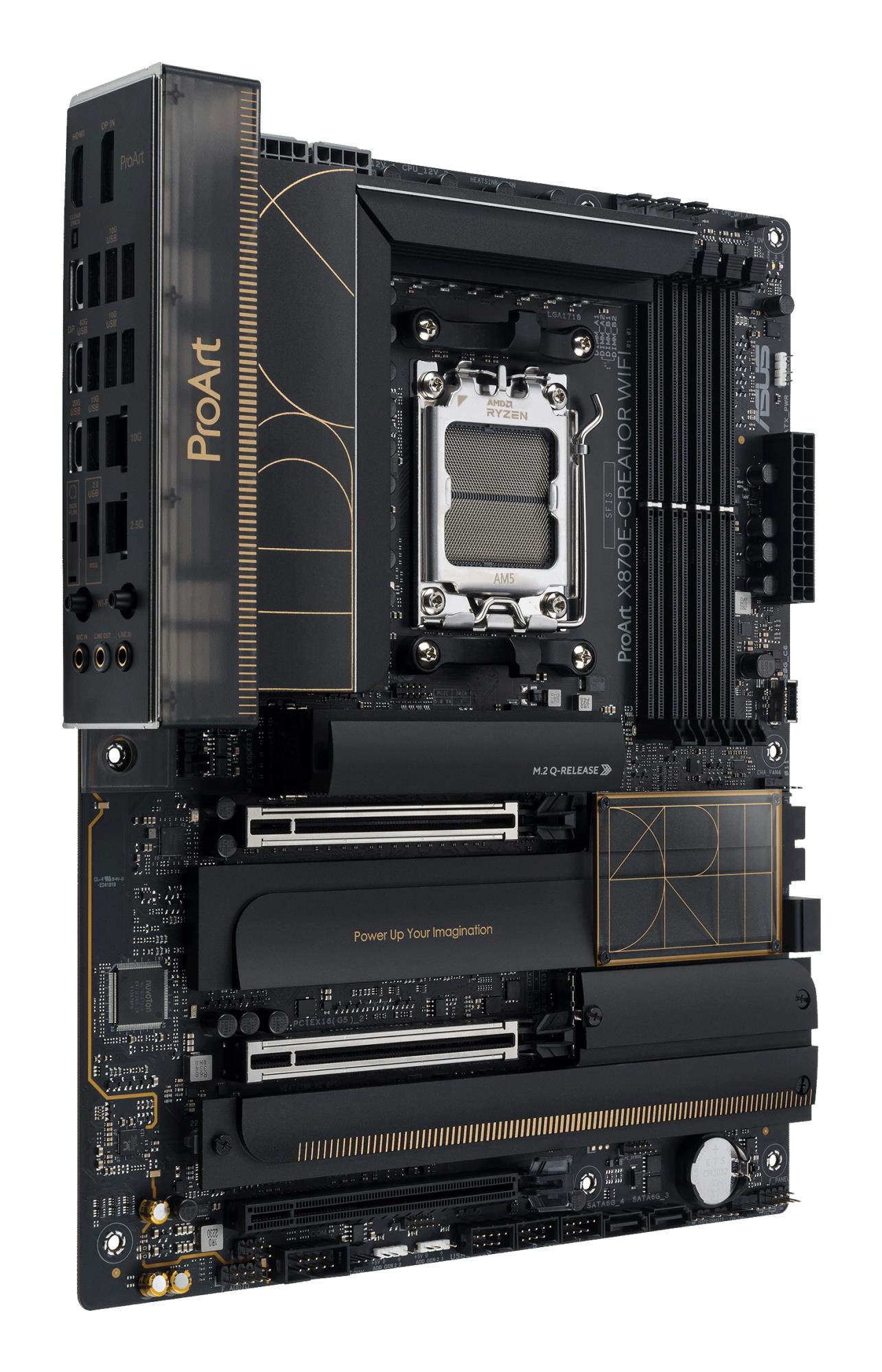

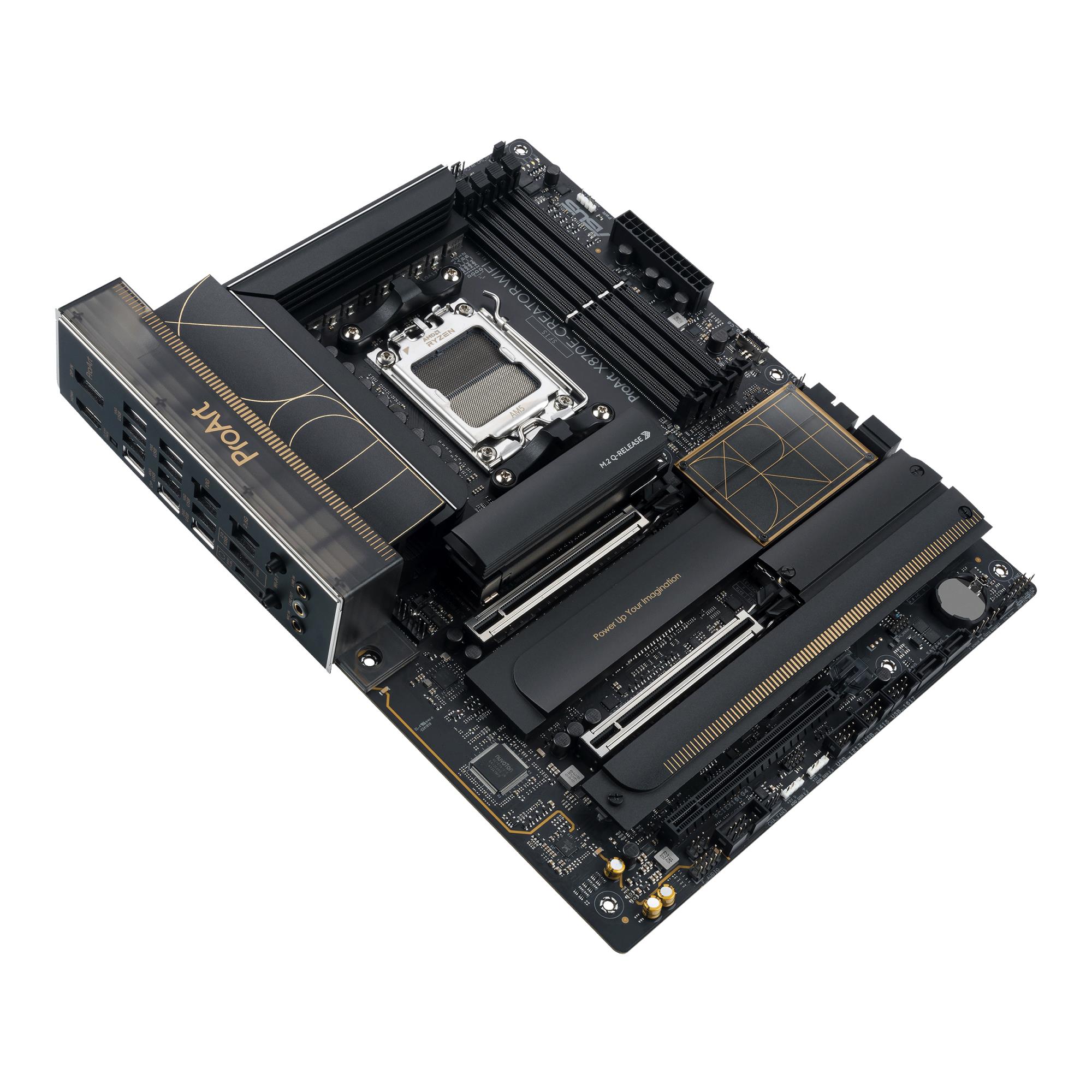

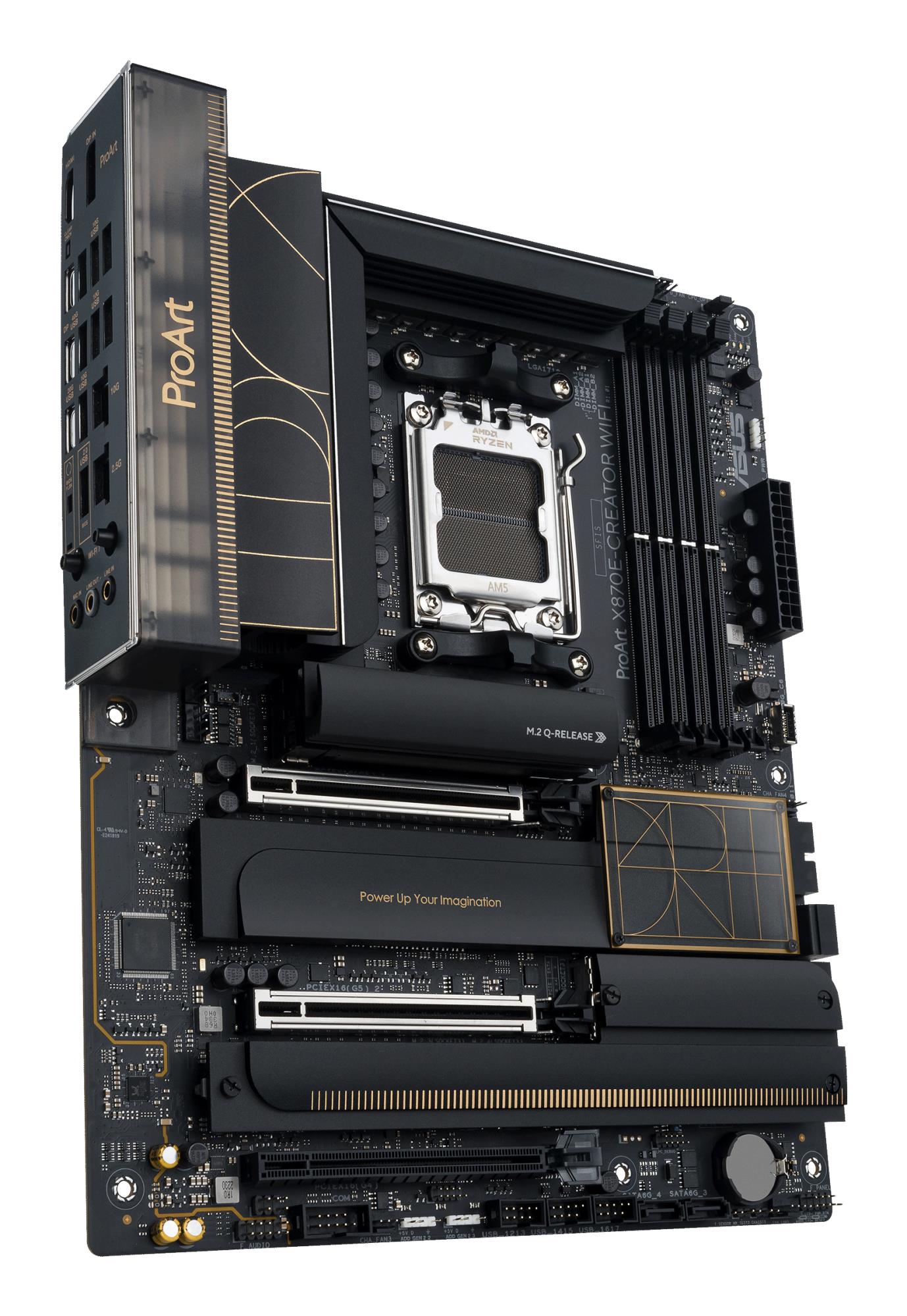

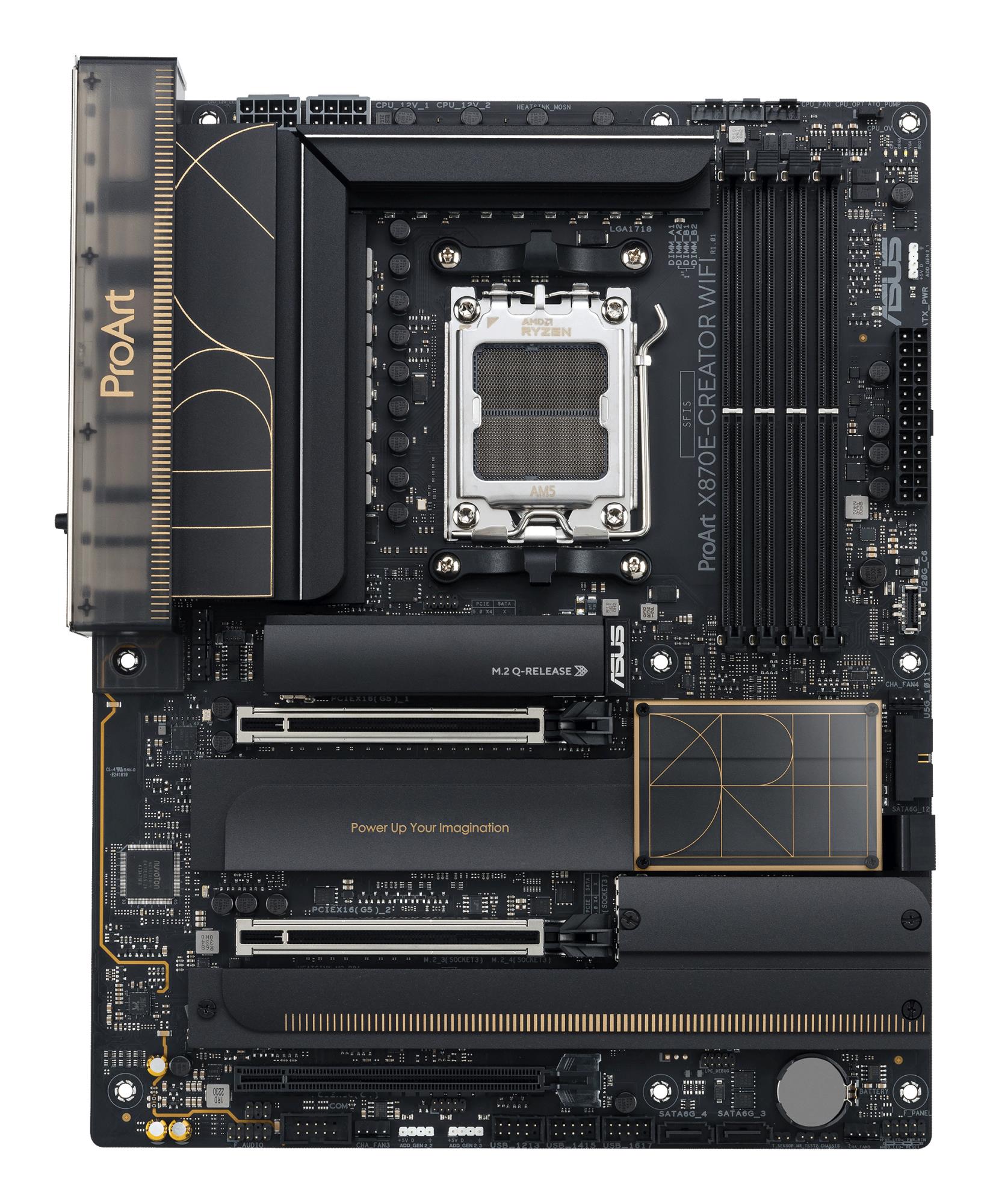

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

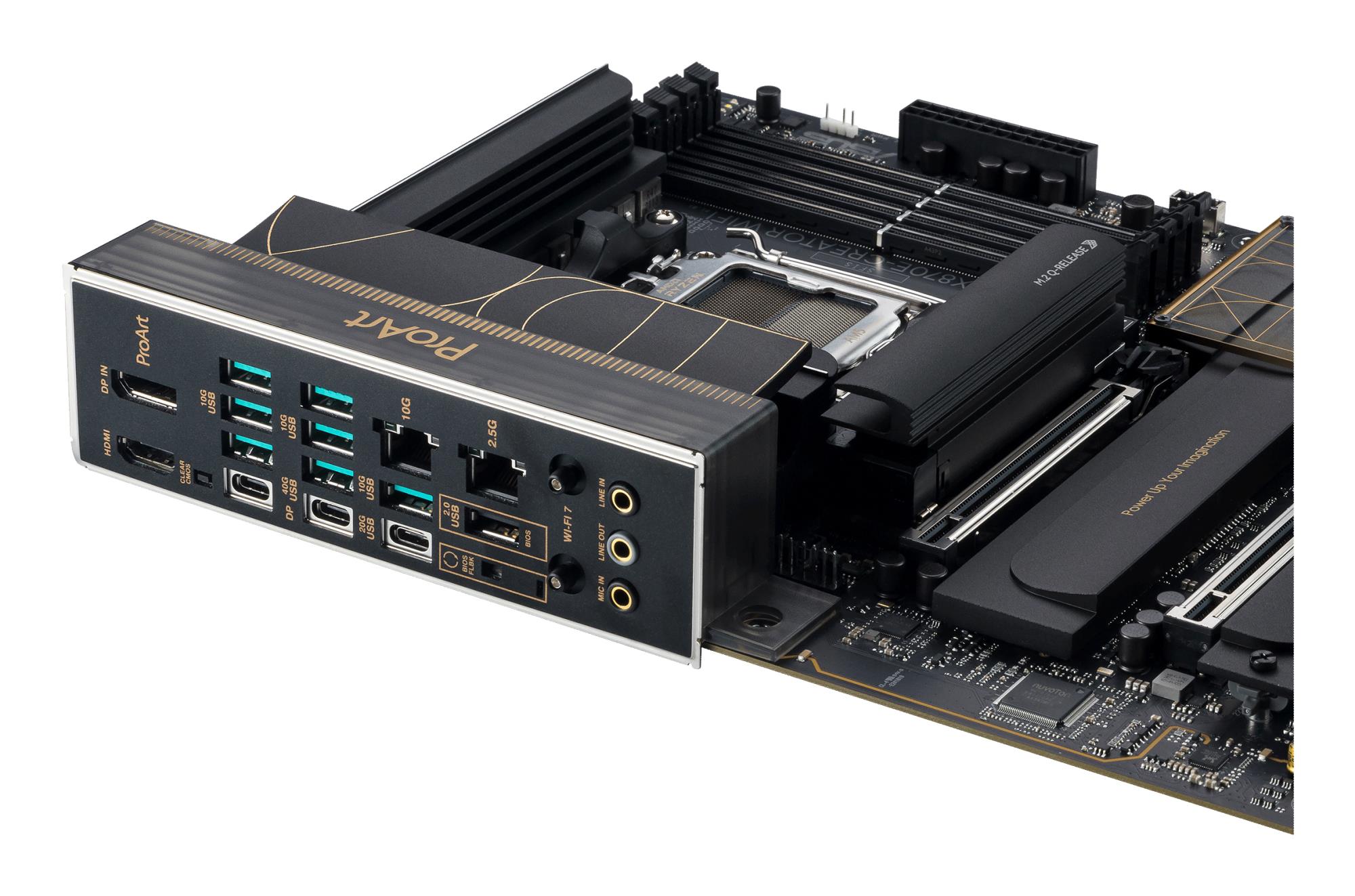

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
All You Need for Maximum Productivity
Dual USB4® Connectivity

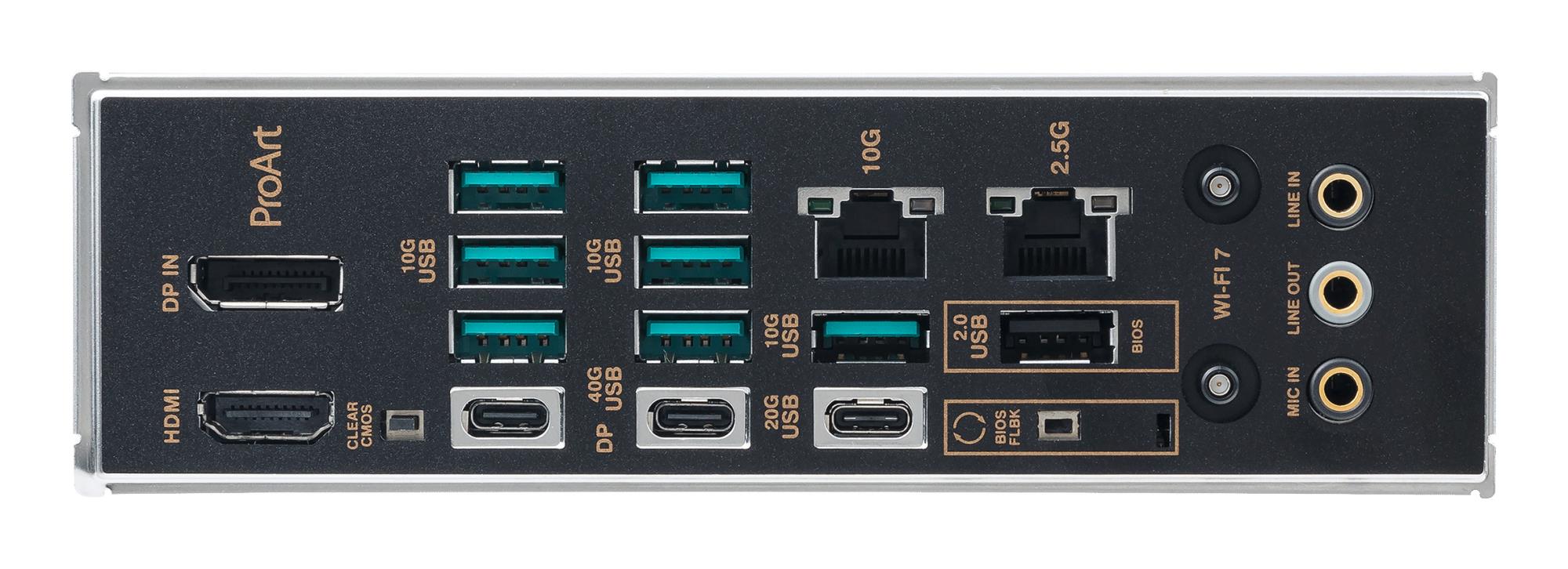

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.
Specifikacijos
| Vendor Homepage | https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/ |
|---|---|
| Category Code | MBA |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.36 |
| Unit Box Width | 0.285 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 11 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 5 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 10 Gigabit Ethernet/2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Depth | 244 mm |
| Width | 305 mm |

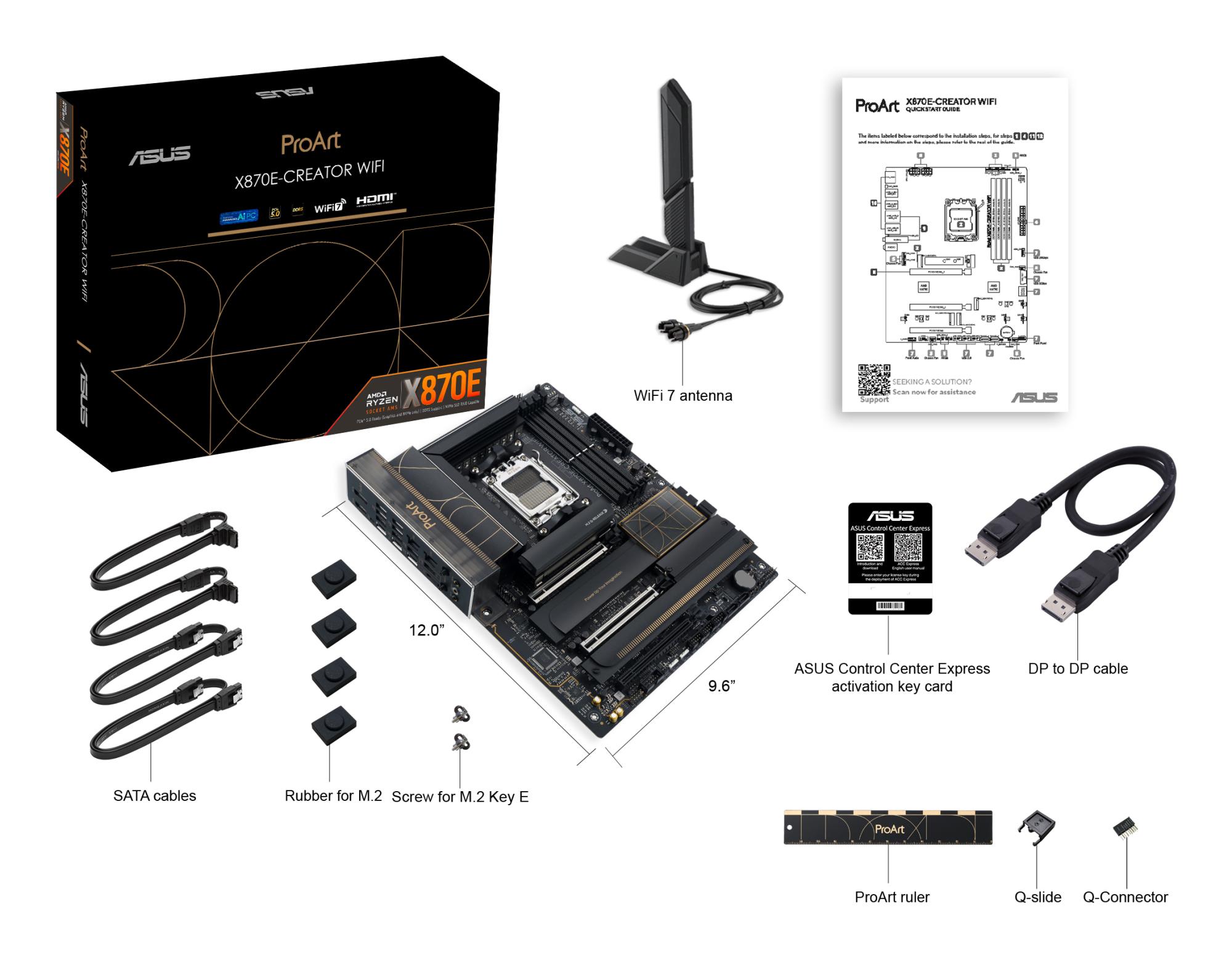

| Cables included | DisplayPort,SATA |
| Model | PROART X870E-CREATOR WIFI |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.01093 cubm |
| Unit Calculated Weight | 2.82 kg |
