Image quality adjustment
Brightness/Contrast/Saturation/Sharpness/White balance
Networking standards
IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at

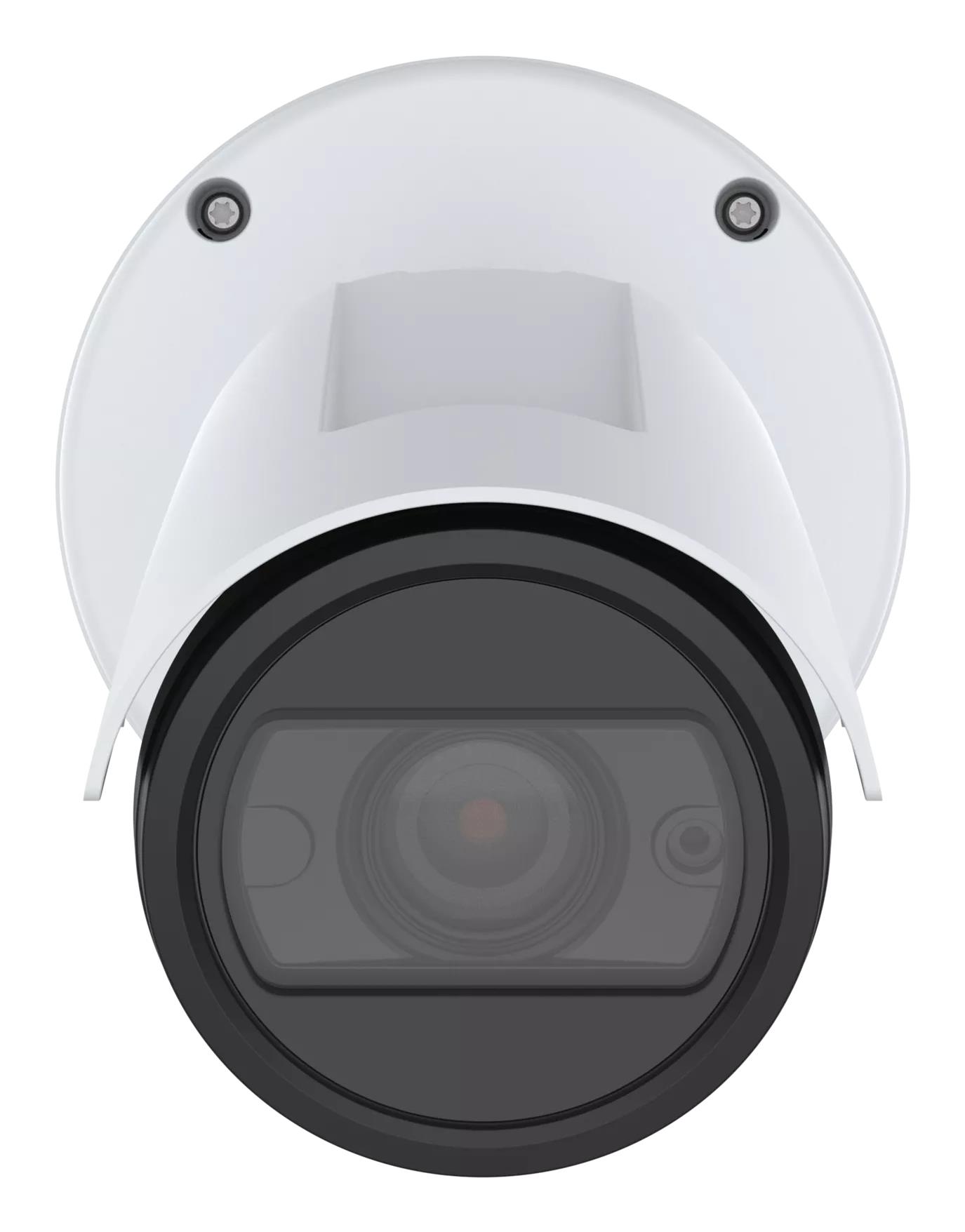

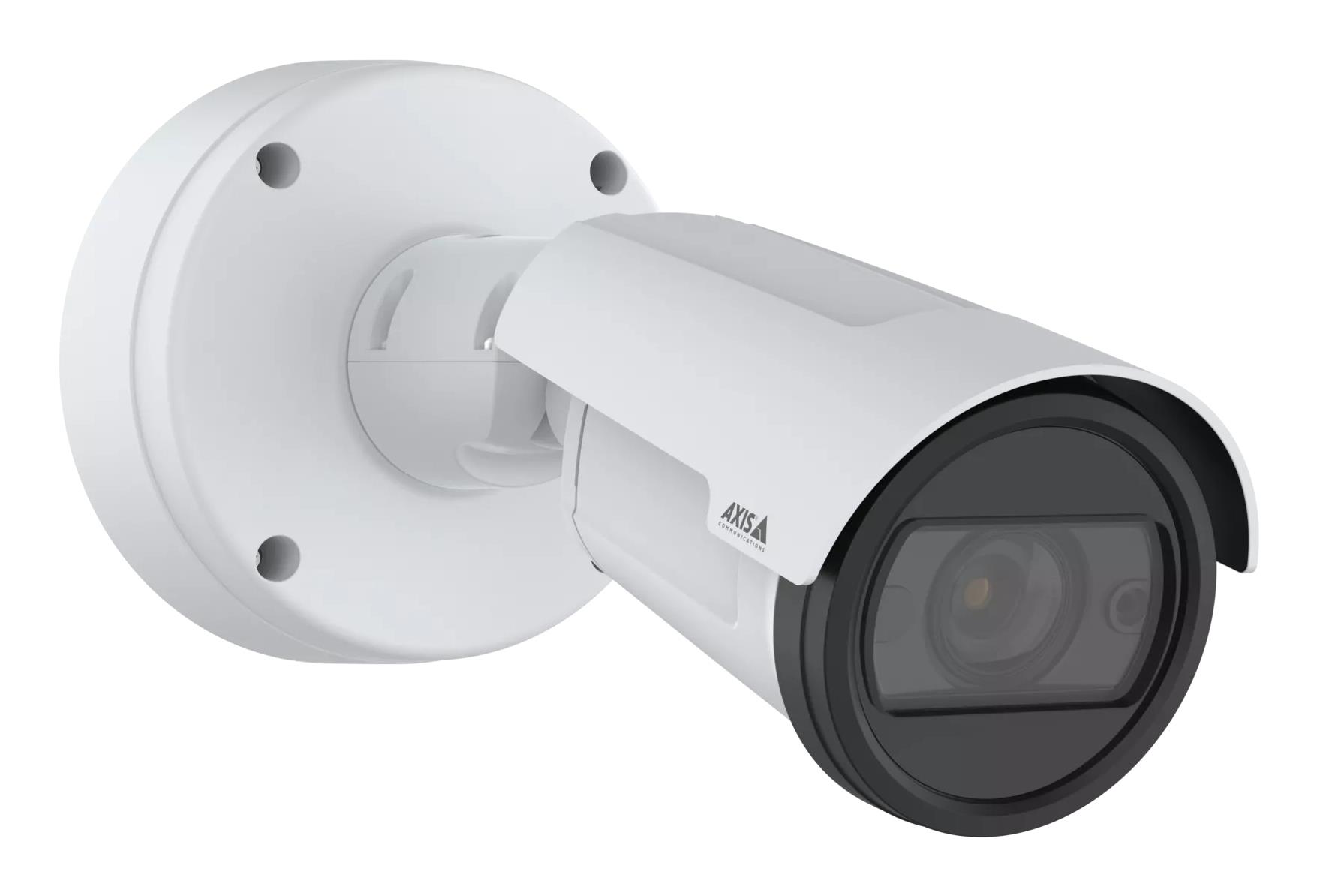

This robust, cost-effective, AI-powered bullet camera delivers excellent 8 MP image quality in any light conditions. Built on ARTPEC-9, it supports AV1 codec and offers accelerated performance to run impressive analytics applications on the edge
Outstanding image quality in any light
AXIS P1488-LE offers excellent image quality and forensic details in 8 MP at 60 fps, even in harsh weather and environments. It features OptimizedIR for surveillance in pitch darkness up to 50 M (164 ft). And Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, it features a large 1/1.2" sensor to ensure consistent performance even in low light. And a 6-14 mm lens with a 114°-46° horizontal field of view for wide-area surveillance.
Robust with strong security
This impact-resistant, IK10-, IP66-, 67-, and NEMA 4X-rated outdoor-ready camera can handle extreme temperatures from -40°C to 60 °C (-40 to 140°F) and withstand winds up to 60 m/s (134 mph). It can be powered with DC and PoE for power redundancy. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operation. In addition, electronic image stabilization provides smooth video in situations where a camera is subject to vibrations. What’s more, this robust camera is easy to install, maintain, and operate. For instance, it includes auto rotation and remote zoom and focus.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With ARTPEC-9, this application offers enhanced performance at greater distances. AXIS Image Health Analytics will notify you if the image is blocked, degraded, under-exposed, or redirected. And AXIS Live Privacy Shield addresses privacy laws and regulations and offers AI-based dynamic masking so you can detect movement and activities while safeguarding privacy.
- Excellent 8 MP video in any light
- Reduced storage costs with AV1 codec
- Next-generation AI-powered analytics
- Robust and impact-resistant
- Built-in cybersecurity with Axis Edge Vault
Specifikacijos
| Vendor Homepage | https://www.axis.com/products/axis-p1488-le |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.15 |
| Form factor | Bullet |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| LED indicators | Yes |
| Mounting type | Pole clamp |
| Product colour | White |
| Alarm input/output | Yes |
| Built-in processor | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Outdoor |
| Processor model | ARTPEC-9 |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera pixel size | 2.9 µm |
| Camera shutter speed | 1/66500 - 2 s |
| Lens viewing angle, horizontal | 114 - 46 ° |
| Lens viewing angle, vertical | 62 - 26 ° |
| Minimum illumination | 0.01 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/1.2 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Focal length range | 5.9 - 13.8 mm |
| Maximum aperture number | 2.8 |
| Minimum aperture number | 1.5 |
| Zoom capability | Yes |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 50 m |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Image stabilizer | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Text caption overlay | Yes |
| Total megapixels | 8 MP |
| Video compression formats | AV1/H.264/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 2048 MB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Video motion detection | Yes |
| Cloud-managed | Yes |
| DC output voltage | 10,12,15,16,24,28 |
| Power consumption (max) | 12.95 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Weight | 1400 g |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Model | P1488-LE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006375 cubm |
| Unit Calculated Weight | 1 kg |
