Power protection features
Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage

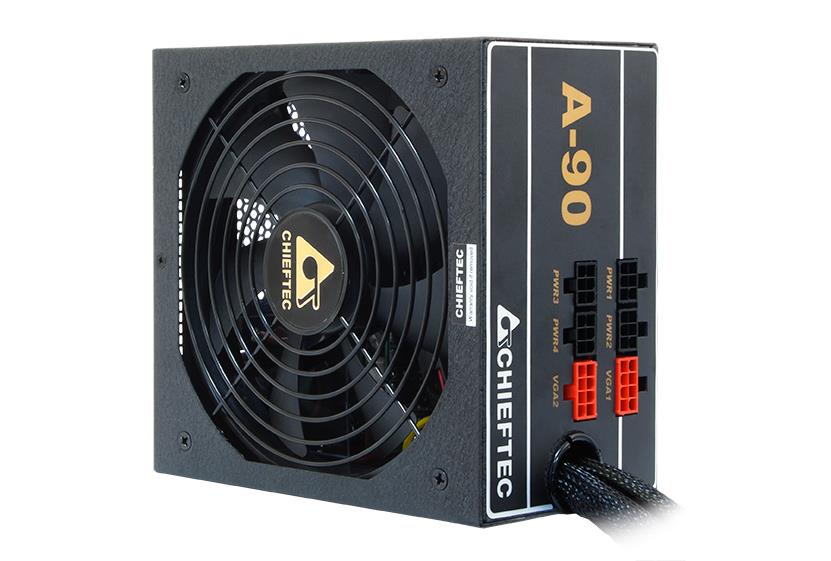

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
Chieftec GDP-650C. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Mean time between failures (MTBF): 100000 h. Product colour: Black, Fan diameter: 14 cm. Compliance certificates: RoHS
Specifikacijos
| Vendor Homepage | https://www.chieftec.eu/en/psus/a-90-serie/gdp-650c.html |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.22 |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Input current | 5 A |
| Max output current (+12V1) | 53 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Total power | 650 W |
| Cabling type | Semi-Modular |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
| Fan diameter | 140 mm |
| Product colour | Black |
| Compliance certificates | RoHS |
| Depth | 160 mm |
| Height | 87 mm |
| Width | 150 mm |
| Harmonized System (HS) code | 84733020 |
| Units per Pallet | 0 |
| Units per Shipping Box | 6 |
| Unit Calculated Volume | 0.006566 cubm |
| Unit Calculated Weight | 2.52 kg |
