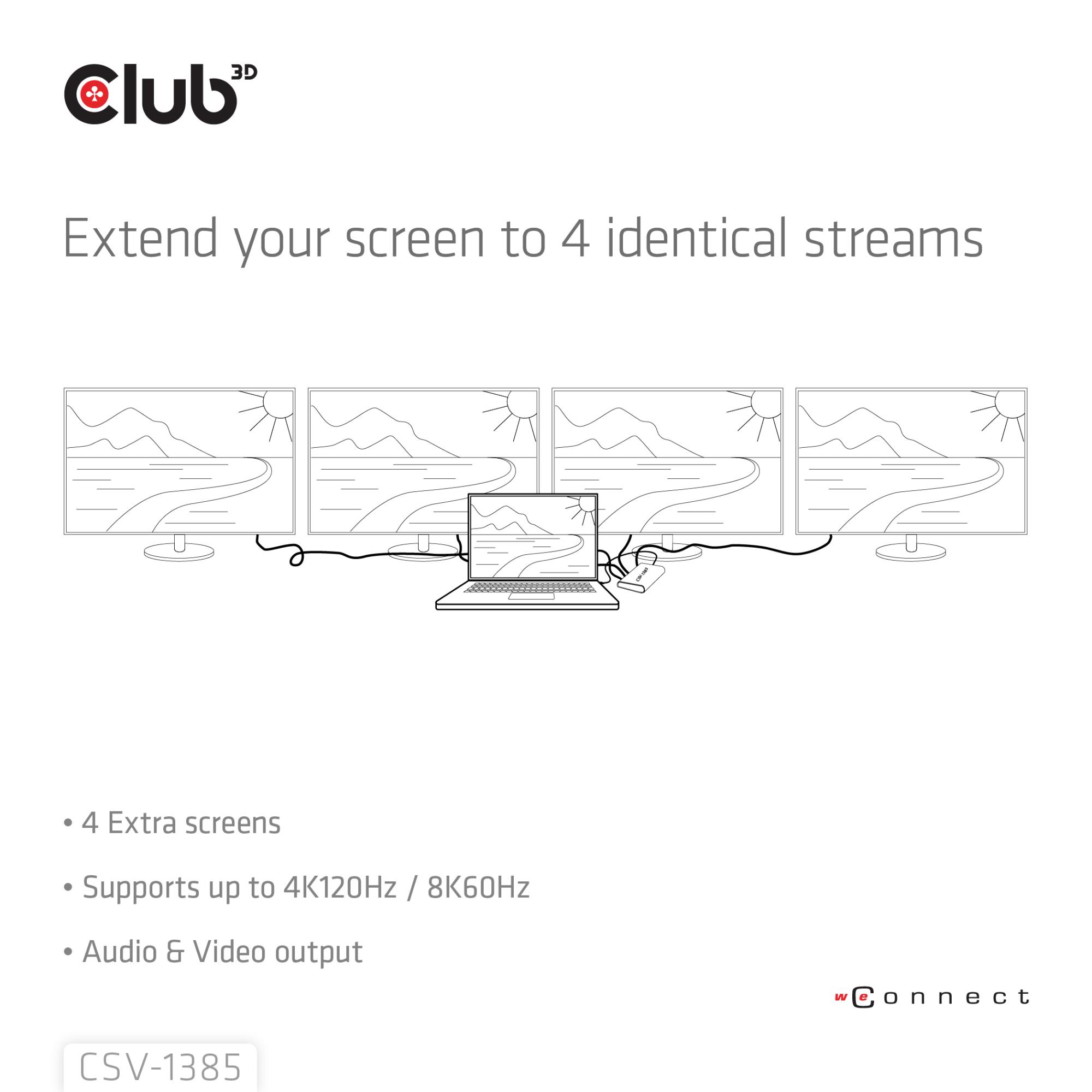

The Club 3D CSV-1385 is a high-performance and small-sized 1 to 4 HDMI™ Splitter 4K120Hz with hot plug and iron casing. It distributes the input of the HDMI™ signal into four identical outputs at the same time. It provides high performance audio and video output through HDMI™ cables up to 4K@120Hz resolution. This Splitter only splits the input signal to 4 output ports based on the input signals specifications.
This is a high-performance and small-sized HDMI™ splitter in a metal housing with an external Power Supply of 100-240VAC / 5V-2A DC. It's an ideal assistant both at home and at work.
- Specifications
- Product Name: 1 to 4 HDMI™ Splitter 4K120Hz
- Product Series: Video Splitter
- Product Code: CSV-1385
- EAN-Code: 8719214473198
- UPC-Code: 841615103447
- Features:
- Supported resolutions up to: 3840 x 2160p at 120Hz
- Supports Full 3D
- Supports HDCP 1.4 and 2.2 pass through
- Supports compressed audio
- Easy to use, no software installation needed
- Video Amplifier Bandwidth, 6Gbps / 600Mhz
- Supported resolutions:
- 4K120Hz
- OS Support:
- Windows 10 or upwards, macOS 14.2.1

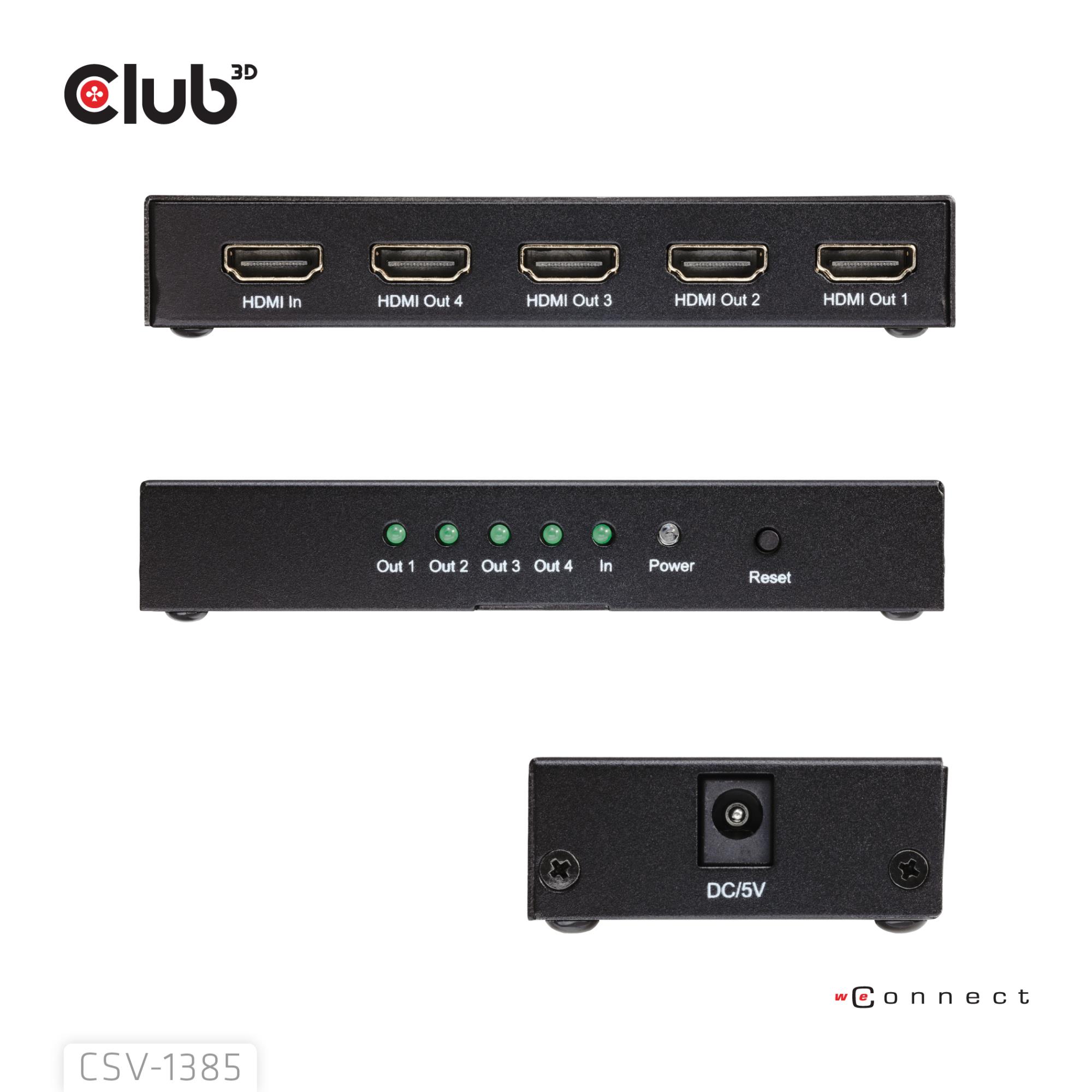

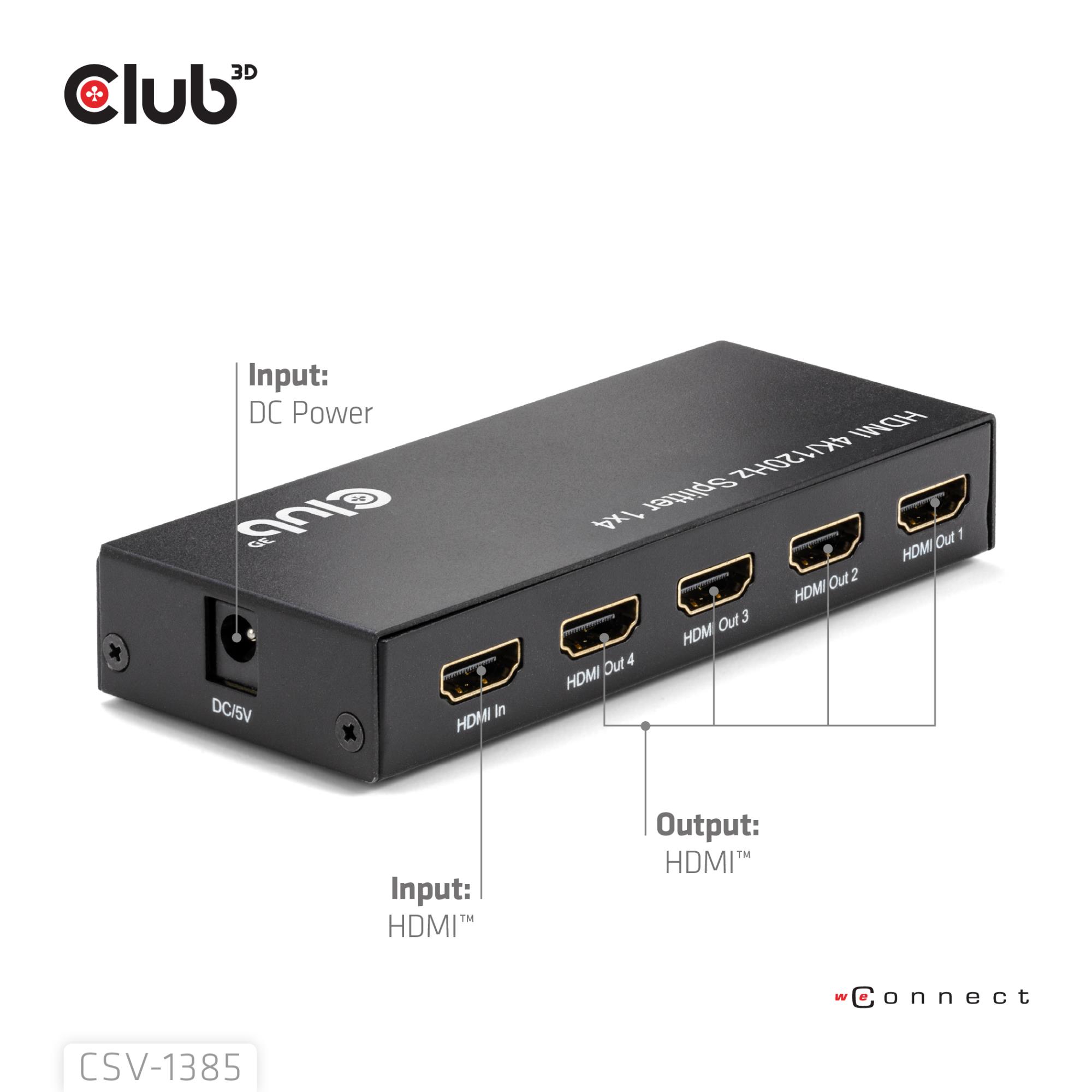

- Available Interfaces:
- Input:
- 1 x HDMI™ Female
- Output:
- 4 x HDMI™ Female
- In the box:
- 1X • Power Adapter (5V/2A)(Please Specify Plug type when ordering)
- CSV-1385 HDMI™ 4K@120Hz UHD Splitter 4 Ports
- Other info:
- Box size: 14.5 x 13.5 x 5.5 cm / 5.7x 5.31 x 2.17"

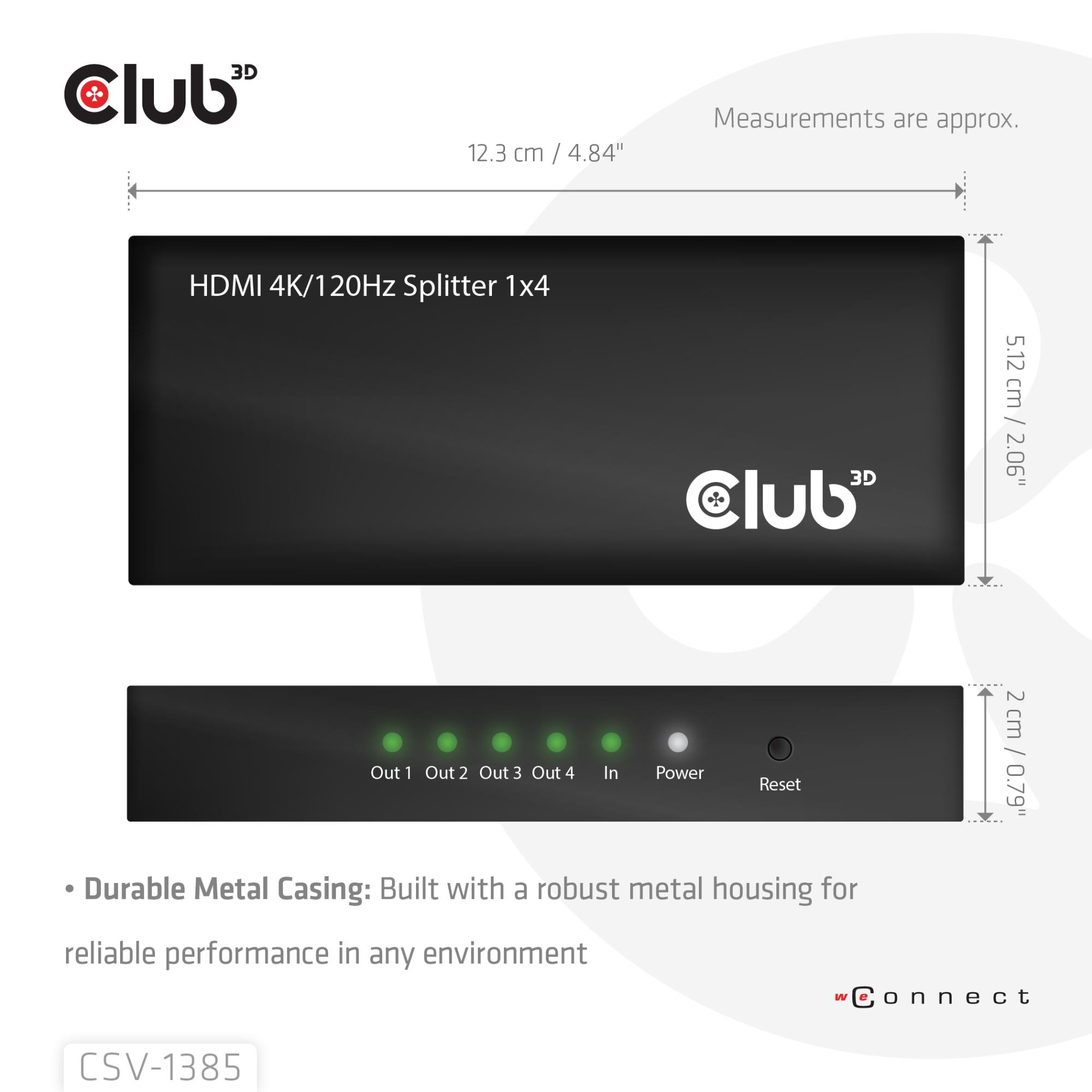

- Device size: 12.2 x 5 x 2 cm / 4.8 x 1.97 x 0.79"
- Box Weight: 62 gr. / 2.19 oz
- Device Weight: 154 gr. / 0.53 oz
- Power Supply Weight: 51-112 gr. / 1.8-3.95 oz (Depending on PowerPlug)
- Total Weight: 263-324 gr. / 9.27 - 44.43 oz (Depending on PowerPlug)
- Meets ROHS, FCC, and CE EMI requirements
- Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates
CLUB3D 1 to 4 HDMI™ Splitter 4K120Hz. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. Quantity per pack: 1 pc(s), Package type: Box, Paper/cardboard packaging weight: 62 g. Harmonized System (HS) code: 8473 3020
Specifikacijos
| Vendor Homepage | https://club-3d.com/en/detail/2671/splitter_de_1_a_4_hdmit_4k120hz/ |
|---|---|
| Category Code | VSP |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.055 |
| Video out | 4x HDMI |
| Video port type | HDMI |
| Video ports quantity | 4 |
| 3D | Yes |
| Easy to install | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| LED indicators | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Reset button | Yes |
| Package type | Box |
| Paper/cardboard packaging weight | 62 g |
| Plastic packaging weight | 0 g |
| Quantity per pack | 1 pc(s) |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Harmonized System (HS) code | 8473 3020 |
| Model | CSV-1385 |
| Model name | 1 to 4 HDMI™ Splitter 4K120Hz |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001077 cubm |
| Unit Calculated Weight | 0.31 kg |
