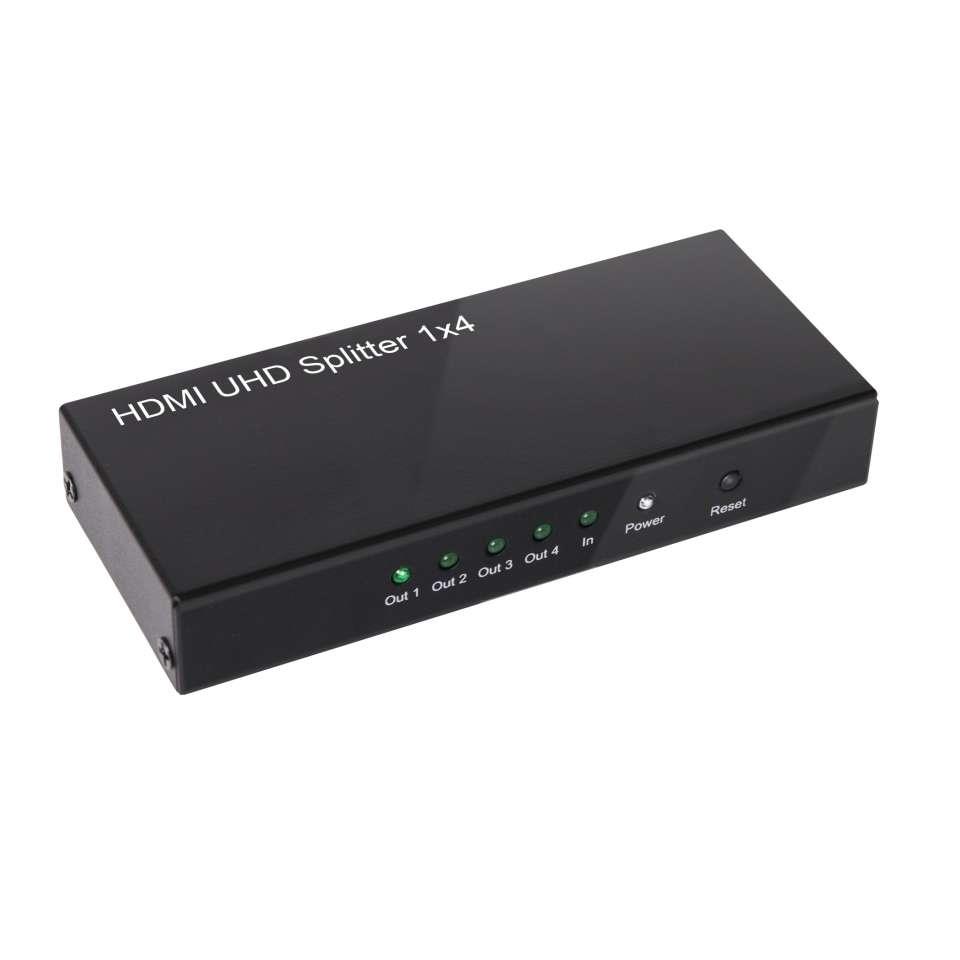

The SenseVision HDMI™ 2.0 UHD Splitter 4 Ports is a high- performance and small-sized HDMI™ 4K 60Hz UHD Splitter with one input and four outputs. It has a mat black metal casing, which make it very strong and sturdy. An ideal assistant both at home and in the workplace.
This HDMI™ 4K 60Hz UHD Splitter routes high definition video, in resolutions up to 4K @ 60Hz, and digital audio from the source input to any of the four connected 4K UHD televisions, monitors or projectors.
The CSV-1380 SenseVision HDMI™ 2.0 UHD Splitter comes with an AC Power Adapter for 5V/ 2A and its maximum power consumption is 3.2 Watt.
- Connect 4 screens to one Host System via this Splitter
- Supports 4 x 4K60Hz UHD resolutions and HDR
- Supports HDR, HDCP and 3D
CLUB3D HDMI™ 4K@60Hz UHD Splitter AC Power 4 ports. Video port type: HDMI, HDMI version: 2.0a. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5 V, Output current: 2 A, Power consumption (typical): 10 W. Dimensions (WxDxH): 122 x 50 x 20 mm, Weight: 156 g. Quantity per pack: 1 pc(s), Package width: 180 mm, Package depth: 137 mm
Specifikacijos
| Vendor Homepage | https://www.club-3d.com/en/detail/2447/hdmi_2.0_uhd_splitter_4_ports/ |
|---|---|
| Category Code | VSP |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.055 |
| DC-in jack | Yes |
| HDMI version | 2.0a |
| Video in | 1 |
| Video out | 4 |
| Video port type | HDMI |
| Video ports quantity | 4 |
| 3D | Yes |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Data transfer rate | 6 Gbit/s |
| Easy to install | Yes |
| Full HD | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| HD-Ready | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Plug and Play | Yes |
| Power LED | Yes |
| Product colour | Black |
| Windows operating systems supported | Yes |
| Wi-Fi | No |
| AC input voltage | 5 V |
| Output current | 2 A |
| Power consumption (typical) | 10 W |
| USB powered | No |
| Dimensions (WxDxH) | 122 x 50 x 20 mm |
| Weight | 156 g |
| Package depth | 137 mm |
| Package height | 80 mm |
| Package type | Box |
| Package width | 180 mm |
| Paper/cardboard packaging weight | 30 g |
| Plastic packaging weight | 20 g |
| Quantity per pack | 1 pc(s) |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| AC adapter included | Yes |
| Included power plug types | EU |
| Manual | Yes |

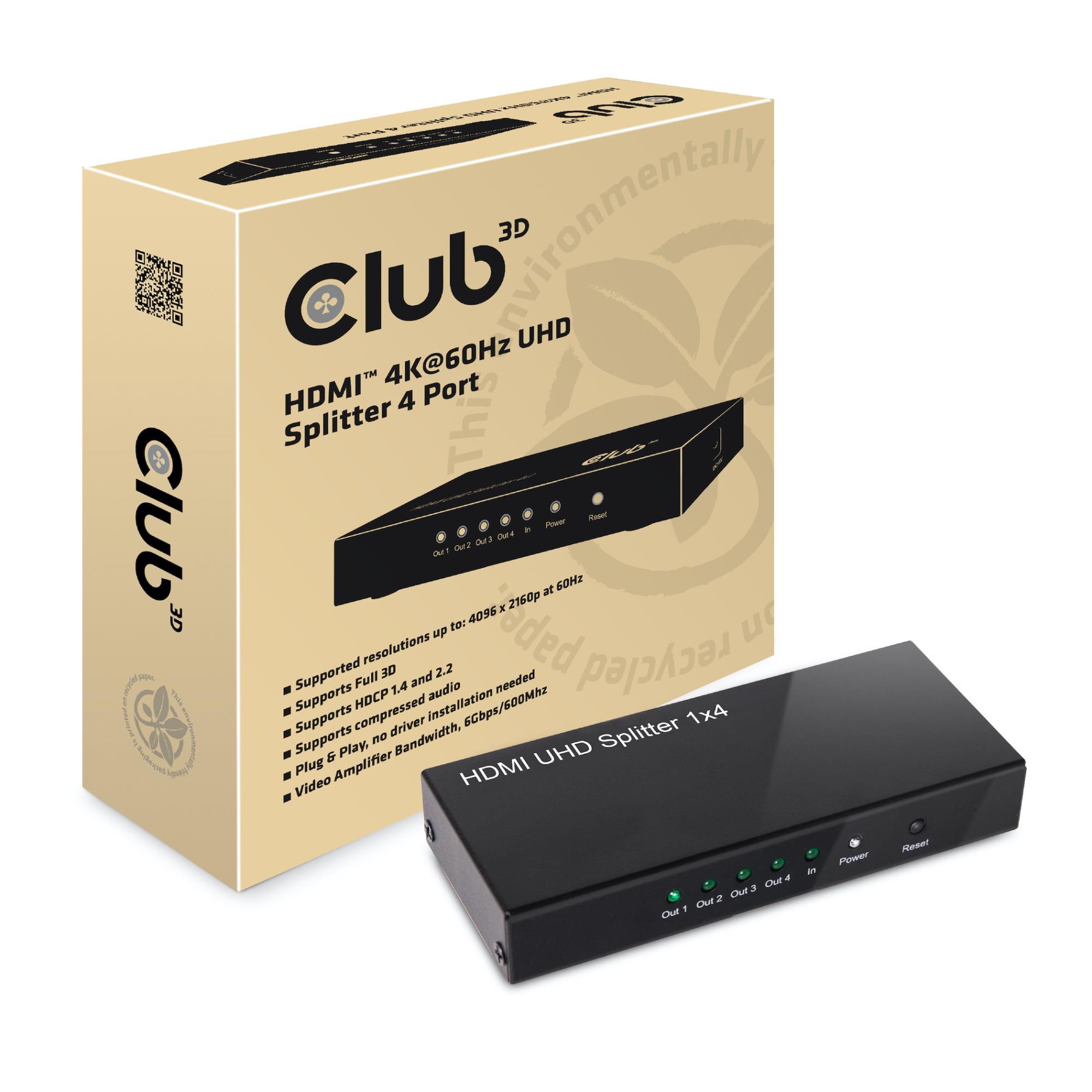

| Packaging content | CSV-1380 Power Adapter |
| Connector type | HDMI 2.0 |
| Resolution | 4096 x 2160 pixels |
| Harmonized System (HS) code | 8473 3020 |
| Products per master (outer) case | 10 pc(s) |
| Model | CSV-1380 |
| Model name | HDMI™ 4K@60Hz UHD Splitter AC Power 4 ports |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001077 cubm |
| Unit Calculated Weight | 0.32 kg |
