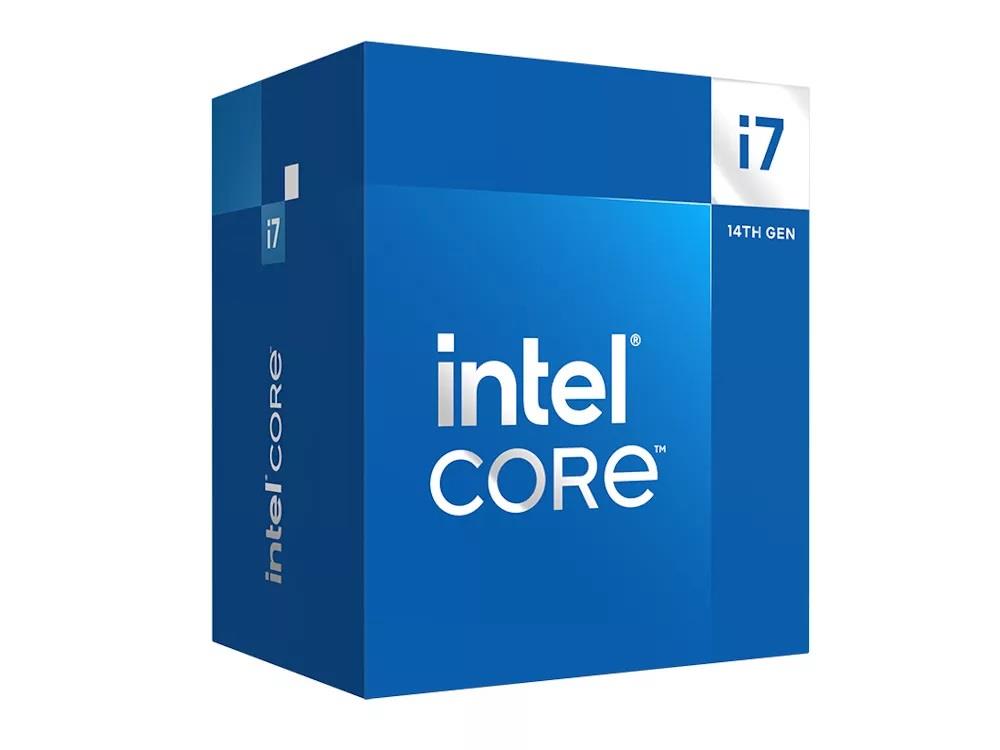

Intel Core i7-14700F. Processor family: Intel® Core™ i7, Processor socket: LGA 1700, Package type: Box. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel® Turbo Boost Max Technology 3.0 frequency: 5.4 GHz. Processor package size: 45 x 37.5 mm
Specifikacijos
| Vendor Homepage |
https://ark.intel.com/content/www/us/en/ark/products/236854/intel-core-i7-processor-14700f-33m-cache-up-to-5-40-ghz.html |
|---|---|
| Category Code |
CPU |
| Unit Box Height |
0.12 |
| Unit Box Length |
0.11 |
| Unit Box Width |
0.08 |
| Cooler included |
Yes |
| Efficient cores |
12 |
| Efficient-core base frequency |
1.5 GHz |
| Efficient-core boost frequency |
4.2 GHz |
| Maximum number of DMI lanes |
8 |
| Maximum turbo power |
219 W |
| Memory bandwidth supported by processor (max) |
89.6 GB/s |
| Package type |
Box |
| Performance cores |
8 |
| Performance-core base frequency |
2.1 GHz |
| Performance-core boost frequency |
5.3 GHz |
| Processor ARK ID |
236854 |
| Processor base power |
65 W |
| Processor boost frequency |
5.4 GHz |
| Processor cache |
33 MB |
| Processor cache type |
Smart Cache |
| Processor codename |
Raptor Lake |
| Processor cores |
20 |
| Processor family |
Intel® Core™ i7 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor manufacturer |
Intel |
| Processor model |
i7-14700F |
| Processor operating modes |
64-bit |
| Processor socket |
LGA 1700 |
| Processor threads |
28 |
| Stepping |
B0 |
| Maximum internal memory supported by processor |
192 GB |
| Memory bandwidth (max) |
89.6 GB/s |
| Memory channels |
Dual-channel |
| Memory types supported by processor |
DDR4-SDRAM, DDR5-SDRAM |
| Discrete graphics card |
No |
| Discrete graphics card model |
Not available |
| On-board graphics card |
No |
| On-board graphics card model |
Not available |
| Commodity Classification Automated Tracking System (CCATS) |
740.17B1 |
| CPU configuration (max) |
1 |
| Direct Media Interface (DMI) Revision |
4.0 |
| Embedded options available |
No |
| Execute Disable Bit |
Yes |
| Export Control Classification Number (ECCN) |
5A992C |
| Idle States |
Yes |
| Market segment |
Desktop |
| Maximum number of PCI Express lanes |
20 |
| PCI Express configurations |
1×16+1×4, 2×8+1×4 |
| PCI Express slots version |
4.0, 5.0 |
| Scalability |
1S |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies |
Yes |
| Use conditions |
PC/Client/Tablet |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel Turbo Boost Max Technology 3.0 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Boot Guard |
Yes |
| Intel® Control-flow Enforcement Technology (CET) |
Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Standard Manageability (ISM) |
Yes |
| Intel® Thread Director |
Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency |
5.4 GHz |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Volume Management Device (VMD) |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
| Tjunction |
100 °C |
| Harmonized System (HS) code |
8542310001 |
| Launch date |
Q1’24 |
| Status |
Launched |
| Processor package size |
45 x 37.5 mm |
| L2 cache |
28672 KB |
| Maximum internal memory |
192 GB |
| Model |
Intel Core i7 14700F (BX8071514700F S RN3Z) |
| CPU Family name |
Intel Core i7 |
| Model number |
i7-14700F |
| Units per Shipping Box |
5 |
| Unit Calculated Volume |
0.001279 |
| Unit Calculated Weight |
0.507 |
