Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
The Cooper-I/T Series offers simple and highly cost-effective HDCVI solutions. It provides 24/7 reliable monitoring with high-quality image performance, saving you on labor costs. It also includes a two-way talk function that is supported by all the channels and operates over coaxial cable, along with SMD Plus, offering you excellent value.
- 16-ch Analog Video Input, Max. 1080N/720p@15fps Encoding Capability
- Max. 18-ch IP Video Input (Up to 6MP)
- 16-ch Two-way Talk
- AI Functions: 16-ch SMD, 16-ch AI Coding
- 1 Bay. Up to 16TB for Each HDD Storage Capacity
Dahua Technology XVR1B16-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;..., Number of users: 128 user(s). HDD interface: SATA, SATA II, SATA III, Maximum HDD capacity: 6 TB. DC voltage: 12 V, Power consumption (typical): 10 W
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/hdcvi-products/hdcvi-recorders/cooper-i-series/xvr1b16-i/t |
|---|---|
| Category Code | STD |
| CnCode | 85219000 |
| Unit Box Height | 0.285 |
| Unit Box Length | 0.345 |
| Unit Box Width | 0.087 |
| Audio input | 1 |
| Audio output | 1 |

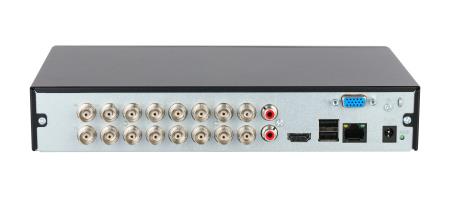

| BNC input ports | 16 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Video input channels | 16 channels |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| HDD interface | SATA/SATA II/SATA III |
| Maximum HDD capacity | 6000 GB |
| Number of HDDs supported | 1 |
| Analog signal format system | NTSC/PAL |
| Audio formats supported | G.711/G.711u/PCM |
| Audio system | 2-way |
| Bit rate | 4096 Kbit/s |
| Dual stream support | Yes |
| Graphical user interface (GUI) | Yes |
| Internal | No |
| Maximum video resolution | 1920 x 1080 pixels |
| Operating system installed | Embedded LINUX |
| Playback resolutions supported | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Product colour | Black |
| PTZ control | Yes |
| Rack capacity | 1U |
| Video capturing speed | 30 fps |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video motion detection | Yes |
| Video streaming | Yes |
| Built-in processor | Yes |
| DC voltage | 12 V |
| Power consumption (typical) | 10 W |
| Depth | 231.4 mm |
| Height | 47.6 mm |
| Weight | 890 g |
| Width | 260 mm |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage relative humidity (H-H) | 0 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Model | XVR1B16-I/T |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.008554 cubm |
| Unit Calculated Weight | 1.49 kg |
