Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; P2P
Certification
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

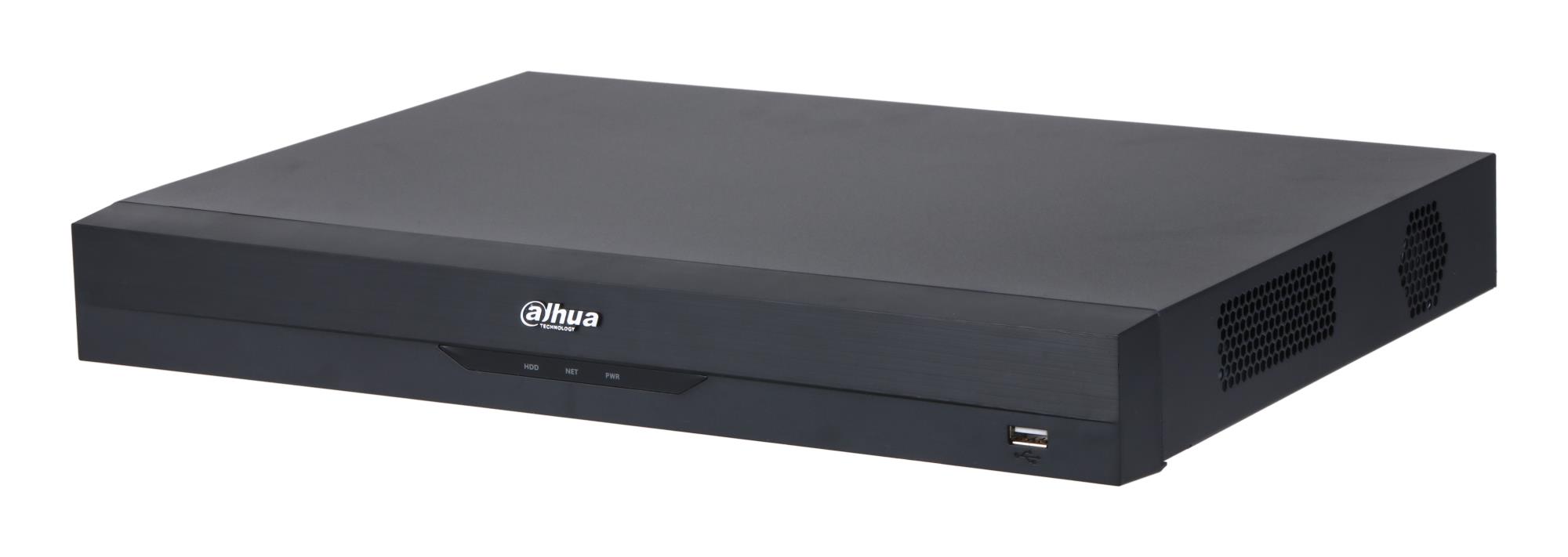

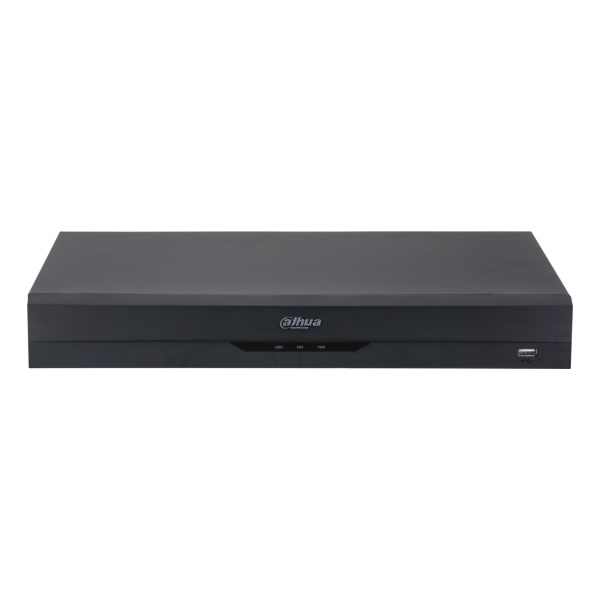

The XVR5000-I3/T Series offers powerful recorders that work in conjunction with 1080p HDCVI cameras, delivering smooth and crisp live videos along with an array of advanced security functions. It features two-way talk over coaxial cable, and incorporates AcuPick technology, along with other AI functions, to enhance intelligence and convenience in the surveillance field.
Two-way talk
Allows for seamless communication between the camera, client and recorder over coaxial cable, and offers instant voice intercom and timely audio alerts.
Enhanced Encoding
Encoding Enhancement mode optimizes videos through real-time encoding to make them smoother and improve scene rendering.
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database. *Face Recognition takes effect when Face is selected in AI Mode.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy. *Perimeter Protection takes effect when IVS is selected in AI Mode.
AcuPick
This industry-leading search technology effectively utilizes back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision. *AcuPick takes effect when AcuPick is selected in AI Mode.
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
- Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above
- 32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- 2-channel AcuPick for analog channels which improves the efficiency of target retrieval
- 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
- 2-channel face recognition for analog channels which supports face comparison
- 32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
- 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 48-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 192 Mbps
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
- Smart H.265+ and H.265 dual-stream video compression
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/5MP-Value1080p-Series/XVR5232AN-I3/T |
|---|---|
| Category Code | STD |
| Unit Box Height | 0.35 |
| Unit Box Length | 0.425 |
| Unit Box Width | 0.135 |

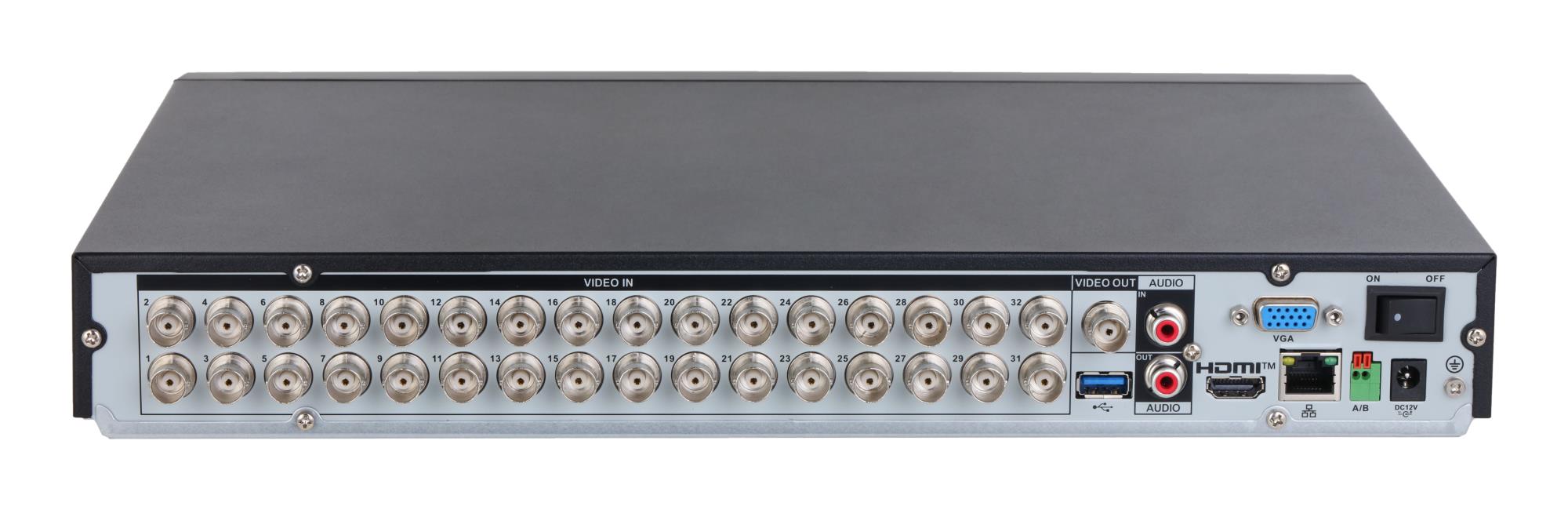

| BNC input ports | 32 |
| HDMI ports quantity | 1 |
| Line inputs (RCA) | 1 |
| Line outputs (RCA) | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Video input channels | 32 channels |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Mobile network connection | No |
| Mobile network generation | Not supported |
| Wi-Fi | No |
| HDD interface | SATA |
| Maximum HDD capacity | 16000 GB |
| Number of HDDs supported | 2 |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Audio system | 2-way |
| Bit rate | 6144 Kbit/s |
| Dual stream support | Yes |
| Graphical user interface (GUI) | Yes |
| Internal | No |
| Maximum video resolution | 3840 x 2160 pixels |
| Multi-display modes | 1/16/25/36/4/8/9 |
| Multi-display supported | Yes |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video motion detection | Yes |
| Video resolutions | 1280 x 1024/1280 x 720/1920 x 1080/3840 x 2160 pixels |
| Built-in processor | Yes |
| DC voltage | 12 V |
| Power consumption (typical) | 16 W |
| Power supply type | DC |
| Depth | 289.6 mm |
| Height | 53 mm |
| Weight | 1900 g |
| Width | 375 mm |
| Package depth | 137 mm |
| Package height | 356 mm |
| Package weight | 3240 g |
| Package width | 427 mm |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.02008 cubm |
| Unit Calculated Weight | 3.16 kg |
