- 4-ch Analog Video Input, Max. 5M-N@25fps/1080p@25fps Encoding Capability
- Max. 6-ch IP Video Input (Up to 6MP)
- 4-ch Two-way Talk
- AI Functions: 2-ch AcuPick, 2-ch FR, 4-ch Perimeter Protection, 4-ch SMD, 4-ch AI Coding
- 1 Bay. Up to 16TB for Each HDD Storage Capacity

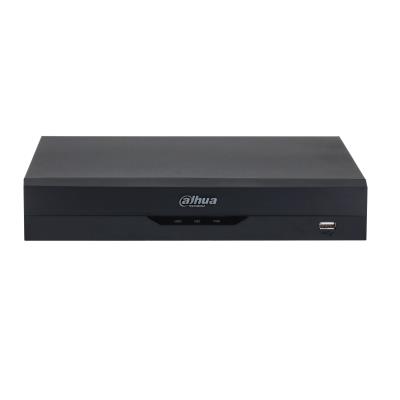

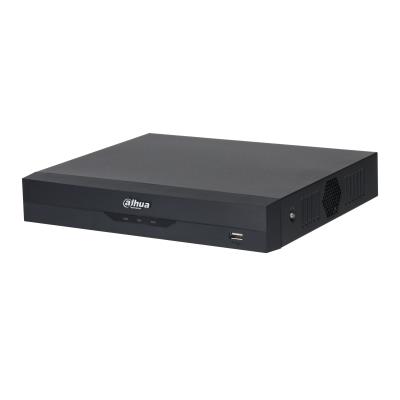

Dahua Technology XVR5104HS-I3/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 4 channels, Audio input: 1 RCA, Audio output: 1 RCA. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 4 W
Specifikacijos
| Quantity | 0 |
|---|---|
| Vendor Homepage | https://www.dahuasecurity.com/products/hdcvi-products/hdcvi-recorders/5mp-value-1080p-series/xvr5104hs-i3/t |
| Category Code | STD |
| Unit Box Height | 0.083 |
| Unit Box Length | 0.342 |
| Unit Box Width | 0.283 |

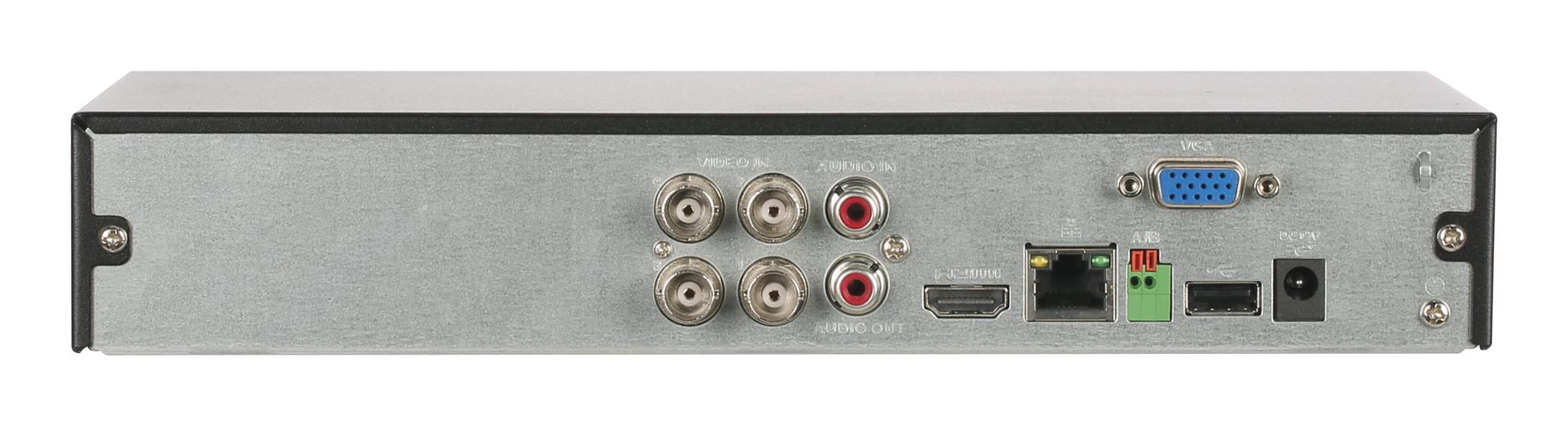

| Audio input | 1 RCA |
| Audio output | 1 RCA |
| BNC input ports | 4 |
| BNC output ports | 1 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Video input channels | 4 channels |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| HDD interface | SATA |
| Maximum HDD capacity | 16000 GB |
| Number of HDDs supported | 1 |
| Analog signal format system | NTSC/PAL |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Audio system | 2-way |
| Backup function | Yes |
| Certification | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
| Channels quantity | 4 channels |
| Dual stream support | Yes |
| Maximum frame rate | 60 fps |
| Maximum video resolution | 1920 x 1080 pixels |
| Operating system installed | Embedded LINUX |
| Playback resolutions supported | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Product colour | Black |
| PTZ control | Yes |
| Rack capacity | 1U |
| Video capturing speed | 30 fps |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Video streaming | Yes |
| DC voltage | 12 V |
| Power consumption (typical) | 4 W |
| Power supply type | DC |
| Depth | 237.9 mm |
| Height | 47.6 mm |
| Weight | 840 g |
| Width | 260 mm |
| Package depth | 89 mm |
| Package height | 287 mm |
| Package weight | 1410 g |
| Package width | 344 mm |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Model | XVR5104HS-I3/T |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.008033 cubm |
| Unit Calculated Weight | 1.41 kg |
