Certification
EN 62368-1;EN 55032;EN 61000-3-3;EN IEC 61000-3-2;EN 50130-4;EN 55035;
White balance
Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Video compression formats
H.264/H.264+/H.264B/H.264H/H.264M/H.265/H.265+/M-JPEG
Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/320 x 240/640 x 360
Supported network protocols
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;DHCP;DNS;DDNS;IPv6;SSL;ARP;RTCP;RTP;IP Filter

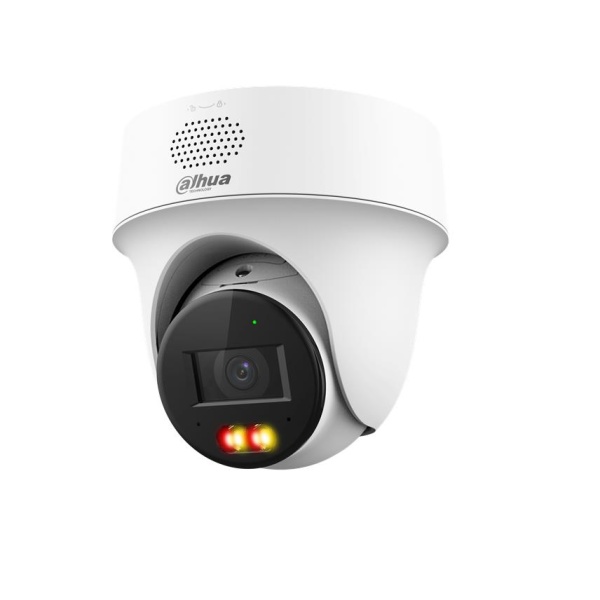

2MP Smart Dual Light Active Deterrence Network PT Camera
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and mediumsized enterprises
Dahua Technology IPC-PT1239H-PV-0280B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8 - 3.6 mm, Closest focusing distance: 0.8 m
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/la/products/All-Products/PTZ-Cameras/WizSense-Series/SD1/IPC-PT1239H-PV |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.17 |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black/White |
| International Protection (IP) code | IP66 |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 103 ° |
| Lens viewing angle, vertical | 55 ° |
| Lens viewing angle, diagonal | 123 ° |
| Tilt angle range | 0 - 90 ° |
| Pan range | 0 - 345 ° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1 - 1/30000 s |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Focal length range | 2.8 - 3.6 mm |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.8 m |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 16 - 8192 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Flash memory | 128 MB |
| Internal memory | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Video motion detection | Yes |
| Management software | Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player |
| Power source type | DC,PoE |
| Power consumption (typical) | 3 W |
| Power consumption (max) | 11 W |
| Power consumption (Power over Ethernet (PoE)) | 4 W |
| Power consumption (Power over Ethernet (PoE)) (max) | 12 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 55 °C |
| Height | 128.4 mm |
| Diameter | 127.3 mm |
| Weight | 410 g |
| Package weight | 500 g |
| Number of cameras | 1 |
| Unit Calculated Weight | 0.65 kg |
| Product Net Weight | 0.41 kg |
| Unit Calculated Volume | 0.004913 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 0.6499999762 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 17 cm |
| Shipping Box Depth | 17 cm |
| Shipping Box Width | 17 cm |
| Name | NET CAMERA 2MP EYEBAL/IPC-PT1239H-PV-0280B DAHUA |
| Model | IPC-PT1239H-PV-0280B |
