Supported resolutions
7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
- Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
- Max. decoding capability: 40 × 1080p@30 fps or 10 × 8MP@30 fps
- Max. 448/448/448 Mbps incoming/recording/outgoing bandwidth
- Supports IP cameras with a resolution up to 32 MP
- Supports 8K HDMI output
- Provides access to remote storage devices via iSCSI to expand storage capacity
- AI by Recorder supports 4-channel face detection and recognition, up to 20 face databases and 30,000 face images; 4-channel video metadata; 8-channel perimeter protection; 16-channel SMD Plus; 4-channel AcuPick
- AI by Camera supports face detection and recognition, perimeter protection, SMD, metadata, AcuPick, ANPR, stereo analysis, heat map, people counting, PPE detection, smart object detection and smart sound detection
- Supports EPTZ, and one-click arming and disarming

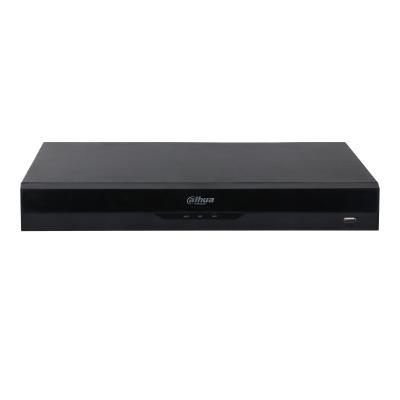

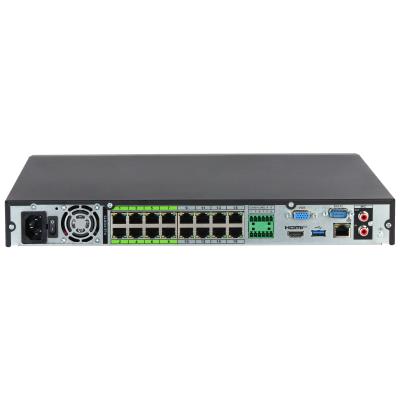

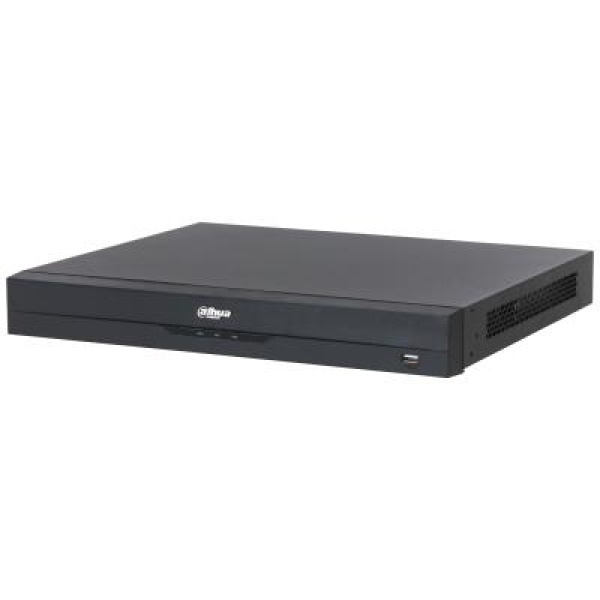

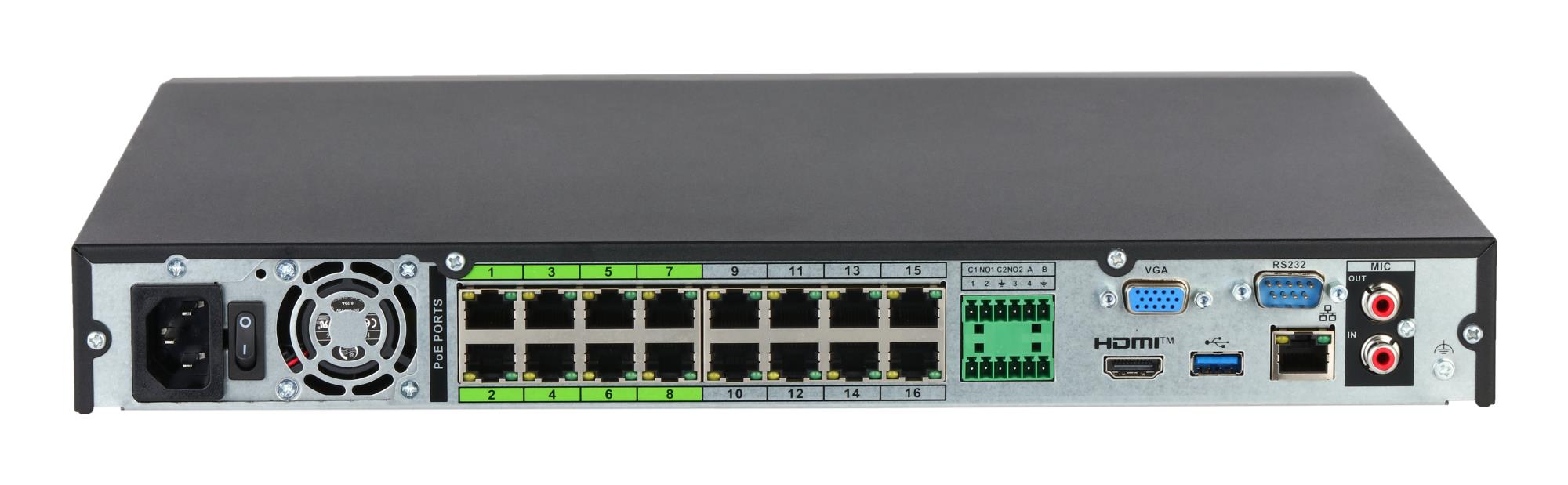

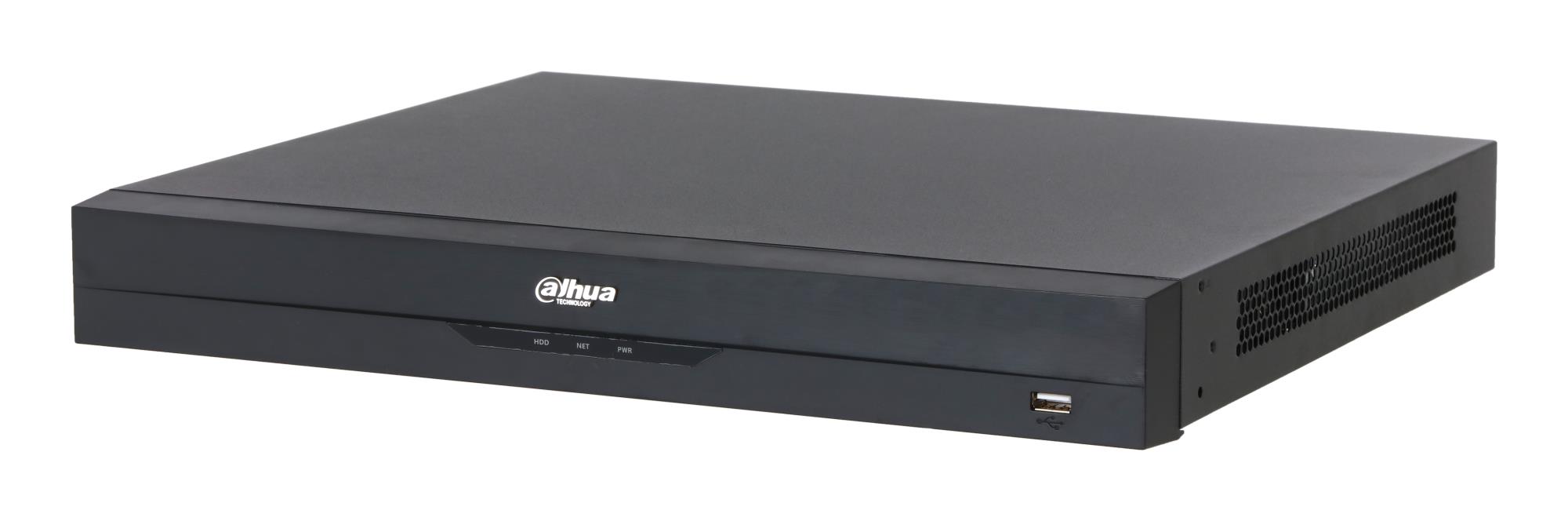

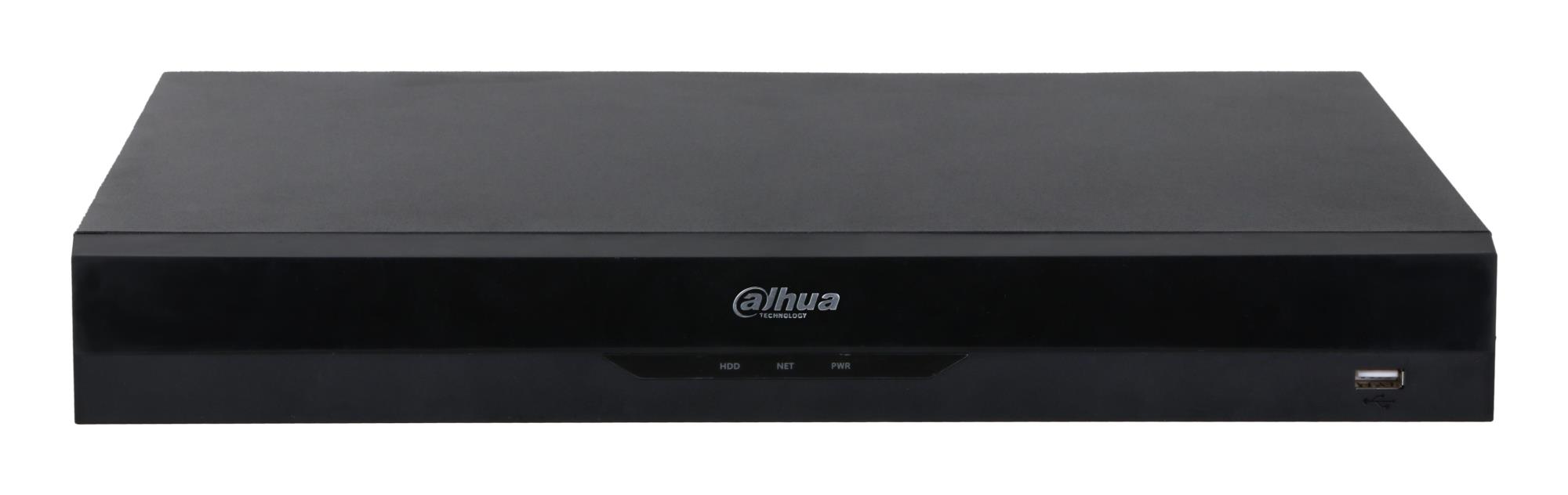

Dahua Technology WizSense NVR5216-16P-EI2. Video input channels: 16 channels, Maximum resolution: 7680 x 4320 pixels, Supported resolutions: 7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s. Rack capacity: 1U, Product colour: Black. Power consumption (max): 10 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-5-EI2-Series/2HDD/NVR5216-16P-EI2 |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.42 |
| Unit Box Length | 0.455 |
| Unit Box Width | 0.145 |
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Audio formats supported | G.711 A-law/G.711u/G.726/PCM |
| Backup function | Yes |
| Face detection | Yes |
| Input bandwidth | 448 Mbit/s |
| Maximum frame rate | 30 fps |
| Maximum resolution | 7680 x 4320 pixels |
| Multi-screen | Yes |
| Operating system installed | Embedded LINUX |
| Output bandwidth | 448 Mbit/s |
| People counting | Yes |
| Snapshot | Yes |
| Video formats supported | H.264/H.264+/H.265/H.265+/MJPG |
| Video input channels | 16 channels |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Wi-Fi | No |
| HDD interface | SATA |
| Maximum storage capacity | 20 TB |
| Number of HDDs supported | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| RS-232 interface | Yes |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| On/off switch | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Built-in processor | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) power per port | 25.5 W |
| Total Power over Ethernet (PoE) budget | 130 W |
| Browser supported | Chrome, IE, Safari, Edge, Firefox |
| Mobile operating systems supported | Android/iOS |
| Operating relative humidity (H-H) | 10 - 93 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | CE |
| Depth | 329.6 mm |
| Height | 53 mm |
| Package depth | 147 mm |
| Package height | 425 mm |
| Package weight | 4060 g |
| Package width | 451 mm |
| Weight | 2620 g |
| Width | 375 mm |
| Quick installation guide | Yes |
| Model | NVR5216-16P-EI2 |
| Model name | NVR5216-16P-EI2 |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.03269 cubm |
| Unit Calculated Weight | 4.4 kg |
