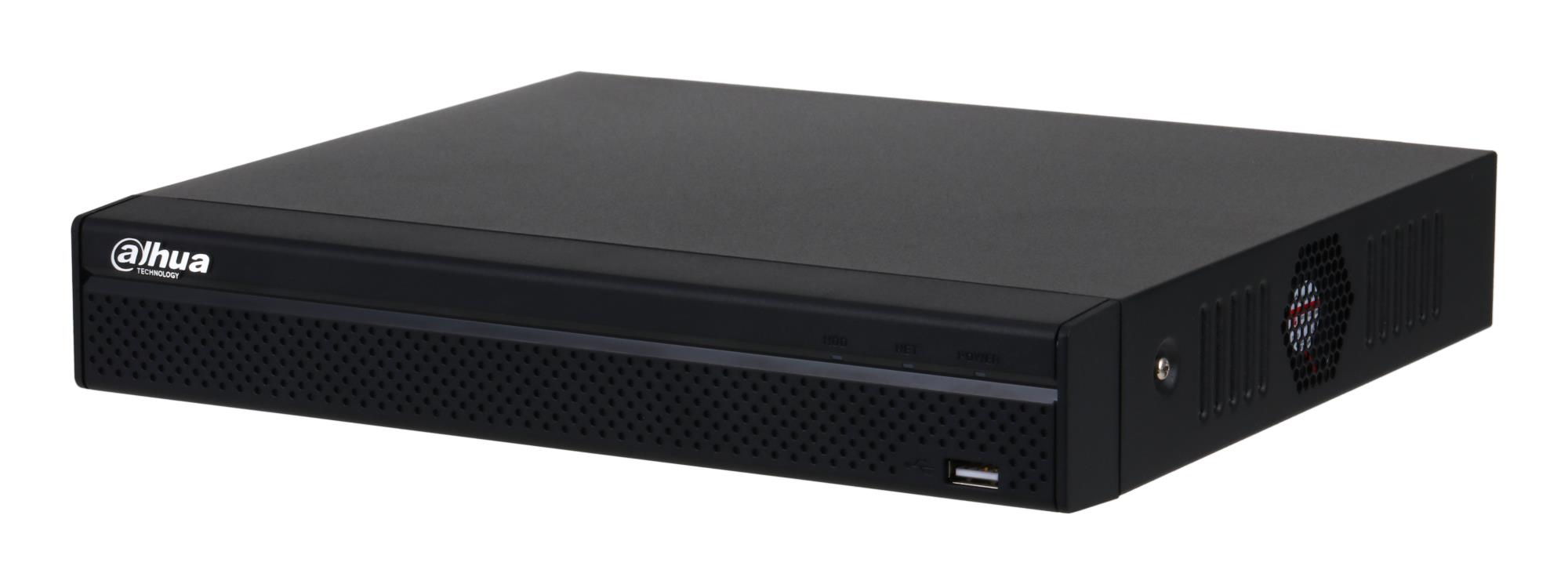

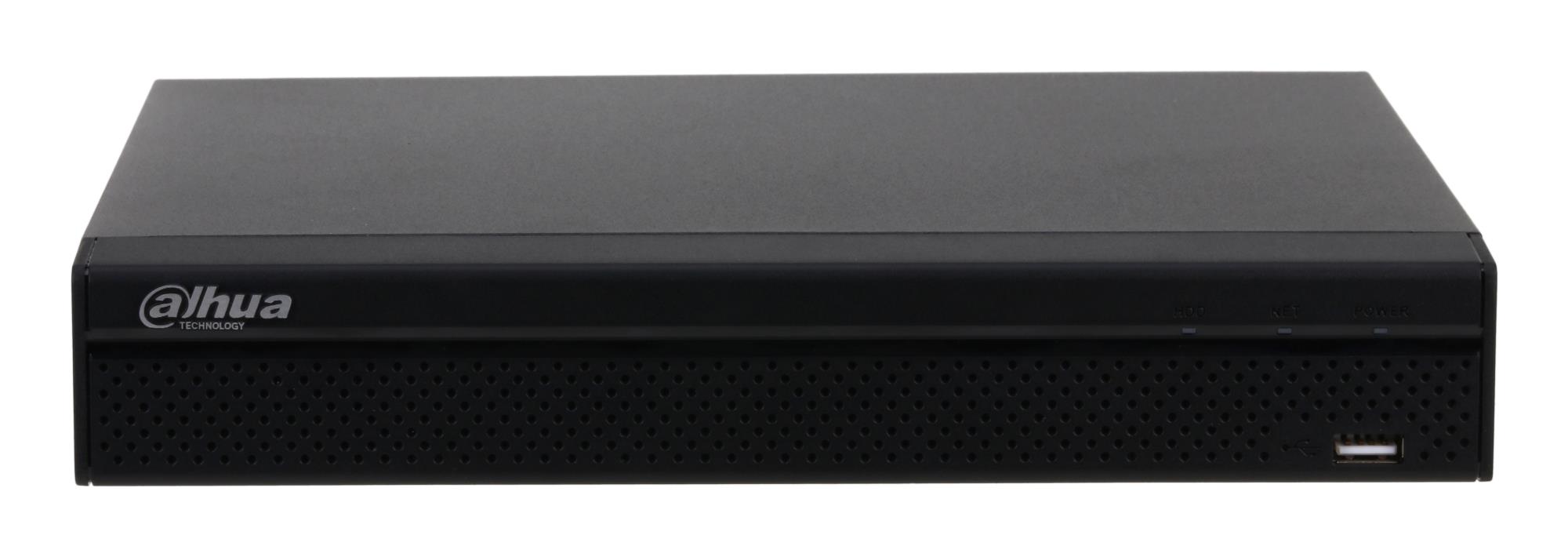

4CH Compact 1U 1HDD Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 4 × 4 MP@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
Specifikacijos
| Quantity | 6 |
|---|---|
| Vendor Homepage | www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4104HS-4KS3 |
| Category Code | NVR |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.09 |
| Desktop/pedestal | Yes |
| Rack | Yes |
| SATA | Yes |

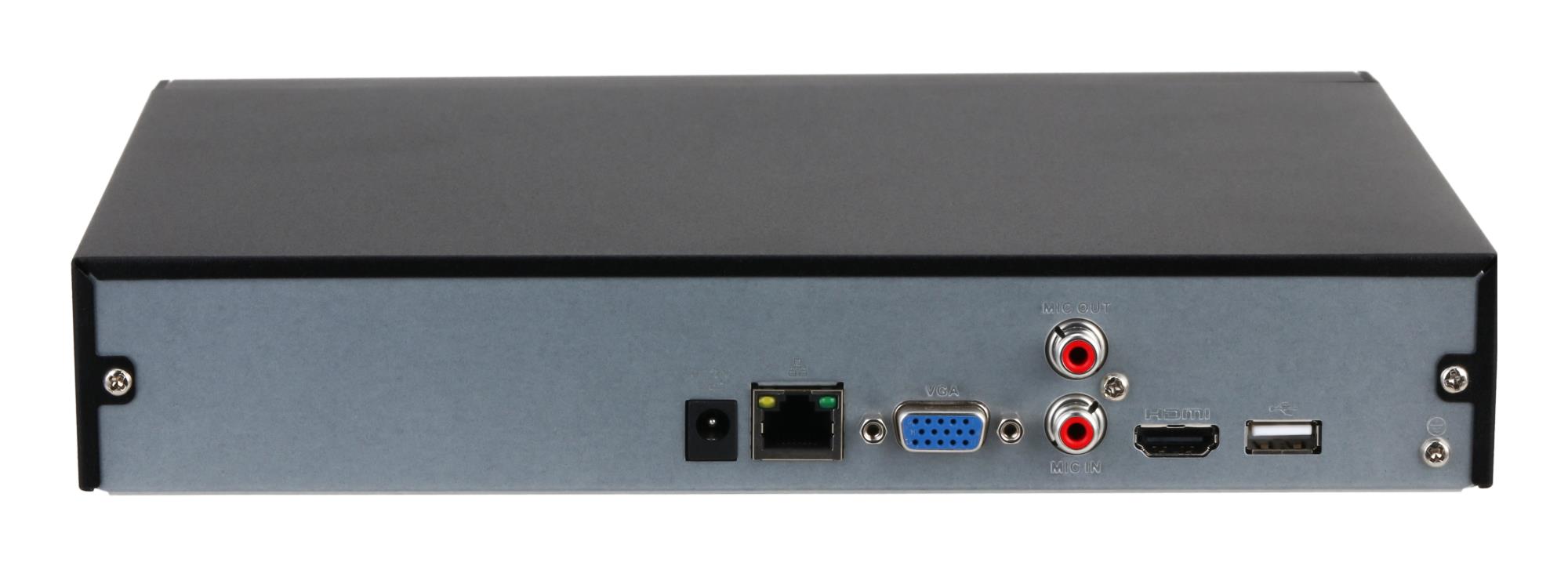

| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| Number of Channels | 4 |
| Number of drives/bays | 1 |
| CPU | Industrial-grade processor |
| Integrated LAN | 10/100 |
| Power supply requirements | 12 VDC, 2 A |
| Power consumption | 10 Watts |
| Dimensions | 260.0 × 232.5 × 47.6 mm |
| Operating temperature range | –10 °C to +55 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.009486 cubm |
| Product Net Weight | 0.81 kg |
| Unit Calculated Weight | 1.45 kg |
