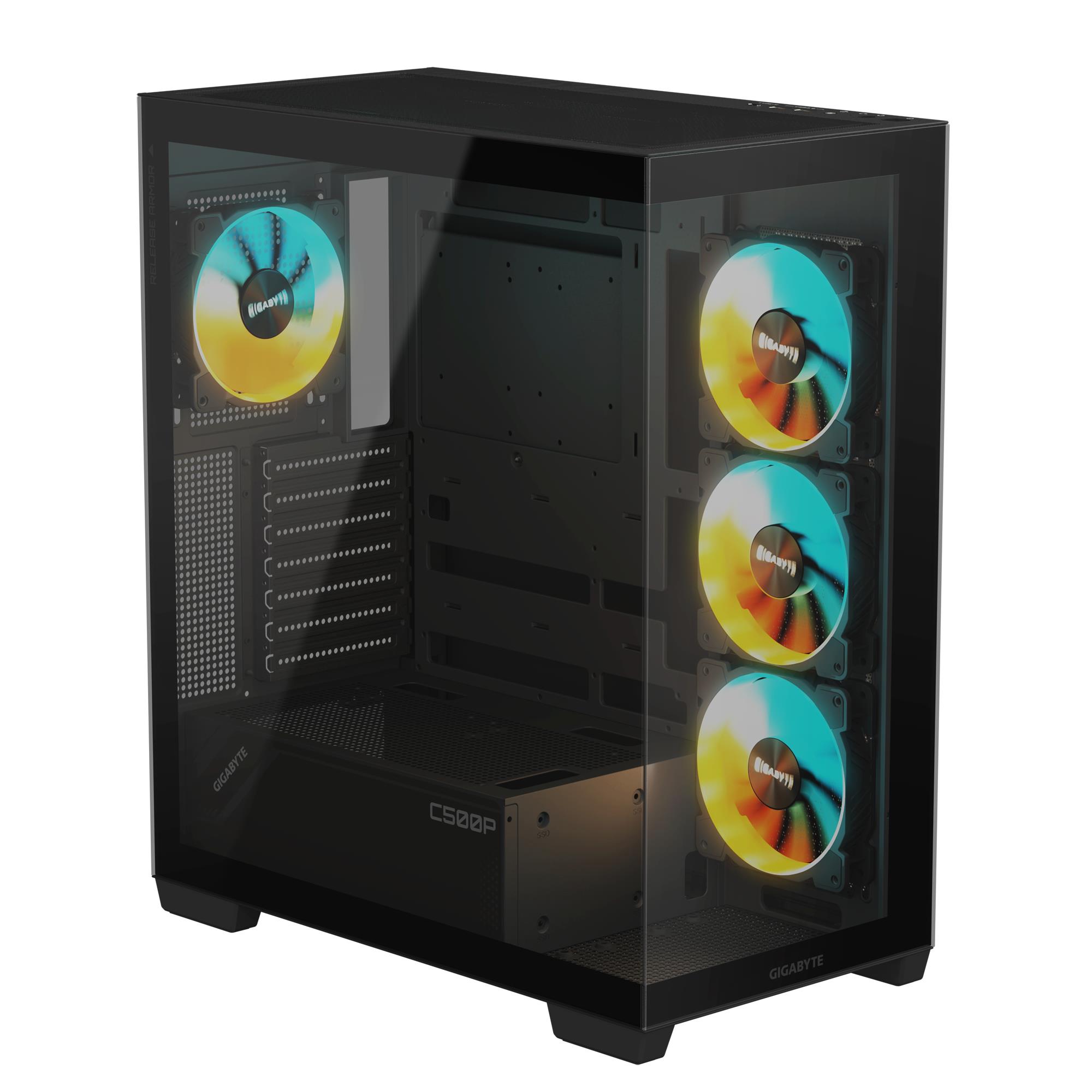

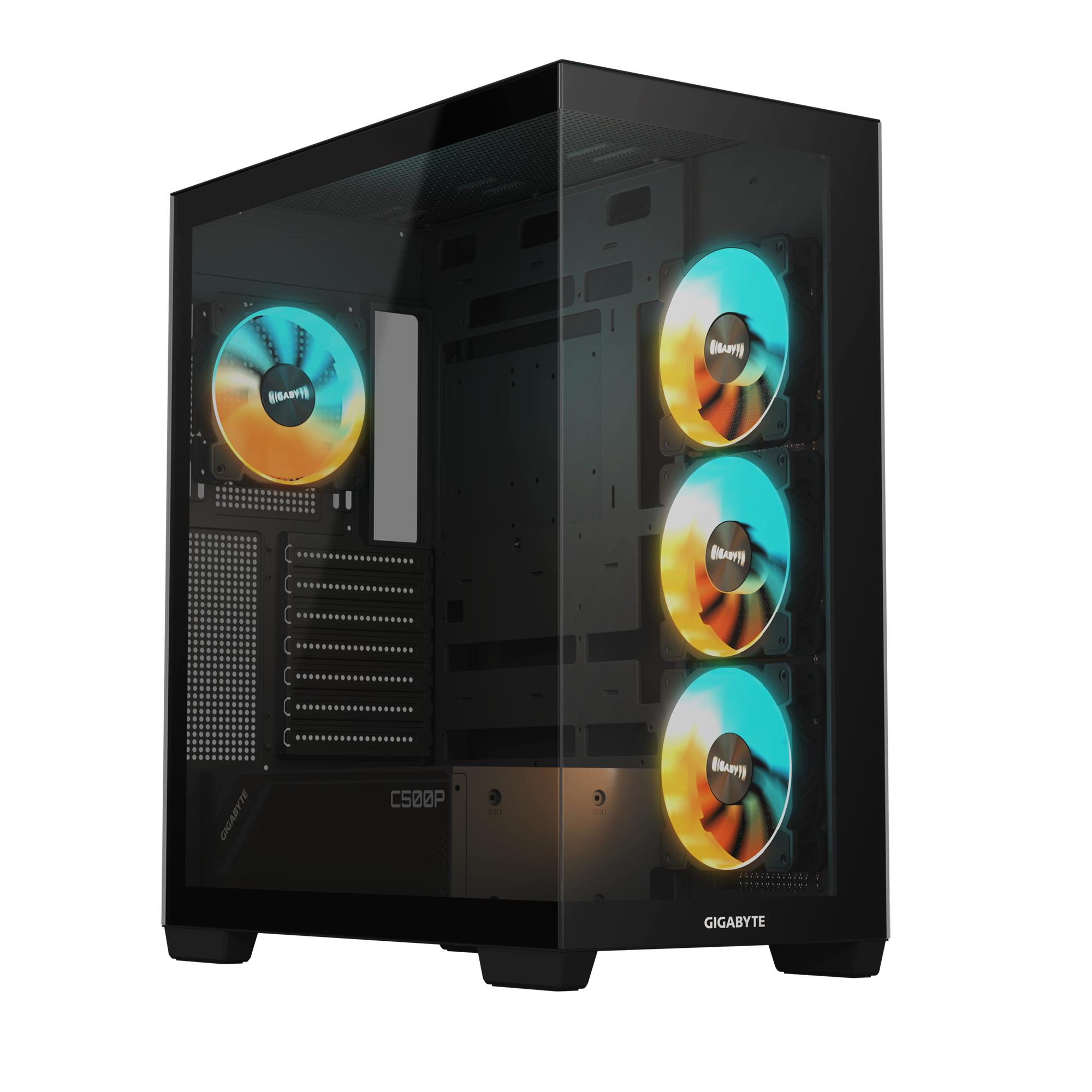

270° Panoramic View with Tempered Glass Panels
Both front and side panels are made of 4mm tempered glass, offering a 270° panoramic view of the internal assembly. This allows users to easily showcase their customized PC rig. The no-drill design of the both glass panels reduces the risk of damage and enhances the overall visual appeal.
OPTIMIZED AIRFLOW DESIGN
The top, bottom and partial right-side panels feature a large-area vented design, effectively delivering generous airflow for optimized cooling. This not only enhances air intake but also helps to protect hardware components and maintain performance stability.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other devices.
ARGB CONNECTOR HUB
The built-in ARGB connector hub is equipped with five 5V 3-pin connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.
TOOL-FREE INSTALLATION
Thanks to its modular design, users can easily remove the front and side panels without any tool when updating or changing the device.
DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust while maintaining optimal cooling performance. The magnetic filters on the top, right-side and bottom panels make maintenance easy.
- Panoramic Tempered Glass Front and Side Panels
- Optimized Airflow Design
- Support Back-Connect Motherboard Design, Compatible with GIGABYTE Stealth Series
- RGB Fusion with ARGB Connector Hub
- Support Vertical GPU Installation
- With USB 3.0 x2 and USB 3.2 Gen2 Type-C x1 on I/O panel
- Pre-installed four ARGB fans
Specifikacijos
| Quantity | 3 |
|---|---|
| Vendor Homepage | https://www.gigabyte.com/PC-Case/GB-C500P-ST#kf |
| Category Code | CAS |
| Unit Box Height | 0.53 |
| Unit Box Length | 0.56 |
| Unit Box Width | 0.32 |
| Anti-dust filter | Yes |
| Form factor | Midi Tower |
| Material | Glass/Plastic/Steel |
| Maximum CPU cooler height | 176 mm |
| Maximum graphics card length | 410 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 3 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Number of internal 3.5" bays | 2 |
| On/off button | Yes |
| Product colour | Black |
| Side window | Yes |
| Suitable for | Gaming |
| Supported motherboard form factors | ATX/Mini-ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Audio input | Yes |
| Audio output | Yes |
| Built-in display | No |
| USB 3.0 | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Bottom fans diameters supported | 120 mm |
| Front fans diameters supported | 120/140 mm |
| Number of bottom fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of side fans supported (max) | 3 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 140 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 140 mm |
| Side fans diameters supported | 120 mm |
| Side fans installed | 3x 120 mm |
| Side radiator sizes supported | 360 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 360 mm |
| SSD form factor | 2.5" |
| Supported HDD sizes | 2.5/3.5 " |
| Depth | 430 mm |
| Height | 501 mm |
| Weight | 8100 g |
| Width | 235 mm |
| Package depth | 560 mm |
| Package height | 520 mm |
| Package weight | 9970 g |
| Package width | 318 mm |
| Model name | C500 PANORAMIC STEALTH |
| Case product features | Transparent panel |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.09498 cubm |
| Unit Calculated Weight | 9.8 kg |
