Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
- ATX 3.1 and PCIe Gen 5.0 ready

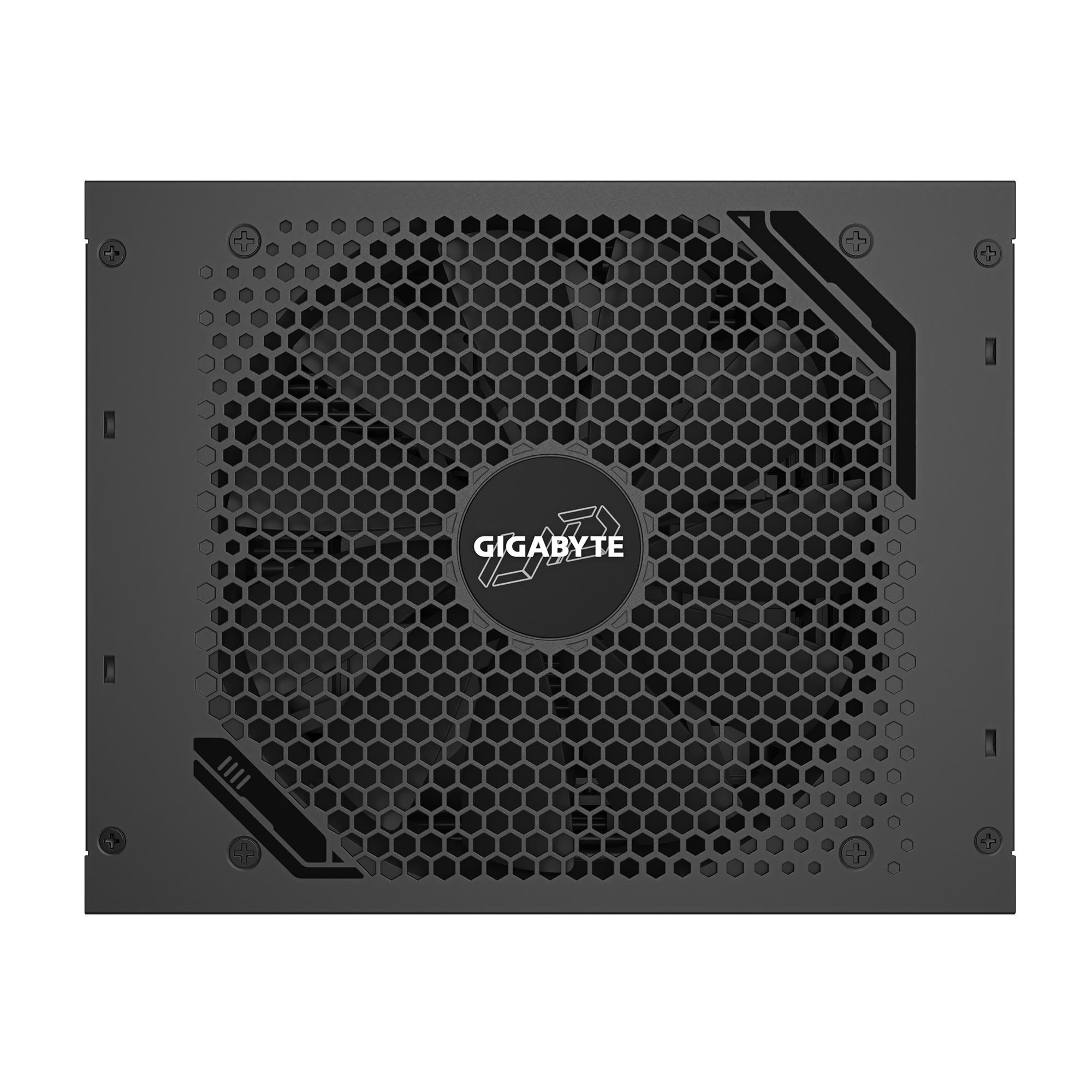

- Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Platinum certified

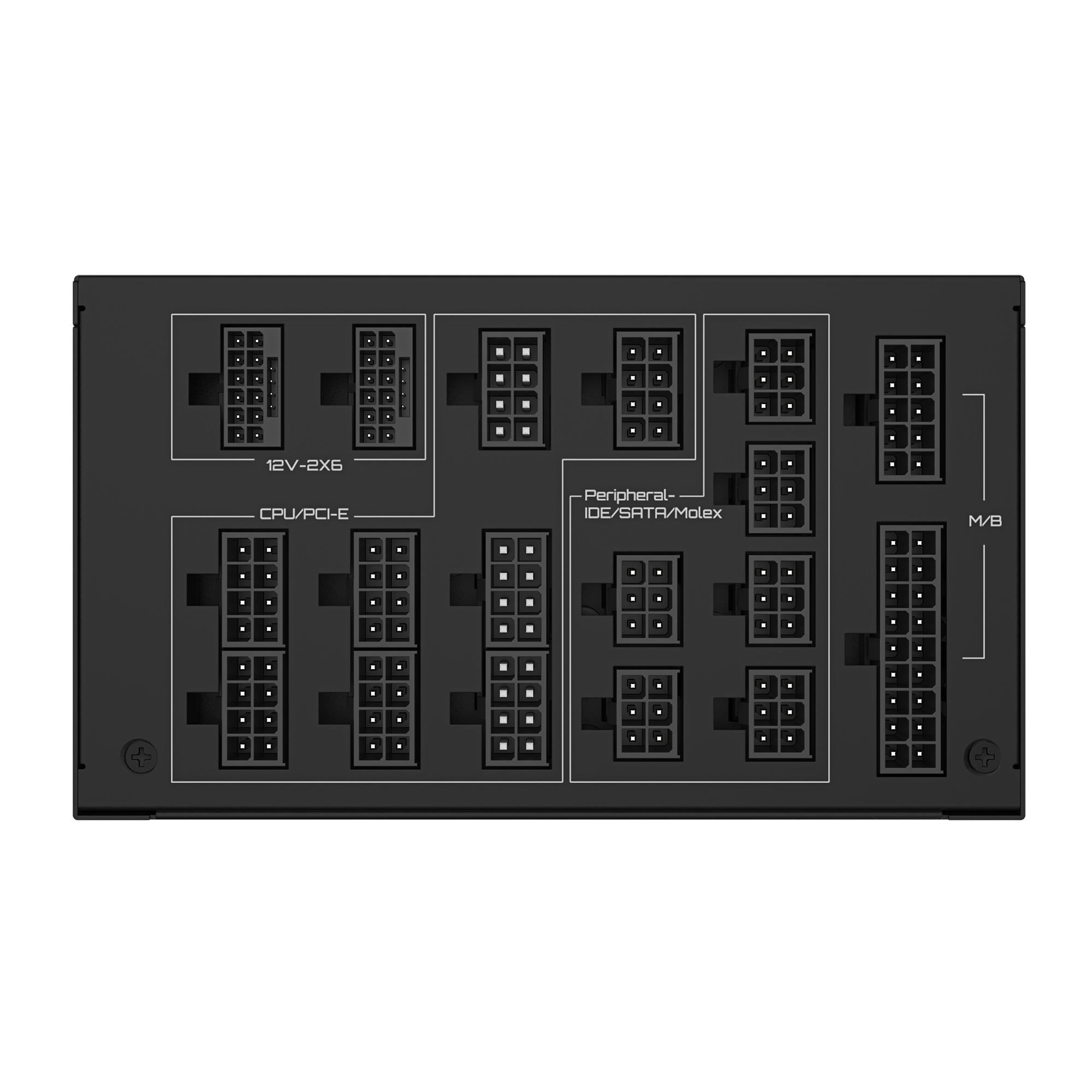

- Fully modular design
- Powerful single +12V rail

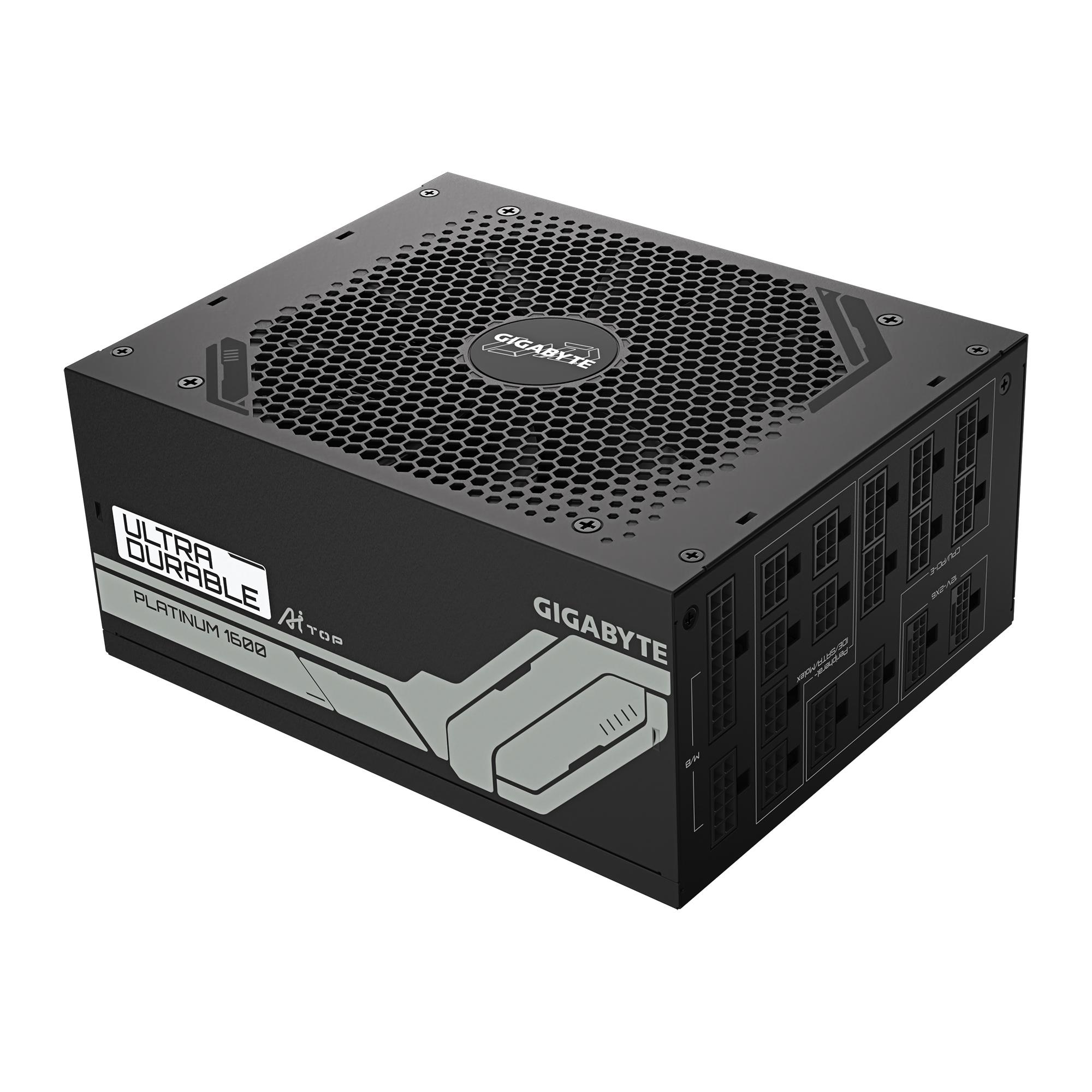

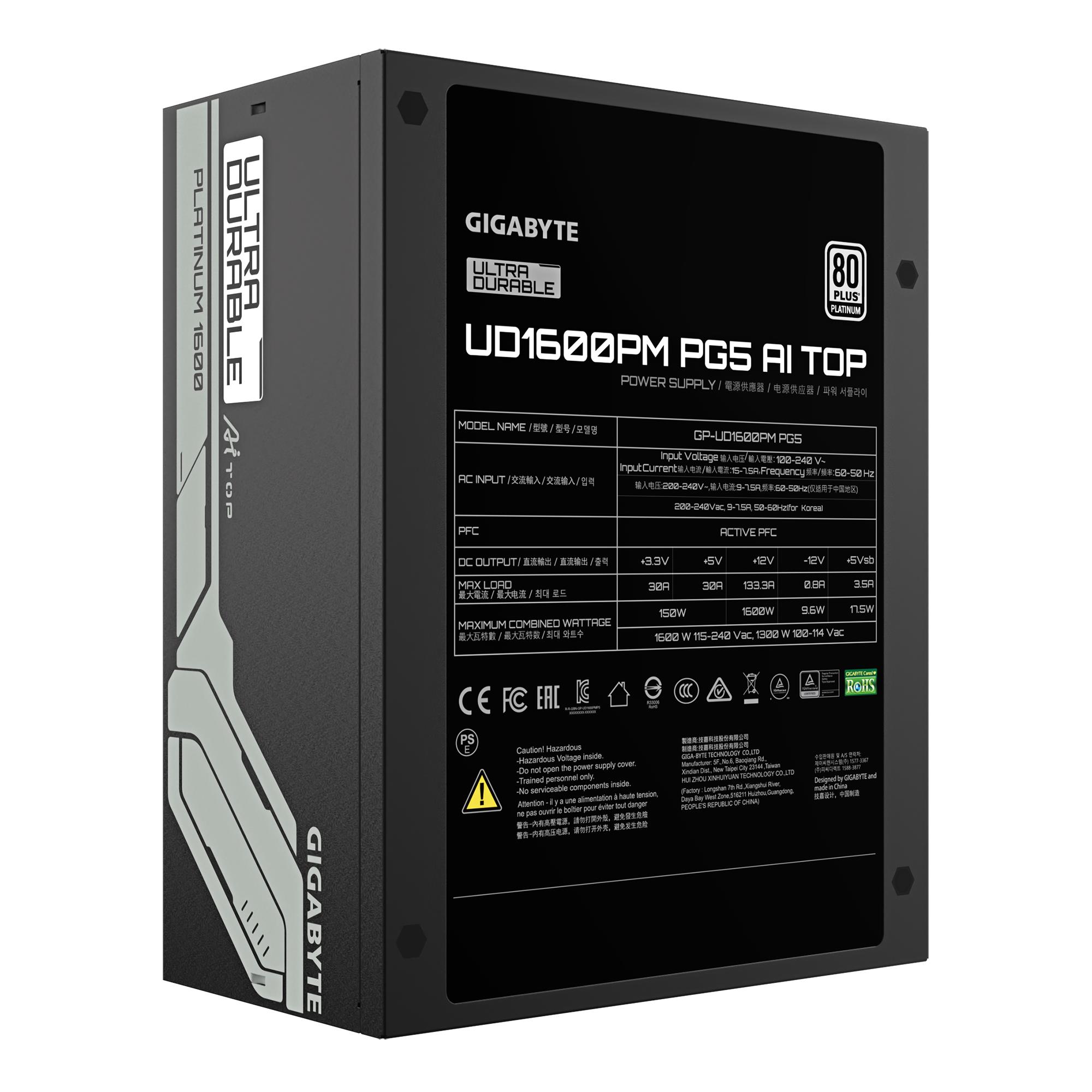

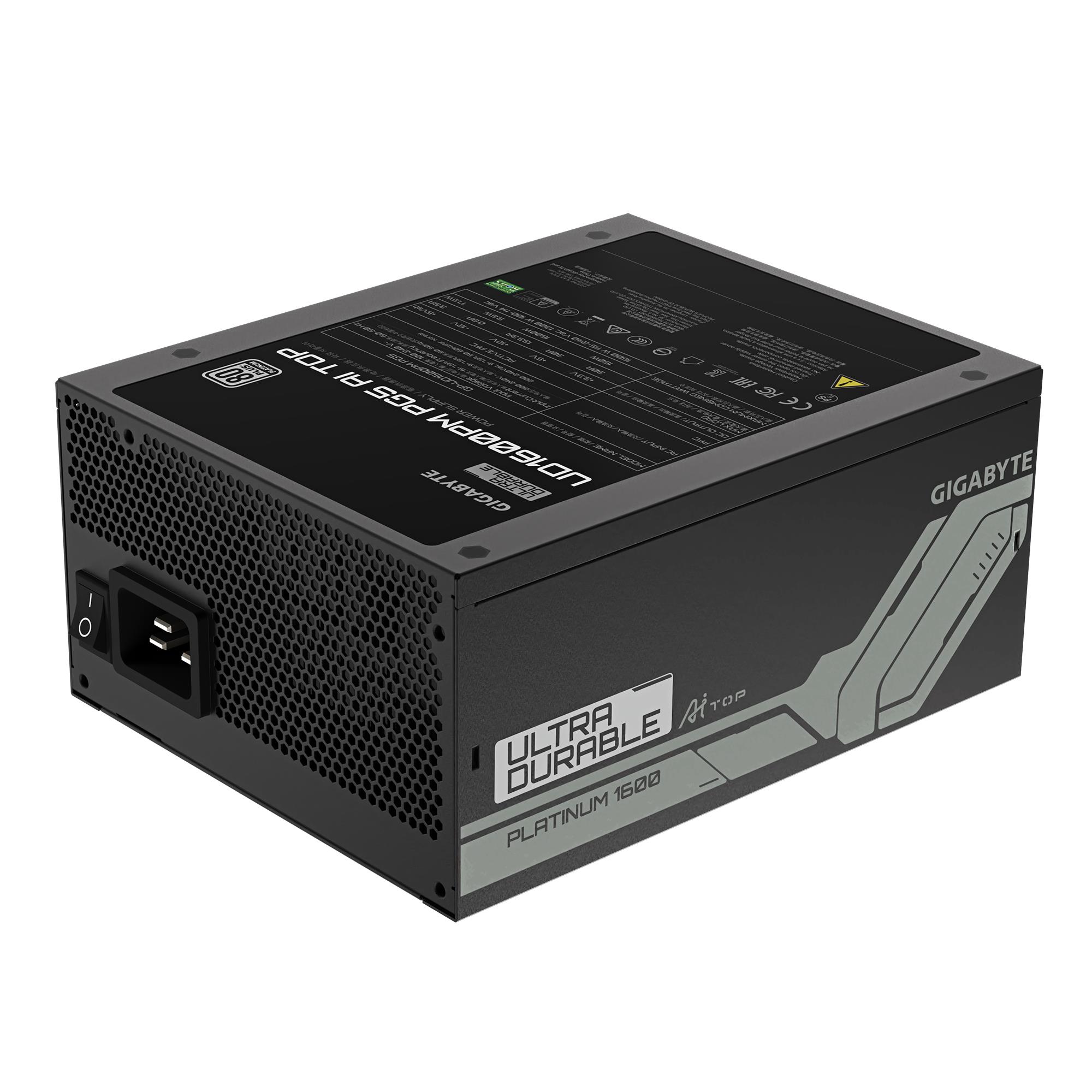

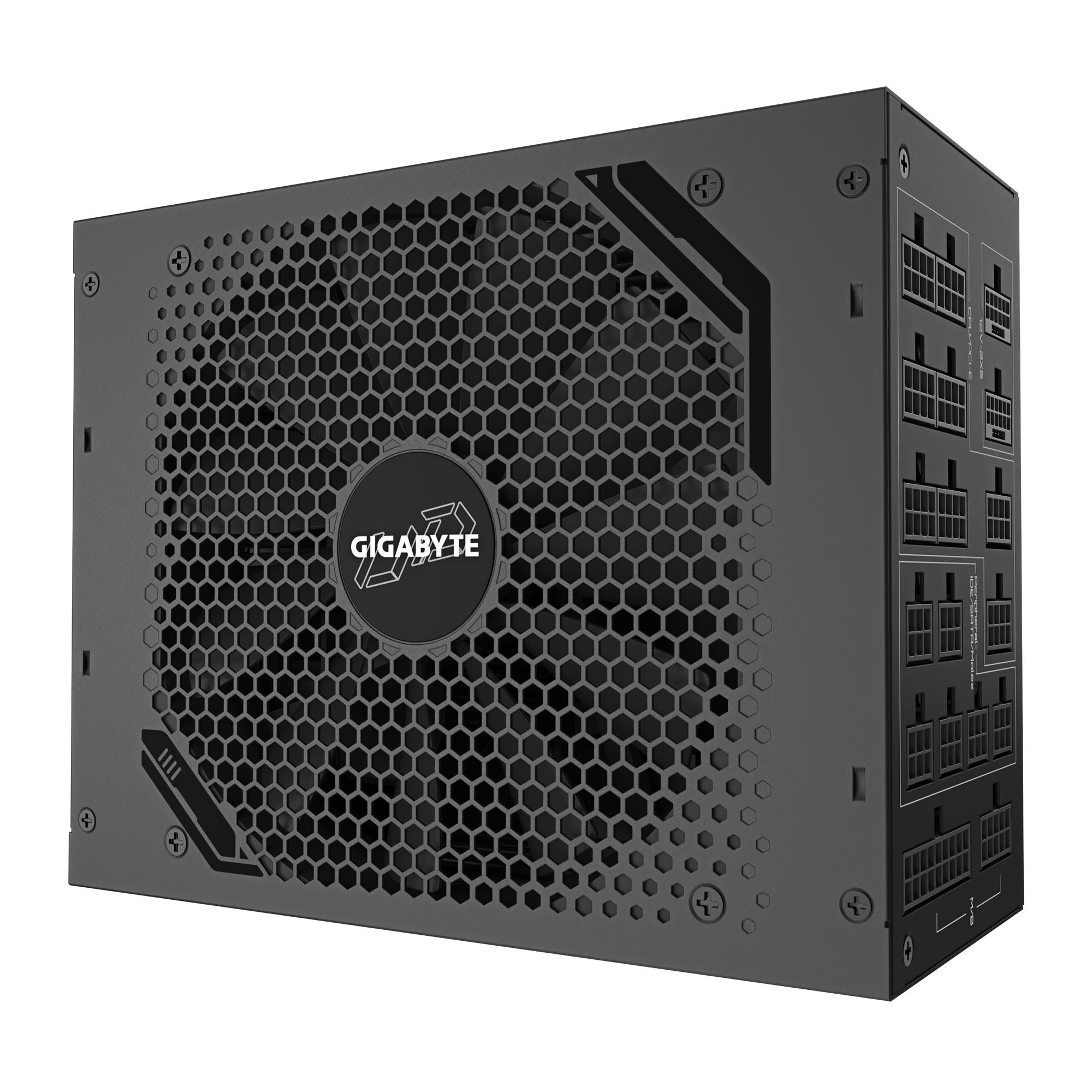

GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm
Specifikacijos
| Vendor Homepage | https://www.gigabyte.com/ |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.6 |
| Unit Box Width | 0.11 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 1600 W |
| Combined power (+3.3V) | 150 W |
| Combined power (+5V) | 150 W |
| Combined power (+5Vsb) | 17.5 W |
| Combined power (-12V) | 9.6 W |
| Efficiency | 92 % |
| Hold time | 16 ms |
| Input current | 15 - 7.5 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+3.3V) | 30 A |
| Max output current (+5V) | 30 A |
| Max output current (+5Vsb) | 3.5 A |
| Max output current (-12V) | 0.8 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 1600 W |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 16 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| SATA power cable length | 150/650 mm |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Depth | 190 mm |
| Height | 86 mm |
| Weight | 5300 g |
| Width | 150 mm |
| Package depth | 219 mm |
| Package height | 145 mm |
| Package type | Box |
| Package weight | 5575 g |
| Package width | 410 mm |
| Warranty period | 10 year(s) |
| Model name | GP-UD1600PM PG5 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.0165 cubm |
| Unit Calculated Weight | 5.99 kg |
