UHD Signage Display with LG webOS Platform and Advanced Security

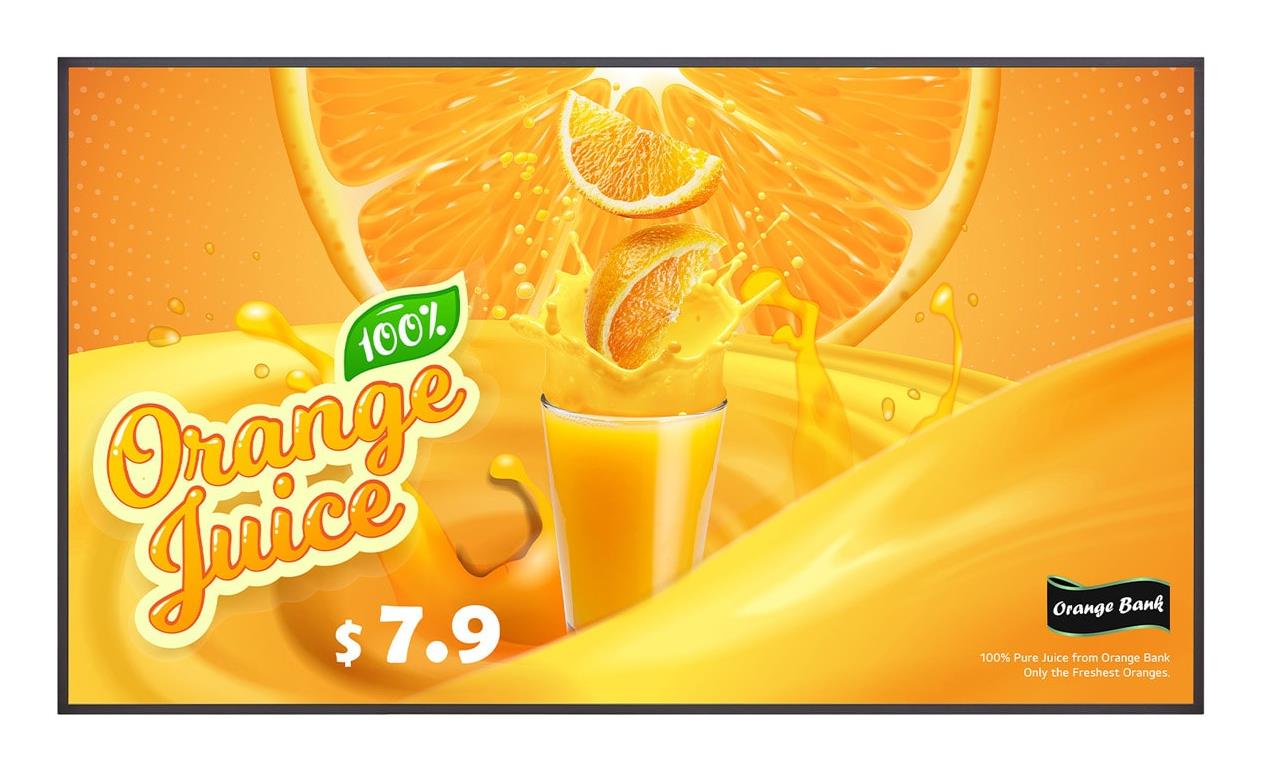

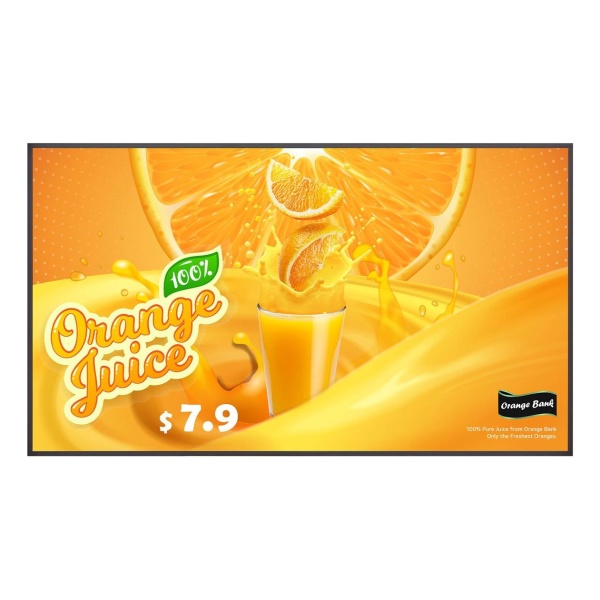

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

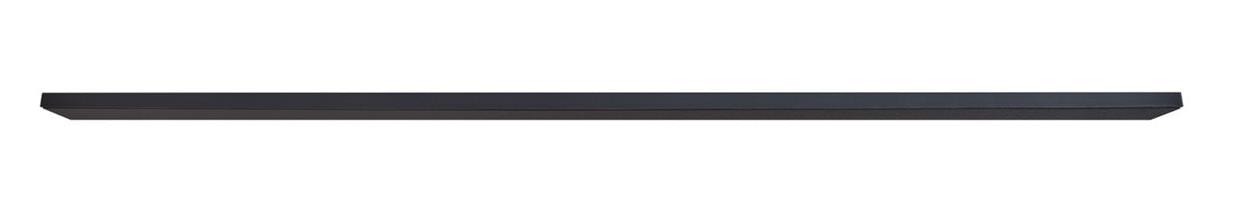

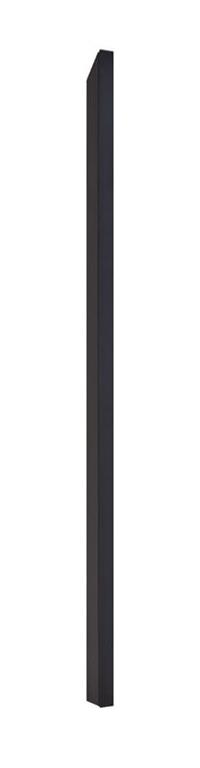

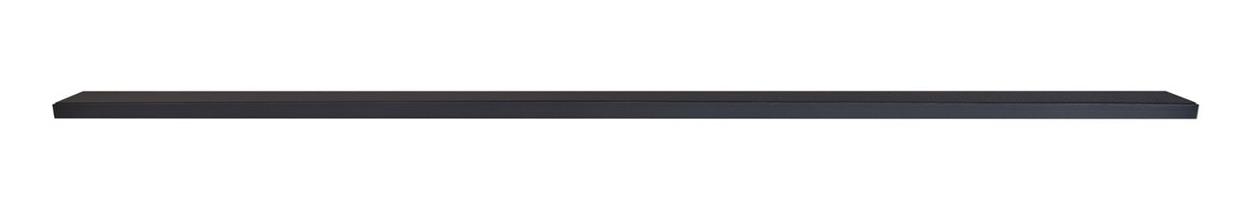

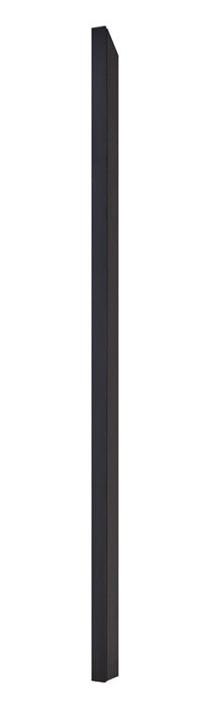

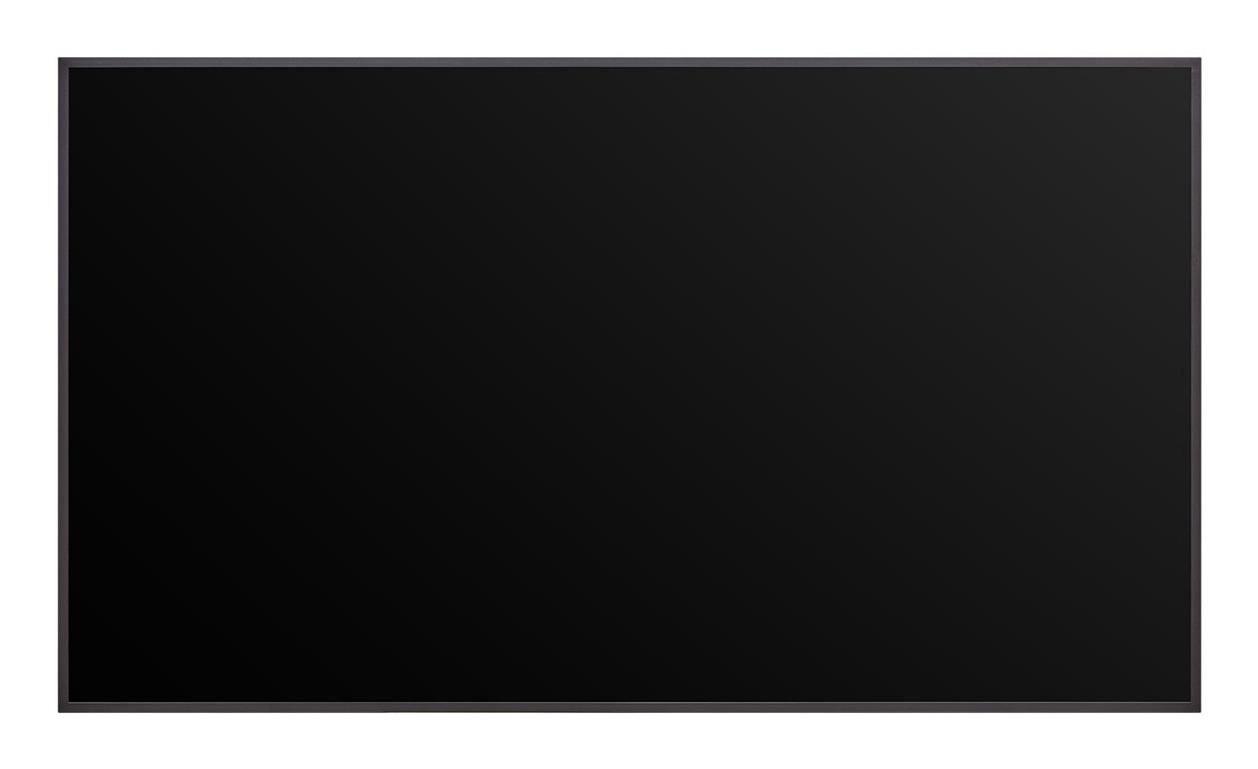

Even & Slim Bezel Design
The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
* SoC : System On Chip
** SI : System Integrator
Design for Space Utilization

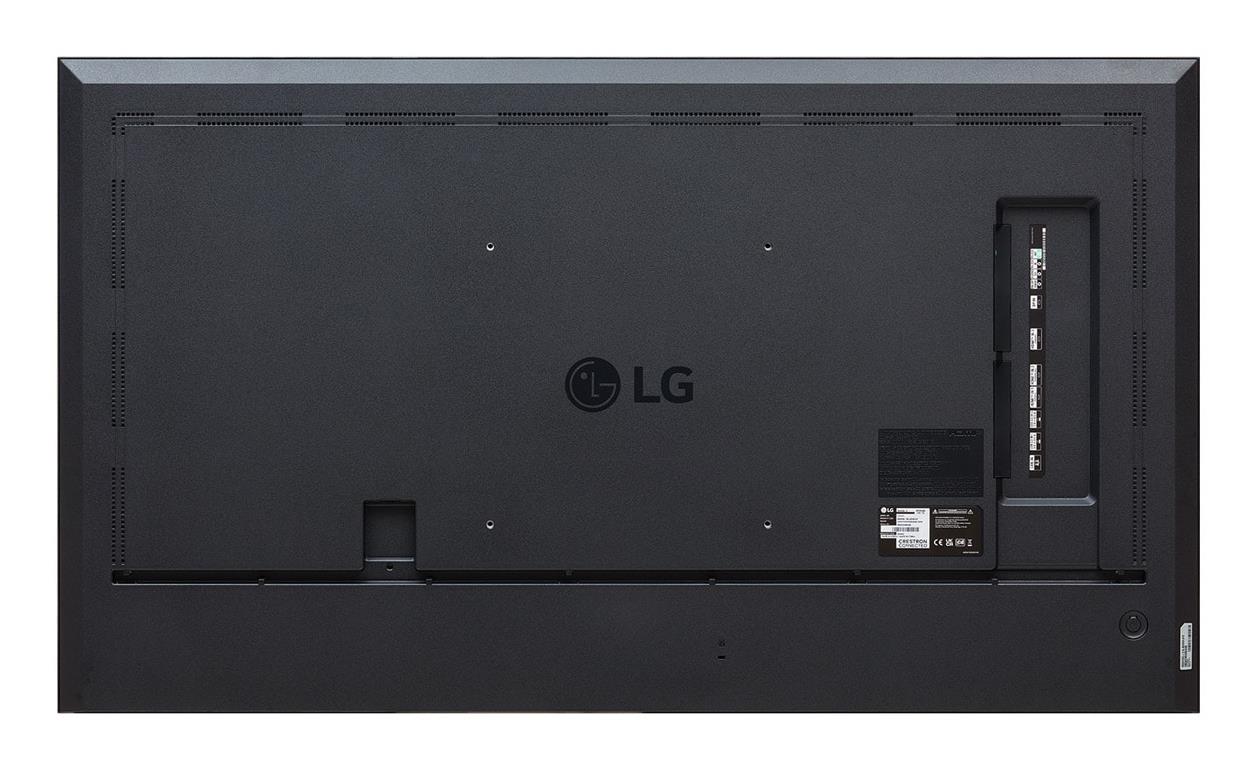

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
* SuperSign must be purchased separately.
Specifikacijos
| Vendor Homepage | https://www.lg.com/global/business/digital-signage/lg-43uh5q |
|---|---|
| Category Code | LCD |
| Unit Box Height | 0.66 |
| Unit Box Length | 1.05 |
| Unit Box Width | 0.135 |
| Colour depth | 10 bit |
| Colour gamut | 95 % |
| Contrast ratio (dynamic) | 1000000:1 |
| Contrast ratio (typical) | 1200:1 |
| Display brightness | 500 cd/m² |
| Display diagonal | 43 " |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LCD |
| HD type | 4K Ultra HD |
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Panel life | 50000 h |
| Panel type | ADS |
| Response time | 8 ms |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |

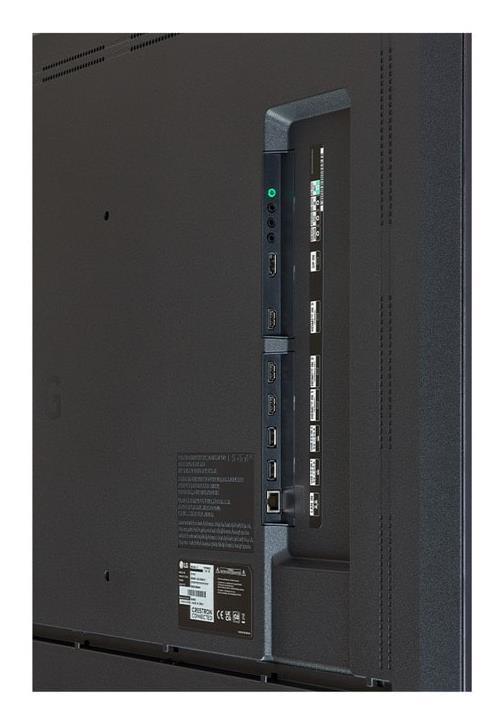

| DisplayPorts in | 1 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI input ports quantity | 3 |
| HDMI ports quantity | 3 |
| PC Audio out | Yes |
| Remote (IR) input | 1 |
| RS-232C | Yes |
| USB connector type | USB Type-A |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Bezel colour | Black |
| Orientation | Horizontal/Vertical |
| Panel mounting interface | 200 x 200 mm |
| Placement supported | Indoor |
| Product colour | Black |
| Product design | Digital signage flat panel |
| VESA mounting | Yes |
| Automatic brightness control | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| International Protection (IP) code | IP5X |
| Number of OSD languages | 21 |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| Picture-in-Picture | Yes |
| Purpose | Universal |
| Smart modes | Energy saving |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 82.6 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | G |
| Heat dissipation | 222 BTU/h |
| Power consumption (max) | 124 W |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 65 W |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Internal memory | 16 GB |
| Operating system installed | WebOS |
| Operating system version | webOS 8.0 |
| Display depth | 29.7 mm |
| Display height | 561 mm |
| Display weight | 9400 g |
| Display width | 971.7 mm |
| Package depth | 140 mm |
| Package height | 660 mm |
| Package weight | 11300 g |
| Package width | 1055 mm |
| Batteries included | Yes |
| Cables included | AC |
| Remote control included | Yes |
| Operating relative humidity (H-H) | 10 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Certification | CB / NRTL / FCC Class "B" / CE / KC |
| Ethernet LAN | Yes |
| Security algorithms | SNMP |
| Wi-Fi | Yes |
| Heat dissipation (max) | 423 BTU/h |
| Real Time Clock (RTC) | Yes |
| Surface treatment | 25% |
| Sustainability certificates | ENERGY STAR/ErP |
| Bezel width | 11.4 mm |
| Built-in brightness sensor | Yes |
| Plug and Play | Yes |
| Power consumption (PowerSave) | 46 W |
| Power supply type | Internal |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2406049/fiches?language=EN |
| Energy efficiency class | G |
| EPREL Registration Number | 2406049 |
| EPREL Version Number | 1.001 |
| Model | 43UH5Q-E |
| Model name | 43UH5Q |
| Unit Calculated Volume | 0.093555 cubm |
| Unit Calculated Weight | 11.5 kg |
