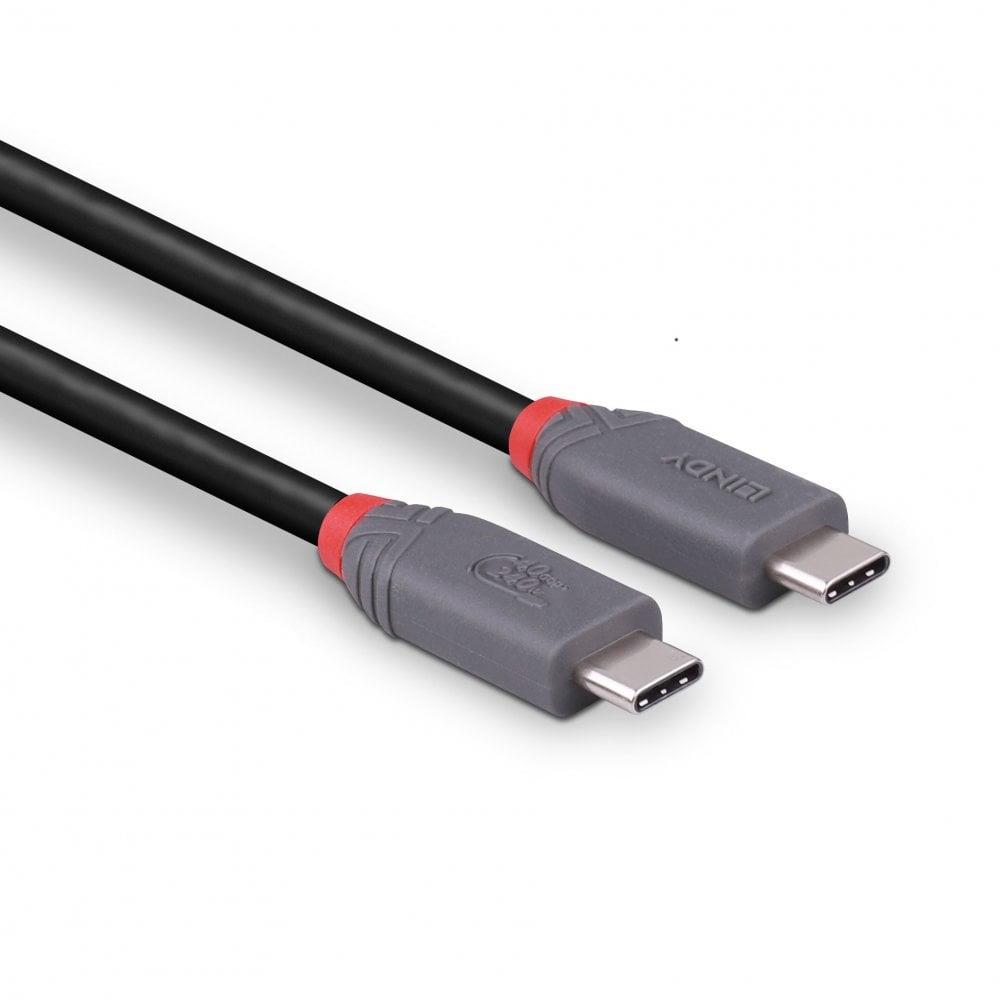

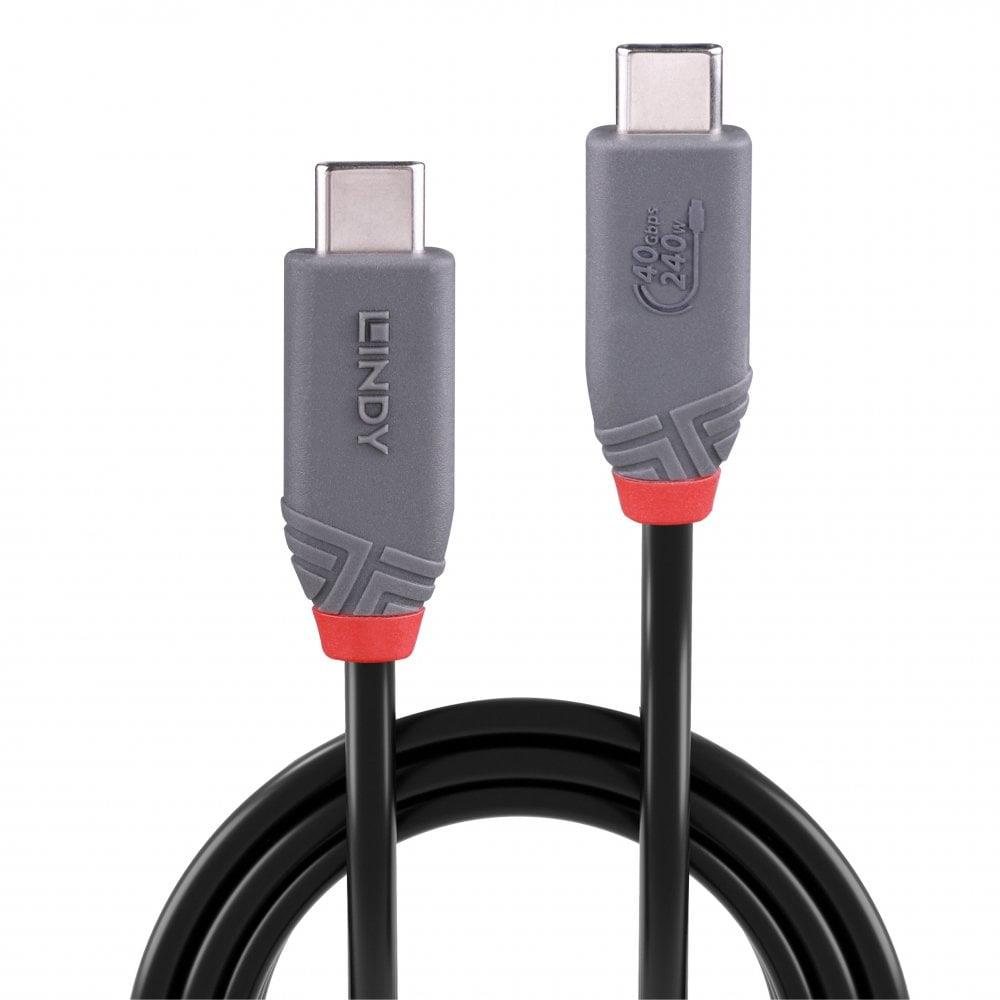

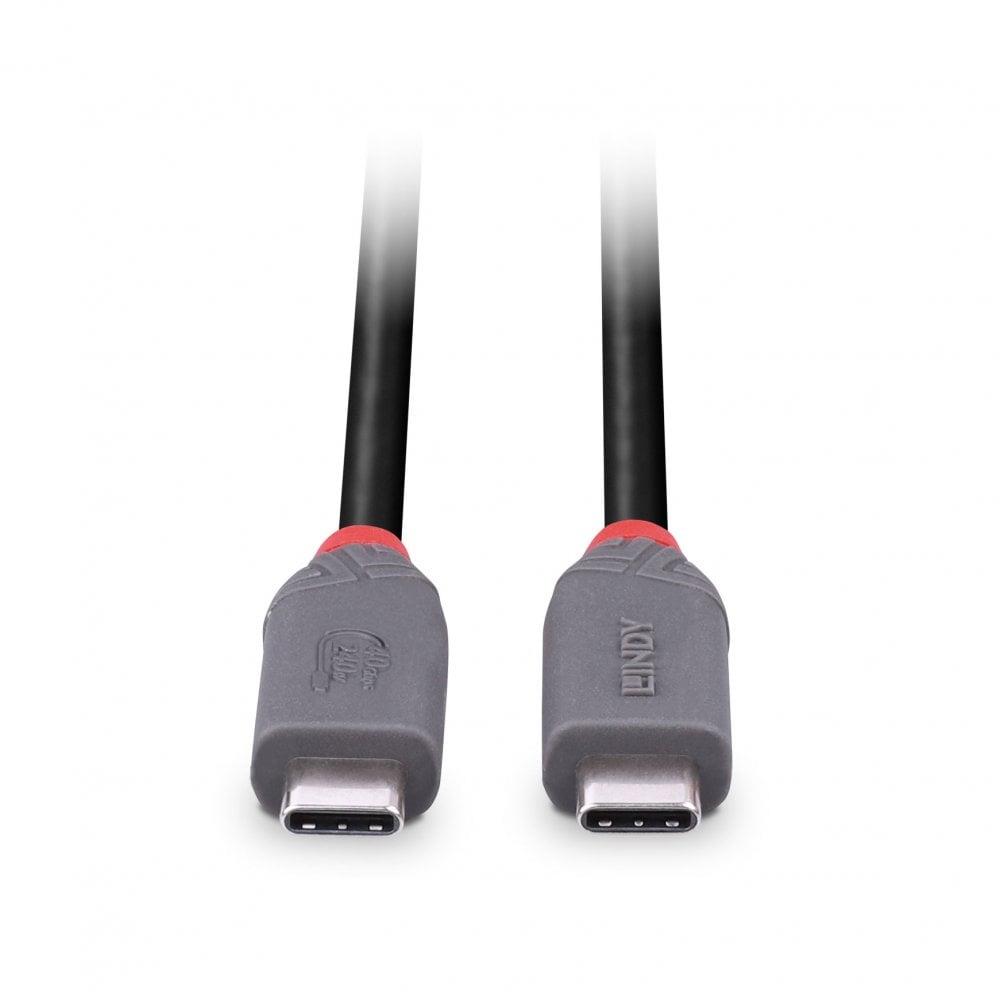

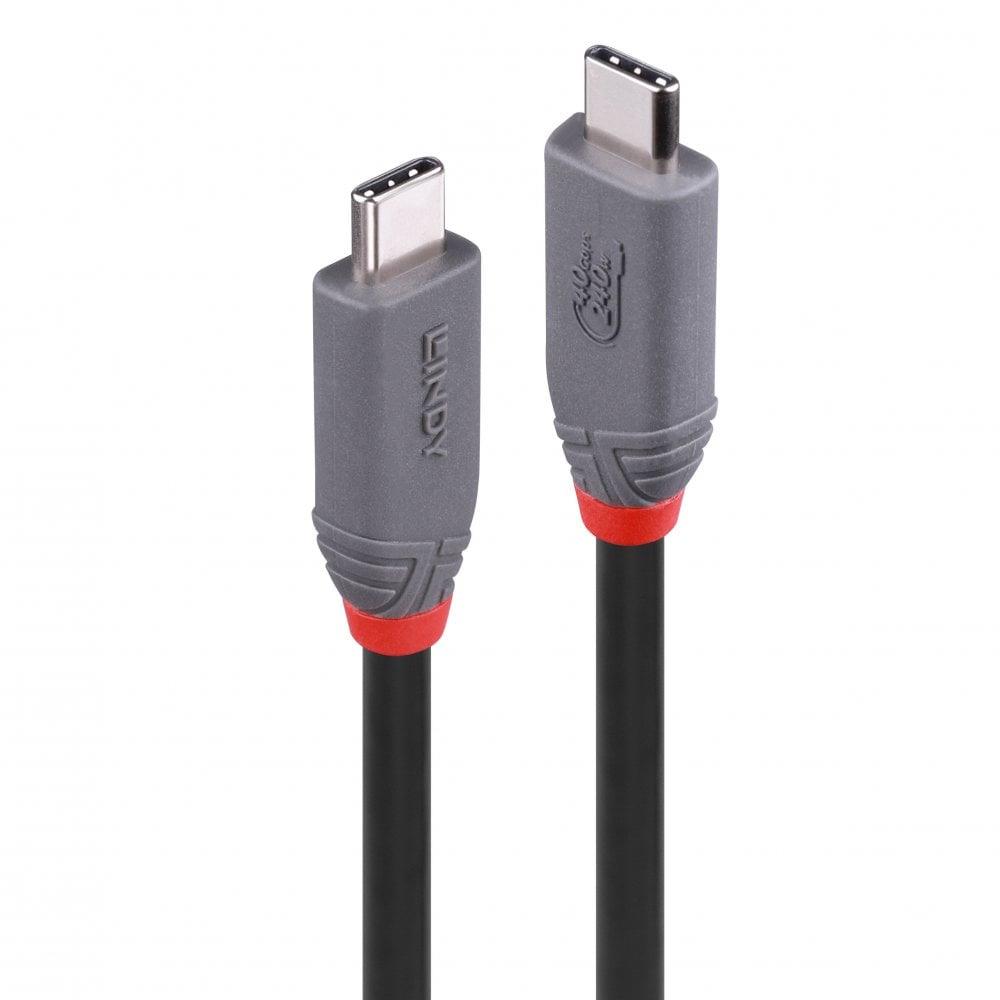

The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
- Professional choice USB 4 Gen 3x2 Type C to C cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2 , USB 2.0 and Thunderbolt 3)
- Supports USB Power Delivery up to 240 Watt and DisplayPort 2.0 Alternate Mode with single 8K or dual 4K@60Hz
- Triple shielded coaxial cable, gold plated contacts and nickel plated connectors
- 2 year warranty
Specifikacijos
| Vendor Homepage | https://www.lindy.co.uk/cables-adapters-c1/usb-c449/2m-usb-4-240w-type-c-cable-anthra-line-p14853 |
|---|---|
| Category Code | UCB |
| Unit Box Height | 0.015 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.12 |
| Bend radius (min) | 28.8 mm |
| Cable diameter | 4.8 mm |
| Cable length | 2 m |
| Connector 1 dimensions (WxDxH) | 30 x 12.4 x 6.5 mm |
| Connector 2 dimensions (WxDxH) | 30 x 12.4 x 6.5 mm |
| AWG wire size | 23/30/34 |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Cable type | Round cable |
| Conductor material | Copper |
| Connector 1 | USB C |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Connector material | Nickel |
| Connector shield material | Copper |
| Connector shielding | Yes |
| Maximum data transfer rate | 40000 Mbit/s |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Product colour | Black |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 240 W |
| USB version | USB4 Gen 3x2 |
| Quantity per pack | 1 pc(s) |
| Sustainability certificates | UL ECOLOGO |
| Sustainability compliance | Yes |
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Compliance certificates | REACH/RoHS |
| UN number | ` |
| Warranty period | 2 year(s) |
| Model name | 2m USB 4 240W Type C Cable, Anthra Line |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000216 cubm |
| Unit Calculated Weight | 0.14 kg |
