150m Cat.6 HDMI 4K60, IR, RS-232 & Audio HDBaseT KVM Extender, Receiver
Extend HDMI® and USB signals up to 150m via HDBaseT
Distributes HDMI® resolutions up to 150m over Cat.6 network cable via HDBaseT technology with Long Reach mode
Supports HDMI® 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR

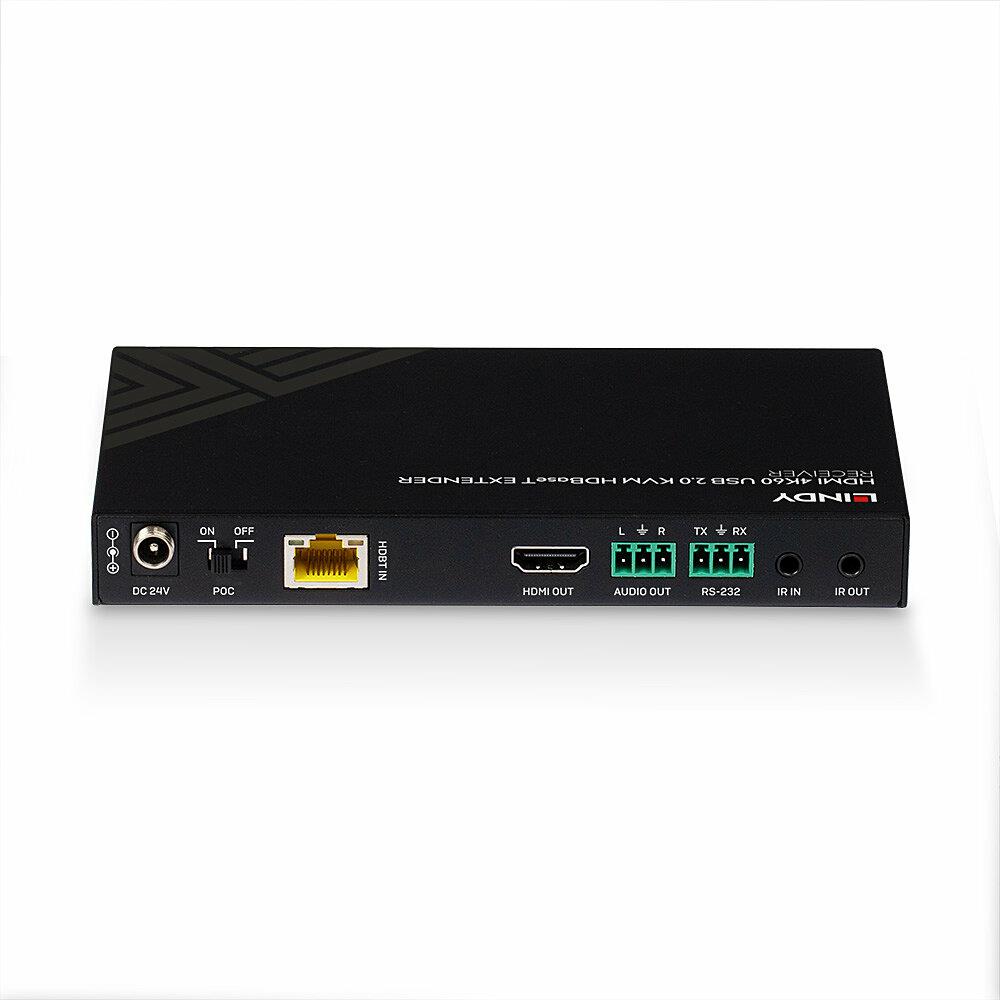

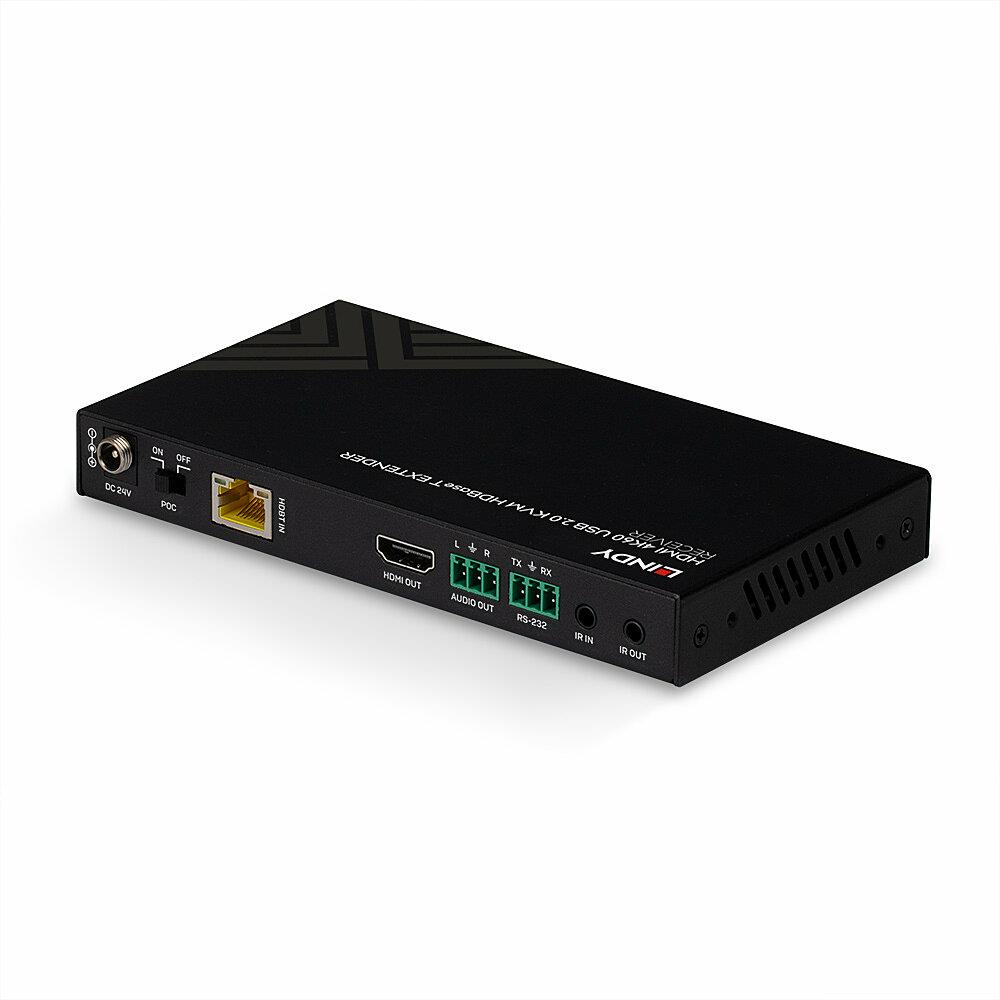

Supports USB 2.0, Audio, RS232 and bi-directional IR for control
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
2 year warranty

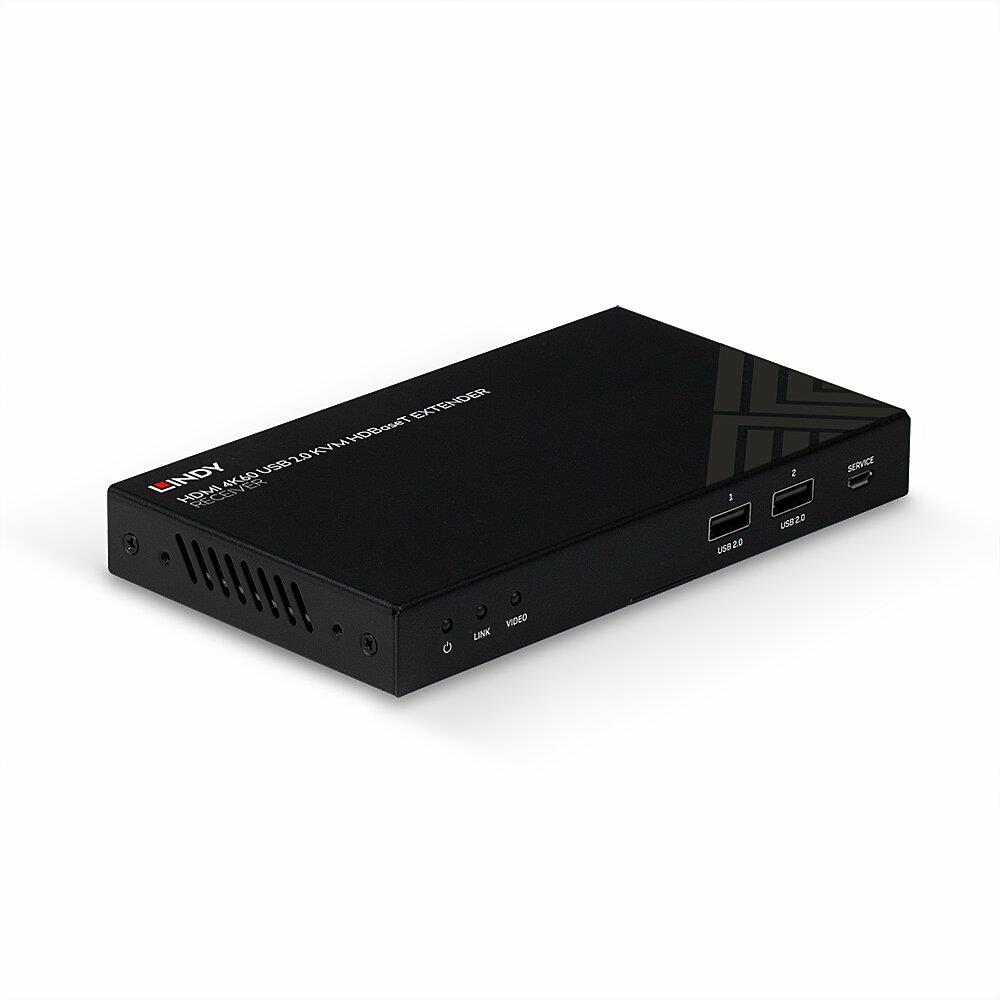

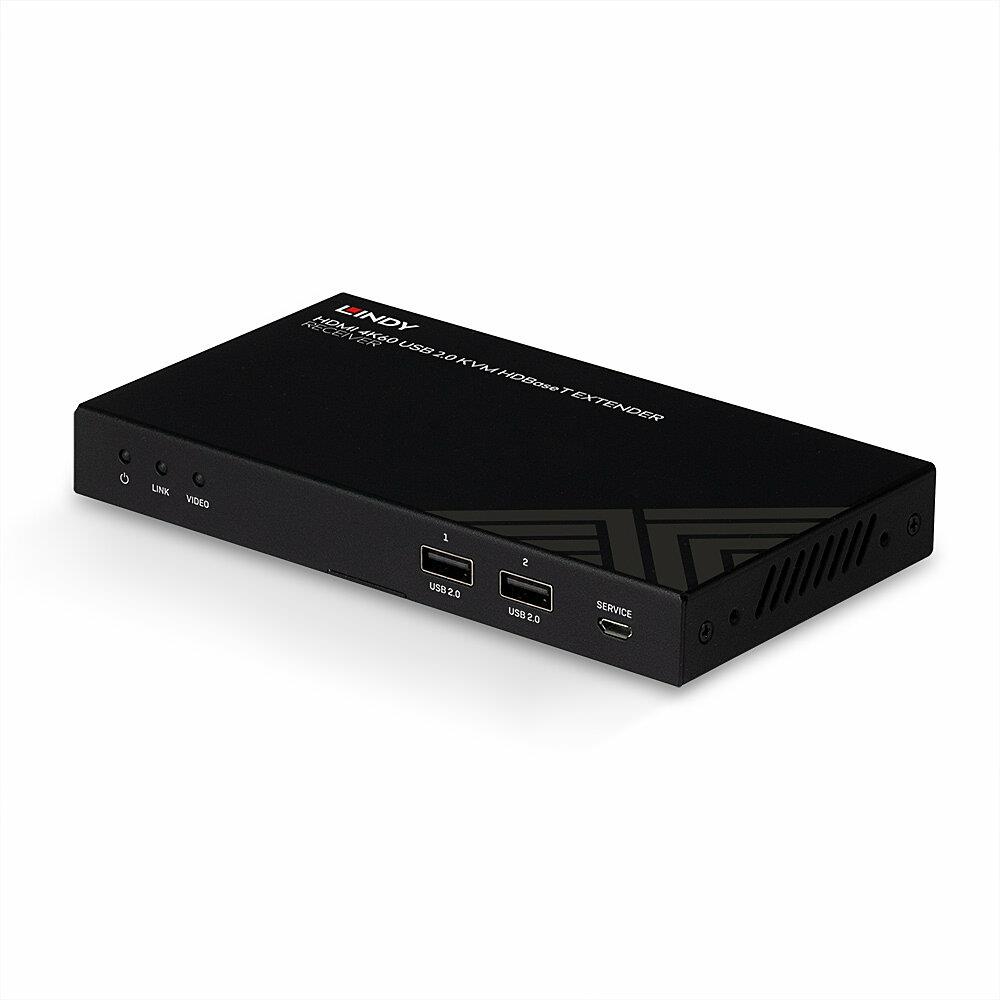

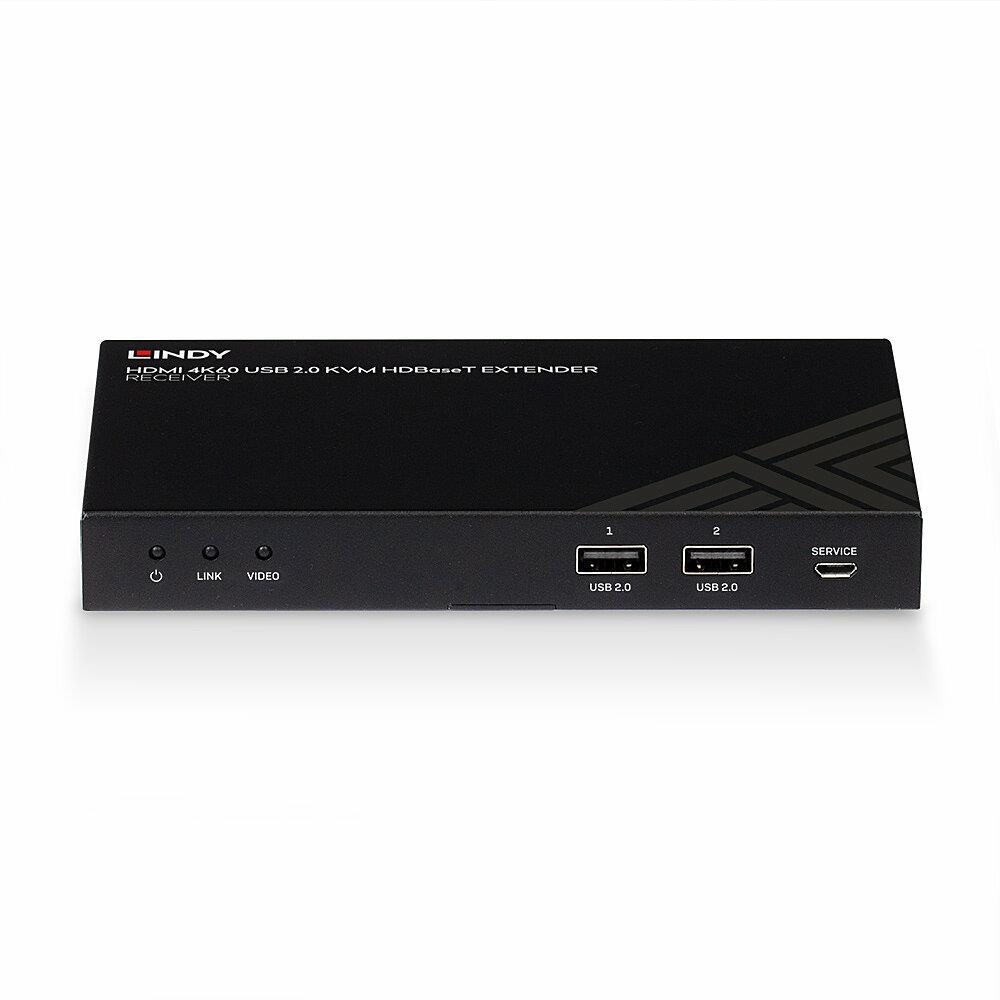

The Lindy 150m Cat.6 HDMI® 4K60, IR, RS232 & Audio HDBaseT KVM Receiver is one part of a high performance, reliable solution for extending AV and data signals over long distances via Cat.6 network cable.
By combining this Receiver unit with a compatible HDBaseT Wall Plate Transmitter such as Lindy No. 38387 and 38388, this solution ensures reliable transmission up to 150m.
Specifikacijos
| Vendor Homepage | www.lindy.eu/150m-Cat-6-HDMI-4K60-IR-RS-232-Audio-HDBaseT-KVM-Extender-Receiver.htm?websale8=ld0101.ld021102&pi=38389 |
|---|---|
| Category Code | IOC |
| Unit Box Height | 0.072 |
| Unit Box Length | 0.221 |
| Unit Box Width | 0.133 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| RS232 | 1 |
| USB 2.0 | 2 |
| Product Type | Extender |
| Number of channels | 1 |
| Cable length | 150 m |
| Included Accessories | IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m Multi-country Power Supply (UK, EU, US & AUS) 2 x 3-Pin Terminal Block 2 x Mounting Ears & 4 x Screws |
| Power supply requirements | 24VDC 1A |
| Dimensions | 157x20x88mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002116 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 0.79 kg |
