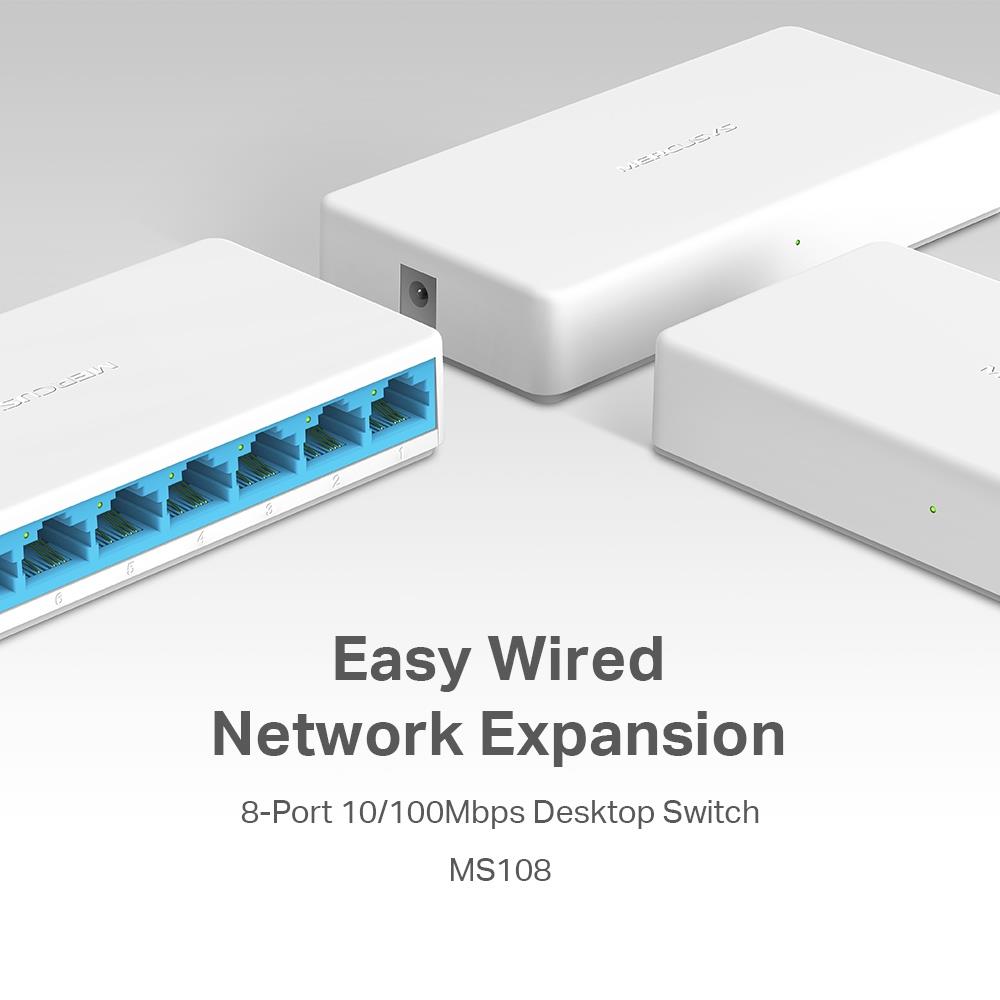

Easy Wired
Network Expansion
8-Port 10/100Mbps Desktop Switch
MS108

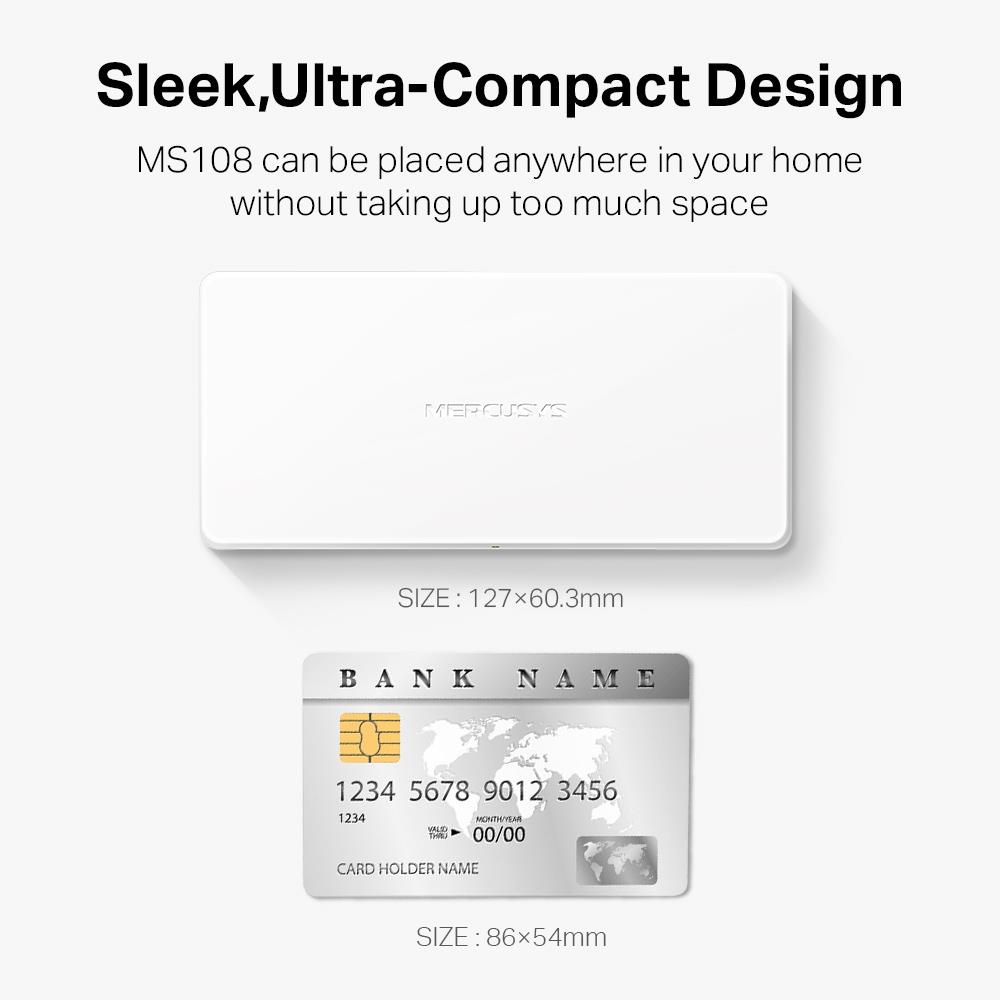

Sleek,Ultra-Compact Design
About the same size as a smartphone, the MS108 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
Expand Ethernet Network
With eight 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS108 is flexible and is fully compatible with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for home, small
office, and even dormitory environments.
Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology,
the MS108 provides up to 1.6Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment, ensuring that the MS108 will provide reliable, uninterrupted connections
for years to come.
- Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
Specifikacijos
| Vendor Homepage | https://www.mercusys.com/uk/product/details/ms108 |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.09 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Jumbo frames | 2000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| LED indicators | Activity/Power |
| Product colour | White |
| Rack mounting | No |
| Stackable | No |
| Input current | 0.4 A |
| Input voltage | 5 V |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 60.2 mm |
| Height | 22 mm |
| Width | 127 mm |
| Manual | Yes |
| Quick start guide | Yes |
| Package depth | 80 mm |
| Package height | 57 mm |
| Package weight | 180 g |
| Package width | 132 mm |
| Certification | RoHS CE |
| Harmonized System (HS) code | 85176990 |
| Units per Shipping Box | 60 |
| Unit Calculated Volume | 0.0008085 cubm |
| Unit Calculated Weight | 0.188 kg |
