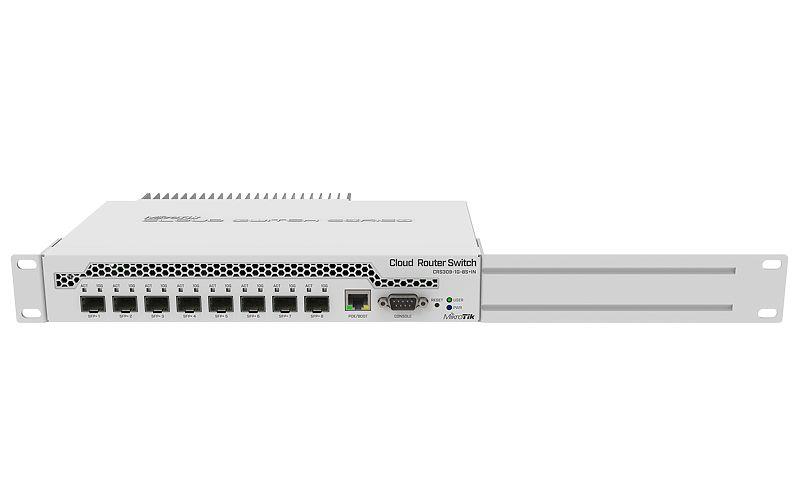

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports
The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
Mikrotik CRS309-1G-8S+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1, Console port: RS-232. Switching capacity: 162 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 12 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
Specifikacijos
| Vendor Homepage | https://mikrotik.com/product/crs309_1g_8s_in#fndtn-specifications |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.206 |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RS-232 |
| Power connector | DC-in jack |
| SFP+ module slots quantity | 8 |
| 10G support | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Switching capacity | 162 Gbit/s |
| Product colour | White |

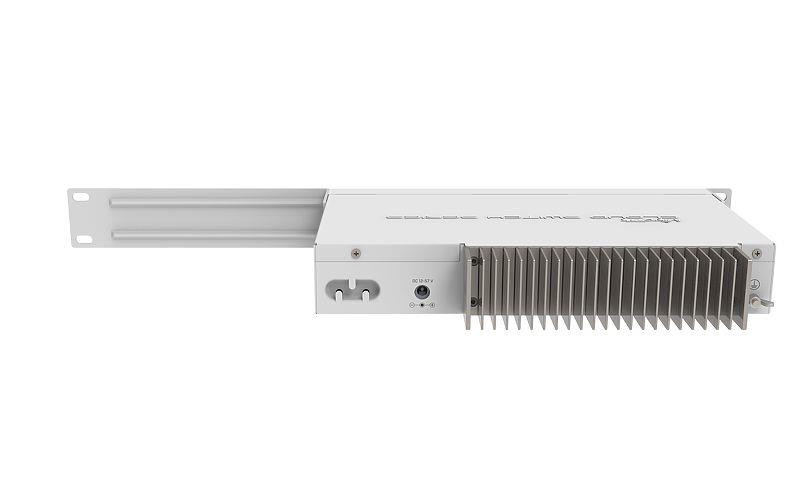

| Rack mounting | Yes |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 512 MB |
| Memory type | RAM |
| Processor frequency | 800 MHz |
| DC input voltage | 12 - 57 V |
| Output current | 1.2 A |
| Power consumption (max) | 23 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage range | 18 - 57 V |
| Operating temperature (T-T) | -40 - 70 °C |
| Depth | 115 mm |
| Height | 28 mm |
| Width | 141 mm |

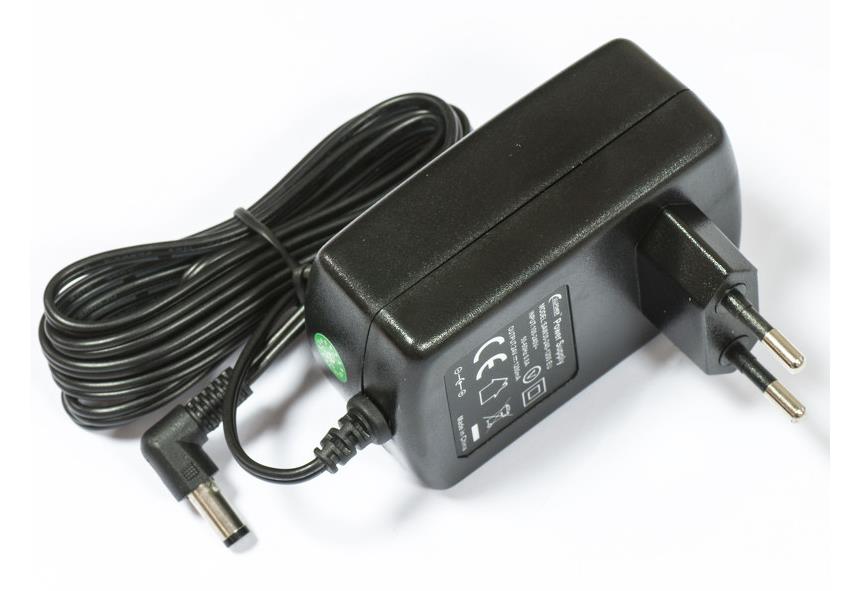

| AC adapter included | Yes |

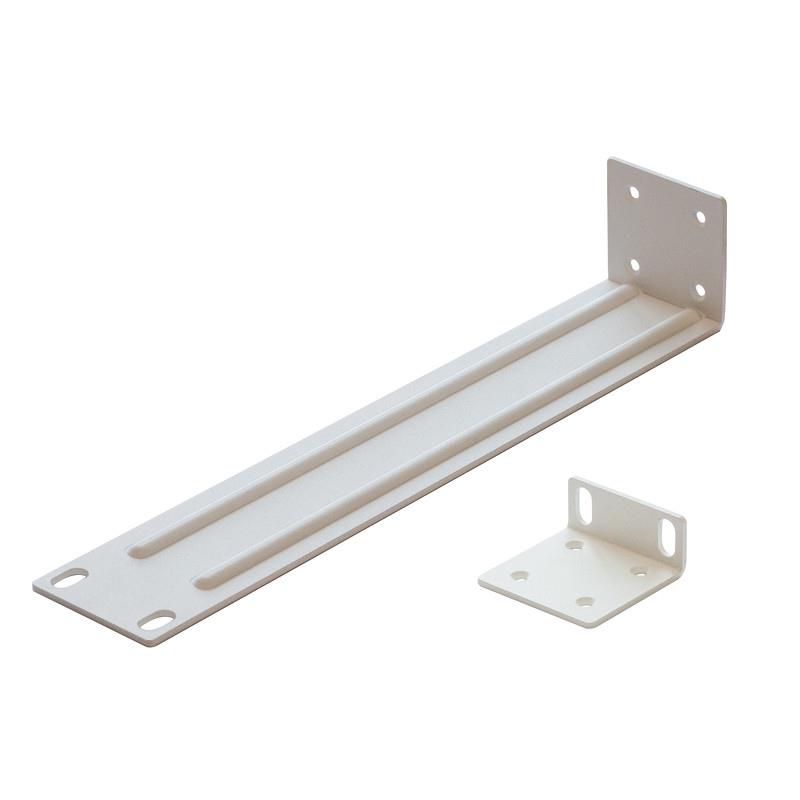

| Mounting brackets included | Yes |

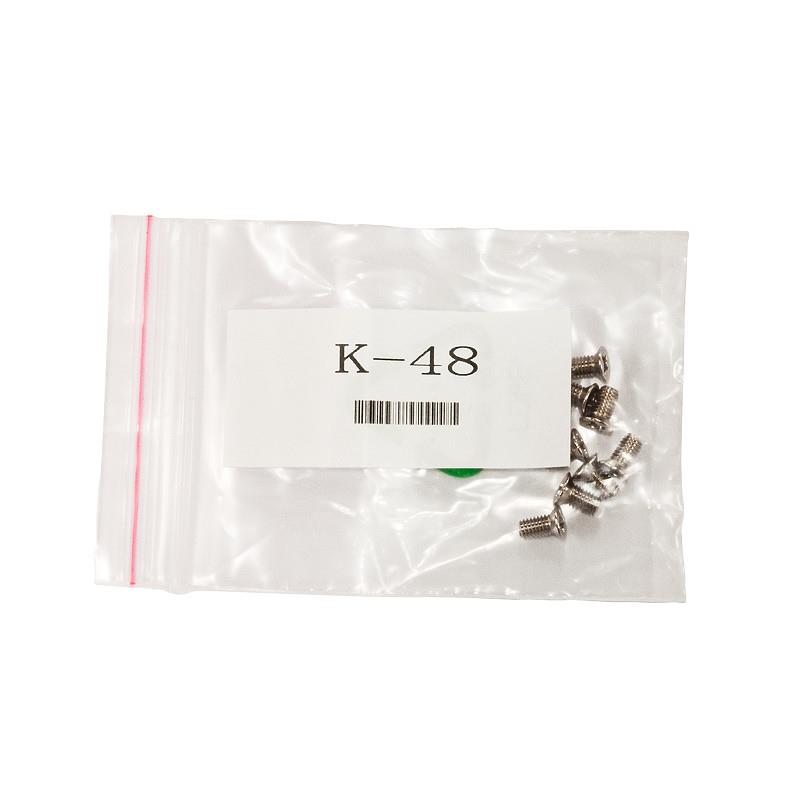

| Screws included | Yes |
| Model name | CRS309-1G-8S+IN |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.005152 cubm |
| Unit Calculated Weight | 1.28 kg |
