Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.

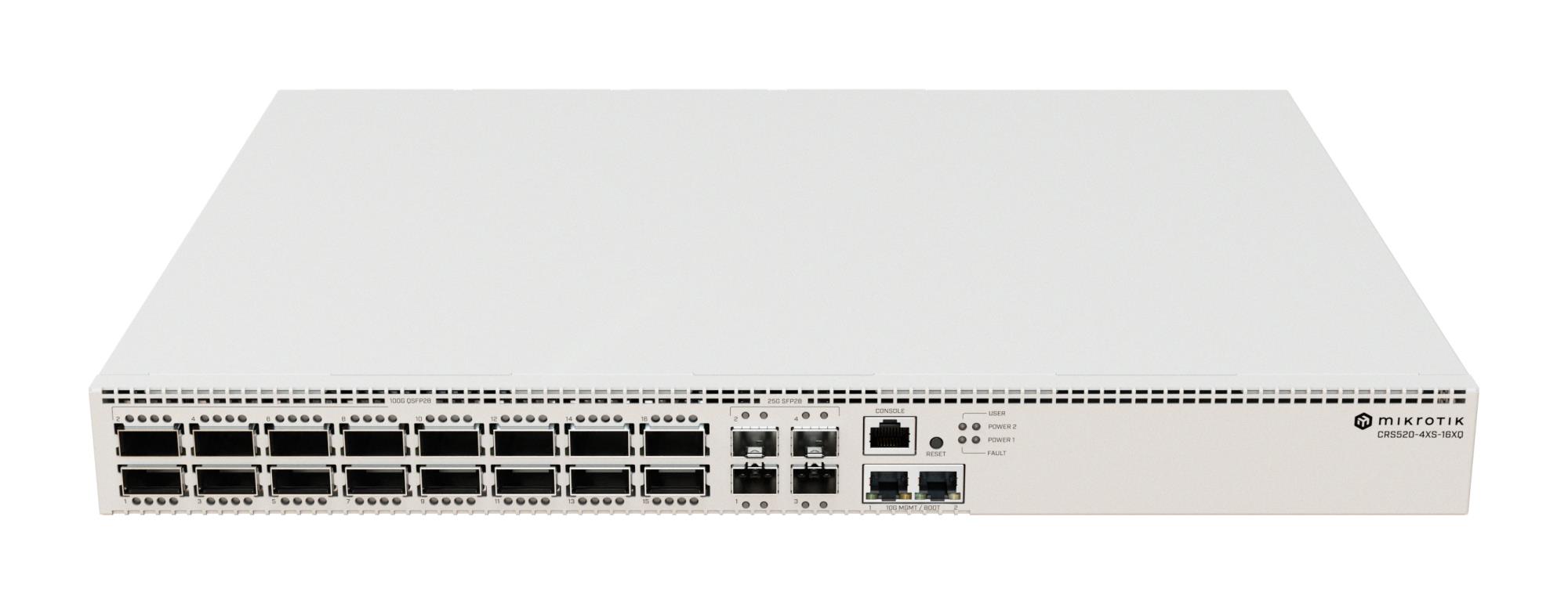

With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!
Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:
1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;
2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

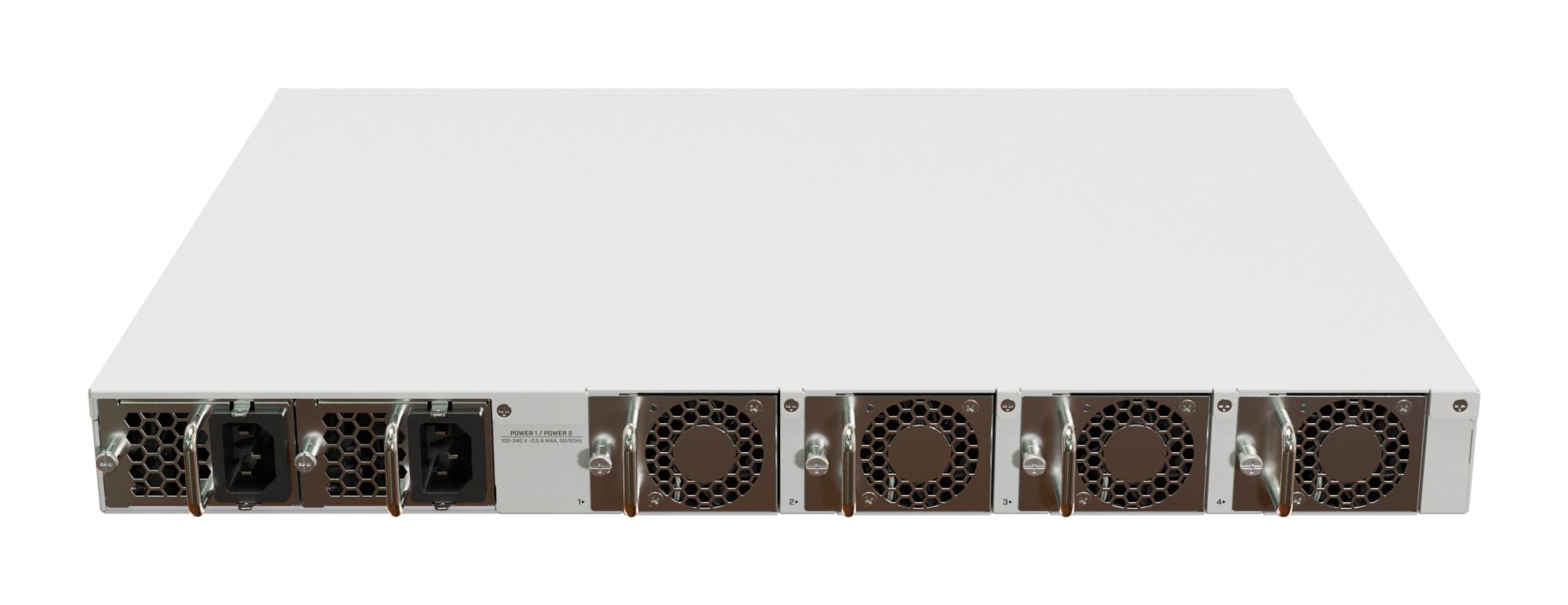

Two hot-swap power supplies and four hot-swap fans for cooling are included. This switch can also be powered by the PW48V-12V150W Hot Swap -48V DC telecom power supply, available separately.
Specifikacijos
| Summary | Mikrotik CRS520-4XS-16XQ-RM. Console port: RJ-45. Rack mounting |
|---|---|
| Vendor Homepage | https://mikrotik.com/product/crs520_4xs_16xq_rm#fndtn-specifications |
| Category Code | SWI |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.63 |
| Unit Box Width | 0.45 |
| 10G Ethernet (copper) ports quantity | 2 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 16 |
| SFP28 ports quantity | 4 |
| 10G support | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 4000 MB |
| Mean time between failures (MTBF) | 200000 h |
| Memory type | Flash |
| Operating system installed | RouterOS |
| Processor frequency | 2000 MHz |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 150 W |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -20 - 50 °C |
| Depth | 367 mm |
| Height | 44 mm |
| Width | 443 mm |
| Compliance certificates | CE/EAC/RoHS |
| Model name | CRS520-4XS-16XQ-RM |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.02977 cubm |
| Unit Calculated Weight | 6.85 kg |
