Designed with Modern Aesthetic

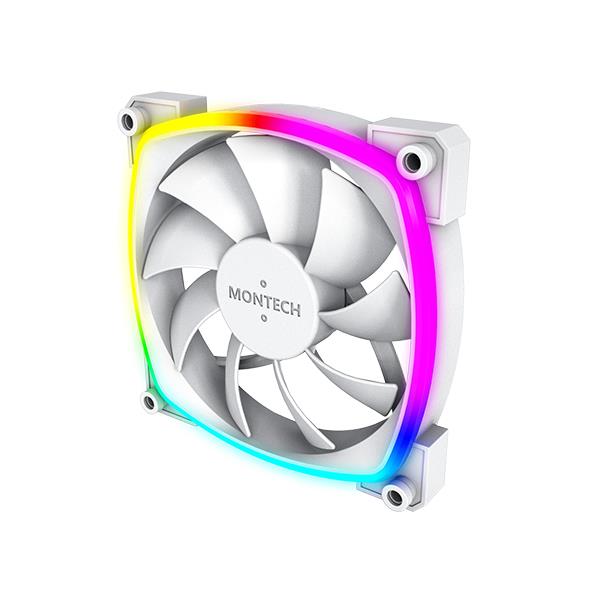

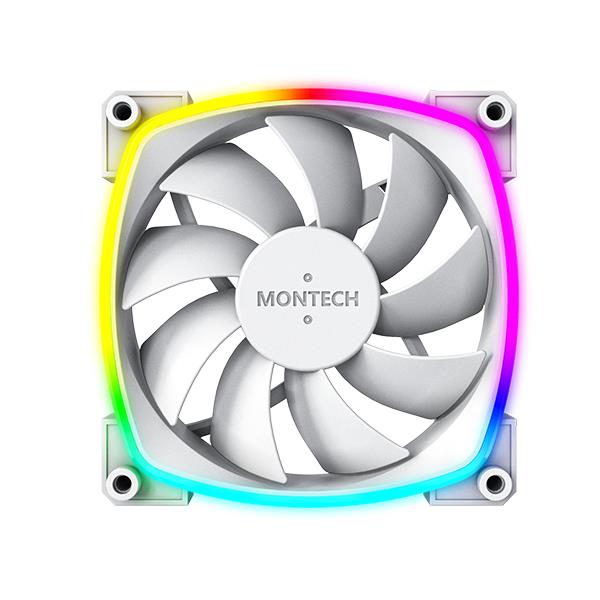

AX120 PWM integrates a total of 20 LEDs, the hexagonal RGB ring on the frame brings the design aesthetics to a new level. Further, it contains various lighting modes and supports 5V3PIN motherboard connectors for software control. All leading to complete and full customization of your build.
Built For System Cooling Performance

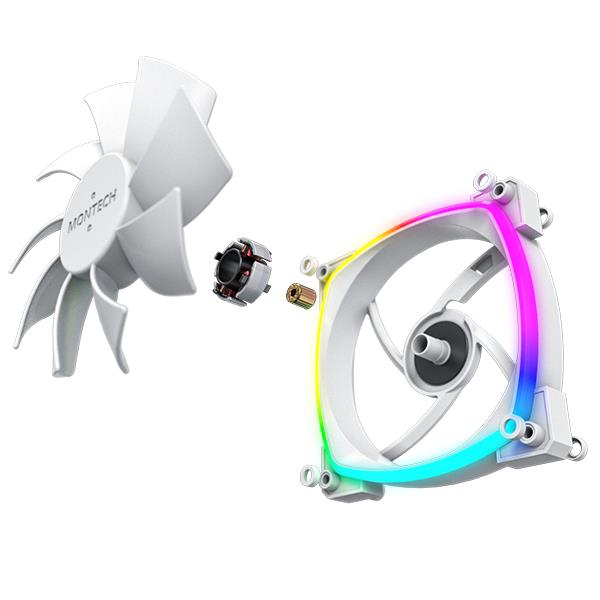

Whether as a case, radiator, or radiator fan, the AX120 PWM covers complete specifications and compatibility. The meticulous design from the bending angle of nine-blade fan set stabilizes the airflow, thereby drastically improves heat dissipation capacity. Simultaneously, reducing noise during fan operation. The AX120 PWM is capable of delivering stable operation while cooling a super high-end build!
PWM Automatic Control Mode
Thanks to the advanced PWM controls, the fan speed can be adjusted based on system temperature smartly monitored by the motherboard, which allows the user to adjust the fan speed at will from 800RPM up to 1600 RPM and cool you PC efficiently.
Silent Operation
AX120 PWM uses tailored frame and blades that are optimized for max quietness. Even at it's highest RPM, the noise level is under 27 dB(A), the combination of silence and high performance is the best choice for your gaming build.
Durable Rifle bearing
Compared to other hydraulic bearing fans, the Rifle bearing enables an extremely long-life span of 80,000 hours. It has been proven to have longer durability, longevity, and much lower noise.
Vibration Proof Structures
Our Integrated 8 rounded anti-vibration pads, reduce vibration and the noise caused from resonance phenomena.
Flexible Options
Choose Between Single Pack or 3-in-1 for Your Cooling Needs.
- Impressive ARGB Lighting
- Excellent Case/Radiator and CPU Cooler Fan
- 4PIN PWM Smart Control
- Nine Specialized Wing Shaped Blades for added performance
- Near Silent Operation
- Ultra Durable Rifle bearing
Specifikacijos
| Quantity | > 100 |
|---|---|
| Vendor Homepage | https://www.montechpc.com/ax120-pwm |
| Category Code | COS |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.125 |
| Fan diameter | 120 mm |
| Maximum air pressure | 1.8 mmH2O |
| Maximum airflow | 59 cfm |
| Noise level (high speed) | 27 dB |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Rotational speed (max) | 1760 RPM |
| Rotational speed (min) | 720 RPM |
| Suitable location | Computer case,Processor |
| Type | Fan module |
| Fan connector | 4-pin |
| Illumination colour | Amber/Blue/Green/Red |
| Illumination LED | Yes |
| LED connector type | 3-pin |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Fan voltage | 12 V |
| Cable length | 0.5 m |
| Depth | 25 mm |
| Height | 120 mm |
| Package depth | 30 mm |
| Package height | 124 mm |
| Package width | 142 mm |
| Weight | 145 g |
| Width | 120 mm |
| Warranty period | 3 year(s) |
| Package type | Box |
| Fan performance | 59 cfm |
| Noise level | 27 dB |
| Model name | AX120 PWM |
| Units per Shipping Box | 60 |
| Unit Calculated Volume | 0.0006815 cubm |
| Unit Calculated Weight | 0.192 kg |
